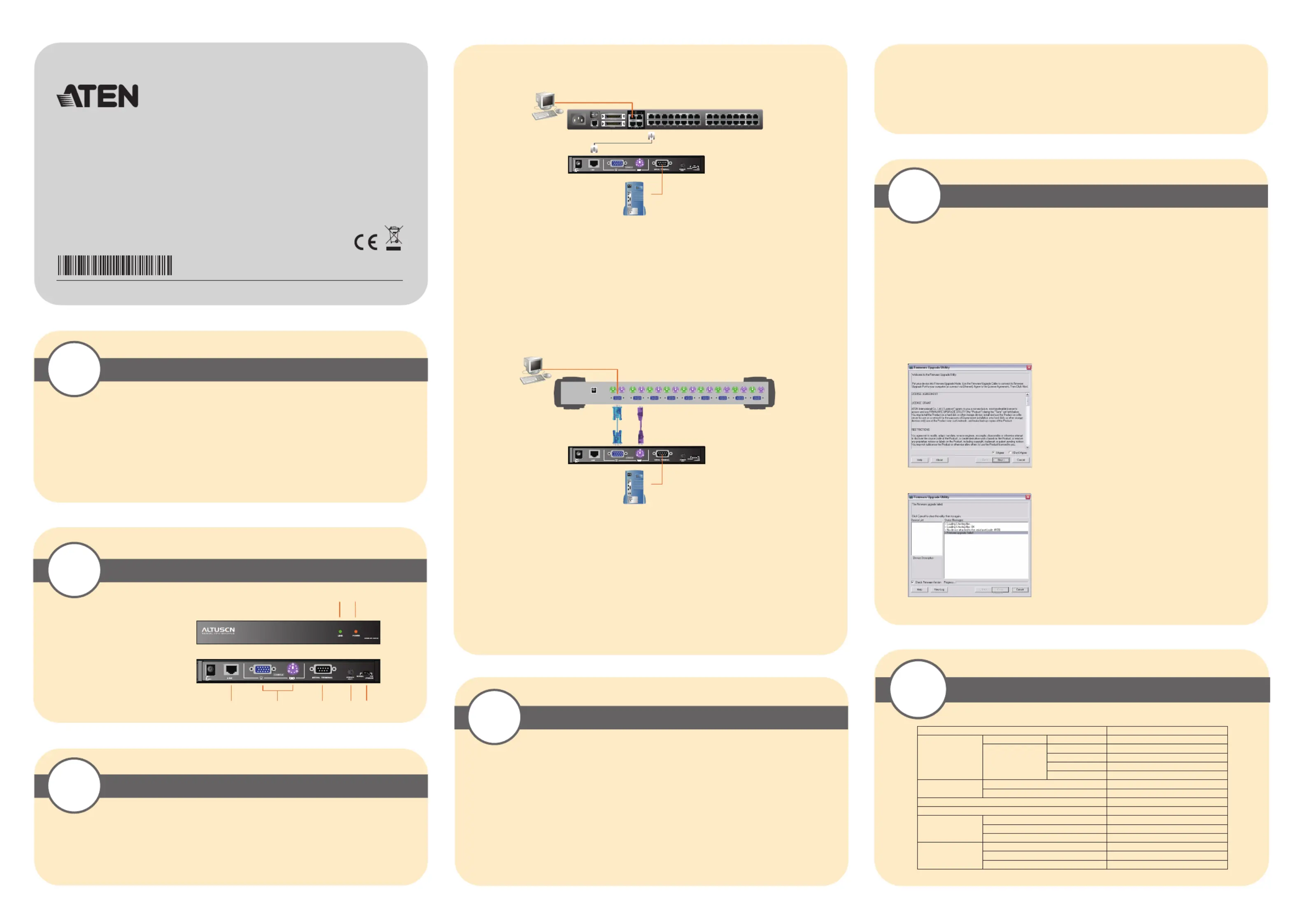

Package Contents

This Quick Start Guide briefly describes how to install and operate the KA9140 Serial

CPU Module with ATEN's PS/2 or Matrix type KVM Switch.

The complete package consists of:

• 1 KA9140

• 1 Power Adapter

• 1 Rack Mount Kit

• 1 Firmware Upgrade Cable

2Hardware Overview

1. Link (Green) LED

2. Power (Orange) LED

3. Link Port

4. Console Port

5. Serial Terminal Port

6. Firmware Upgrade Port

7. Firmware Upgrade Switch

For RJ45 Matrix Type KVM:

1. If you have a Matrix type KVM, simply plug one end of a RJ45 cable into any available

CPU port on your KVM switch and plug the other end into the RJ45 Link Port on your KA9140.

2. Plug one end of a standard 9 pin serial cable into the Terminal Port on your KA9140 and

the other end into the serial port on your VT-100 terminal.

3. Plug the Power Adapter into a wall socket, then plug the cord end into the Power Jack on

your KA9140.

4. Use Hotkeys to configure the port settings.

For PS/2 Type KVM:

1. If you have a PS/2 type KVM, plug one end of a standard 15 pin VGA to VGA cable into

any available CPU VGA port on your KVM then plug the other end into the VGA Console Port

on your KA9140.

2. Plug one end of a standard PS/2 to PS/2 cable into a matching PS/2 Keyboard on your

KVM then plug the other end into the Keyboard Console Port on your KA9140.

3. Plug one end of a standard 9 pin serial cable into the Terminal Port on your KA9140 and

the other end into the serial port on your VT-100 terminal.

4. Plug the Power Adapter into a wall socket, then plug the cord end into the Power Jack on

your KA9140.

5. Use Hotkeys to configure the port settings.

PS/2 KVM Switch

VT-100

KVM Console

KA9140

Firmware Upgrade Utility

The KA9140's firmware can be upgraded via a cable connection to a computer. Follow the steps

listed below if you need to upgrade:

Matrix KVM Switch

VT-100

KVM Console

KA9140

5. Run the self extracting firmware upgrade file. The

instructions are self explanatory.

6. The main screen will display all the devices that

are detected and can be upgraded.

7. If you check the Check Firmware Version box,

The upgrade utility will check to see if the firmware

version is newer than what is already embedded.

8. If the file is newer, follow the instructions on the

screen. If not, you will be prompted with a warning

message and instructed to continue or exit.

9. If you continue, the firmware will be

reprogrammed and if successful, will prompt you

with a Upgrade Successful message.

10. If you receive a Upgrade Failed message, you

should check all the connections and repeat the

upgrade procedure from the beginning.

1. From any computer that is not part of your KVM installation, go online to the

www.aten.com website and download the latest Firmware Upgrade for your KA9140.

2. Power off and unplug the KA9140 from your KVM and connect it to your computer with

the included Firmware Upgrade Cable. Plug one end into the Firmware Upgrade Port on your

KA9140 and the other end to a serial port on your computer.

3. Slide the Firmware Upgrade Switch to the UPGRADE position.

4. Power On your KA9140.

License Agreement

Firmware Upgrade Utility

Note: the video resolution depends on the Terminal. The recommended resolutions are

800 x 600 @ 60 Hz for 80 characters per line and 1152 x 864 @ 75 Hz for 132

characters per line. Flow control (Xon/Xoff or Hardware) is also determined by your

terminal.

* default

• 4 Foot Pads

• 1 User Instructions

3Hardware Installation

You will need:

• At least one KVM Switch and one VT-100 compatible Terminal

• 1 standard 9 pin RS-232 serial to serial interface cable

• 1 RJ45 cable (max 150m) for Matrix type KVM

• 1 standard PS/2 to PS/2 cable for PS/2 type KVM

• 1 standard 15 pin VGA to VGA cable for PS/2 type KVM

Configuration

Use keyboard hotkey combinations to configure your port settings. Press the [ALT] key twice to

invoke Hotkey Mode. A prompt will appear on your screen with your current settings. Press any

Hotkey below tochange your settings. Whendone, press the[ESC]or spacebar to save and exit.

[A]: Config

[A] 9600 bps baud rate*

[B] 19200 bps baud rate

[C] 38400 bps baud rate

[D] 57600 bps baud rate

[E] 115200 bps baud rate

[F] Parity None*

[G] Parity Even

[H] Parity Odd

[I] 8 bit data*

[J] 7 bit data

[K] 2 stop bits

[L] 1 stop bit*

[B]: Background Color

[A] Black*

[B] Red

[C] Green

[D] Yellow

[E] Blue

[F] Magenta

[G] Cyan

[H] White

[C]: Language

[A] English*

[B] French (reserved)

[C] German (reserved)

[D]: Restore Default Value

6Specifications

* All specifications are subject to change without notice.

Function KA9140

Connectors

Computer SideRS-232 1 x DB-9 Female

Console Side

Link1 x RJ-45 Female

Keyboard 1 x Min Din Female

VGA 1 x HDB-15 Female

Upgrade1 x Earphone-jack-4 Female

LEDs Power 1 (Orange)

Link1 (Green)

Switch (Normal / Upgrade) 1 x 2 way slide switch

Power Consumption DC 5V 1.5W

Environment

Operating Temp. 0˚ -50˚C

Storage Temp. -20˚ -60˚C

Humidity 0-80% RH, Non-condensing

Physical

Properties

Housing Metal

Weight 0.50 kg

Dimensions ( L x W x H )20.00 x 8.00 x 3.50 cm

1 2

3 5 6 74

KA9140 Serial CPU Module

Quick Start Guide

All information, documentation, firmware, software utilities, and specifications contained in this package are subject to change without prior

notification by the manufacturer. Please visit our website http://www.aten.com/download/?cid=dds for the most up-to-date versions.

Online Registration

• http://eservice.aten.com

Technical Phone Support

International:

• 886-2-8692-6959

China:

• 86-10-5255-0110

Japan:

• 81-3-5615-5811

Korea:

• 82-2-467-6789

North America:

• 1-888-999-ATEN Ext: 4988

United Kingdom:

• 44-8-4481-58923

ATEN Altusen™

Altusen and the Altusen logo are trademarks of ATEN International Co., Ltd.

This product is RoHS compliant PAPE-1214-D00G Printing Date: 01/2015
