Side 1/4
1/1
AtlasSound.com
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
©2012 Atlas Sound L.P. All rights reserved. Atlas Sound is a trademark of Atlas Sound L.P. All other trademarks are the property of their respective owners. All specs are subject to change without notice. ATS004340 RevA 5/12
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
MOUNTING
The speaker is provided with a 3-way omni-directional adjustable mounting bracket. The wing nut and the lock
pin allow 360˚ rotation and 130˚ vertical movement. Additional adjustment is provided between the bracket
and speaker by means of the 1⁄4" bolt. For ease of installation, the base can be separated from the speaker by
removing the 1⁄4" wing nut and locking pin.
CONNECTION
Audio source line-connection is made to the screw terminals. To insure reliability, these special terminals are
designed with wire retainers. Phasing is indicated throughout the communications system and attained by
maintaining polarity utilizing the numbers “1” & “2” cast into the speaker housing. 1= Common 2= Positive.
IMPEDANCE SWITCH SETTING
The AP-15T, APC-30T, APR-30T and APT-34T (70.7V and 25V line ) have a built-in, 7-position switch. The
AP-30T (70.7V line) and AP-30T-25 (25V line) have a built in 6 position switch. Both weather-sealed switches
select impedance or wattage taps. The slot in the shaft without the flat indicates the switch setting in use.
Desired wattage or impedance can be obtained by referring to the following table.
AP-15T, AP-30T, APC-30T, APR-30T
Omni-Purpose Loudspeakers
AP-15T AP-30T AP-30T-25 APC-30T, APR-30T, APT-34T
Switch 70.7V 25V 70.7V 25V 70.7V 25V
Position Watts Watts Ohms Watts Ohms Watts Ohms Watts Watts Ohms
1 0.9 - 5000 1.2 4000 1.2 500 1.8 - 2500
2 1.8 - 2500 2.5 2000 2.5 250 3.7 - 1300
3 3.8 0.48 1300 5.0 1000 5.0 125 7.5 - 666
4 7.5 0.94 666 7.5 666 7.5 83 15.0 1.8 333
5 15.0 1.8 333 15.0 333 15.00 42 30.0 3.7 167
6 - 7.5 89 30.0 167 30.0 21 - 7.0 89
7 - 15.0 45 - - - - - 15.0 45
ACCESSORIES:
Conduit/cable adapters Model BX-1A for AP-30 Models.
BX-2A for AP-15 Models & BX-3A for APF Models - Specially designed covers for conduit and armored cable connect directly into the speaker.
These accessories provide additional protection to the speaker wires, and the cover assures tamper-proof installation and vandalism-protection.

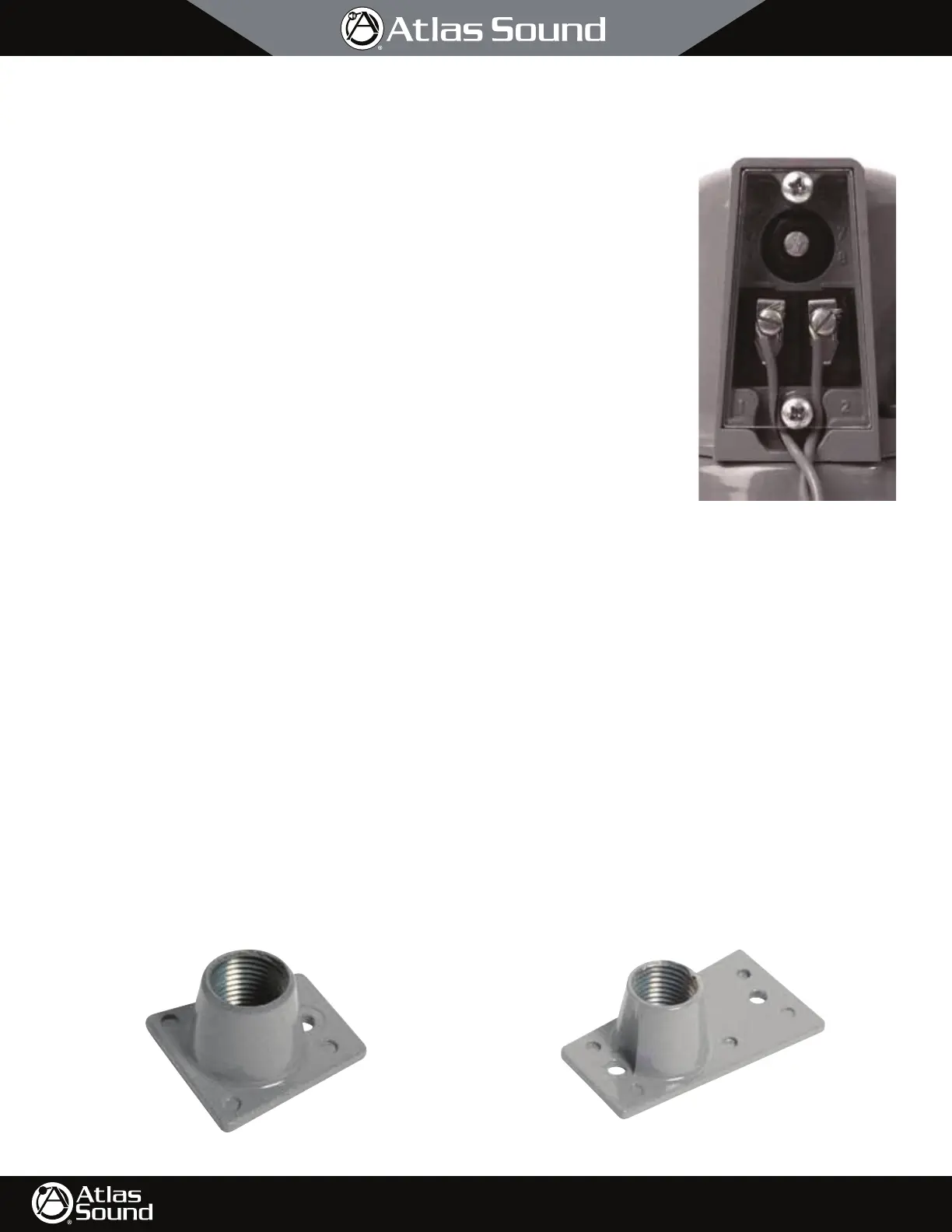

Speaker Connections and
Tap Selector
BX2ABX3A
