Side 1/1
1/1
AtlasSound.com
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
©2012 Atlas Sound L.P. All rights reserved. Atlas Sound is a trademark of Atlas Sound L.P. All other trademarks are the property of their respective owners. All specs are subject to change without notice. ATS004344 RevA 5/12
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.

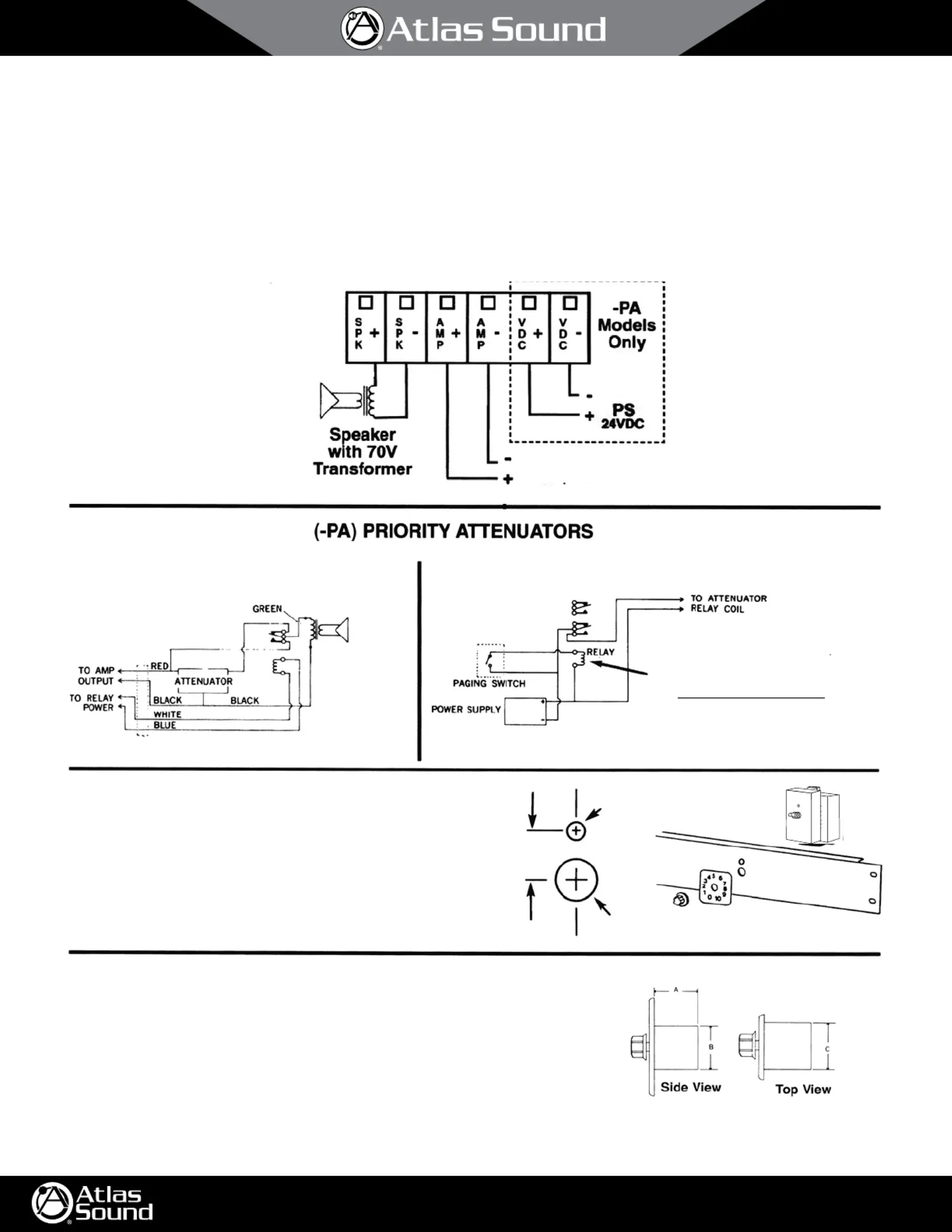

Attenuator Installations
Wiring
Each terminal will hold up to 2-16AWG stranded wire. For larger wires or home run situations, a small length of wire and a wire nut are
recommended. Attach wire according to label on terminal block as shown to the right (Non-PA Models will not have the "VDC+" and "VDC-"
terminals).
*Install the unit with the terminal block on top. This will ensure that the OFF position is in the bottom.
Schematics for Priority Attenuators Power Switching Req. for -PA Attenuators
Use 2nd external relay
when paging switch is part
of a paging microphone.
This will reduce hum and
noise pickup from the mic.
RELAY SPECIFICATIONS:
Coil Voltage: Coil Current: 24 VDC
10MA
Contacts: SPDT-2Amp Rating
Relay has a protective cover.
WIRING REQUIREMENTS: (1) PAIR FOR AUDIO, (1) PAIR FOR RELAY
(-RM) Rack Mount
Drill holes in panel using the template to the right. Peel off adhesive
backing on escutcheon overlay. Align hole openings with holes in
panel and affix to surface. Remove knob and nut from attenuator.
Insert bushing through large hole in panel making sure that the small
indentation on the bracket lines up with the small hole in the panel.
Fasten attenuator to panel with the nut. Fit attenuator knob on shaft.
Tighten screw on knob to secure.
Dimensional Specifications
-RM Models supplied without a faceplate. All other models supplied with a single
faceplate. Double gang stainless steel faceplate can be ordered separately.
MODEL A B C
AT10 21
8" (54mm) 234" (70mm) 134" (45mm)
AT35 21
8" (54mm) 234" (70mm) 134" (45mm)
AT100 21
2" (64mm) 234" (70mm) 134" (45mm)
7⁄ "mm16
3⁄ "mm16
3⁄ "mm8
