L20-101, L20-100, and VP161A-APF Grille
General Description
Installation Instructions for Atlas Sound horn models used with:
•L20-101SquareBaffle
•L20-100RoundBaffle
•VP161-APFVandalResistantGrille
Step 1. Unpack components & identify, speaker gasket and (four) 8⁄32 hex nuts (shipped with baffle).

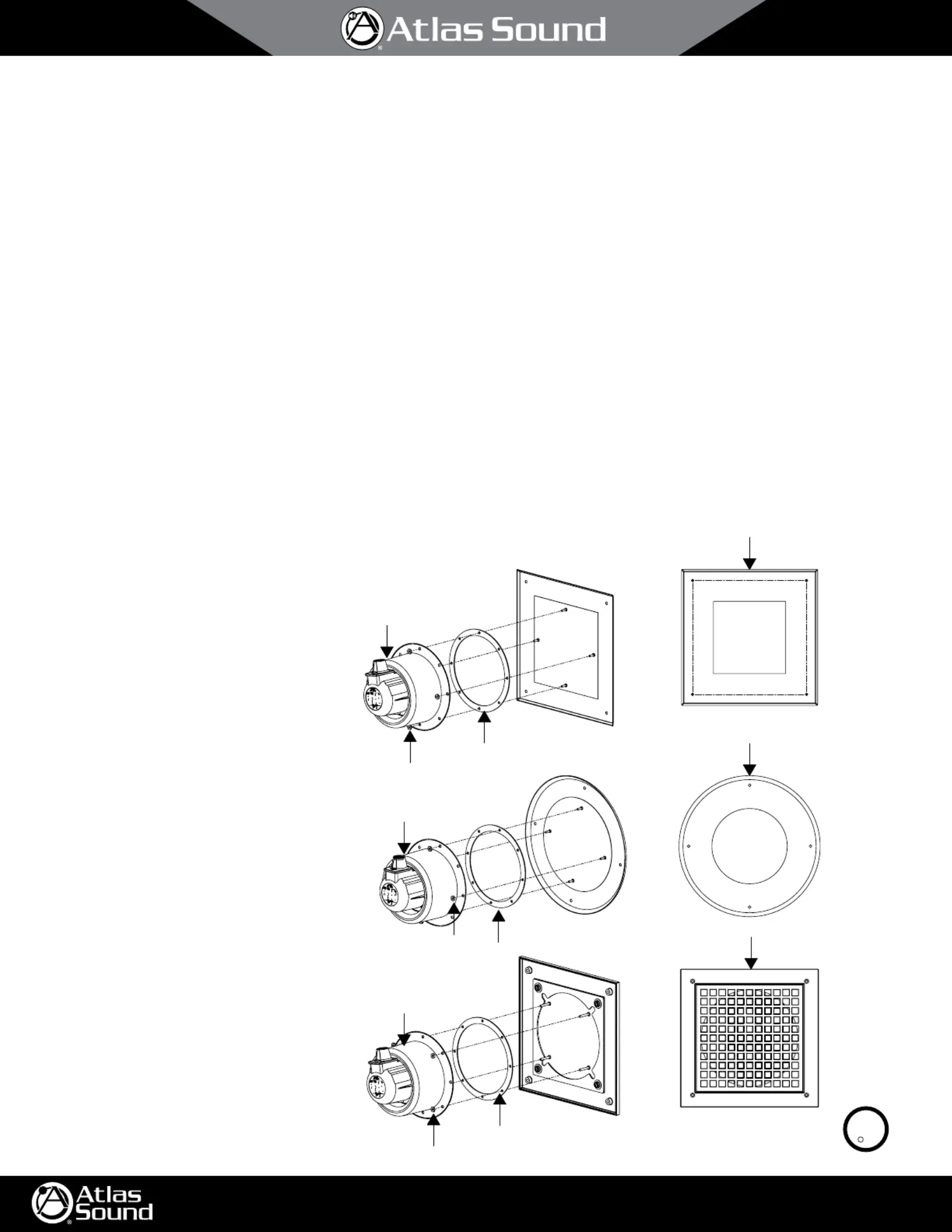

Step 2. Assemble speaker horn to baffle as shown below.
Step 3. Terminate loudspeaker line to speaker terminal block.
Step 4. Select desired transformer tap or connect to 8 terminal on speaker.Ω
Step 5.MountassemblyintoAtlasSoundULlistedenclosuremodelL20-201(round,recessedenclosure)orL20-213(square,surfacemountenclosure).
NOTE: Installation must comply with all Building Codes and NFPA guidelines. Installation must adhere to N.E.C. and NFPA 70/72 wiring directives and
comply with all National and Local Building Codes.
Gasket
8/32 Hex Nuts (x4)
APF-15T
L20-101
Gasket
8/32 Hex Nuts (x4)
APF-15T
L20-100
Gasket
8/32 Hex Nuts (x4)
APF-15T
L20-101
L20-101 Square Baffle
L20-100 Round Baffle
VP161A-APF Vandal Resistant Grille
UL
C
L
A
S
S
I
F
I
E
D
R
8⁄32
8⁄32
