AtlasSound.com
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
©2009 Atlas Sound L.P. All rights reserved. Atlas Sound is a trademark of Atlas Sound L.P. All other trademarks are the property of their respective owners. All specs are subject to change without notice. ATS001610 RevD 3/09
SM8CXT & SM12CXT
Surface Mount 8" & 12" Speaker Systems
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
General Description
The Atlas Sound SM8CXT and SM12CXT are designed for 8 and 70.7V distributed Ω
applications where high output and accurate sound reproduction are required. Both
models feature a unique compact cabinet design with multiple 1⁄ "-20 inserts to 4
allow easy suspension or wall mounting. The dual angle design also allows the sys-
tems to be used as a short or long throw stage monitor system
The SM8CXT includes the Atlas Sound 8CXT60 compression driver coaxial loud-
speaker. The SM12CXT includes the Atlas Sound 12CXT60 compression driver
coaxial loudspeaker. Originally conceived for high ceiling distributed systems, these
systems exhibit incredible efficiency and fidelity. Both models utilize a uniquely
designed conical wave-guide high frequency director providing accurate 90° cover-
age in the 2kHz octave band.
Features
• Multiple1
⁄ "-20 Inserts, Providing Fly Points for a Variety of Mounting 4
Configurations
• IncludesInternal,HighEfficiency,60Watt70.7V/100VTransformer(MayBe
Bypassed for 8 Operation)Ω
• BarrierStripInputfor70.7V/100V/8Ω or Parallel 4-pole Speak-On
™Input(for
8 Operation Only).Ω
• UniqueInputPanelAllowsUseofStandard4"SquareBoxCover
(Raco753oreq.)forApplicationsWhereFlexConduitisRequiredfor
Termination
• FuseProtectionforLowandHighFrequencyDrivers
• Attractive,YetHeavy-DutyGrilleAssembly
• DurableBlackorWhite,Rough-CoatFinish
• OptionalBracketforWallMounting
• Omnimount™ Compatible
Applications
• SchoolAuditoriums,Gymnasiums&Cafetoriums
• ChurchSanctuarySystems(F.O.H.and/orMonitors)
• High-LevelForegroundMusicSystems
• GeneralLiveSoundReinforcement(InstalledorPortable)
Unpacking
As part of our commitment to providing you the highest quality product possible we
make sure every Atlas Sound product is carefully tested and inspected before being
shipped from our factory. Please inspect your loudspeaker for any damage that may
have occurred during shipping.
In the event of shipping damage notify your freight carrier immediately.
Amplifier Considerations for 8 OperationΩ
Note: The input barrier strip includes a jumper which when removed activates the
8 input on the barrier strip and the Speak-On jacks.Ω
Consult your amplifier owner’s manual to confirm power output at the rated imped-
ance.AtlasSoundspeakersystemspecificationslistRMSpowerhandling.As
areference,peakpower=RMSx1.414.Theseratingsshouldbeconsideredin
selecting the best amplifier to power the speaker system.
Forgeneraluse,amplifieroutputshouldmatchorexceedtheRMSratedpowerof
the speaker system.
For increased headroom and dynamic reproduction, the amplifier’s output should
match or exceed the peak power rating of the speaker system.
In situations where experienced professionals are operating the speaker system
with proper limiting and frequency control devices inserted into the signal path and
adjustedproperly,amplifieroutputmaymeet,butshouldnotexceed2xtheRMS
power rating of the speaker system.
SM8CXT
SM12CXT
Specifications
Model SM8CXT SM12CXT
Frequency Response (±3dB) 60Hz–15kHz 55Hz–15kHz
Power Handling 150WattsRMS 250WattsRMS
Transformer Taps 7.5,15,30,&60 Watts 7.5,15,30,&60Watts
Sensitivity (1W / 1M) 92dB 99dB
Maximum SPL @ 1 Meter (Rated
Power @ 8Ω)
114dB 123dB
Nominal Driver Impedance 8 8Ω Ω
Dispersion (2kHz Octave Range) 90° 90°
Height 151⁄2"(394mm) 19"(483mm)
Width 105⁄ 148"(270mm) 1
⁄2"(368mm)
Depth 103⁄ 148"(264mm) 1
⁄16"(357mm)
Weight 19lbs (8.62kg) 39lbs(17.7kg)
LF Transducer
Basket Material Cast Aluminum Cast Aluminum
Cone Material Polypropylene Treated Paper
Surround Material & Dampening ThermalPlasticElastomer ClothEdge
Voice Coil Diameter 2"(51mm) 2
1⁄2"(63.5mm)
Magnet Weight 34oz 70oz
HF Comp. Driver
Diaphragm Material Titanium Titanium
Voice Coil Diameter 1"(25mm) 2"(51mm)
Voice Coil Former Material Kapton® Kapton®
Voice Coil Material Copper Copper
Throat Diameter .925"(23.5mm) 1"(25mm)
Magnet Weight 20oz 40oz

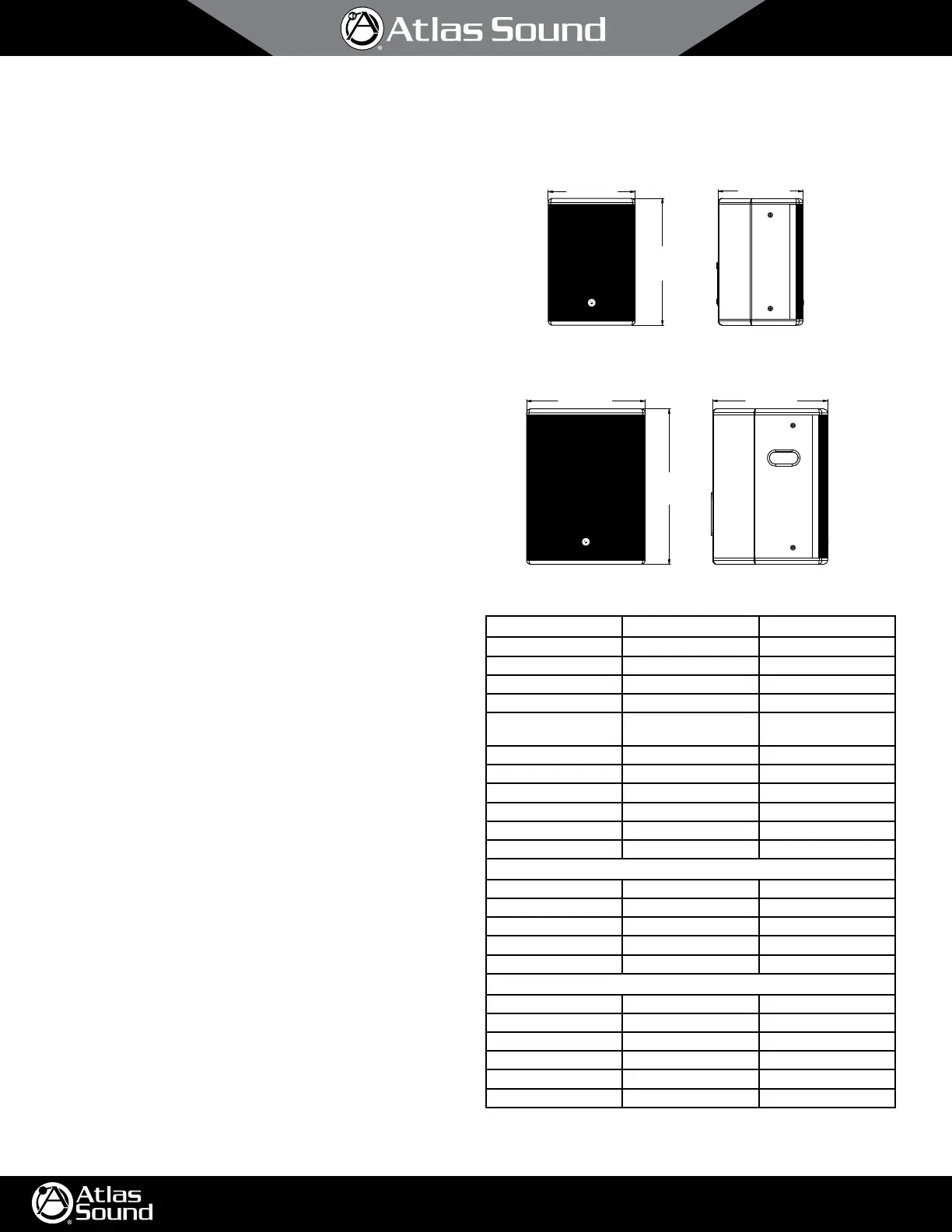

Side ViewFront View
<-Front
WIDTH
1 4 " ( 36 8mm)
1
/2
1 9" (483 m m)
HEIGHT
DEPTH
1 4 " ( 35 7mm)
1 /
16
WIDTH
1 0 " ( 27 0mm)
5
/8
1 5 " ( 39 4mm)
1
/2
HEIGHT
DEPTH
1 0 " ( 26 4mm)
3/
8
Side View
<-Front
Front View
