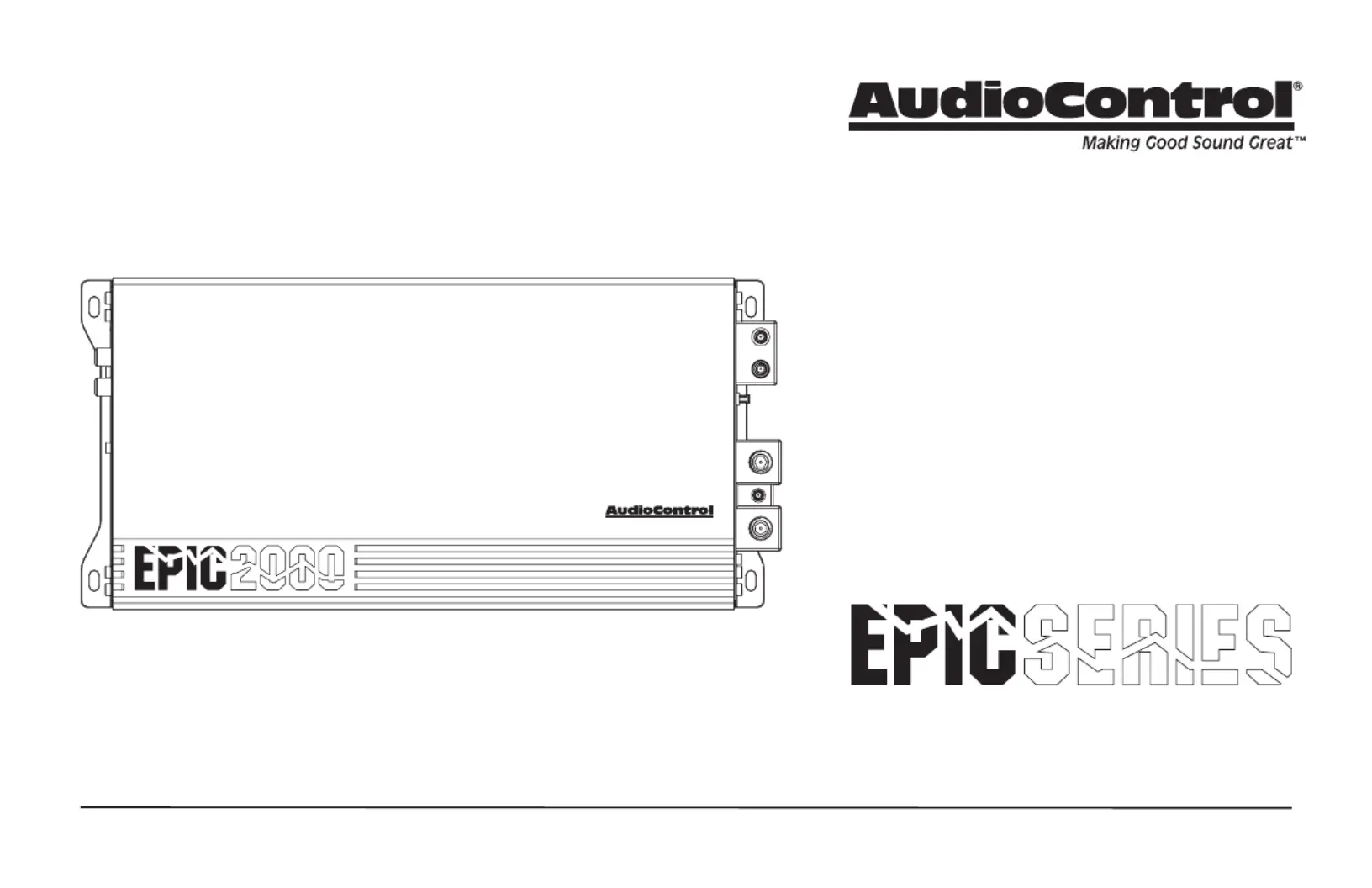

Side 1/16
MONOBLOCK AMPLIFIERS
EPIC2000 EPIC1500 EPIC1000 EPIC750| | |
Quick Start Guide
Features
• Compact High-Power Class D Monoblock Amplifier
• High-Current Design - 1Ω Stable
• Smart Auto-Reset Protection Circuit
• 12 dB/octave Linkwitz-Riley Variable Low Pass Filter
• 12 dB/octave Variable Subsonic Filter
• EPICBoost™ Variable Frequency Bass Boost
• ACR-E Remote Level Control Included
• Solid Power/Speaker Terminals with Hex Screws
• Built for THE EPICENTER®
• You're not ready for this
2
Quick Start Guide
MONO BLOCK AMPLIFIERS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as mufflers, silencers, exhaust
pipes, or other apparatus (including amplifiers) that produce heat.
9. WARNING: Improper installation may lead to permanent injury or death.
Installation of the apparatus must be done with great care by qualified
personnel, to prevent damage to fuel lines, power and other electrical
wiring, hydraulic brake lines, and other systems, that might compromise
vehicle safety.
10. Provide +12V and Ground wiring of sufficient size to ensure adequate
current to the amplifier.
11. Use rubber grommets to protect wiring whenever passing wires through
metal openings or bulkheads.
12. Only use attachments/accessories specified by the manufacturer.
13. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as the power
input terminals are damaged or objects have fallen into the apparatus,
does not operate normally, or has been dropped.
14. Fuses shall be replaced only with the correct type and fuse value, and
only when the apparatus is powered off.
15. Exposure to high sound pressure levels may lead to permanent hearing
loss. Take every precaution to protect your hearing.
The lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure, that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user of the presence of important operating and mainte-
nance (servicing) instructions in the literature accompanying the
appliance.
Caution: to reduce the risk of electric shock, do
not disassemble the apparatus, other than to
remove the top panel to access the controls.
There are no user-serviceable parts inside.
Refer servicing to qualified personnel.
Recycling notice: If the time comes and this apparatus has fulfilled
its destiny, do not throw it out into the trash. It has to be carefully
recycled for the good of mankind, by a facility specially equipped
for the safe recycling of electronic apparatii. Please contact your
local or state recycling leaders for assistance in locating a suitable
nearby recycling facility. Or, contact us and we might be able to
repair it for you.
Important Safety Instructions
3
1. Ground Terminal – This screw terminal connects to a clean, solid
ground in the vehicle. Use the shortest length possible of quality
insulated wire of the recommended wire gauge (see specifications).
2. Remote Power Input Wire – This wire connects to the 12V remote
trigger output of some head units and controls the on/off state of
the amplifier.
3. Power Input Terminal +12V – This screw terminal connects to
the +12V binding post of the vehicle battery. Use quality insulated
wire of the same gauge used for the Ground connection.
4. THE EPICENTER® Link – This port with built-in fuse protection
connects directly to The EPICENTER® Digital Bass Restoration
Processor (sold separately) using the included one meter harness,
providing +12V power, ground, and remote.
5. Subwoofer Output – Connect these terminals to a subwoofer
or multiple subwoofers using quality insulated wiring of the
recommended wire gauge (see specifications).
Connections & Control Panel Features
q w e r t
4
Quick Start Guide
MONO BLOCK AMPLIFIERS
6. Power/Protect LED – When the unit has been powered on,
this LED will glow a soothing , a color rarely seen in our blue
Northwest skies.
If this LED illuminates , the amp is not blushing; this signifies red
the amp is in protection mode and something is wrong. EPIC
Series amplifiers feature a circuit Smart Auto-Reset Protection
(see page 5). If cycling the power to the amplifier does not take
the amp out of protection, try disconnecting the speaker wires
and cycle power. If the amp is no longer in protection, check
the speakers and wires for shorting. If the LED stays on with the
speaker wires disconnected then contact AudioControl technical
support for further instruction.
7. Maximized LED – This LED indicates when the amplifier inputs
have been optimized for maximum performance. This LED should
illuminate momentarily during brief bursts of music play back
at max volume. In most scenarios, it should not be constantly
illuminated for long periods of time.
8. RCA Inputs – Connect the line level outputs from your source or
line output converter (LOC) to these inputs.
9. Bridged In/Out – Use this RCA input/output pair to connect two
EPIC Series monoblock amplifiers together. See page 11.
10. Remote Level Control – Connect the included ACR-E remote
level control and cable here.
Connections & Control Panel Features (continued)
u
y
i o 1)
5
11. Gain Control – Use this dial to match the source unit’s output
voltage with the inputs of amplifier. Remember, this is NOT a vol-
ume knob. With the source unit set to 75%, adjust this knob to the
point where the Maximized light shines briefly. This will be your
optimal gain setting.
12. Low Pass Filter – A low pass filter allows you to match a speaker
to the frequency range it is designed to handle. Choosing the low
pass frequency recommended by the speaker manufacturer will
provide increased speaker reliability and optimum sound quality.
EPIC Series amplifiers have a 12 dB per octave active low pass filter
with variable frequencies from 40 Hz to180 Hz. The amplifier will
output the frequency range below the selected low pass filter
frequency. 80 Hz works well as a starting point for most systems.
13. Subsonic Filter – The subsonic filter is a high pass filter designed
to conserve amplifier power and protect subwoofers from ex-
tremely low frequencies. EPIC Series amplifiers have a subsonic
filter with variable cutoff frequencies ranging from OFF to 50 Hz.
The subsonic filter is highly recommended for vented subwoofer
enclosures with a recommended setting of 1/2 octave below the
enclosure tunning frequency.
14. EPICBoost (Hz) – EPICBoost is a variable frequency (30 Hz to 80
Hz) bass equalizer with a boost range of 0 dB to +12 dB.
1! 1@ 1# 1$
Connections & Control Panel Features (continued)
Smart Auto-Reset Protection – EPIC Series amplifiers feature a
robust protection circuit to protect the amps from low/high
voltage, unexpected short-circuits, or other potential electrical or
thermal hazards. The Smart Auto-Reset Protection circuit offers
the following protection:
Output Over-current Protection (OCP)
Input Over-voltage Protection (OVP)
Input Under-voltage Protection (UVP)
Output DC-offset Protection (DCP)
Over-Temperature Protection (OTP)
