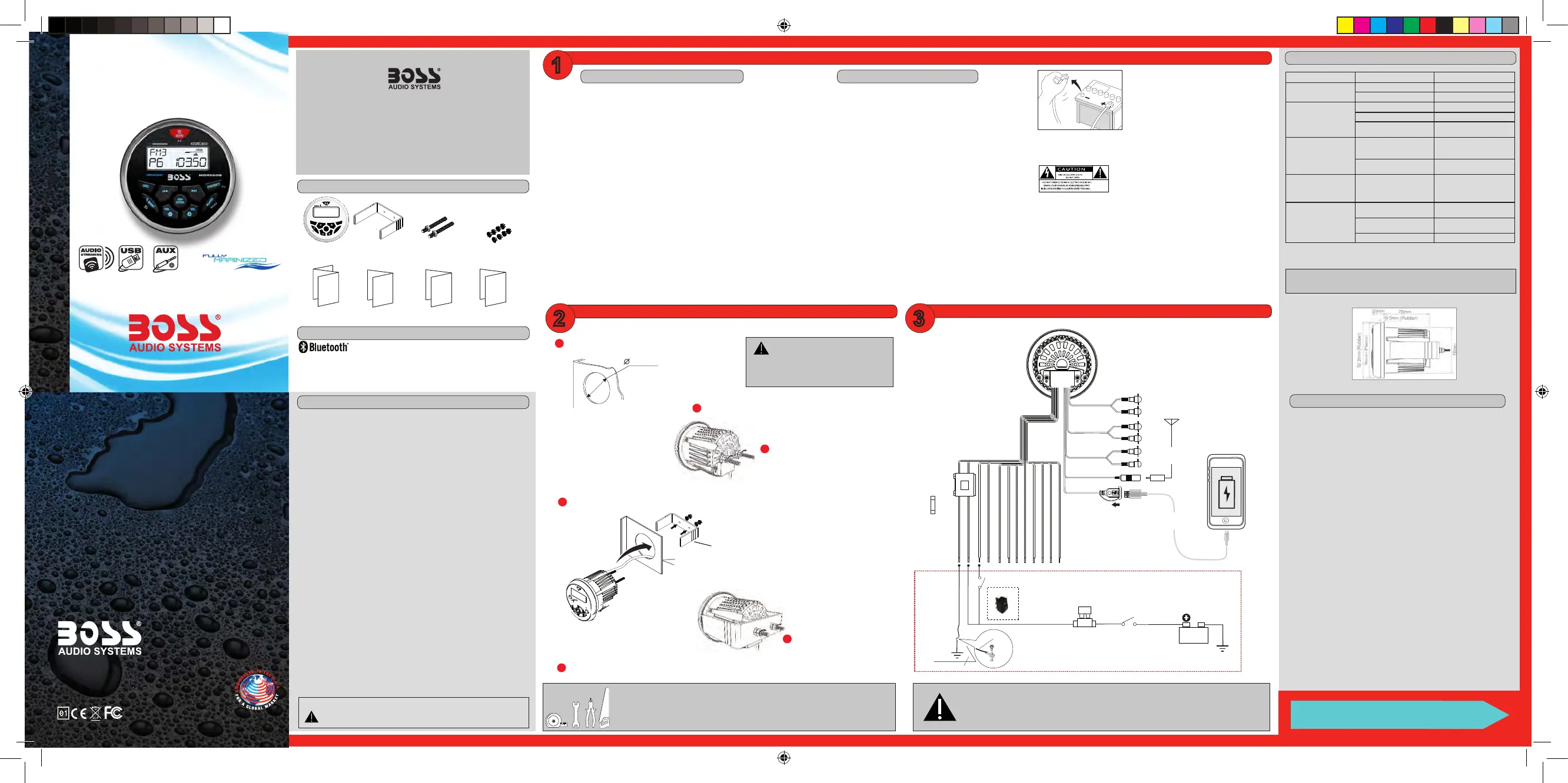

BLUETOOTH® ENABLED

GAUGE HOLE RADIO

MGR350B

USER MANUAL

FEATURING ZERO

STANDBY CURRENT DRAIN

QUICK INSTALLATION GUIDE

MGR350B

USER MANUAL

QUICK INSTALLATION GUIDE

BLUETOOTH® GAUGE HOLE RADIO

PRINTED IN CHINAVER:1.0 EN0215

BOSS Audio Systems

3451 Lunar Court • Oxnard, CA 93030

www.bossaudio.com | 1.805.751.4853

Tech Support: www.bossaudio.com/support

The Bluetooth® word mark and logos are registered trademarks

owned by Bluetooth SIG, Inc. and any use of such marks is under

license. Other trademarks and trade names are those of their

respective owners.

BEFORE YOU START

IMPORTANT SAFETY PRECAUTIONS

BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:

• Do not turn up the volume so high that you can’t hear what’s

around you.

• Use caution or temporarily discontinue use in potentially

hazardous situations.

• Do not operate mobile video equipment while driving a motorized

vehicle – safe driving and safety consideration of others should

always be your highest priority.

• Set your volume control at a low setting, then slowly increase the

sound until you can hear it comfortably without distortion, or ear

discomfort.

• In the event you should notice smoke, strange noises or odor from

this product, or any other abnormal signs, immediately turn off the

power and consult your dealer or the nearest authorized

BOSS AUDIO Service Center Using this product in this condition

may result in permanent damage to the system.

WIRE DIAGRAM

Thank you for purchasing this

MGR350B Bluetooth Gauge Hole Radio

Please read thorough these instructions

carefully so you will know how to operate

your model properly.

After you have nished reading the instructions,

keep this document in a safe place

for future reference.

SUGGESTED MOUNTING METHODS

INFORMATION TO THE USER

TROUBLE SHOOTING GUIDE

!! WARNING !!

ADJUSTMENT OR ALTERATIONS OF THIS DEVICE MAY

RESULT IN HAZARDOUS RADIATION EXPOSURE.

FU NC

ENTER

DISP

VOL VOL

50w x4

US B

THIS PACKAGE CONTAINS

Fuse Box

15A

CHARGING MAX

Replace Fuse

with AGU

type only

BATTERY

20A

Fuse and Fuse Holder

(not included)

Chassis

ground

point

Battery Kill Switch

(not included)

OPTIONAL DIRECT BATTERY WIRING CIRCUIT

BLACK

Chassis

ground

point

Ground wire

Metal frame

Recommended

12 ~ 14ga

Primary Wire

(not included)

15A

INSERT

YOUR

USB CABLE

YOUR

ANTENNA

To avoid potential shorts in the electrical

system, be sure to disconnect the (–)

battery cable before installation. Use this

unit with a 12-Volt battery and negative

grounding only. Failure to do so may result

in a re or malfunction.

When replacing the fuse, be sure to only use a

fuse of the rating specied on this product. To

avoid short-circuiting, cover any disconnected

leads with insulating tape. It is specially impor-

tant to insulate any unused wires, which if left uncovered may cause a

short circuit. When connecting other devices to this product, refer to

the manual for the product to be connected. The black cable is ground,

make sure to connect the ground wire rst.

Ensure that the ground cable is properly connected to metal parts of

the vehicles body frame or direct to the battery if your vehicle does not

have a grounded chassis frame. The ground cable of this units power

amp and a second powered system must be connected to the frame

separately with different screws. If the screw for the ground wire

loosens or falls out, it could result in re or malfunction.

CAUTION!!

Do not ground or short the speaker leads

1-805-751-4853

www.bossaudio.com/support

TECHNICAL SUPPORT

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference

that may cause undesired operation of this device.

This transmitter must not be co-located or operated in conjunction

with any other antenna or transmitter. The Bluetooth antenna cannot

be removed (or replaced) by user. This equipment complies with

FCC/ IC radiation exposure limits set forth for an uncontrolled

environment and meets the FCC radio frequency (RF) Exposure

Guidelines and RSS-102 of the IC radio frequency (RF) Exposure

rules. This equipment has very low levels of RF energy that it

deemed to comply without maximum permissive exposure

evaluation (MPE). But it is desirable that it should be installed and

operated keeping the radiator at least 20 cm or more away from

person’s body (excluding extremities: hands, wrists, feet and

ankles). Alteration or modications carried out without appropriate

authorization may invalidate the user’s right to operate the

equipment.

NOTE: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Relocate or reorient the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC COMPLIANCE STATEMENT

TROUBLE CAUSE SOLUTION

Unit will not turn on

The fuse is blown Check / replace the fuse

Ignition not engaged Turn ignition to on position

No sound is heard

Blown speaker Replace faulty speaker

Volume is low / muted Press the volume level up

Device is paused or muted

Check your devices playing /

volume status

Cannot pair Bluetooth

The Bluetooth function of the

device is not enabled

Refer to the user manual of the

device for how to enable the

Bluetooth function

The MGR350B BT memory

is full

Follow how to reconnect a

device in section D

The audio quality is poor

after connection with a

Bluetooth enabled device The Bluetooth reception is poor

Move the device closer to the

audio system or remove any

obstacle between the device

and the systems antenna

Sub woofer is not playing

Sub level is muted

Adjust sub level to preferred

level

Sub out is not enabled Follow steps in section H

Unit has become

unresponsive

Power glitch or interference

Disconnect power for

10 seconds to reset

Low battery power

Charge battery, run the engine

to recharge the battery

Reset the main system Follow steps in section H

INSTALLATION PRECAUTIONS

Always consult with a professional installer

• Do not attempt to install or service this product by yourself.

Installation or servicing of this product by persons without

professional training and experience in electronic equipment and mo-

torized vehicle accessories may be dangerous and could expose you

to the risk of electric shock, injury or other hazards

• Refer any repairs to a qualied BOSS AUDIO SYSTEMS Service

Center

• The should be wired directly to a vehicles battery MGR350B

• When wiring directly to the vehicles battery, be sure to disconnect

the batteries negative terminal wire before starting any wiring pro-

cedures, if extending the main power primary wire, it is suggested

that an optional fuse and fuse holder (not included) with minimum

rating of

20 Amperes be in-line with the positive battery terminal

• The ground cable length should be as short as possible, if extend-

ing from you battery, be sure to use a proper gauge rating for the

length of the run, use only high quality copper primary type wire

• The MGR350B has a IPX6 weather resistant design, it should not be

submerged in or under water under any circumstances

• Use only the installation parts provided with the MGR350B

TOOLS NEEDED:

- Measuring Tape / Ruler

- Wrench and/or Pliers

- Hole Saw

- Crimp Tool

CAUTION!!

Using other mounting methods may void

this warranty

FM TUNER FREQUENCY RANGE

• USA 87.5~107.9MHz

• Europe 87.5~108MHz

• Asia 87.5~108MHz

• Australia 87.5~108MHz

• Usable Sensitivity: 12dB (S/N=30dB)

• Bands: 2

AM TUNER FREQUENCY RANGE

• USA 530~1710KHz

• Europe 522~1620KHz

• Asia 522~1620KHz

• Australia 522~1620KHz

• Usable Sensitivity: 40dB (S/N=20dB)

• Bands: 1

WEATHER BAND SELECTION

• CH.1 162.400MHz

• CH.2 162.425MHz

• CH.3 162.450MHz

• CH.4 162.475MHz

• CH.5 162.500MHz

• CH.6 162.525MHz

• CH.7 162.550MHz

• Bands: 1

BLUETOOTH

• BT: 4.0

• BT Range: 33Ft / 10M (Class 2)

• BT Proles: A2DP / AVRCP 1.3

USB DRIVE MEDIA SUPPORTED

• MP3

• WMA

• 65,000 Songs

• 32GB / FAT 32

• USB 2.0 High Speed

• USB Output Voltage: 5VDC @ 1A

INTEGRATED AMPLIFIER

• MOSFET

• MAX Continuous Output: 240W

(All channels driven)

• PEAK Power Rating: 63W / channel

• RMS Total Power Output: 150W

• Channels: 4

• Class: AB

• Frequency Response: 20-25kHz

• 4Ω stable

CHASSIS

• Chassis Dimensions HxDxW :

0.79”x 3.75” x 3.5” / 20mm x 95mm x 90.2mm

• Button Backlight Illumination: RED LED

• FRONT/ REAR RCA Preamp Output: 2V

RMS

• RCA Input Impedance: 10kΩ

• TFT: TN Type / Active Matrix

GENERAL

• Power Source: 14.4VDC

(10.8V ~ 16V allowable)

• Grounding System: Negative type

• Maximum Current Consumption: 15A

• 3-way protection circuitry (thermal,

o ve rl oa d, an d s pe ak er sh or t p ro te ct io n)

• Unit Weight: 1.08lbs / 0.52kg

• Storage Temperature: 5oF to 113oF /

-15oC to 45oC

• Operation Temperature: 14oF to 104oF /

-10oC to 40oC

• Replacement Fuse: 15A

(Replace with ATG Fuse Type Only)

SPECIFICATIONS

Specications subject to change without notice

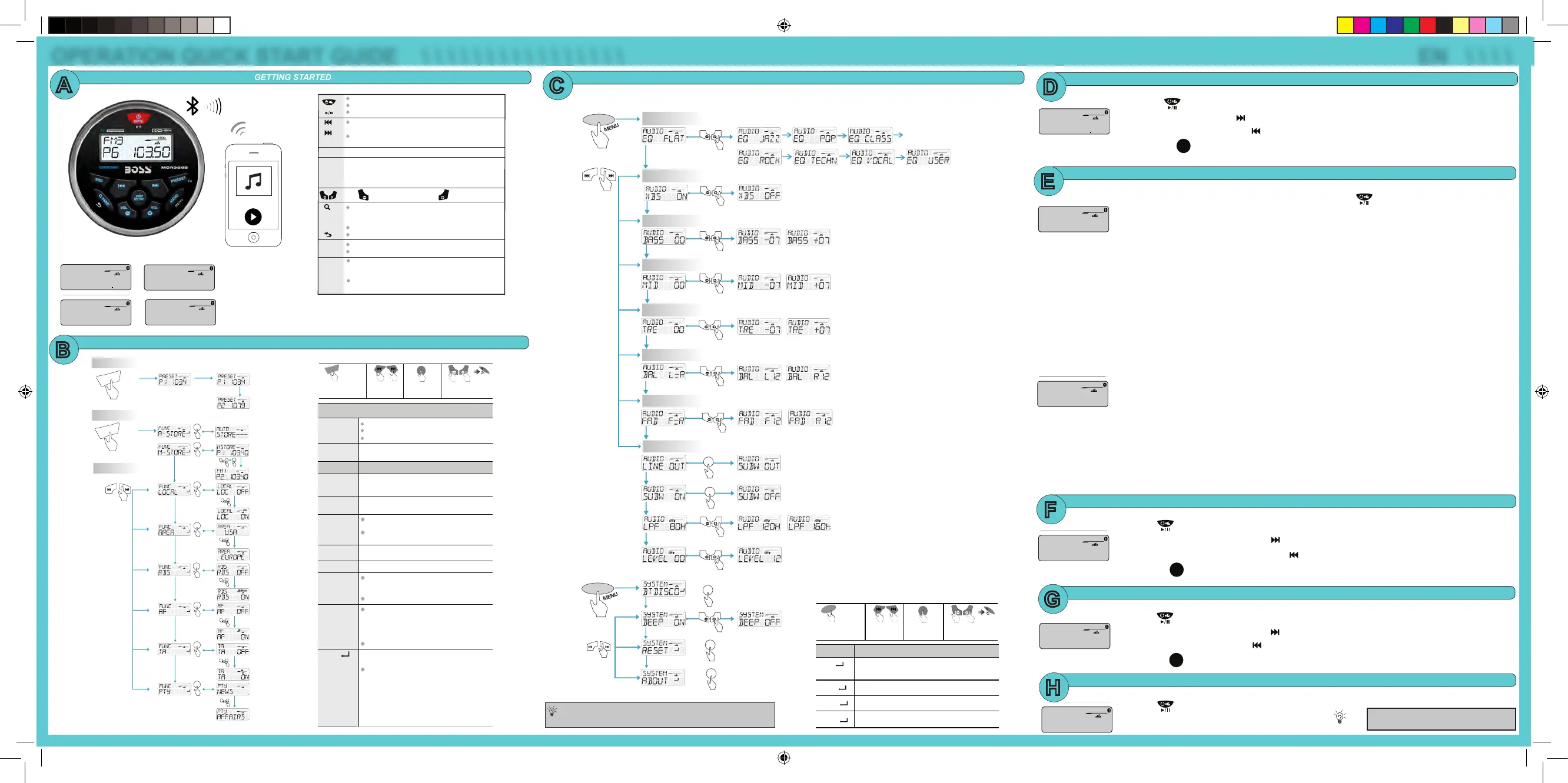

QUICK START GUIDE

FOR CHARGING ONLY: Cell Phone and iPod

Media Playback Not Supported

iPod® and iPhone®

are registered trademarks of Apple Inc.

registered in the USA and other countries.

BOSS Audio Systems is not afliated with Apple Inc.

Produkt Specifikationer

Mærke:	Boss
Kategori:	Ikke kategoriseret
Model:	MCKGB350W.6

Har du brug for hjælp?

Hvis du har brug for hjælp til Boss MCKGB350W.6 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret Boss Manualer

17 November 2024

17 November 2024

3 September 2024

2 September 2024

Boss Gigcaster 8 GSC-8 Manual

1 September 2024

Boss TU-80 Manual

31 August 2024

Boss Reverb RV-6 Manual

31 August 2024

Boss Reverb RV-200 Manual

28 August 2024

Boss GKC-AD Manual

25 August 2024

Boss SDE-3000D Manual

25 August 2024

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Elektron Overbridge Manual

26 November 2024

Elektron Sidstation Manual

26 November 2024

SKROSS World Adapter Pro+ Manual

26 November 2024

SKROSS PRO – World & USB Manual

26 November 2024

SoundTube IPD-RS82-EZ Manual

26 November 2024

Kramer 4x1VB Manual

26 November 2024

Kramer RC-63A Manual

26 November 2024

SoundTube IPD-HP82-EZ Manual

26 November 2024

Kramer RK-KVM-1U-PP3 Manual

26 November 2024

Gioteck VX-2 (PS3) Manual

26 November 2024
