Assembly Instructions
EC4X
COMPUTER WORKSTATION
WITH MOUSE PAD
HARDWARE LIST
Qty Part# Description
2 010-1863 Top & Bottom Shelves
1 010-4511 Slide Out Shelf
1 010-4512 Slide Out Shelf w/Cut Out
4 010-4505 Shelf Support Brackets
1 010-2658 Mouse Pad Mounting Bracket
1 022-1397 Right Front Leg Assembly
1 022-1398 Left Front Leg Assembly
1 022-1399 Right Rear Leg Assembly
1 022-1400 Left Rear leg Assembly
1 022-1825 Mouse Pad Assembly
2 015-0002 4" Casters w/o Lock
2 015-0003 4" Casters w/ Lock
2 030-1191 14" Full Extension Slide
Ref Qty Part# Description
AA 16 030-0300 5/8" Square Head Bolts
BB 16 030-0002 5/16-18 Hex Serrated Nuts
CC 16 030-0304 1/4-20 x 5/8" Combo Screws
DD 2 030-0428 2 11/32" Washers
EE 1 030-0427 Nylon Washer
FF 1 030-0306 1" x 21/64" Washer
GG 1 030-0421 5/16-18 Hex Lock Nut
HH 2 030-0325 1/4-20 x 1/2" Combo Screws
JJ 16 030-1228 8-32 x 1/4" Combo Truss Screws
KK 8 030-1203 #*-32 Acorn Nuts
LL 2 010-2841PB Mouse Pad Brackets
MM 8 02236 8-32 GFlange Whiz Lock Nuts
NN 1 010-3487 Spacer Shim
1 010-1106 Hex Wrench
PARTS LIST
TOOLS REQUIRED
Hex Wrench (Provided)
Phillips Screwdriver
Rubber Mallet
STEP 1
Lay the front legs on a carpeted surface (they are stamped "LF" and "RF") with the holes
facing up and the brackets facing up and in as shown in Figure 1. Slide the top and bottom
shelves onto the legs so that the brackets are inside the shelves (Figure 2).

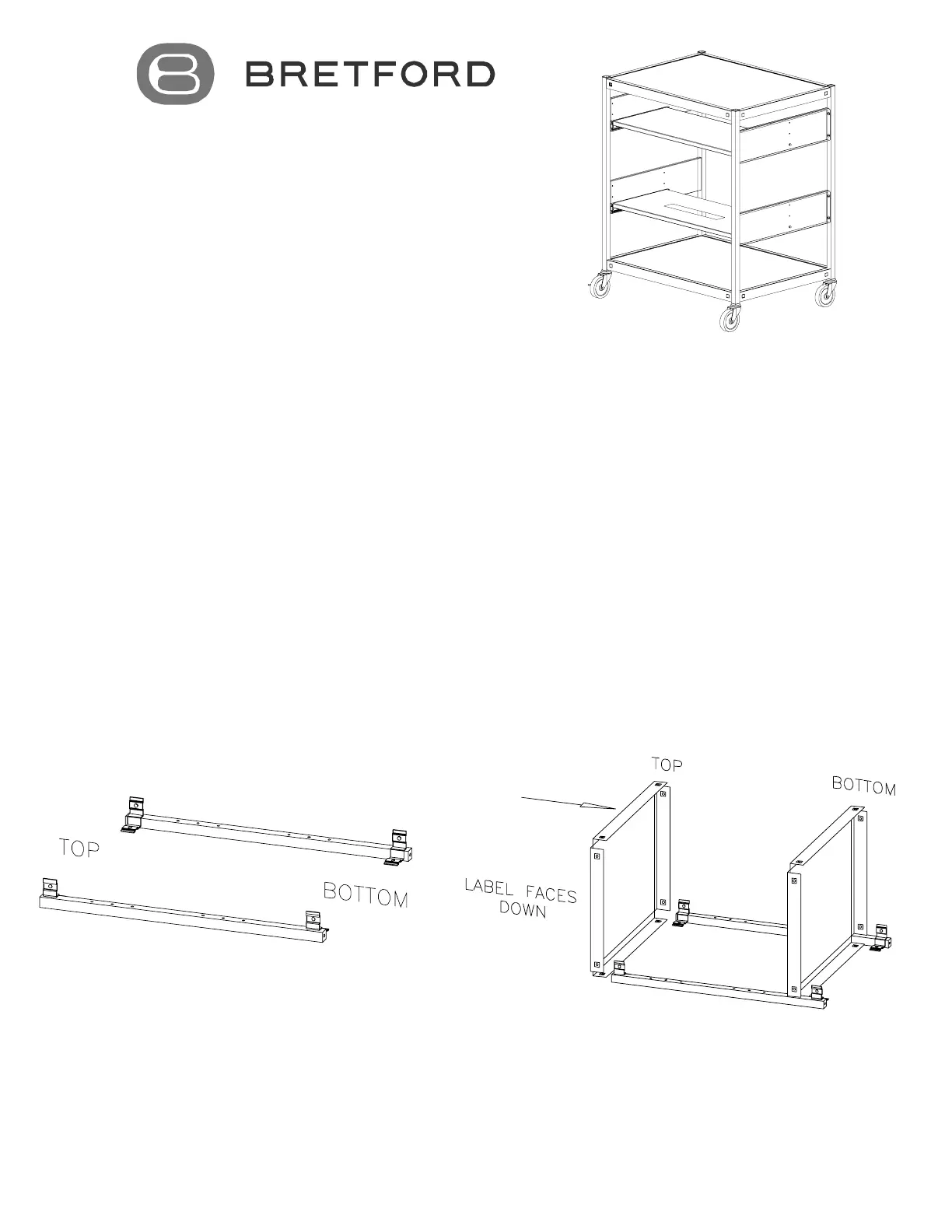

FIGURE 2
FIGURE 1
