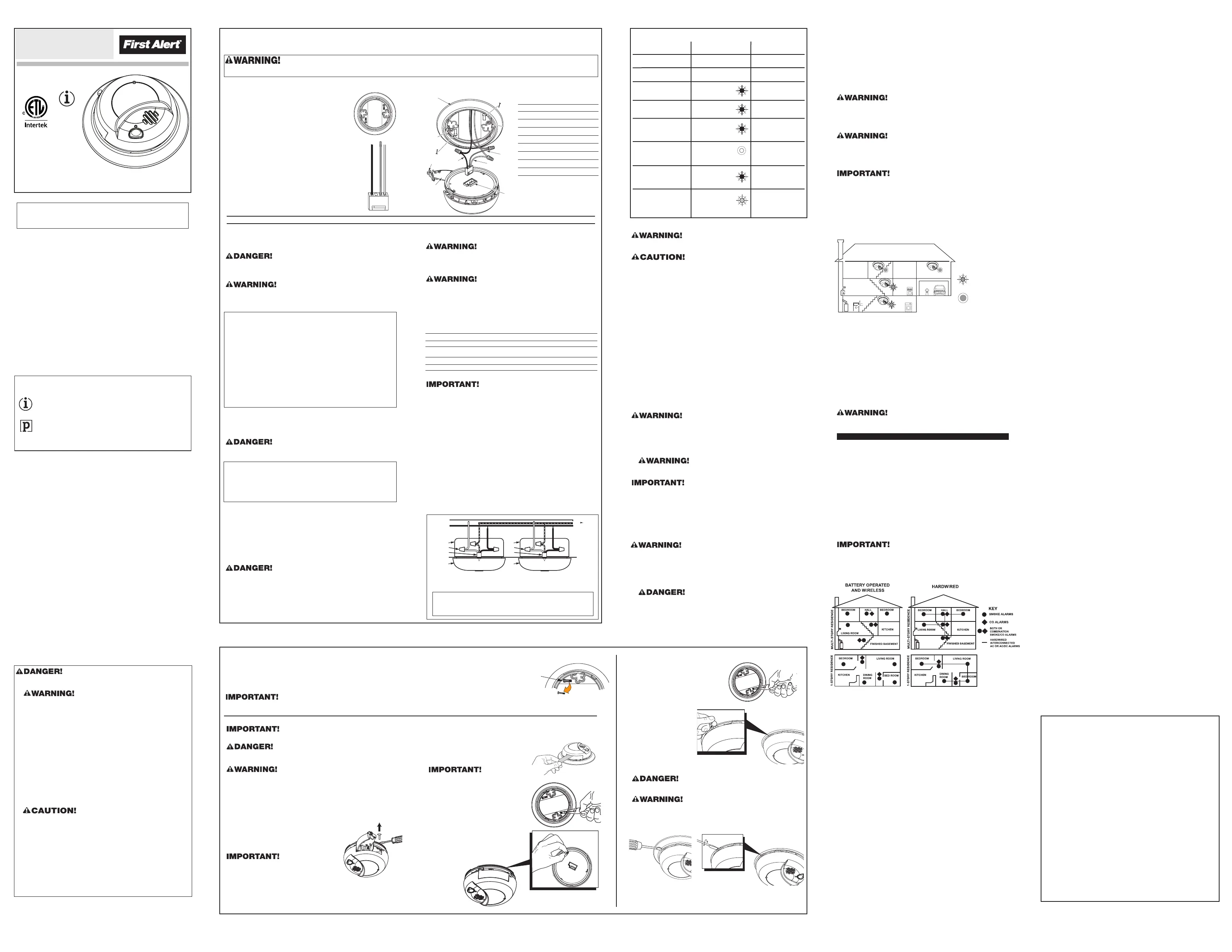

INTRODUCTION

Thank you for choosing BRK Brands, Inc. for your Smoke Alarm needs. You have purchased a state-

of-the-art Smoke Alarm designed to provide you with early warning of a fire.

Key features include:

Smart Technology designed to help reduce unwanted or nuisance alarms.

Single Button Test/Silence eliminates confusion. Depending on what mode the alarm is

in, pushing the button provides different functions such as testing the alarm, silencing

the alarm, re-testing the alarm when in silence and clearing the Latching feature.

Latching Ala rm Indicator easily identifies initiating alarm

even after the alarm condition has subsided.

Perfect Mount System includes a gasketless base for easy installation and a new mounting

bracket that keeps the alarm secure over a wide rotation range to allow for perfect

alignment.

Dust Cover is included to keep the alarm clean during construction.

Easy Installation/Maintenance features include a large opening in the mounting

bracket for easy access to wiring. A battery pull tab keeps the battery fresh until the

home is occupied. A Side Load Battery Drawer allows for easy battery replacement

without removing the alarm from the ceiling or wall (Model 9120B only).

Improved UV Resistance keeps the alarm from discoloring over time.

3901 Liberty Street Road, Aurora, IL 60504-8122

Consumer Affairs: (800) 323-9005

www.brkcanada.ca • www.firstalert.ca

FIRE SAFETY TIPS

Follow safety rules and prevent hazardous situations: 1) Use smoking materials properly. Never

smoke in bed. 2) Keep matches or lighters away from children; 3) Store flammable materials in

proper containers; 4) Keep electrical appliances in good condition and don’t overload electrical

circuits; 5) Keep stoves, barbecue grills, fireplaces and chimneys grease- and debris-free; 6)

Never leave anything cooking on the stove unattended; 7) Keep portable heaters and open

flames, like candles, away from flammable materials; 8) Don’t let rubbish accumulate.

Keep alarms clean, and test them weekly. Replace alarms immediately if they are not working

properly. Smoke Alarms that do not work cannot alert you to a fire. Keep at least one working

fire extinguisher on every floor, and an additional one in the kitchen. Have fire escape

ladders or other reliable means of escape from an upper floor in case stairs are blocked.

BEFORE YOU INSTALL THIS SMOKE ALARM

Important! Read “Recommended Locations for Smoke Alarms” and “Locations to Avoid

for Smoke Alarms” before beginning. This unit monitors the air, and when smoke reaches

its sensing chamber, it alarms. It can give you more time to escape before fire spreads.

This unit can ONLY give an early warning of developing fires if it is installed, maintained and

located where smoke can reach it, and where all residents can hear it, as described in this

manual. This unit will not sense gas, heat, or flame. It cannot prevent or extinguish fires.

Understand The Different Type of Smoke Alarms

Battery powered or electrical? Different Smoke Alarms provide different types of

protection. See “About Smoke Alarms” for details.

Know Where To Install Your Smoke Alarms

Fire Safety Professionals recommend at least one Smoke Alarm on every level of your home, in

every bedroom, and in every bedroom hallway or separate sleeping area. See “Recommended

Locations For Smoke Alarms” and “Locations To Avoid For Smoke Alarms” for details.

Know What Smoke Alarms Can and Can’t Do

A Smoke Alarm can help alert you to fire, giving you precious time to escape. It can only sound

an alarm once smoke reaches the sensor. See “Limitations of Smoke Alarms” for details.

Check Your Local Building Codes

This Smoke Alarm is designed to be used in a typical single-family home. It

alone will not meet requirements for boarding houses, apartment buildings,

hotels or motels. See “Special Compliance Considerations”

for details.

All First Alert

® and BRK® Smoke Alarms conform to regulatory requirements,

including UL217 and are designed to detect particles of combustion.

Smoke particles of var ying number and size are produced in all fires.

Ionization technology is generally more sensitive than photoelectric technology

at detecting small particles, which tend to be produced in greater amounts by flaming

ires, which consume combustible materials rapidly and spread quickly. Sources of

hese fires may include paper burning in a wastebasket, or a grease fire in the kitchen.

Photoelectric technology is generally more sensitive than ionization technology

at detecting large particles, which tend to be produced in greater amounts by

smoldering fires, which may smolder for hours before bursting into flame. Sources of

hese fires may include cigarettes burning in couches or bedding.

For maximum protection, use both types of Smoke Alarms

on each level and in ever y bedroom of your home.

ELECTRICAL SHOCK HAZARD. Turn of f the power to the area where the Smoke Alarm is

installed before removing it from the mounting bracket. Failure to turn off the power first

may result in serious electrical shock, injury or death.

•

• This unit will not alert hearing impaired residents. It is recommended that you

install special units which use devices like flashing strobe lights to alert hearing

impaired residents.

• • Installation of this unit must conform to t he electr ical codes in your area; Art icles

210 and 300.3 (B) of NFPA 70 (NEC), NFPA 72, NFPA 101; ICC; SBC (SBCCI); UBC

(ICBO); NBC (BOCA); OTFDC (CABO), and any other local or building codes t hat

may apply. Wiring and installation must be performed by a licensed electrician.

Failur e to follow these guidelines may r esult in injury or property damage.

• • This unit must be powered by a 24-hour, 120V AC pure sine wave 60 Hz

circuit. Be sure the circuit cannot be turned of f by a switch, dimmer, or ground

fault circuit interrupter. Failur e to connect this unit to a 24-hour

circuit may prevent it from providing constant protection. Unit may be

connected to an arc fault circuit interrupter.

• • This Smoke Alar m must have AC or bat tery power to operate. If t he AC power

fails, batt ery back-up will allow the alarm to sound for at least 4

minutes. If AC power fails and the batt ery is weak, pr otection

should last for up to 7 days. If AC power fails and the batter y

is dead or missing, t he alarm cannot operate.

• • Never disconnect the power f rom an AC powered unit to stop an unwanted

alarm. Doing so will disable the unit and remove your protect ion. In the

case of a tr ue unwanted alarm open a window or fan the smoke away

fr om t he unit . The alarm will reset automatically when it r eturns to normal

operation. Never r emove t he batt eries from a bat tery operated unit to stop

an unwanted alarm (caused by cooking smoke, etc.). Instead open a window

or fan t he smoke away from the unit. The alarm will reset automatically.

•

• Connect this unit ONLY to other compatible units. See “How To Install This Smoke

Alarm” for details. Do not connect it t o any other type of alarm or

auxiliar y device. Connecting anything else to this unit may damage it or

prevent it from operating properly.

• • The battery compartment resists closing unless a bat tery is installed. This

warns you t he unit will not operate under DC power without a battery.

• • Do not paint over the unit. Paint may clog the openings t o t he sensing

chamber and prevent the unit from operating properly.

IMPORTANT! PLEASE READ CAREFULLY AND SAVE

This user’s manual contains important information about your Smoke

Alarm’s operation. If you are installing the Smoke Alarm for use by others,

you must leave this manual — or a copy of it — with the end user.

The Mounting Bracket:

To remove the mounting bracket from the Smoke Alarm base, hold the

Smoke Alarm base firmly and twist the mounting

bracket counterclockwise. The mounting bracket installs onto

the junction box. It has a variety of screw slots to fit most boxes.

The Power Connector:

The power connector plugs into a power input block on the

Smoke Alarm. It supplies the unit with AC power.

• The black wire is “hot.”

• The white wire is neutral.

• T he orange wire is used for interconnect.

If you need to remove the power connector, insert a t

screwdriver blade between the power connector and the security tab inside e

power input block. Gently pry back the tab and pull the connector free.

The Parts of This Unit

1 Mounting Bracket

2 Mounting Slots

3 Locking Pins (break out of bracket)

4 Hot (Black) AC Wire

5 Neutral (White) AC Wire

6 Interconnect (Orange) Wire

7 Latch to Open Battery Compartment

8 Swing-Out Battery Compartment

9 Quick-Connect Power Connector

The basic installation of this Smoke Alarm is similar whether you want to install one

Smoke Alarm, or interconnect more than one Smoke Alarm. If you are interconnecting

more than one Smoke Alarm, you MUST read “Special Requirements For

Interconnected Smoke Alarms” below before you begin installation.

ELECTRICAL SHOCK HAZARD. Turn of f power to the area where you will install t his

unit at the circuit breaker or fuse box before beginning installation. Failure to turn off the

power before installation may result in serious elect rical shock, injury or deat h.

1. 1. Using wire nuts, connect the power connector to the household wiring.

Improper wiring of the power connector or the wiring leading t o the power connector

will cause damage to the Alarm and may lead to a non-funct ioning Alar m.

2. 2. Remove the mounting bracket from the base, and attach it to the junction box.

3. 3. Plug the power connector into the back of the Smoke Alarm.

4. 4. Position the base of the Smoke Alarm over the mounting bracket and turn. T he

Alarm will remain secure over a wide rotation range to allow for perfect alignment. When

wall mounting, this will allow fine-tuning on the positioning to compensate

for misaligned wall studs and to keep the wording level. The Alarm can be

positioned over the bracket every 120°. Rotate the Alarm until aligned properly.

5. 5. Check all connections.

ELECTRICAL SHOCK HAZARD. Do not restore power unt il all Smoke Alarms are

completely inst alled. Restoring power before inst allation is complete may result in

serious electrical shock, injury or death.

6. 6. Make sure the Smoke Alarm is receiving AC power. Under normal

operation, the Green power indicator light will shine continuously.

7. 7. If the Green power indicator light does not light, TURN OFF POWER TO THE

JUNCTION BOX and recheck all connections. If all connections are correct and

the Green power indicator still does not light when you restore

the power, the unit should be replaced immediately.

8. 8. Single Station Alarms: Test each Smoke Alarm. Press and hold the Test/

Silence

button until the unit alarms.

Interconnected Alarms: Press and hold the Test/Silence button until the unit alarms.

All interconnected Alarms should sound. The other Alarms sounding only tests the

interconnect signal between Alarms. It does not test each Alarm’s operation. You

must test each Alarm individually to check if the Alarm is functioning properly.

If any unit in the series does not alarm, TURN OFF POWER and recheck connections.

If it does not alarm when you restore power, replace it immediately.

SPECIAL REQUIREMENTS FOR INTERCONNECTED SMOKE ALARMS

• Failure to meet any of the above requirements could damage the units

and cause them to malfunction, removing your protection.

• AC and AC/DC Smoke Alarms can be interconnected. Under AC power, all units will

alarm when one senses smoke. When power is interrupted, only

the AC/DC units in the series will continue to send and receive signals.

AC powered Smoke Alarms will not operate.

Interconnected units can provide earlier warning of fire than stand-alone units, especially

if a fire starts in a remote area of the dwelling. If any unit in the series senses smoke,

all units will alarm. To determine which Smoke Alarm initiated an alarm, see table:

During an Alarm:

On Initiating Alarm(s) Red LED(s) flashes (flash) rapidly

On All Other Alarms Red LED is Off

After an Alarm (Latching):

On Initiating Alarm(s) Green LED(s) On for 2 seconds/Off for 2 seconds

On All Other Alarms Green LED(s) On, Red LED(s) is Off

Compatible Interconnected Units

Interconnect units within a single family residence only. Otherwise all households will

experience unwanted alarms when you test any unit in the series. Interconnected units will only

work if they are wired to compatible units and all requirements are met. This unit is designed to

be compatible with:

First Alert® Smoke Alarm Models SA4120, SA4121B, SA100B, SA520 and BRK® Smoke Alarm

Models 9120, 9120B, SC6120B, SC9120B, 7010, 7010B, 7010BSL , SC7010B, SC7010BV, 100S,

4120, 4120B, 4120SB; BRK® CO Alarm Models CO5120BN, CO5120PDBN; BRK®

Heat Alarm

Models HD6135F and HD6135FB; BRK® Auxiliary Devices Models RM3 and RM4 (Relay

Modules), SL177 (Strobe Light).

See www.brkelectronics.com for most current interconnect list.

Interconnected units must meet ALL of the following requirements:

• A maximum of 18 compatible units may be interconnected

(Maximum of 12 Smoke Alarms).

• T he same fuse or circuit breaker must power all interconnected units.

• T he total length of wire interconnecting the units should be less than 1000 feet

(300 meters). This type of wire is commonly available

at Hardware and Electrical Supply stores.

• All wiring must conform to all local electrical codes and NFPA 70 (NEC). Refer to NFPA

72, NFPA 101, and/or your local building code for further connection requirements.

HOW TO INSTALL THIS SMOKE ALARM

THE PARTS OF THIS SMOKE ALARM

This Smoke Alarm is designed to be mounted on any standard wiring junction box to a 4-inch (10 cm) size, on either the ceiling or wall. Read “Recommended Locations For Smoke

Alarms” and “Locations to Avoid For Smoke Alarms” before you begin installation. • Tools you will need: • Needle-nose pliers or utility knife Standard Flathead screwdriver.

STAND-ALONE ALARM ONLY:

• • Connect the white wire on the power connector to the neutral wire in the junction box.

• • Connect the black wire on the power connector to the hot wire in the junction box.

• • Tuck the orange wire inside the junction box. It is used for interconnect only.

INTERCONNECTED UNITS ONLY:

Strip off about 1/2” (12 mm) of t he plastic coating on

the orange wire on the power connector.

• • Connect the white wire on the power connector to the neutral wire in the junction box.

• • Connect the black wire on the power connector to the hot wire in the junction box.

• •

Connect the orange wire on the power connector to the interconnect

wire in the junction box. Repeat for each unit you are interconnecting.

Never connect the hot or neutral wires in the junction box to the orange

interconnect wire. Never cross hot and neutral wires between Alarms.

STAND-ALONE ALARM ONLY:

• • If you are only installing one Smoke Alarm, restore power to the junction box.

INTERCONNECTED UNITS ONLY:

• • If you are interconnect ing multiple Smoke Alarms, repeat steps 1-5 for each

Smoke Alarm in the series. When you are finished, restore power to the

junction box.

}}

A. Unswitched 120VAC

60 Hz source

B. To additional units; Maximum = 18

total (Maximum 12 Smoke Alarms)

1. Smoke Alarm

2. Ceiling or Wall

3. Power Connector

4. Wire Nut

5. Junction Box

6. Neutral Wire (Wht)

7. Interconnect

Wire (Orange)

8. Hot Wire (Blk)

FOLLOW THESE INSTALLATION STEPS

Make sure the Alarm is not receiving excessively noisy power. Examples of noisy power could be major appliances on the same circuit , power from a generator or solar power, light dimmer

on the same circuit or mounted near fluorescent lighting. Excessively noisy power may cause damage t o your Alarm.

1. 9. For new construction, place supplied dust cover over Alarm to prevent damage

from dust and construction debris. When construction is complete, remove cover.

Smoke will not be able to reach smoke sensor while cover is in place. Cover must be

removed!

2 3 4

LOCKING FEATURES

The locking features are designed to discourage unauthorized removal of the battery or alarm. It is not necessary to activate the locks in single-family households where

unauthorized battery or alarm removal is not a concern.

This alarm has two separate locking features: one to lock the battery compartment, and the other to lock the Smoke Alarm to the mounting bracket. This alarm is shipped

from the factory with the battery drawer locked because it features a 10 year battery backup. Under normal conditions you should not have to replace the battery for the

life of the alarm. If you need to replace the battery follow the UNLOCK THE BATTERY COMPARTMENT instructions below. Re-lock Battery Compartment if desired.

Tools you will need: • Needle-nose pliers or utility knife • Standard Flathead screwdriver.

Both locking features use locking pins, which are molded into the mounting bracket. Using needle nose pliers or a utility knife,

remove one or both pins from the mounting bracket, depending on how many locking features you want to use.

To permanently r emove either lock insert a flathead screwdriver between the locking pin and the lock, and pry the pin out of the lock.

Locking Pin

TO UNLOCK THE BATTERY COMPARTMENT

Once the Smoke Alarm is installed, you must disconnect it from the AC power before

unlocking the battery compartment.

ELECTRICAL SHOCK HAZARD. Turn of f the power to the area where the Smoke Alarm is

installed before removing it from the mounting bracket. Failure to turn off the power first

may result in serious electrical shock, injury or death.

Always discharge the branch circuit before servicing an AC or AC/DC Smoke Alarm.

First , turn of f the AC power at the circuit breaker or fuse box. Next, r emove t he battery fr om

Smoke Alarms with batter y back-up. Finally, press and hold the test button for 5-10 seconds

to discharge the branch circuit.

1. 1. Remove the Smoke Alarm from the mounting bracket. If the unit is locked to the

bracket, see the section “To Unlock the Mounting Bracket.”

2. 2. Disconnect the power connector by gently prying

it away from the back of the Smoke Alarm.

3. 3. Score the area around the locking pin to break the seal. Insert a flathead

screwdriver under the head of the locking pin or use a needle nose pliers to gently pry

it out of the battery compartment lock. (If you plan to

re-lock the battery compartment, save the locking pin.)

4. 4. To relock the battery compartment, close

the battery door and reinsert locking pin in lock.

5. 5. Reconnect the power connector to the back of

the Smoke Alarm, reattach the Smoke Alarm to the

mounting bracket, and restore the power.

When replacing the battery, always test the Smoke Alarm befor

relocking the battery

compartment.

TO UNLOCK THE MOUNTING BRACKET

ELECTRICAL SHOCK HAZARD. Turn of f the power to the area where the Smoke Alarm is

installed before removing it from the mounting bracket. Failure to turn off the power first

may result in serious electrical shock, injury or death.

Always discharge the branch circuit before servicing an AC or AC/DC Smoke Alarm. First ,

turn off the AC power at the circuit breaker or f use box. Next, remove t he batter y from

Smoke Alarms with batter y back-up. Finally, press and hold the test button for

5-10 seconds to discharge the branch cir cuit.

1. 1. Insert a flathead screwdriver between the

mounting bracket pin and the mounting bracket.

2. 2. Pry the

Smoke Alarm away from the bracket by turning both the screwdriver

and the Smoke Alarm counterclockwise (left) at the same time.

TO LOCK THE MOUNTING BRACKET

1. 1. Using needle-nose pliers or

utility knife, detach one locking pin

from mounting bracket.

2. 2. Insert the locking pin into the

lock located on the base as shown

in the diagram.

3. 3. When you

attach the Smoke Alarm to

the mounting bracket, the

locking pin’s head will fit into

a notch on the bracket.

Locking Features (Continued)

TO LOCK THE BATTERY COMPARTMENT

Do not lock the battery compart ment until you have activated the batter y and

tested the battery back-up.

1. 1. Activate the battery back-up by removing the “Pull to Activate

Battery Back-Up” tab.

2. 2. Push and hold test button until

alarm sounds: 3 beeps, pause, 3 beeps, pause.

If the unit does not

alarm during testing,

DO NOT lock t he battery compart ment! Inst all a

new batt ery and test again. If the Smoke Alar m still does not alarm,

replace it immediately.

3. 3. Using needle-nose pliers

or a utility knife, detach one locking

pin from the mounting bracket.

1. 4. Push the locking pin through the

black

dot on the label on the back of the Smoke Alarm.

WEEKLY TESTING

NEVER use an open flame of any kind to t est this unit. You might accidentally damage or

set fire t o the unit or to your home. The built-in t est switch accur ately test s the unit’s

operation as required by Underwriters Laboratories, Inc. (UL).

DO NOT stand close t o the Alarm when the horn is sounding. Exposure at close range may

be harmful t o your hearing. When test ing, step away when horn st art s sounding.

It is important to test this unit every week to make sure it is working properly. Using

the test button is the recommended way to test this Smoke Alarm. Press and hold the

test button on the cover of the unit until the alarm sounds (the unit may continue to alarm

for a few seconds after you release the button). If it does not alarm, make sure the unit is

receiving power and test it again. If it still does not alarm, replace it immediately. During

testing, you will hear a loud, repeating horn pattern: 3 beeps, pause, 3 beeps, pause.

When testing a series of interconnected units you must test each unit individually.

Make sure all units alarm when each one is tested.

REGULAR MAINTENANCE

This unit has been designed to be as maintenance-free as possible, but there are a few

simple things you must do to keep it working properly.

• • Test it at least once a week.

• • Clean the Smoke Alarm at least once a month; gently vacuum the outside of the

Smoke Alarm using your household vacuum’s soft brush attachment. Test the Smoke

Alarm. Never use water, cleaners or solvents since they may damage the unit.

• • If the Smoke Alarm becomes contaminated by excessive dirt, dust and/or grime,

and cannot be cleaned to avoid unwanted alarms, replace the unit immediately.

• • Relocate the unit if it sounds frequent unwanted alarms. See

“Locations To Avoid For Smoke Alarms” for details.

• • When the battery back-up becomes weak, the Smoke Alarm will “chirp” about once

a minute (the low battery warning). This warning should last 7 days, but you

should replace the battery immediately to continue your protection.

Choosing a replacement battery:

Your Smoke Alarm requires one standard 9V battery. The following batteries

are acceptable as replacements: Duracell #MN1604, (Ultra) #MX1604; Eveready

(Energizer) #522, Eveready (Energizer) #1222. You may also use a Lithium

battery like the Ultralife U9VL-J, U9VL-J-P for longer service life between battery

changes. These batteries are available at many local retail stores.

• • Always use the exact batteries specified by t his User’s Manual. DO NOT use

rechargeable batteries. Clean the batter y contacts and also those of the device prior

to battery installation. Install batteries correctly with regard to polarity

(+ and -).

• • Please dispose of or recycle used batteries properly, following any local regulations.

Consult your local waste management authority or recycling organization to find an

elect ronics r ecycling facilit y in your area. DO NOT DISPOSE OF

BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.

•

• • Keep bat tery out of reach of children. In the event a batt ery is swallowed,

immediately contact your poison control center, your physician, or the National

Bat tery Ingestion hotline at 202-625-3333 as serious injury may occur

Actual battery service life depends on the Smoke Alarm and the environment in which it is

installed. All the batteries specified above are acceptable replacement batteries for this unit.

Regardless of the manufacturer’s suggested battery life, you MUST replace the battery

immediately once the unit starts “chirping” (the “low battery warning”).

UNDERSTANDING THE INDICATOR LIGHTS AND

ALARM HORN PATTERNS

Condition

LED (Red or Green Lights)

Horn

Normal Operation

(AC Power)

Green LED ON; flashing

Red LED once/ minute

No Audible Alarm

DURING TESTING Red LED flashes

once every second

Horn pattern:

3 beeps, pause, 3

beeps, pause

LOW OR MISSING

BATTERY (9120B only)

Red LED flashes

once/minute

Horn “chirps”

once/minute

Normal Operation

(DC Power – 9120B only)

Green LED OFF; Red LED

flashes once/minute

No Audible Alarm

ALARM CONDITION

Smoke Initiating Device

Red LED flashes

rapidly on the unit that

triggered the Alarm.

Horn pattern:

3 beeps, pause, 3

beeps, pause repeating

on all Alarms

ALARM CONDITION

Interconnect Alarm

Red LED on the

other Alarms in an

interconnected series

will be OFF.

Horn pattern:

3 beeps, pause, 3

beeps, pause repeating

on all Alarms

IN SILENCE MODE

Red LED flashes once

every 10

seconds

Horn remains silent for

up to 10 minutes. Horn

will sound if smoke

levels increase.

“LATCHING” ALARM

INDICATOR

Green LED ON for

2 seconds/OFF for

2 seconds,

repeatedly until reset,

on initiating unit(s).

Horn remains silent

IF THIS SMOKE ALARM SOUNDS, Co ntinued

WHAT TO DO IN CASE OF FIRE

• • Don’t panic; stay calm. Follow your family escape plan.

• • Get out of the house as quickly as possible. Don’t stop to get dressed or collect

anything.

• • Feel doors with the back of your hand before opening them. If a

door is cool, open it slowly. Don’t open a hot door. Keep doors and

windows closed, unless you must escape through them.

• • Cover your nose and mouth with a cloth (preferably damp). Take short, shallow breaths.

• • Meet at your planned meeting place outside your home, and do

a head count to make sure everybody got out safely.

• • Call the Fire Department as soon as possible from outside. Give your address, then

your name.

• • Never go back inside a burning building for any reason.

• • Contact your Fire Department for ideas on making your home safer.

Alarms have various limitations. See “Limitations of Smoke Alarms” for details.

IF THIS SMOKE ALARM SOUNDS

RESPONDING TO AN ALARM

During an alarm, you will hear a loud, repeating horn pattern: 3 beeps, pause,

3 beeps, pause.

• • If the unit alarms and you are not t esting the unit , it is warning you of a

potentially dangerous situation that requires your immediate attention.

NEVER ignore any alarm. Ignoring the alarm may result in injury or death.

• • Never disconnect the AC power to quiet an unwanted alarm. Disconnecting

the power disables the Alarm so it cannot sense smoke. This will remove your

protection. Instead open a window or fan the smoke away from t he unit .

The alarm will reset automatically.

• • If the unit alarms get everyone out of the house immediately.

•

• ELECTRICAL SHOCK HAZARD: At tempting to disconnect t he power connector f rom

the unit when the power is on may r esult in electr ical shock, serious injur y or death.

When an interconnected system of AC powered units is in alarm, the alarm indicator light on

the unit(s) that initiated the alarm will blink rapidly. It will remain OFF on any remaining units.

If the unit alarms and you are certain that the source of smoke is not a fire—cooking

smoke or an extremely dusty furnace, for example—open a nearby window or door and

fan the smoke away from the unit. Use the Silence Feature to silence the alarm. This will

silence the alarm, and once the smoke clears the unit will reset itself automatically.

“LATCHING ALARM” INDICATOR

IF YOU SUSPECT A PROBLEM

Smoke Alarms may not operate properly because of dead, missing or weak batteries, a

build-up of dirt, dust or grease on the Smoke Alarm cover, or installation in an improper

location. Clean the Smoke Alarm as described in “Regular Maintenance,” and install a

fresh battery, then test the Smoke Alarm again. If it fails to test properly when you use the

Test/Silence button, or if the problem persists, replace the Smoke Alarm immediately.

• • If you hear a “chirp” once a minut e, replace the batter y.

• • If you experience frequent non-emergency alarms (like those

caused by cooking smoke), try relocating the Smoke Alarm.

• • If t he alarm sounds when no smoke is visible, t ry cleaning or

relocating the Smoke Alarm. The cover may be dirty.

• • If t he alarm does not sound during test ing, make sur e it is

receiving AC power from the household current .

Always discharge the branch circuit before servicing an AC or AC/DC Smoke Alarm.

First , turn of f the AC power at the circuit breaker or fuse box. Next, r emove t he battery fr om

Smoke Alarms with batter y back-up. Finally, press and hold the test button for 5-10 seconds

to discharge the branch circuit.

Do not try fixing the alarm yourself – this will void your warranty!

If the Smoke Alarm is still not operating properly, and it is still under warranty,

please see “How to Obtain Warranty Service” in the Limited Warranty.

RECOMMENDED LOCATIONS FOR SMOKE ALARMS

Installing Smoke Alarms in Single-Family Residences

The National Fire Protection Association (NFPA), recommends one Smoke Alarm on

every floor, in every sleeping area, and in every bedroom. In new construction, the

Smoke Alarms must be AC powered and interconnected. See “Agency Placement

Recommendations” for details. For additional coverage, it is recommended that you

install a Smoke Alarm in all rooms, halls, storage areas, finished attics, and basements,

where temperatures normally remain between 40˚ F (4.4˚ C) and 100˚ F (37.8˚ C). Make

sure no door or other obstruction could keep smoke from reaching the Smoke Alarms.

More specifically, install Smoke Alarms:

• • On every level of your home, including finished attics and basements.

• • Inside every bedroom, especially if people sleep with the door partly or completely closed.

• • In the hall near every sleeping area. If your home has multiple sleeping areas, install a

unit in each. If a hall is more than 40 feet (12 meters) long, install a unit at each end.

• • At the top of the first-to-second floor stairway, and at the bottom of the basement stairway.

Specific requirements for Smoke Alarm installation vary from state to state and from region to

region. Check with your local Fire Department for current requirements in your area. It is

recommended AC or AC/DC units be interconnected for added protection.

GARAGE



BEDROOM

HALL

LIVING ROOM

KITCHEN

BASEMENT

BEDROOM

LATCHING ALARM: 

Unit was exposed 

to alarm levels of Smoke

LATCHING NOT ACTIVATED: 

Unit was not exposed 

to alarm levels of Smoke

KEY:

The Latching Alarm Indicator is automatically activated after an Alarm is exposed

to alarm levels of smoke. After smoke levels drop below alarm levels, the green LED

will be On for 2 seconds/Off for 2 seconds, repeatedly. This feature helps emergency

responders, investigators, or service technicians identify which unit(s) in your home were

exposed to alarm levels of smoke after the condition has subsided. The Latching Alarm

Indicator stays ON until you reset it by pressing the Test/Silence button. The Latching

Alarm Indicator is also reset when AC and DC power is removed from the Alarm.

USING THE SILENCE FEATURE

The Silence Feature on this unit can temporarily quiet an unwanted alarm for up to 10 minutes.

The Silence Feature does not disable t he unit—it makes it temporarily less sensitive to

smoke. For your safety, if smoke around t he unit is dense enough to suggest a potentially

dangerous situation, t he unit will stay in alarm or may r e-alarm quickly.

If you do not know the source of the smoke, do not assume it is an unwanted alar m. Not

responding to an alarm can result in property loss, injury, or death. If the unit will not

silence and no heavy smoke is present, or if it stays in silence mode continuously, it should be

replaced immediately.

To silence Smoke Alarms in an interconnected series:

1. 1. To silence multiple alarms in an interconnected series, you must

press the Test/Silence button on the unit(s) that initiated the alarm.

2. NOTE: The red LED on the initiating alarm will flash rapidly. The red LED

will be Off on all other non-initiating alarms. No audible sound will be heard.

The unit will exit “silence mode” in approximately 10 minutes.

3. 2. While the unit is in “silence mode”, pressing and holding the Test/

Silence button for approximately 10 seconds will test the unit. After testing,

the unit will re-enter “silence mode” and the 10-minute timer is reset.

Printed in Mexico

M08-0134-011 K1 04/16

BRK® is a registered trademark of BRK Brands, Inc.

First Alert® is a registered trademark of the First Alert Trust.

USER’S MANUAL

Smoke Alarms

AC Powered Smoke Alarms

120V AC , 60 Hz, 0.04A~

Model 9120LBLA

with 10 year Battery

Backup

Printed in Mexico

M08-0134-011 K1 04/16

CERTIFIED TO

UL STD S531

IONIZATION

Model

9120LBLA

• • In air streams near kitchens. Air currents can draw cooking smoke into

the sensing chamber of a Smoke Alarm near the kitchen.

• • In very damp, humid or steamy areas, or directly near bathrooms with showers.

Keep units at least 10 feet (3 meters) away from showers, saunas, dishwashers, etc.

• • Where the temperatures are regularly below 40˚ F (4.4˚ C) or above 100˚ F (37.8˚ C) including

unheated buildings, outdoor rooms, porches, or unfinished attics or

basements.

• • In very dusty, dirty, or greasy areas. Do not install a Smoke Alarm directly over the

stove or range. Clean a laundry room unit frequently to keep it free of dust or lint.

• • Near fresh air vents, ceiling fans, or in very drafty areas. Drafts can blow

smoke away from the unit, preventing it from reaching sensing chamber.

• • In insect infested areas. Insects can clog openings to the

sensing chamber and cause unwanted alarms.

• • Less than 12 inches (305 mm) away from fluorescent lights. Electrical “noise” can

interfere with the sensor.

• • In “dead air” spaces. “Dead air” spaces may prevent smoke from reaching the Smoke Alarm.

AVOIDING DEAD AIR SPACES

“Dead air” spaces may prevent smoke from reaching the Smoke Alarm. To

avoid dead air spaces, follow the installation recommendations below.

On ceilings, install Smoke Alarms as close to the center of the ceiling as possible. If this is

not possible, install the Smoke Alarm at least 4 inches (102 mm) from the wall or corner.

For wall mounting (if allowed by building codes), the top edge of Smoke

Alarms should be placed between 4 inches (102 mm) and 12 inches (305

mm) from the wall/ceiling line, below typical “dead air” spaces.

On a peaked, gabled, or cathedral ceiling, install the first Smoke Alarm within 3

feet (0.9 meters) of the peak of the ceiling, measured horizontally. Additional Smoke

Alarms may be required depending on the length, angle, etc. of the ceiling’s slope.

Refer to NFPA 72 for details on requirements for sloped or peaked ceilings.

LIMITED WARRANTY

BRK Brands, Inc., (“BRK”) the maker of BRK® brand and First Alert® brand products,

warrants that for a period of ten years from the date of purchase, this product will be free from

defects in material and workmanship. BRK, at its option, will repair or replace this product or

any component of the product found to be defective during the warranty

period. Replacement will be made with a new or remanufactured product or

component. If the product is no longer available, replacement may be made with

a similar product of equal or greater value. T his is your exclusive warranty.

This warranty is valid for the original retail purchaser from the date of initial retail

purchase and is not transferable. Keep the original sales receipt. Proof of

purchase is required to obtain warranty performance. BRK dealers, service

centers, or retail stores selling BRK products do not have the right to alter,

modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the

following: negligent use or misuse of the product, use on improper voltage or current, use

contrary to the operating instructions, disassembly, repair or alteration by anyone other than

BRK or an authorized service center. Further, the warranty does not cover Acts of God, such

as fire, flood, hurricanes and tornadoes or any batteries that are included with this unit.

BRK shall not be liable for any incidental or consequential damages caused by the

breach of any express or implied warranty. Except to the extent prohibited by applicable

law, any implied warranty of merchantability or fitness for a particular purpose is

limited in duration to the duration of the above warranty. Some states, provinces or

jurisdictions do not allow the exclusion or limitation of incidental or consequential

damages or limitations on how long an implied warranty lasts, so the above limitations

or exclusion may not apply to you. T his warranty gives you specific legal rights, and

you may also have other rights that vary from state to state or province to province.

How to Obt ain Warranty Service

Service: If service is required, do not return the product to your retailer. In order to obtain

warranty service, contact the Consumer Affairs Division at 1-800-323-9005, 7:30 AM - 5:00 PM

Central Standard Time, Monday through Friday. To assist us in serving you, please have the

model number and date of purchase available when calling.

For Warranty Service return to: BRK Brands, Inc., 25 Spur Drive, El Paso, T X 79906

Battery: BRK Brands, Inc. make no warranty, express or implied, written or oral, including

that of merchantability or fitness for any particular purpose with respect to battery.

SPECIAL COMPLIANCE CONSIDERATIONS

This Smoke Alarm is suitable for use in apartments, condominiums, townhouses, hospitals, day

care facilities, health care facilities, boarding houses, group homes and dormitories provided

a primary fire detection system already exists to meet fire detection requirements in common

areas like lobbies, hallways, or porches. Using this Smoke Alarm in common areas may not

provide sufficient warning to all residents or meet local fire protection

ordinances/regulations.

This Smoke Alarm alone is not a suitable substitute for complete fire detection systems

in places housing many people—like apartment buildings, condominiums, hotels, motels,

dormitories, hospitals, health care facilities, nursing homes, day care facilities, or group homes

of any kind. It is not a suitable substitute for complete fire detection systems in warehouses,

industrial facilities, commercial buildings, and special-purpose non-residential buildings

which require special fire detection and alarm systems. Depending on the building codes in

your area, this Smoke Alarm may be used to provide additional protection in these facilities.

In new construction, most building codes require the use of AC or AC/DC powered Smoke

Alarms only. In existing construction, AC, AC/DC, or DC powered Smoke Alarms can be used as

specified by local building codes. Refer to NFPA 72 (National Fire Alarm and Signaling Code) and

NFPA 101 (Life Safety Code), local building codes, or consult your

Fire Department for detailed fire protection requirements

in buildings not defined as “households”.

LIMITATIONS OF SMOKE ALARMS

Smoke Alarms have played a key role in reducing deaths resulting from home fires worldwide.

However, like any warning device, Smoke Alarms can only work if they are properly located,

installed, and maintained, and if smoke reaches the Alarms. They are not foolproof.

Smoke alarms may not waken all individuals. Practice the escape plan at least twice a year,

making sure that everyone is involved – from kids to grandparents. Allow children to master

fire escape planning and practice before holding a fire drill at night when they are sleeping. If

children or others do not readily waken to the sound of the smoke alarm, or if there are infants or

family members with mobility limitations, make sure that someone is assigned to assist them in

fire drill and in the event of an emergency. It is recommended that you hold a fire drill while family

members are sleeping in order to determine their response to the sound of the smoke alarm

while sleeping and to determine whether they may need assistance in the event of an emergency.

Smoke Alarms cannot work without power. Battery operated units cannot work if the

batteries are missing, disconnected or dead, if the wrong type of batteries are used, or if the

batteries are not installed correctly. AC units cannot work if the AC power is cut off for any

reason (open fuse or circuit breaker, failure along a power line or at a power

station, electrical fire that burns the electrical wires, etc.). If you are concerned

about the limitations of battery or AC power, install both types of units.

Smoke Alarms cannot detect fires if the smoke does not reach the Alarms. Smoke

from fires in chimneys or walls, on roofs, or on the other side of closed doors may

not reach the sensing chamber and set off the Alarm. That is why one unit should

be installed inside each bedroom or sleeping area—especially if bedroom or

sleeping area doors are closed at night—and in the hallway between them.

Smoke Alarms may not detect fire on another floor or area of the dwelling. For example,

a stand-alone unit on the second floor may not detect smoke from a basement fire until the fire

spreads. T his may not give you enough time to escape safely. That is why recommended minimum

protection is at least one unit in every sleeping area, and every bedroom on every level of your

dwelling. Even with a unit on every floor, stand-alone units may not provide as much protection as

interconnected units, especially if the fire starts in a remote area. Some safety experts recommend

installing interconnected AC powered units with battery back-up (see “About Smoke Alarms”) or

professional fire detection systems, so if one unit senses smoke, all units alarm. Interconnected

units may provide earlier warning than stand-alone

units since all units alarm when one detects smoke.

Smoke Alarms may not be heard. Though the alarm horn in this unit meets or exceeds

current standards, it may not be heard if: 1) the unit is located outside a closed or partially closed

door, 2) residents recently consumed alcohol or drugs, 3) the Alarm is drowned out

by noise from stereo, TV, traffic, air conditioner or other appliances, 4) residents

are hearing impaired or sound sleepers. Special purpose units, like those with

visual and audible alarms, should be installed for hearing impaired residents.

Smoke Alarms may not have time to alarm before the fire it self causes damage,

injury, or death, since smoke fr om some fires may not reach the unit immediately.

Examples of this include persons smoking in bed, children playing with matches,

or fires caused by violent explosions resulting from escaping gas.

Smoke Alarms are not foolproof. Like any electronic device, Smoke Alarms are made of

components that can wear out or fail at any time. You must test the unit

weekly to ensure your continued protection. Smoke Alarms cannot prevent or

extinguish fires. They are not a substitute for property or life insurance.

Smoke Alarms have a limited life. The unit should be replaced immediately if it is not

operating properly. You should always replace a Smoke Alarm after 10 years from date of

purchase. Write the purchase date on the space provided on back of unit.

ABOUT SMOKE ALARMS

Battery (DC) operated Smoke Alarms: Provide protection even when electricity fails,

provided the batteries are fresh and correctly installed. Units are easy to install, and do not

require professional installation. However, they do not provide interconnected functionality.

AC powered Smoke Alarms: Can be interconnected so if one unit senses smoke,

all units alarm. They do not operate if electricity fails. AC with battery (DC) back-

up: will operate if electricity fails, provided the batteries are fresh and correctly

installed. AC and AC/DC units must be installed by a qualified electrician.

Wireless Interconnected Alarms: Offer the same interconnected functionality

as with hardwired alarms, without wires. Units are easy to install and do not

require professional installation. They provide protection even when electricity

fails, provided the batteries are fresh and correctly installed.

Smoke Alarms for Solar or Wind Energy users and battery backup power systems:

AC powered Smoke Alarms should only be operated with true or pure sine wave inverters.

Operating this Smoke Alarm with most battery-powered UPS (uninterruptible power supply)

products or square wave or “quasi sine wave” inverters . If you are will damage the Alarm

not sure about your inverter or UPS type, please consult with the manufacturer to verify.

Smoke Alarms for the hearing impaired: Special purpose Smoke Alarms should be installed for

the hearing impaired. They include a visual alarm and an audible alarm horn,

and meet the requirements of the Americans With Disabilities Act. These units

can be interconnected so if one unit senses smoke, all units alarm.

Smoke alarms are not to be used with detector guards unless the

combination has been evaluated and found suitable for that purpose.

All these Smoke Alarms are designed to provide early warning of fires if located, installed and

cared for as described in the user’s manual, and if smoke reaches the Alarm. If you are unsure

which type of unit to install, refer to NFPA (National Fire Protection Association) 72 (National

Fire Alarm and Signaling Code) and NFPA 101 (Life Safety Code). National Fire Protection

Association, One Batterymarch Park, Quincy, MA 02269-9101.

Local building codes may

also require specific units in new construction or in different areas of the home.

LOCATIONS TO AVOID FOR SMOKE ALARMS, Continued

LOCATIONS TO AVOID FOR SMOKE ALARMS

For best performance, AVOID installing Smoke Alarms in these areas:

• • Where combustion particles are produced. Combustion particles form when something

burns. Areas to avoid include poorly ventilated kitchens, garages, and furnace rooms. Keep

units at least 20 feet (6 meters) from the sources of combustion particles (stove, furnace,

water heater, space heater) if possible. In areas where a 20-foot (6 meter)

distance is not possible – in modular, mobile, or smaller homes, for example – it is

recommended the Smoke Alarm be placed as far from these fuel-burning sources

as possible. The placement recommendations are intended to keep these

Alarms at a

reasonable distance from a fuel-burning source, and thus

reduce “unwanted” alarms. Unwanted alarms can occur if a Smoke Alarm is placed

directly next to a fuel-burning source. Ventilate these areas as much as possible.

Continued...

AGENCY PLACEMENT RECOMMENDATIONS

NFPA 72 Chapter 29

“For “For your information, the National Fire Alarm and

Signaling Code, NFPA 72, reads as follows:”

29.5.1* Required Detection.

29.5.1.1* Where required by other governing laws, codes, or standards for a specific type of

occupancy, approved single and multiple-station smoke alarms shall be installed as

follows:

(1)*In all sleeping rooms and guest rooms

(2)* Outside of each separate dwelling unit sleeping area, within 21 ft (6.4 m) of any door

to a sleeping room, with the distance measured along a path of travel

(3) On every level of a dwelling unit, including basements

(4) On every level of a residential board and care occupancy (small facility), including

basements and excluding crawl spaces and unfinished attics

(5)*In the living area(s) of a guest suite

(6) In the living area(s) of a residential board and care occupancy (small facility)

(Reprinted with permission from NFPA 72 ®, National Fire Alarm and Signaling Code

reprinted material is not the complete and official position of the National Fire Protection

Association, on the referenced subj ect which is represented only by the standard in

its entirety), (National Fire Alarm and Signaling Code® and NFPA 72®

are registered

trademarks of the National Fire Protection Association, Inc., Quincy, MA 02269).

California State Fire Marshal (CSFM)

Early warning detection is best achieved by the installation of fire detection equipment in all rooms

and areas of the household as follows: A Smoke Alarm installed in each separate

sleeping area (in the vicinity, but outside bedrooms), and Heat or Smoke Alarms in the living rooms,

dining rooms, bedrooms, kitchens, hallways, finished attics, furnace rooms, closets,

utility and storage rooms, basements, and attached garages.

continued...

3055574

Produkt Specifikationer

Mærke:	B/R/K
Kategori:	Røgdetektor
Model:	9120LBLA

Har du brug for hjælp?

Hvis du har brug for hjælp til B/R/K 9120LBLA stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Røgdetektor B/R/K Manualer

B/R/K 7010BE Manual

17 September 2024

B/R/K 9120LBLA Manual

21 August 2024

B/R/K 770MBX Manual

16 August 2024

B/R/K 780MRL Manual

15 August 2024

B/R/K 750MRL Manual

13 August 2024

B/R/K CO850MRLi Manual

1 August 2024

B/R/K CO850Mi Manual

21 Juli 2024

B/R/K CO5120PDBN Manual

19 Juli 2024

Røgdetektor Manualer

Nyeste Røgdetektor Manualer

First Alert HD6135FB Manual

14 Oktober 2024

TFA AirCo2ntrol Life Manual

8 Oktober 2024

Elro FS151021M Manual

8 Oktober 2024

Elro 2001-023 Manual

3 Oktober 2024

FireHawk FHB10 Manual

2 Oktober 2024

Smartwares RM149 1YR Manual

2 Oktober 2024

First Alert SA410 Manual

1 Oktober 2024

König SAS-SA2002 Manual

1 Oktober 2024

FireAngel ST-622 Manual

30 September 2024

Alecto SA-49/1 Manual

29 September 2024
