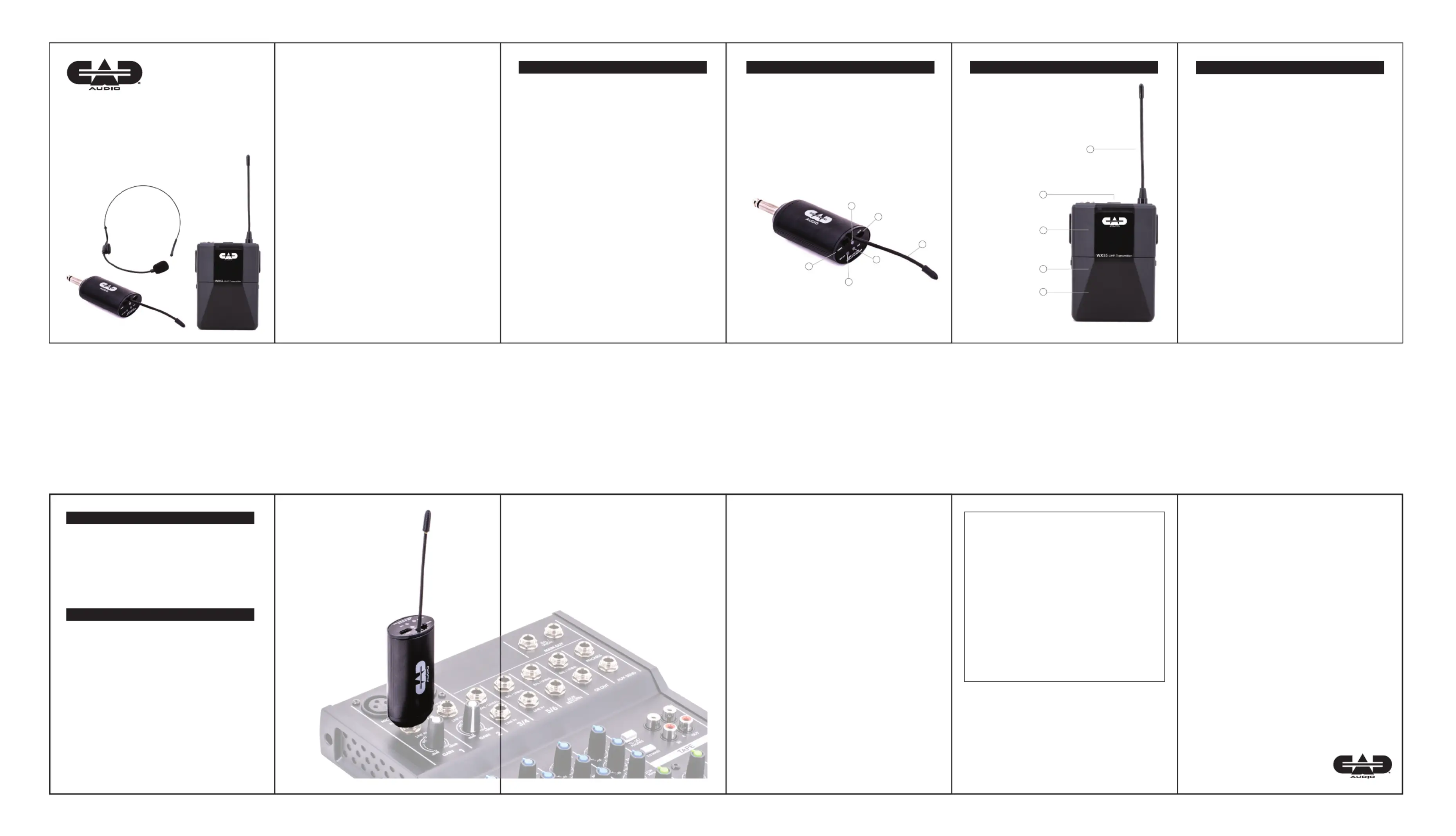

WX55 Digital Frequency Agile
Bodypack Wireless
Microphone System
User Guide
WX55 Digital Frequency Agile Bodypack
Wireless Microphone System
Enjoy the easy and exciting performance that the WX55 provides
for your next performance. CAD Audio has been creating valued
product since 1931 and prides itself on developing and supporting
the live performer. Our concept was straightforward – develop a
high value wireless microphone system that can cope with today’s
challenging RF environment that is both easy to operate and
exciting to use.
The WX55 is a Digital Frequency Agile Bodypack Wireless
System. Designed for quick and easy use - The QuickMic
receiver design utilizes an integrated ¼" jack – Simply plug it into
an open channel on your mixer and high-quality audio is ready for
your next performance. The transmitter displays current frequency,
signal strength and battery life indicator. System includes a head
worn microphone.
The WX55 contains the following features:
Digital High Definition Audio
Frequency Agile Design (16 switchable frequencies)
Use up to 15 systems at the same time
Up to 164' (50m) range between transmitter and receiver
QuickMic™ connection to your mixing board via
integrated ¼" jack
Transmitter and receiver feature low battery indicators
Transmitter utilizes 2 AA Batteries with >8 Hrs of operation
Includes head worn microphone
2 Year Warranty
CAD Audio
6573 Cochran Rd., Bldg. Solon, OH 44139 U.S.A.I
Tel: (440) 349-4900 Fax: (440) 248- 4904
Sales: 800-762-9266 cadaudio.com
Distributed Worldwide by American Music and Sound
925 Broadbeck Drive, Suite 220
Newbury Park, CA 91320 U.S.A.
Tel: (800) 431-2609 Fax: (800) 431-3129
©2022 CAD Audio Rev00 0622
1. ON/OFF Switch
2. Antenna
3. Charge indicator
Red = charging
Green = charged
4. DC 5V charging port
5. Low battery indicator
Blue = on
Red = needs charged
6. RF indicator
Red = Channel A
Green = Channel B
Controls
1. Turn the receiver ON/OFF switch to ON, the LED indicator
will illuminate, insert the 1/4" (6.3mm) input jack into the audio
input jack of your audio mixer.
2. Insert (2) AA batteries into the battery compartment of the
transmitter, make sure the polarity is correct.
3. Turn the transmitter on, the frequency display will illuminate,
you can now use this system.
4. When the receiver battery gets low, please use the included
charging cable to recharge the built in battery.
Operating Instructions
1. Antenna
2. ON/OFF Switch
3. Frequency Display
4. Frequency Selection Button
(located inside Battery Compartment)
5. Battery Compartment
Controls
Two-Year Limited Warranty
CAD Audio hereby warrants that this product will be free of defects in material and workmanship for a
period of two years from the date of purchase. In the unlikely event that a defect occurs, CAD will, at
its option, either repair or replace with a new unit of equal or greater value. In the event that a suitable
replacement is unavailable, CAD Audio may elect to reimburse owner for the cost of local repairs or
issue a refund in the amount of the original purchase price. Items must be purchased from an
authorized CAD Audio dealer, and the warranty is not transferable from the original owner. Please
retain proof of purchase to validate the purchase date and include it with any warranty claim.
This warranty excludes exterior finish or appearance, damage from abuse, misuse of the product, use
contrary to CAD’s instructions or unauthorized repair. All implied warranties, merchantability, or fitness
for a particular purpose is hereby disclaimed and CAD hereby disclaims liability for incidental, special
or consequential damages resulting from the use or unavailability of this product.
This warranty gives you specific legal rights and you may have other rights that vary from state to
state. Some states do not allow the exclusion or limitation of incidental or consequential damages or
limitations on how long an implied warranty lasts, so the above exclusions and limitations may not
apply to you.
Note: No other warranty, written or oral is authorized by CAD Audio.
To initiate a warranty claim, please contact American Music and Sound at 1-800-431-2609 to
obtain a return authorization number and shipping instructions.
A return authorization is required for all returns. RETURNS WITHOUT A
PRE-APPROVED RETURN AUTHORIZATION NUMBER WILL
BE REFUSED.
Please use at least 3 inches of padding surrounding the product for
protection during shipment
Retain your tracking number until your warranty claim has been resolved
We recommend using an insured shipping method in case of loss
or damage during shipment
If outside the United States, contact your local dealer or distributor for warranty details.
Specifications
Frequency Response .................................................. 20Hz-16kHz
Modulation .......................................... High Definition Digital QPSK
Frequency Band ..................................................500Mhz - 599Mhz
Transmitting Power ............................................................... 10mW
Sensitivity ...................................................-43dbV (6.8mV) @ 1Pa
Battery Life..............................................................................>8Hrs
Weight........................................................................0.8lbs (0.36kg)
Dimensions .........................................................11" x 3.94" x 2.44"
(28cm x 10cm x 6.2cm)
Individuals with cardiac pacemakers and other similar medical
devices should consult with their physician before using any RF
devices. Though the output level of this wireless system is below 50
milliwatts, the proximity of the transmitter to the implant device could
pose a threat.
As with any wireless product, environmental conditions can reduce
or in some cases prohibit a successful connection between the
transmitter and the receiver.
This device complies with Part 15 of the FCC Rules. Most users of
CAD Audio wireless products in the United States do not need a
license for operation. However, the rules for unlicensed operation
state that this device must not operate in excess of 50 milliwatts and
it must not cause harmful interference to other wireless devices, and
must accept interference received from other devices. Wireless
products meeting CAD factory standards adhere to these rules.
The FCC reserves the right to change these rules at any time. For
more information contact the FCC at 1- 888-CALL-FCC
(TTY: 1-888 -TELL-FCC) or visit the FCC’s wireless microphone
website at:
www.fcc.gov/cgb/wirelessmicrophones
Troubleshooting
1. If there is any noise, distortion or audio dropouts when using
the system it may be caused by a low battery. Please replace
the transmitter batteries or charge the receiver battery.
2. Remember to turn the switches to the OFF position when not
in use.
3. If you won’t be using the system for a long time, please take
the batteries out of the transmitter.
Frequency Matching
If there are multiple sets of units in the same
environment, crosstalk may occur (same frequency
and ID). It can be resolved by the procedure below:
Transmitter: Press and hold the ON/OFF switch and the
frequency select buttons for about 4 seconds, the display will flash.
Receiver: Turn the power switch ON, the RF indicator will flash 4
times.
A short press on the frequency select button on the transmitter will
complete the setup.
1
3
4
2
5
6
2
3
4
5
1
