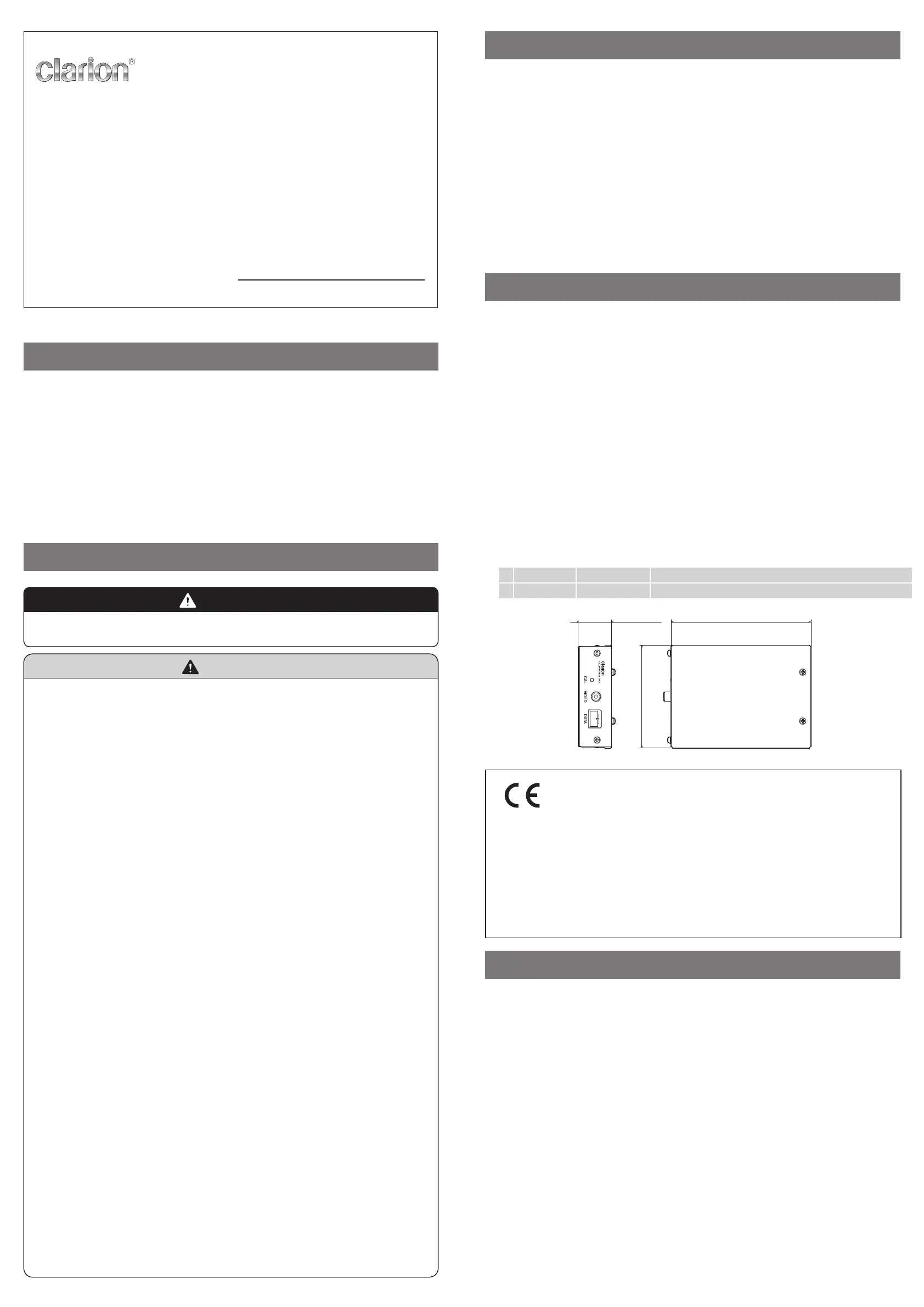

Owner’s manual
UG-2176A
SurroundEye Interface Box
Thank you very much for your purchase of this Clarion product.
Before use, please read this User Manual carefully to ensure correct and safe use.
After reading, keep it in a location where it is easily accessible.
Clarion Co., Ltd.
All Rights Reserved. Copyright2014: Clarion Co., Ltd.
THE SURROUNDEYE INTERFACE BOX
This equipment (SurroundEye Interface Box) performs conversion of the communication
data "between the camera ECU and PC" in order to set the SurroundEye system.
• The camera ECU converts the output camera image signal to a signal that conforms
to UVC standards for communication with a PC.
• The camera ECU converts the input and output serial signal to a USB signal for com-
munication with a PC.
By installing the enclosed application CD in a PC, the camera ECU settings, software
version display, calibration function and fault diagnosis function can be operated with a
PC. Please see the application software PDF manual for details.
”SurroundEye Interface Box”is described as ”OVM Interface Box”in the manual of appli-
cation software.
SAFETY PRECAUTIONS
Make sure you adhere to the following warnings and precautions during use.
WARNING
Do not touch the equipment in case of thunder.
There is a risk of electric shock due to lightning.
CAUTION
When moving the equipment between environments with a large temperature difference,
leave the equipment at the location for a few hours first before use.
Water may condense on the electronic parts inside the equipment, resulting in fire and electric shock.
Do not allow metals such as necklaces and hairpins etc. to contact the connectors.
This may result in fuming, fire outbreak, electric shock and injuries.
Take sufficient note of static electricity.
The electronic parts inside the equipment may get damaged due to static electricity generated during han-
dling, resulting in equipment failure.
Do not expose the equipment to X-ray for a long period of time e.g. during equipment in-
spection, fault analysis etc.
This equipment is not designed to withstand long periods of radiation. The electronic parts inside the
equipment may get damaged due to long exposure to X-ray radiation, resulting in equipment failure.
Do not use power supplies other than the USB bus power.
This may result in fire and faults.
Do not disassemble, modify or repair the equipment.
Never disassemble, modify or repair the equipment under any circumstances. This may result in acci-
dents, fire and electric shock.
Do not use faulty equipment.
Unplug the USB cable immediately, switch off the power supply and make sure you consult your dealer
in case of any fault. Use of faulty equipment may result in fire and electric shock.
Never repair the equipment on your own under any circumstances.
Do not use the equipment when there is smoke, strange odors and when the equipment
gets unusually hot etc.
Unplug the USB cable immediately, switch off the power supply and make sure you consult your dealer
in case of any fault. Use of faulty equipment may result in fire and electric shock.
Never repair the equipment on your own under any circumstances.
Do pour water or place foreign objects inside the equipment.
Unplug the USB cable immediately, switch off the power supply and make sure you consult your dealer
in the event water or foreign objects get into the equipment. Use of faulty equipment may result in fire
and electric shock. Never repair the equipment on your own under any circumstances.
Do not place any objects on top of the equipment.
Do not place flower vases, potted plants, cups, medicine, vessels containing water and small metallic ob-
jects such as setting pins and clips etc. on top of the equipment. This may result in fire and electric shock
when they get inside the equipment.
Do not use the equipment in humid and dusty places.
Please do not use the equipment in humid and dusty places.
This may result in fire and electric shock.
Do not subject the equipment to strong impacts e.g. by dropping or hitting it etc.
The equipment may get damaged, resulting in fire and electric shock.
Do not use the equipment in hot places.
Please do not use the equipment in hot places e.g. near a stove or fire etc.
The interior of the equipment may get hot, resulting in fire.
Do not place the equipment in a location that is subject to a lot of vibration.
The parts may get detached due to vibration, resulting in faults.
Do not use combustible aerosols around the equipment and when cleaning.
Please do not use combustible aerosols (air sprays) around the equipment and when cleaning.
Sparks may result due to static electricity, resulting in fire.
PRECAUTIONS
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not in-
stalled and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to con-
sult the dealer or an experienced radio/TV technician for help.
INFORMATION FOR USERS:
CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MAN-
UFACTURER WILL VOID THE WARRANTY AND WILL VIOLATE FCC APPROVAL.
SPECIFICATIONS
Power Supply : 5 V typ. (supplied from USB bus power)
Current : 500 mA or less (power supply voltage based
on USB power supply specifications)
External I/F : RCA - 1 port
Standard NTSC signal for image signal input use
(1 Vp-p / 75 Ω) 30fps
UART - 1 port
Serial communications use 115.2 kbps
USB 2.0 - 1 port
USB communications use USB 2.0 compliant
(B Type socket)
Image capture (output image) : 640 x 480 24 bit full color
Dimensions : 93 mm(w) x 30 mm(H) x 126 mm(D)
3-21/32”(w) x 1-3/16”(H) x 4-31/32”(D)
excluding protrusions (connectors / screws)
Weight : Approx. 170 g (0.37 lbs)
Operating Environment:
1 Temperature 0°C - 60°C Use within the temperature range shown on the left.
2 Humidity 20% - 80 % Rh Use within the humidity range shown on the left.
30 mm
(1-3/16")
126 mm
(4-31/32")
93 mm
(3-21/32")
Declaration of conformity
We Clarion declares that the product UG-2176 is following the provisions of Directive
2014/30/EU and Directive 2011/65/EU.
Authorized Representative
Clarion Europe S.A.S.
244 rue du Pré à Varois, 54670 Custines, France
TEL +33 3 83 49 44 00 FAX +33 3 83 24 17 62
PACKAGE CONTENTS
This equipment comes with the following accessories.
Please contact your dealer if there is anything missing.
1
Owner’s manual 1 ......................................................................................................
2
USB Cable (1 m (3.28 ft)) 1 .........................................................................................
3
RCA Cable (3.6 m (11.81 ft)) 1 ....................................................................................
4
Serial Cable (4 m (13.12 ft)) 1 ......................................................................................
5
Application CD 1 ........................................................................................................
6
SurroundEye Interface Box (Equipment) 1 ...................................................................
Printed in Japan 2016/7 UG-2176A 280-9135-11
