CLUB3D CSV-1563 Manual
CLUB3D
Overige computer accessoire
CSV-1563
Læs nedenfor 📖 manual på dansk for CLUB3D CSV-1563 (1 sider) i kategorien Overige computer accessoire. Denne guide var nyttig for 3 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere
Side 1/1
AUDIO JACK
SD Card 4.0
MIC. JACK
DATA LED
POWER LED
USB-C 3.1 Gen 2
Support BC 1.2 &
Apple charge
4x USB 3.1 Gen1
BackFront
Gigabit
Ethernet
AC POWERDC in
Main USB Type-C
connection to Laptop
Power & charge laptop
3x 4K
HDMI™ /
DisplayPort™
4K
Included:
USB-C Cable
Installation procedure: Before connecting the device, PLEASE install
the latest DisplayLink driver from our website www.club-3d.com under
downloads from the CSV-1563. Make sure you install the correct driver for
either Windows/Chrome or Apple(MAC/M1).
Upon succesfull installation of the correct driver, please re-boot your
system to make the driver active.

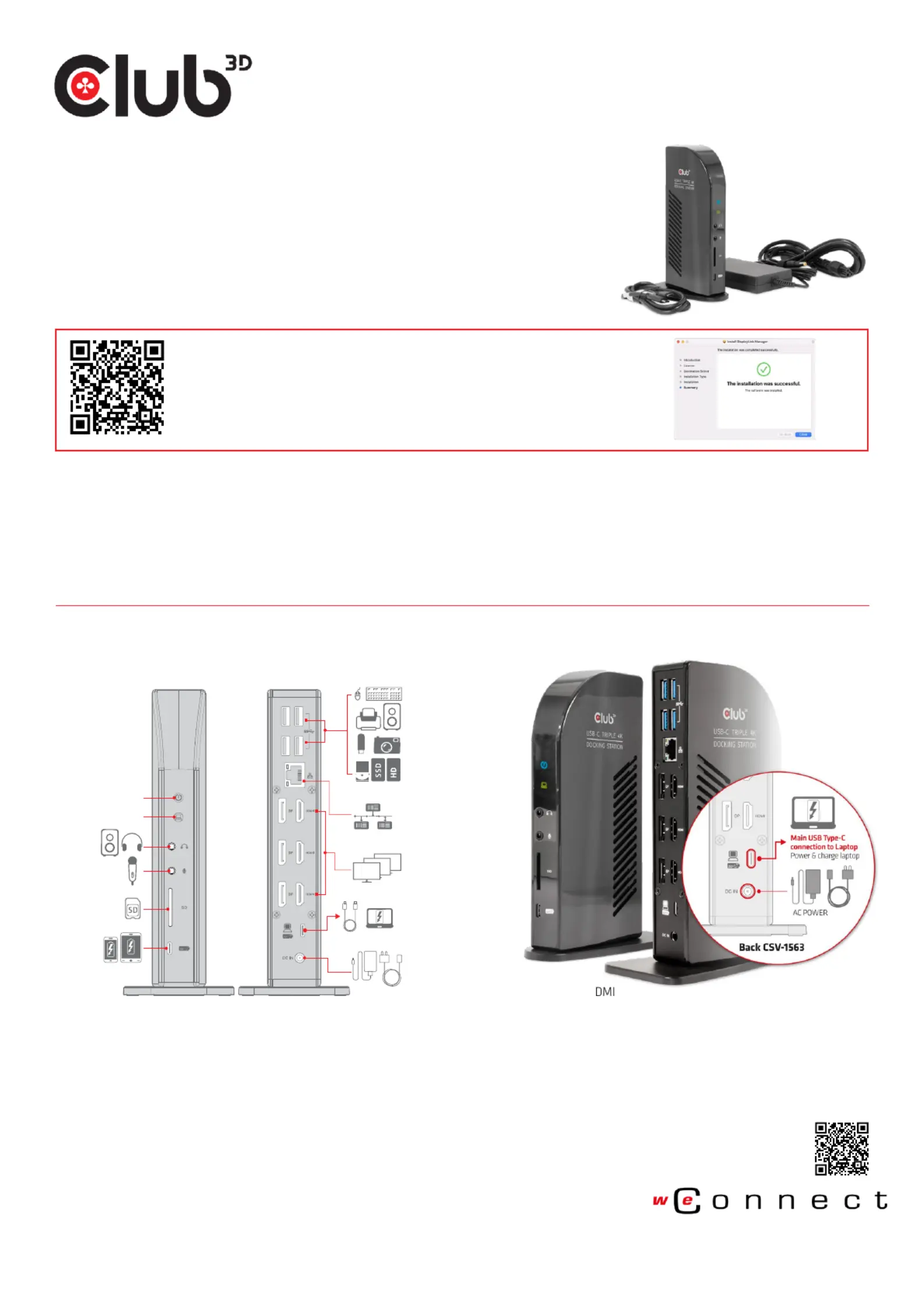

CSV-15 6 3 QU I C K INS TAL L AT IO N GU I D E
CSV-1563 QIG Oct.-2022
Thank you for purchasing our CSV-1563 Product. After unpacking the product, please
make sure you have all the items provided and checked for any damages. In case of any
missing/damaged parts please inform your supplier immediately.
You should have:
• 1x CSV-1563 Docking Station
• 1x USB Type-C cable connection to Host 1m / 3.28ft,
• PowerSupply Input:100-110/240VAC, Output: up to 135W(20V/6.75A)
• QIG, Quick Installation Guide (downLoad)
USB Gen2(10G) Type-C Triple 4K60Hz Display(HDMI™/DP™) Docking Station
PD Charging with 135 Watt PS
Disclaimer: While we endeavour to provide the most accurate, up-to-date information available, the content on this document may be out of date or include omissions, inaccuracies or other errors. Products might obtain a certification during their lifetime. This doesn’t
change or alter the product specifications and/or performance in any way. Club 3D will provide the updated information on their website www. Club -3d.com at her discretion. Therefore Club 3D does not accept any rights claimed on the content of this document. Please
refer to a full overview of our Legacy Terms and Conditions on www.club-3d.com. All other brand names are trademarks or registered trademarks and are the property of their respective owners. All content is subject to change without prior notice.
Copyright © 2022, Club 3D B.V. www.club-3d.com
Features:
• Triple 4K60 via 3x DP/H
• USB-C UFP supports power delivery up to 96W
• 4x USB Type-A and 1x USB Type-C downstream ports for abundant
connections of USB peripherals
• USB-C supports 20W fast charging
• 1Gbps Ethernet
• SD4.0 card reader transfers files at fast speed
• Separate audio output and microphone input
• LED indication
• Vertical installation takes up less space on the desk
• Compatible with Win/Chrome/Mac/M1 chip
OS Support:
• Win/Chrome/Mac/M1 chip
Introduction:
The USB-C Triple 4K Dock is designed for extra connectivity demands.
With the USB-C Docking station, you can extend the connection of a
computer to more USB peripherals, Ethernet network, the speaker and
the microphone via USB-C interface. Feel free to plug in upside down
for USB-C plug is reversible.
Adopting PD Charging technology, upstream charging function through
USB-C interface, you can charge the docking station. With the built-in
USB3.0 ports, the docking station enables you to enjoy the super speed
data transmission between USB peripherals.
In addition, the docking station is equipped with three display video
outputs. With triple Ultra HD display simultaneously, the docking
station allows you to split up the content to triple display devices when
the system supports the function. Enhanced expansion capability, this
docking station with video is the most versatile accessory that also
complements your home or oce space.
!
Note(s):
1. This dock will not work without external power supply
2. After connecting to the powersupply, the blue light will turn on by
default.
3. DisplayLink™ driver installation needed(see product page / downloads)
4. To achieve the above max resolution of each port, the connected host
should support DP1.4 Alt mode. The above resolution will be decreased
if the host only support DP1.2 due to bandwidth limitation
5. The above resolution combination is for reference, the actual video
output resolution depends on the connected host and displays
Connection: To connect the USB peripherals, Ethernet, speaker and microphone, follow the illustrations below to connect the corresponding
connectors. Please confirm the monitor’s resolution meets resolution requirements before use.
