Power Switch
USB-A
USB-A
Shared
max. 10G
USB-C
3.5mm Stereo jack
(Headphone/Mic)
Led Indicator
Metal Casing
Front
CSV-1568
USB-A Quick Charge
USB-A max. 5Gbps
Toslink SPDIF
RJ45 jack
DC Power in to Adapter
USB-C PD
Anti-theft lock
HDMI (4k 60Hz)
HDMI (4k 60Hz)
USB- C Connect to Host
DisplayPort™ (4k 60Hz)
or
VGA (1200P)
Back
Thank you for purchasing our CSV-1568 Product.
After unpacking the product, please make sure you have all the
items provided and checked for any damages. In case of any missing/
damaged parts please inform your supplier immediately.
You should have:
• CSV-1568 Docking Station
• PowerSupply. Input: 100-110/240VAC. Output: up to 120W
• 1x USB Type-C cable connection to Host 1m / 3.28ft
• Detachable stand
• Quick Install Guide
Please make sure:
Your Host System has the latest drivers updates,
and is connected to the external power supply.
Note:
1. This dock will not work without external power supply
2. After connecting to the host, the product and the white light
will turn on by default. Press the power button,the product and
the white light will be turn o. The keystroke interval should be
greater than 2 seconds.
3. To achieve the above max resolution of each port, the connected
host should support DP1.4 Alt mode. The above resolution will
be decreased if the host only support DP1.2 due to bandwidth
limitation.
4. The above resolution combination is for reference, the actual video
output resolution depends on the connected host and displays.
• Designed for DP 1.4 Alternate Mode supported Type C and
Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc).
• Supports Output through MST up to 3 displays
(2 HDMI + VGA or 2 HDMI + DP).
DP and VGA are alternate (DP is has priority over VGA).
How to connect:

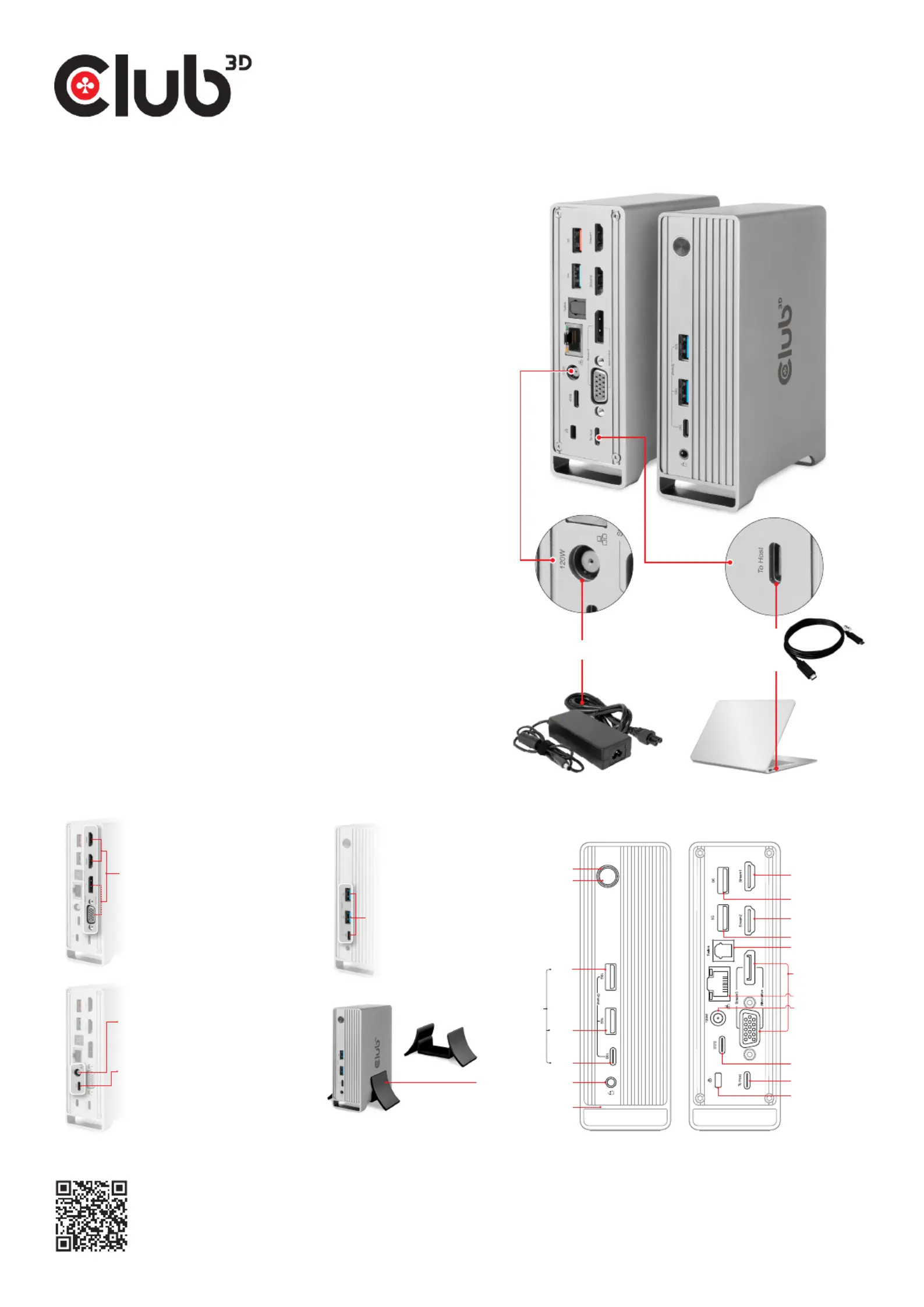

CS V-1568 QUICK INSTAL L ATION GUIDE
To USB-C port
PowerSupply 120W
CSV-1568
Back
Front
CSV-1568 QIG Rev. October -2021
For any Questions please check our forum section on our website www.club-3d.com
Included:
A detachable stand
No assembly required:
Simply slide it in!
Connect DC in
to adapter
USB-C To Host
Connect the USB
Type C cable to your
laptop
•
Support to output 3 videos (2 HDMI+VGA or
2 HDMI+DP) simultaneously under both SST
and MST mode, DP and VGA are alternative
(DP is prior to VGA when 2 ports are connected
simultaneously)
•
3 videos share max 16.2Gbps bandwidth
•
When one video port is connected, support
HDMI max 4K/60Hz, DP max 4K/60Hz,
VGA max 1920x1200/60Hz
•
Support dual power supplies:
Type-C PD charging or DC Jack
•
Max 120W power supply from DC Adapter,
support smart power according to actual
consumption of the connected devices the
host can get power ranging from 60w to 100w
•
Type-C female supports max 100W PD
Charging with fast role swap of PD3.0, support
smart power which allows to distribute power
according to actual consumption of the
connected devices
•
Max 10Gbps.
3 ports share max 10Gbps
