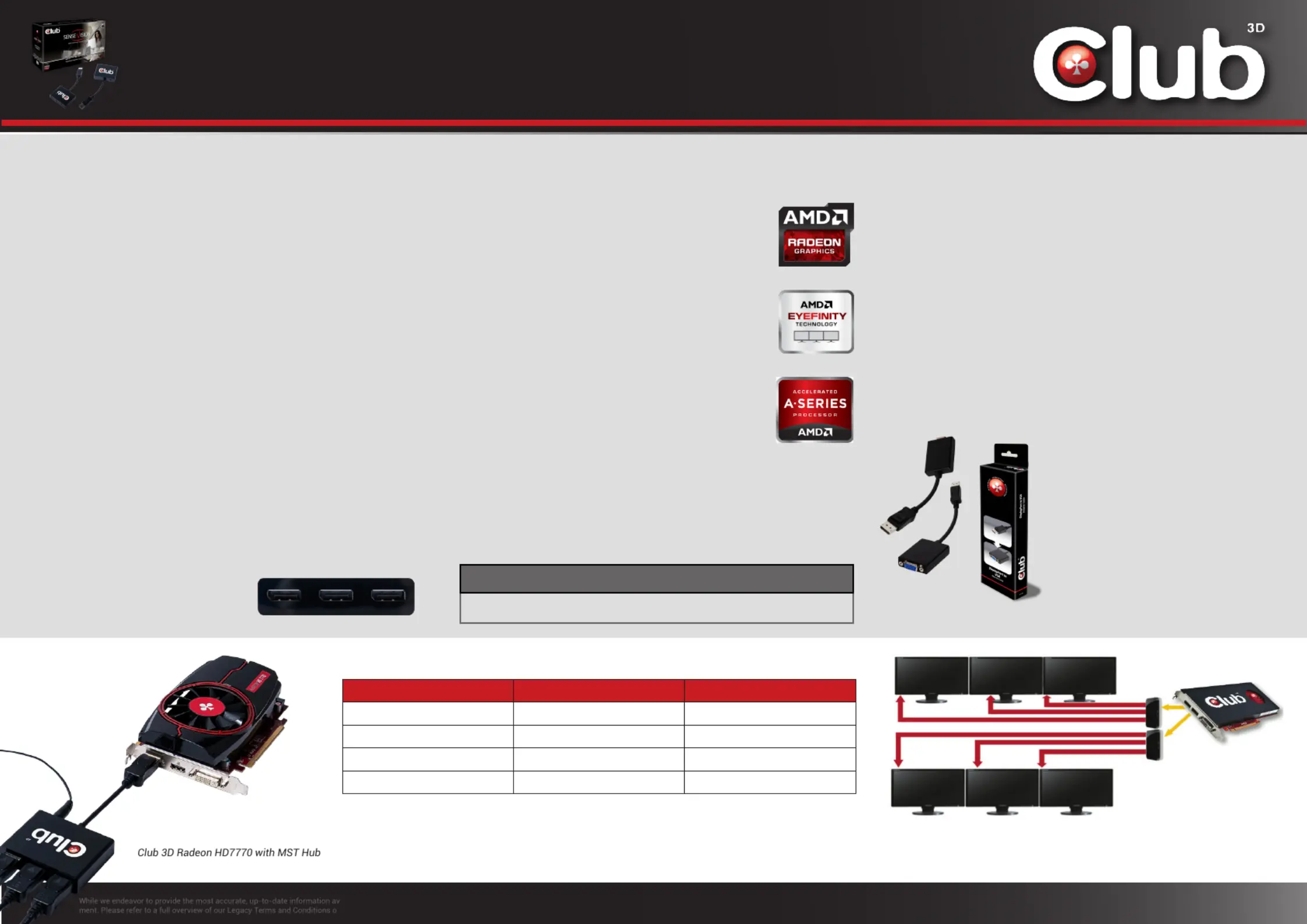

Illustration of two CSV-5300 on a six monitor congurationAvailable bandthwidth and number of display devicesClub 3D Radeon HD7770 with MST Hub
While we endeavor to provide the most accurate, up-to-date information available, the content on this document may be out of date or include omissions, inaccuracies or other errors. Therefore Club 3D does not accept any rights claimed on the content of this docu-
ment. Please refer to a full overview of our Legacy Terms and Conditions on www.club-3d.com. All other brand names are trademarks or registered trademarks and are the property of their respective owners. All content is subject to change without prior notice.
Club 3D B.V. PO Box 599, 2130 AN Hoofddorp, The Netherlands
www.club-3d.com
Weight Size
Multi Stream transport Hub 100g 78.2*60.5*18.6 mm
1. Easy conguration for adding three displays and
does NOT require active adapters (DP++ compliant)
2. Perfect multi monitor solution on a budget. Plug
and Play.
3. Hot plugging. Does not require shutting down the
system.
4. Compatible to all existing DisplayPort graphic cards
and notebooks1
5. Best with AMD Radeon™ Graphics2
6. Best with AMD A-series APU’s3
7. AMD Eyenity Technology ready4
1 Check with your device vendor if restrictions are applied
2 5K series and above
3 DisplayPort output from mainboard is required
4Supports multiple independent display outputs simultaneously, AMD Eyenity technology
delivers innovative graphics display capabilities enabling massive desktop workspaces and
ultra immersive visual environments for the ultimate panoramic computing experience.
SenseVision - Multi Stream Transport Hub
CSV-5300 - EAN: 8717249411918
Leveraging the micro-packet architecture of DisplayPort™, DisplayPort™
1.2 adds the capability to address and drive several display devices
through one DisplayPort™ connector. This feature has often been
referred to as daisy-chaining or addressable displays.
The Club 3D MST hub is a hub device that receives a DisplayPort™
1.2 MST signal from the source device and splits up and routes the
video streams independently to each display device. Using this type of
conguration also allows the use of non DisplayPortTM 1.2 monitors.
Non DisplayPort™ outputs, such as VGA, DVI or HDMI®, the Club 3D
MST hub is DP++ and can actively convert the DisplayPort™ signal to
the other types of display interface signals.
Multi-display Technologies DisplayPort™ 1.2, a new display interface,
boasts features such as tremendous bandwidth and daisy-chaining
capabilities. Combined, these features complement the AMD Eyenity
technology multi-display technology very well.
The new MST hub display technology is part of the ecosystem in the
Club 3D AMD Radeon™ graphic cards.
Supported graphic cards can be found on the following AMD RAdeon
series:
- HD 5000 Series (HBR)
- HD 6000 Series (HBR2)
- HD 7000 Series (HBR2)
Club 3D recommends:
CAC-1000 - DP to SL5 DVI-D
CAC-1001 - DP to HDMI
CAC-1002 - DP to VGA
CAC-1050 - DP to DL6 DVI
CAC-1051 - DP to DL6 DVi 3D
CAC-1052 - DP to SL5 DVI
CAC-1053 - DP to HDMI 3D
5 SL= Single Link
6 DL= Dual Link
- Standards compliance/support:displayport v1.2, displayport v1.1a,VESA DDM
- Standard,HDCP V2.0,DisplayId,and EDID V1.4
- Supports main link rates of 5.4 bps(HBR2),2.7 bps(HBR)and 1.62 bps(RBR) from source
- Supports 1/2/4 lanes of main link for RX side
- Supports three DP++ output port,or two dual-link DVI ports,or the combination of ports
- For DP 1.2 source,supports DP1.2 MST multi video/audio steams
- Supports 1.1 source,supports ViewXpand
- Supports DP-DP Bypass mode
- Supports AUX-CH enables SBM and I2C mapping over AUX between the source/sink and
device
- Dedicated I2C slave for main processor to access the device
- Supported output resolution:up to 2560X1600@60Hz each monitor in DP1.2 MST and up to
FHD/1080p in DP1.1 or DP 1.2 SST
- Input pixel data depth 6/8/10/12 bits and supports output pixel format RGB444
KEY POINTS PRODUCT FEATURES
BRIEF DESCRIPTION
Produkt Specifikationer
| Mærke: | CLUB3D |
| Kategori: | Splitter |
| Model: | SenseVision CSV-5300 |
