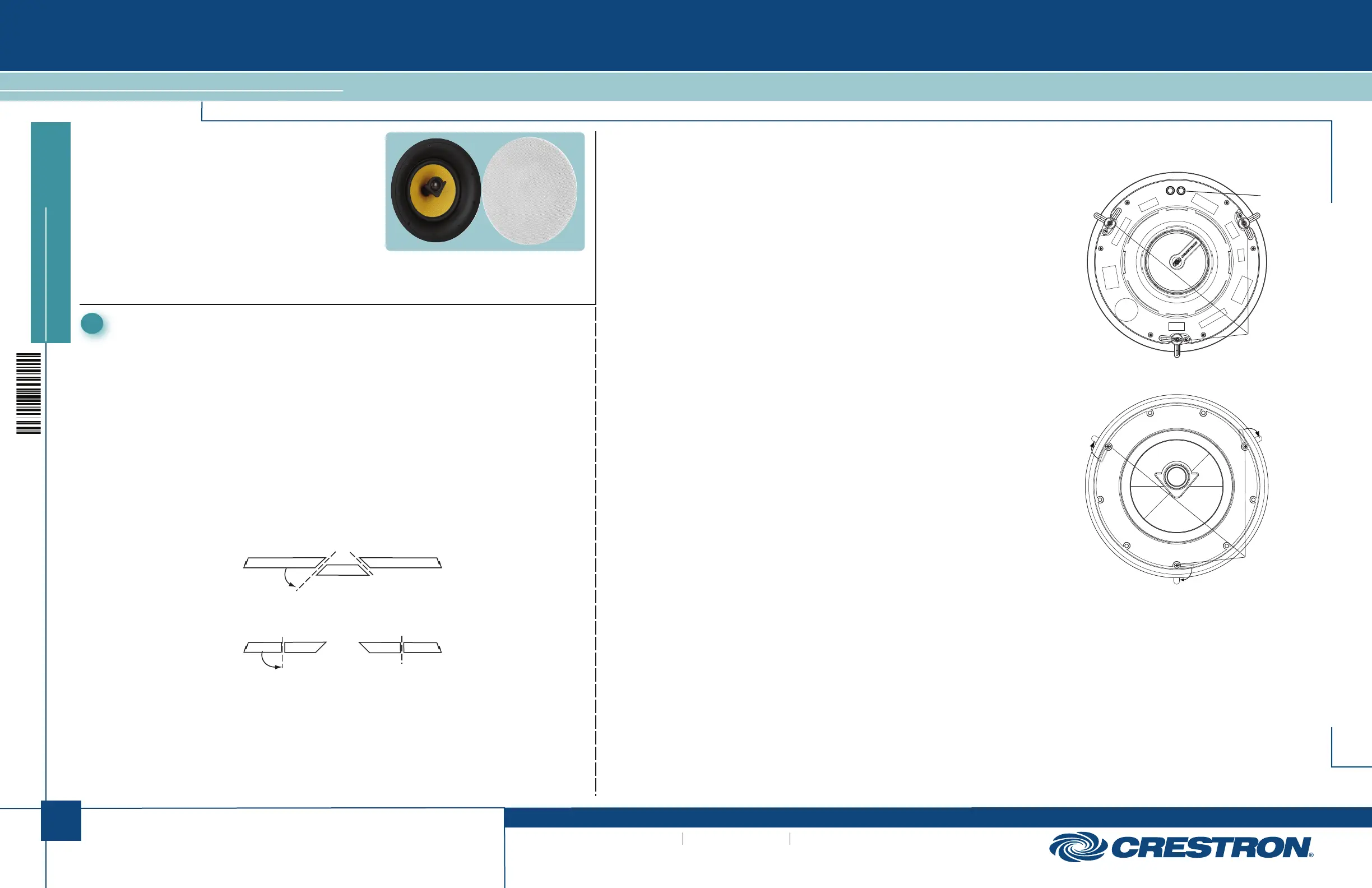

Essence® 2-Way In-Ceiling Speakers
quickstart guide
www.crestron.com
Specifications subject to
change without notice.
The product of expert Crestron® audio engineering,
Essence® speakers deliver the pinnacle of performance
for demanding residential installations. Select esoteric
materials, top shelf components, and a refined, high end
appearance underscore the meticulous design behind
each model. The result is a complete line of in-wall and
in-ceiling speakers worthy of a place in every room of the
finest custom home.
The Essence line promises the ultimate in installed audio
design, delivering simply stunning sound quality while
minimizing any impact on your décor, thanks to paintable
zero-bezel grilles.
ESSENCE IC5/ESSENCE IC6/ESSENCE IC8
ESSENCE IC5/ESSENCE IC6/ESSENCE IC8
Mount/Remove Speakers
The in-ceiling speakers include three toggle clamps that simplify the mounting process. If the
grilles are mounted on the speakers, remove them before proceeding. (Refer to “Install/Re-
move Grilles” below.)
1. Connect the speaker cable wires to the spring terminals by pressing the top of the
terminals down and inserting the exposed strands into the hole. Make sure that the
+ + – – wires go to the (red coded) terminals, and the wires go to the (black coded)
terminals.
2. With the toggle clamps turned inward, insert the speaker into the opening. As the three
screws on the front of the speaker are tightened, the toggle clamps first rotate into
clamping position (refer to the figure to the right) and then begin holding the speaker to
the ceiling. Tighten the screws until the speaker is secured; do not overtighten.
3. Speaker removal is accomplished by reversing the procedures given in steps 1 and 2
above.
a. Loosen the front screws to unclamp the speaker. Continue to loosen the screws until
the toggle clamps rotate inward.
b. When the speaker is loose, carefully remove it from the opening.
c. Disconnect the wires from the terminals.
Install/Remove Grilles
The zero-bezel frameless grilles are held in place by powerful magnets. To remove the
grilles, grip the edges and pull away from the speaker.
Paint the Speaker Grilles
Speaker grille painting should be done prior to mounting.
1. Carefully remove the material on the underside of the grille and set it aside for
reinstallation. It may be necessary to use a knife or other sharp instrument to free an
edge of the material so it can be peeled away. Use care to avoid cutting or tearing the
material.
2. Dry brush or lightly spray the surface to be painted. Use care to avoid clogging the
holes in the grille.
3. Once the paint is dry, reinstall the material to the underside.
1
1Installation
QUICKSTART DOC. 7393D (2034593) 02.18
Rear View (Typical)
Toggle
Clamps (3)
Front View (Typical)
Tighten Screws
Install Cables
Run the cables from the audio source to each speaker location following all appropriate
local codes. Strip the ends of the speaker cables 1/4” to 1/2” (6 mm to 12 mm) and twist
the exposed strands.
90°
Prepare Mounting Holes
Before finalizing the speaker location, check to make sure there are no fixtures, pipes, air
ducts, joists, or other possible obstructions. Use a good quality stud finder to locate joists.
If there is no access to the area above the ceiling, and it is uncertain that there are no
obstructions, carefully drill a small hole just through the ceiling near the middle of the proposed
speaker location(s) and use one of the commercially available inspection devices designed for
this purpose, or do one of the following:
Use a piece of stiff wire, bent into an “L” shape, with one end long enough to explore an
area equal to the size of the speaker with the toggle clamps extended. Insert the wire into
the hole, make sure it rotates freely in a complete circle and that there is sufficient depth,
or
Use a drywall saw to cut a small hole at a 45° angle toward the inside of the hole. An angle
cut simplifies repair since the removed piece can be reinserted to help plug the hole.
If there are no obstructions, use the supplied template to trace outlines of the mounting holes
on the ceiling. Cut the final mounting holes at a 90° angle to the ceiling.
45°
Spring
Terminals (2)
