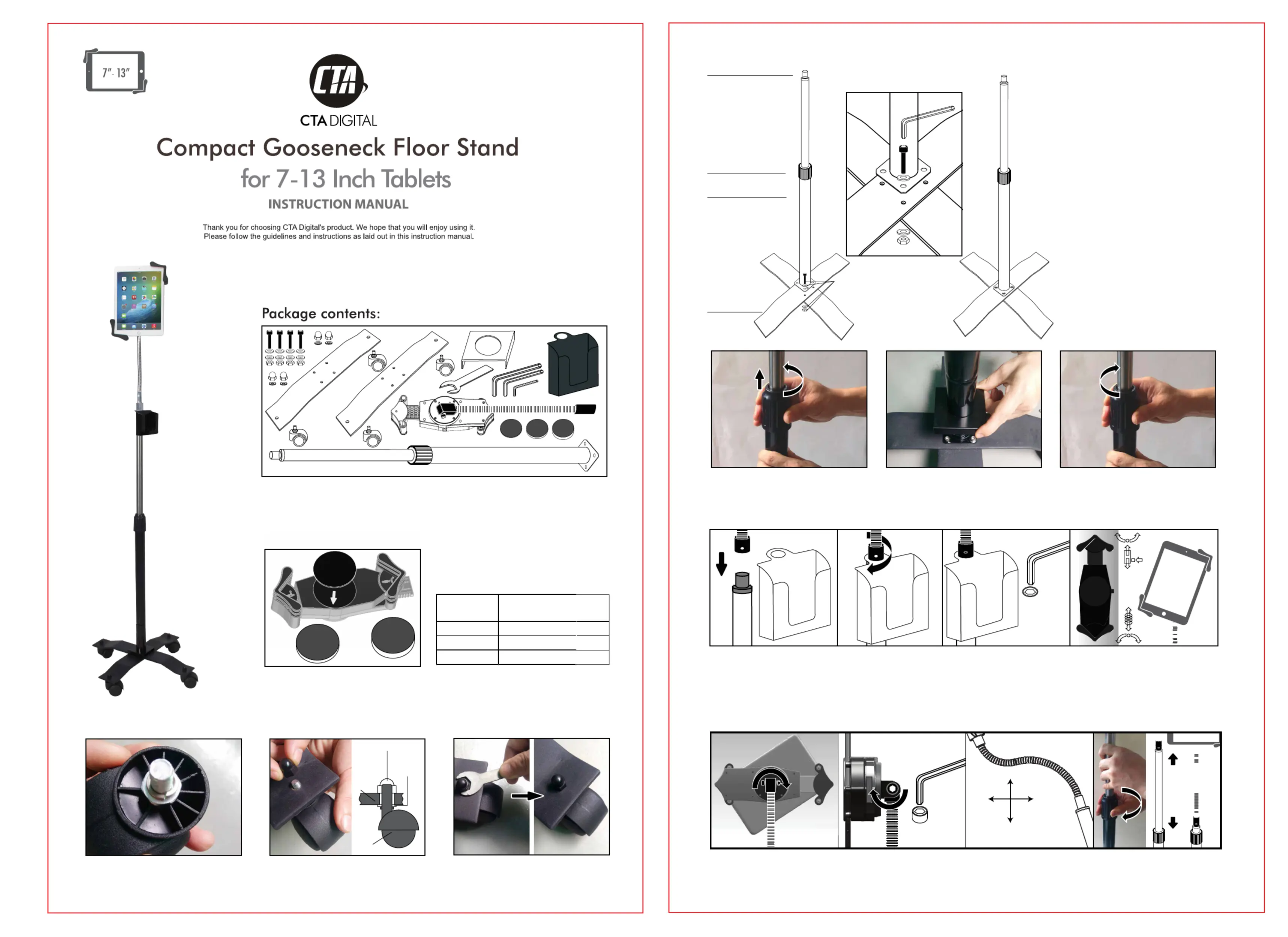

PAD-CGS
2. Base Assembly and Connecting the Metal Cover:
METAL CONNECTION
HEIGHT
ADJUSTMENT
KNOB
POLE
METAL
CROSS BASE X 2
CONNECTION SCREW BOLT,
WASHERS AND NUT
Pole Assembly and Pole Nut
Cross Base Sections (2)
Medium
Allen Key
Use this table to determine the appropriate
foam pad to use with your tablet.
Note: sizes refer to total tablet size with
or without a case.
Foam Pad
Thickness
Tablet
Thickness:
1mm 0.67-1.06in
5mm 0.51-0.91in
10mm 0.31-0.71in
17-27mm
13-23mm
8-18mm
/
/
/
Select the appropriate foam pad according to
the thickness of your tablet (or tablet in its
case), then press adhesive side into center
of the tablet holder.
10mm
Foam
Pad
Attaching Foam Pad to Tablet Holder
1mm Foam Pad
Instructions:
1. Installing the Wheels
Wheel
Place a spring washer over the screw
bolt on the wheel.
Place the screw bolt from each wheel through the metal base, then place a nut cover
over the top of each. Screw down clockwise by hand, then use wrench to tighten
further.
Screw Nut Cover
Spring
Washer
Metal
Base
5mm
Foam
Pad
Gooseneck flexes by hand.To adjust the height of the pole,
turn plastic cover counter-clockwise and raise or lower the pole
to desired height. Turn clockwise again to lock it in place.
4.
3. Adjustment:
Biggest
Allen Key
360 rotation
o270 rotation
o
Multi
direction
flexing
Use the biggest Allen key to tighten and loosen the
gooseneck connection screw, adjusting ease of
rotation in the tablet holder.
3. Connecting the Battery Case and Tablet Holder and Installing Your Device
4.Press button on side of tablet holder to
slide open. Insert your tablet against
spring arm,then slide other end back
down.
Gooseneck
Metal
Connection
Battery Case
Smaller
Allen Key
1. Place battery case over top of metal connection.
2. Screw gooseneck down onto metal connection by turning clockwise.
3. Use smaller Allen key to tighten the small meter screw inside
gooseneck.
Note: if meter screws are already in, unscrew before attaching gooseneck.
1) Place the metal base pieces with the higher
piece on top of the cross base. Align the holes
at the bottom of the pole with the holes on the
cross base.
2) Insert a screw bolt with a washer into each
of 4 holes. Place another washer on the
underside of each screw bolts.
3) Grip the nut on the underside with one hand,
and use the other to tighten each screw with
Medium Allen key. Repeat to tighten all four
screw bolts.
4. Rotate the grip counter clockwise to
loosen completely and remove from top
of pole.
5. Place the square metal cover over
the top of the pole and slide down to
stand base.
6. Place grip back over stand pole
and tighten.
