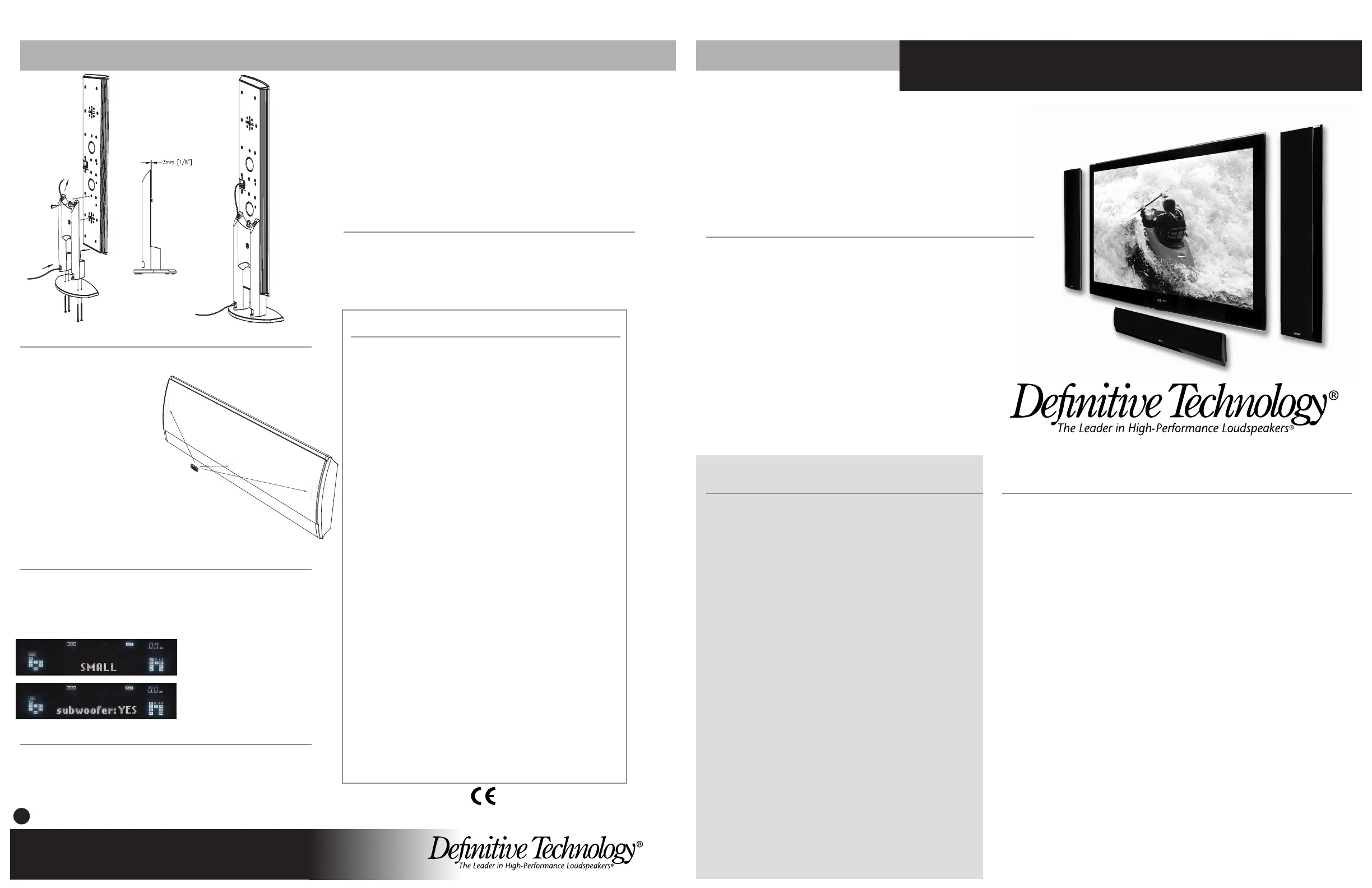

Unpacking Your Mythos XTR-50 Speakers

Please Inspect For Shipping Damage

Each loudspeaker leaves our plant in perfect condition. Any visible or concealed

damage most likely occurred in handling after it left our plant and should be reported

at once to your Definitive dealer or the delivery company that delivered your loud-

speaker. Please unpack your speaker carefully. Save all cartons and packing materials in

case you move or need to ship your speaker. Record the serial number found on the

back of the Mythos XTR-50 on this manual.

VERY IMPORTANT: Accessories

Various parts and accessories that you will need to use your Mythos XTR-50 are in

the carton but are easy to overlook. Open both ends of the shipping carton. Carefully

examine the contents of the shipping carton and packing material to find the plastic

bags with accessories.

Specifications

Mythos XTR-50

Driver complement: 2 each 3-1⁄2" (90mm) XTDD dome mid/bass drivers pressure-coupled

to 4 each 3-1⁄2" (90mm) dome low-bass radiators, 1 each 1" (25mm)

Pure Aluminum Dome Tweeter

Frequency response:(overall on wall) 92Hz – 30kHz; (+/- 3dB on wall) 120Hz – 20kHz

Sensitivity: 92dB

Impedance: 8 Ohms nominal

Dimensions: (mounted on wall without bracket) 27" H x 6" W x 1-1⁄2" D

(686mm x 152mm x 38mm)

Dimensions: (mounted on wall with bracket) 27" H x 6" W x 1-9⁄16" D

(686mm x 152mm x 40mm)

Dimensions: (on table stand) 30" H (762mm)

Table-stand base dimensions: 8-11/16" W x 4-3/4" D (222mm x 136mm)

Product Weight: 5.1 lbs. (2.3kg)

Specifications subject to change without notice.

Notes:

This product complies with the essential requirements

of the EMC directive 89/336/EEC.

FJAT12102009

MYTHOS XTR-50

OWNER’S MANUAL

Definitive Technology

For more information on Definitive Technology Loudspeakers and accessories,

visit www.definitivetech.com, or email info@definitivetech.com.

Definitive Technology, Owings Mills, Maryland, USA. 800-228-7148

MYTHOS XTR-50

OWNER’S MANUAL

Mythos XTR-50 Loudspeakers

Thank You

Thank you for choosing the Definitive Technology Mythos XTR-50 Loudspeaker

System. Our engineers spent many years developing this product. In order to ensure

that you experience the finest performance possible, we encourage you to take a

moment to fully read this owner’s manual and familiarize yourself with the proper

installation and set-up procedures for your Mythos XTR-50 speakers.

DEI Sales Co., dba Definitive Technology (herein “Definitive”) warrants to the original retail pur-

chaser only that this Definitive eloudspeak r product (the “Product”) will be free from defects in materi-

al and workmanship for a period of five (5) years covering the drivers and cabinets, and three (3) years

for the electronic components from the date of the original purchase from a Definitive Authorized

D ealer. If the Product is defective in material or workmanship, Definitiveor its Authorized Dealer will,

at its option, repair or replace the warranted product at no additional charge, except as set forth below.

All replaced parts and Product(s) become the property of Definitive. Product that is repaired or

replaced under this warranty will be returned to you, within a reasonable time, freight collect. This

warranty is non-transferrable and is automatically void if the original purchaser sells or otherwise

transfers the Product to any other party.

This Warranty does not include service or parts to repair damage caused by accident, misuse, abuse,

neglig ence, inadequate packing or shipping procedures, commercial use, voltage in excess of the rated

maximum of the unit, cosmetic appearance of cabinetry not directly attributable to defects in material

or workmanship. This warranty does not cover the elimination of externally generated static or noise,

or the correction of antenna problems or weak reception. This warranty does not cover labor costs or

damage to the Product caused by installation or removal of the Product. Definitive Technology makes

no warranty with respect to its products purchased from dealers or outlets other than Definitive

Technology Authorized Dealer.

THE WARRANTY IS AUTOMATICALLY VOID IF:

1) The product has been damaged, altered in any way, mishandled during transportation, or tampered with.

2) The product is damaged due to accident, fire, flood, unreasonable use, misuse, abuse, customer

applied cleaner s, failure to observe manufacturers warnings, neglect or related events.

3) Repair or modification of the Product has not been made or authorized by Definitive Technology.

4) The product has been improperly installed or used.

Product must be returned (insured and prepaid), together with the original dated proof of purchase to

the Authorized Dealer from whom the Product was purchased, or to the nearest Definitive factory

service center. Product must be shipped in the original shipping container or its equivalent. Definitive

is not responsible or liable for loss or damage to Product in transit.

THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY THAT APPLIES TO YOUR

PRODUCT. DEFINITIVE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON OR ENTITY

TO ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH

YOUR PR ODUCT OR THIS WARRANTY. ALL OTHER WARRANTIES, INCLUDING BUT NOT

LIMITED TO EXPRESS, IMPLIED,WARRANTY OF MERCHANTABILITY OR FITNESS FOR

A PARTICULAR PURPOSE, ARE EXPRESSLY EXCLUDED AND DISCLAIMED TO THE

MAXIMUM EXTENT ALLOWED BY LAW. ALL IMPLIED WARRANTIES ON PRODUCT ARE

LIMITED TO THE DURATION OF THIS EXPRESSED WARRANTY. DEFINITIVE HAS NO

LIABILITY FOR ACTS OF THIRD PARTIES. DEFINITIVE’S LIABILITY, WHETHER BASED

ON CONTRACT, TORT, STRICT LIABILITY, OR ANY OTHER THEORY, SHALL NOT

EXCEED THE PURCHASE PRICE OF THE PRODUCT FOR WHICH A CLAIM HAS BEEN

MADE. UNDER NO CIRCUMSTANCE WILL DEFINITIVE BEAR ANY LIABILITY FOR

INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. THE CONSUMER AGREES AND

CONSENTS THAT ALL DISPUTES BETWEEN THE CONSUMER AND DEFINITIVE SHALL

BE RESOLVED IN ACCORDANCE WITH CALIFORNIA LAWS IN SAN DIEGO COUNTY,

CALIFORNIA. DEFINITIVE RESERVES THE RIGHT TO MODIFY THIS WARRANTY STATE-

MENT AT ANY TIME.

Some states do not allow the exclusion or limitation of consequential or incidental damages, or implied

warranties, so the above limitations may not apply to you. This warranty gives you specific legal rights,

and you may also have other rights which vary from state to state.

Limited Warranty: 5-Years for Drivers and Cabinets,

3-Years for Electronic Components

Mythos XTR-50 can be mounted either vertically as main or surround

speakers or horizontally for use as a center channel speaker. The logo

badge is not pre-attached to the

grille and is packaged in a plastic

bag along with the other

accessories. It should be affixed

in the cor ect place on the grille r

once you have determined the

speaker’s alignment. For horizontal

(center channel) use, align the badge

with the location on the long side of the

grille; for vertical use, align the badge with the

location on the short side of the grille. [Figure 11] To affix

the logo badge, gently press the logo badge into the recess

on the grill. A magnet will hold the logo in place. Do not press

the badge too hard or you may crack the grille.

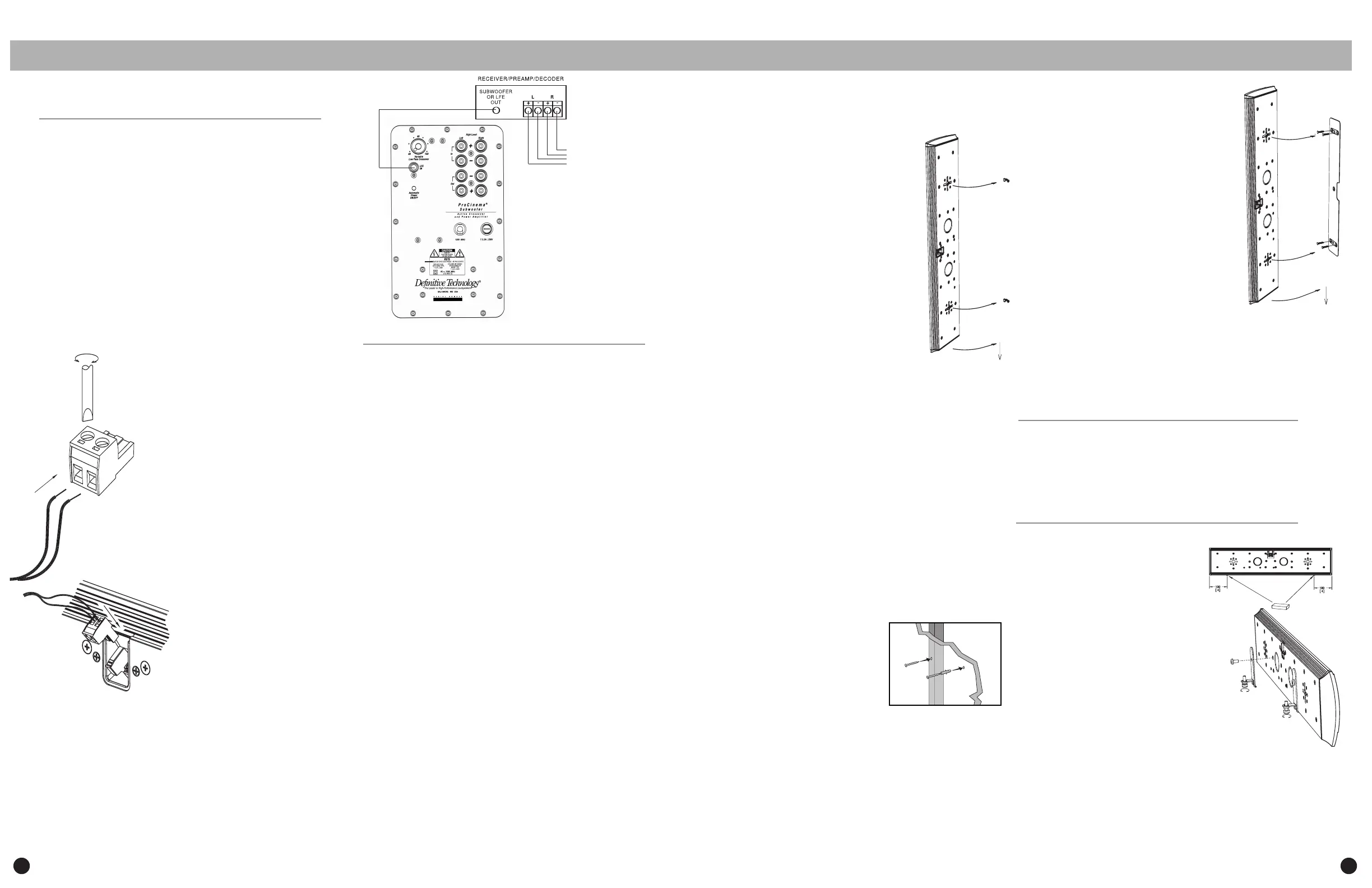

Receiver/Speaker Set-up

Access your receiver’s “Speaker Set-up” or “Speaker Configuration” Menu.

1. In the Speaker Set-up/Configure function of your receiver, set all

channels that are connected to Mythos XTR-50s to “Small.”

2. Select “Yes” when asked if you are using a subwoofer.

3. Set the subwoofer crossover

frequency on the receiver to

120 Hz if the speaker is mounted

on a wall and 150 Hz if the

speakers are sitting on a shelf.

Service

Service and warranty work on your Definitive loudspeakers will normally

be performed by your Definitive Technology dealer or importer. If, however,

you wish to return the speaker to us, please contact us first, describing the

problem and requesting authorization as well as the location of the nearest

factory service center. Please note that the address given in this

booklet is the address of our offices only. Under no circumstances

should loudspeakers be shipped to our offices or returned

without contacting us first and obtaining return authorization.

Definitive Technology Offices

11433 Cronridge Drive, Owings Mills, Maryland 21117

Phone: (800) 228-7148 (US & Canada),

01 (410) 363-7148 (all other countries)

Technical Assistance

If you have any questions regarding your Mythos XTR-50 or its set-up,

please contact your Definitive Technology dealer or importer. If your

dealer or importer is unable to help you, please contact us directly at

(800) 228-7148 (US & Canada), 01 (410) 363-7148 (all other countries)

or e-mail info@definitivetech.com.

Attaching the Logo Badge

Figure 9

Figure 10

Figure 11
