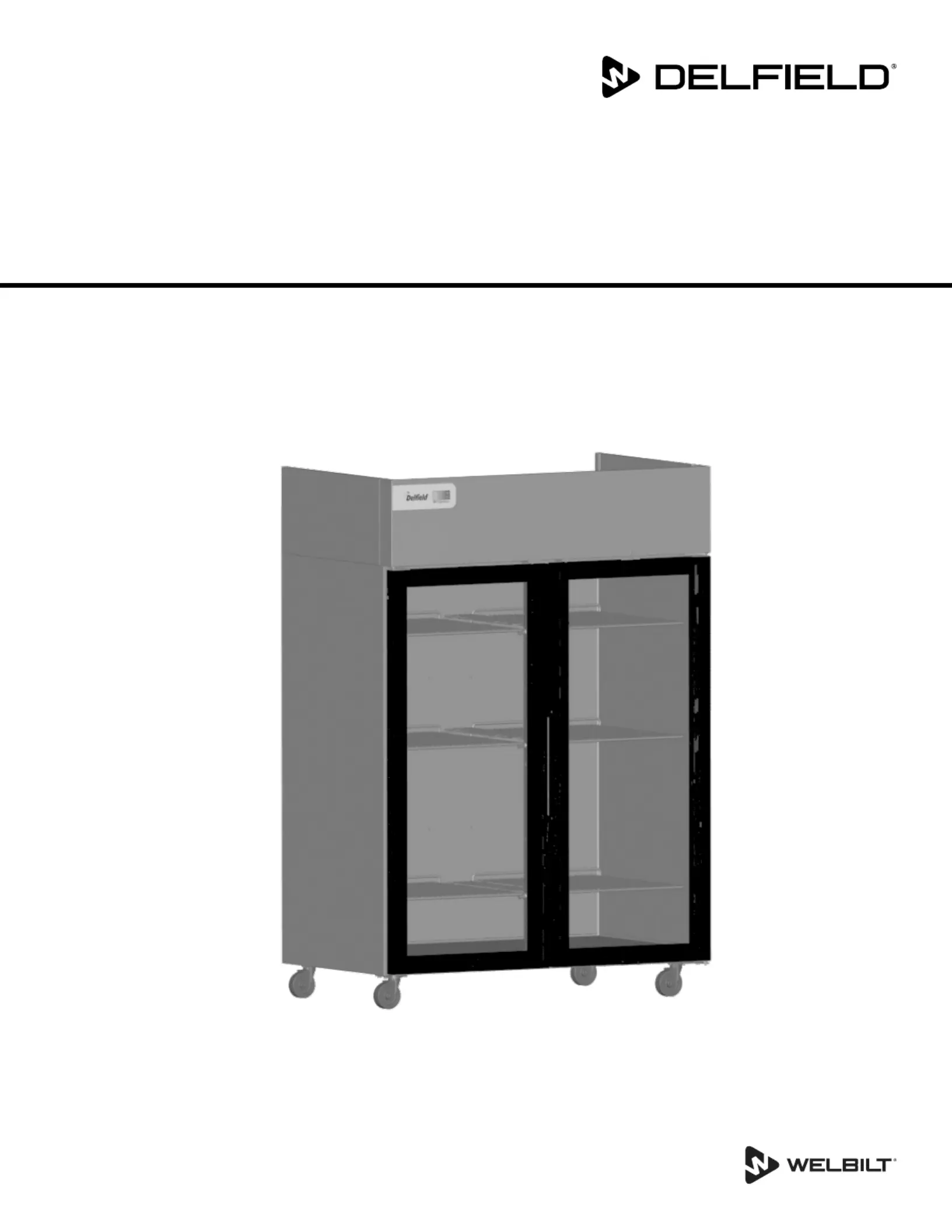

Series GC, GB & GBS Reach-Ins
CoolScapes
Original Instructions
Installation, Operation and Maintenance Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.
Part Number: 9294839 10/17
Safety Notices
nWarning
Read this manual thoroughly before operating, installing
or performing maintenance on the equipment. Failure
to follow instructions in this manual can cause property
damage, injury or death.
DANGER
Do not install or operate equipment that has been
misused, abused, neglected, damaged, or altered/
modified from that of original manufactured
specifications.
DANGER
Keep power cord AWAY from HEATED surfaces. DO NOT
immerse power cord or plug in water. DO NOT let power
cord hang over edge of table or counter.
DANGER
All utility connections and fixtures must be maintained
in accordance with Local and national codes.
nWarning
Authorized Service Representatives are obligated to
follow industry standard safety procedures, including,
but not limited to, local/national regulations for
disconnection / lock out / tag out procedures for all
utilities including electric, gas, water and steam.
nWarning
Do not store or use gasoline or other flammable vapors
or liquids in the vicinity of this or any other appliance.
Never use flammable oil soaked cloths or combustible
cleaning solutions, for cleaning.
nWarning
This product contains chemicals known to the State
of California to cause cancer and/or birth defects or
other reproductive harm. Operation, installation, and
servicing of this product could expose you to airborne
particles of glasswool or ceramic fibers, crystalline
silica, and/or carbon monoxide. Inhalation of airborne
particles of glasswool or ceramic fibers is known to the
State of California to cause cancer. Inhalation of carbon
monoxide is known to the State of California to cause
birth defects or other reproductive harm.
nWarning
Do not use electrical appliances or accessories other
than those supplied by the manufacturer.
nWarning
Use caution when handling metal surface edges of all
equipment.
nWarning
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
concerning use of the appliance by a person responsible
for their safety. Do not allow children to play with this
appliance.
,Caution
Use caution handling, moving and use of the R290
refrigerators to avoid either damaging the refrigerant
tubing or increasing the risk of a leak. Components
shall be replaced with like components. Servicing shall
be done by a factory authorized service personnel to
minimize the risk of possible ignition due to incorrect
parts or improper service.
Notice
Proper installation, care and maintenance are
essential for maximum performance and trouble-free
operation of your equipment. Visit our website www.
mtwkitchencare.com for manual updates, translations,
or contact information for service agents in your area.
Part Number: 9294839 10/17 3
Section 1
General Information
Model Numbers 5 ..................................................................................................................
Serial Number Information 5 ...............................................................................................
Warranty Information 5 ........................................................................................................
Regulatory Certifications 5 ..................................................................................................
Section 2
Installation
Location 7 ..............................................................................................................................
Weight of Equipment 8 .........................................................................................................
Clearance Requirements 8 ....................................................................................................
Drain Connections 8 ..............................................................................................................
Dimensions 9 .........................................................................................................................
Electrical Service 10 ..............................................................................................................
Refrigeration 11 ....................................................................................................................
Leveling 12 .............................................................................................................................
Stabilizing 12 .........................................................................................................................
Leg & Caster Installation 12 ..................................................................................................
Shelf Installation 13 ..............................................................................................................
Applicable to GC Models 13 ..................................................................................................................
Applicable to GB Models 13 ..................................................................................................................
Reversible Full Door Instructions 14 ....................................................................................
New top Hinge Supplied with GB Models 14 ..................................................................................
GC Alternate Hinge Must Be Purchased 14 ......................................................................................
Reversible Half Door Instructions 15 ...................................................................................
New Top and Center Hinges Must Be Purchased 15 .....................................................................
Pilaster Clip Kit Installation Instructions 17 ........................................................................
Applicable to GC Models 17 ..................................................................................................................
New Bottom Hinge Cartridge Installation 18 ......................................................................
T-1 Tray Slide Installation 19 ................................................................................................
T-2 Tray Slide Installation 20 ................................................................................................
T-3 Tray Slide Installation 21 ................................................................................................
T-4 Rack Slide Installation 22 ...............................................................................................
Section 3
Operation
R290 Controls/Programming/Settings 23 ...........................................................................
R290 Temperature Control & Display 24 ...........................................................................................
R290 Evaporator Fan Operation 25 .....................................................................................................
R290 Changing Display from Fahrenheit to Celsius on ERC112 Control 26 .........................
Section 4
Maintenance
Cleaning and Sanitizing Procedures 27 ...............................................................................
General 27 ....................................................................................................................................................
Interior Cleaning 28 ..................................................................................................................................
Exterior Cleaning 28 .................................................................................................................................
Drain 29 .........................................................................................................................................................
Cleaning the Condenser Coil 29 ..........................................................................................................
Casters 29 .....................................................................................................................................................
Doors/Hinges 29 ........................................................................................................................................
Preventing Blower Coil Corrosion 29 .................................................................................................
Table of Contents
4 Part Number: 9294839 10/17
Table of Contents (continued)
Section 5
Troubleshooting
Problem -> Cause -> Correction Chart 31 ............................................................................
Part Number: 9294839 10/17 5
Model Numbers
This manual covers the following models:
1 Section Refrigerators
Glass Doors Solid Doors
GBR1P-G(H) GBR1P-S(H)
GBSR1P-G(H) GBSR1P-S(H)
GCR1P-G(H) GCR1P-S(H)
2 Section Refrigerators
Glass Doors Solid Doors
GBR2P-G(H) GBR2P-S(H)
GBSR2P-G(H) GBSR2P-S(H)
GCR2P-G(H) GCR2P-S(H)
3 Section Refrigerators
Glass Doors Solid Doors
GBR3P-G(H) GBR3P-S(H)
GBSR3P-G(H) GBSR3P-S(H)
GCR3P-G(H) GCR3P-S(H)
Solid Doors Freezers
1 Section 2 Section 3 Section
GBF1P-S(H) GBF2P-S(H) GBF3P-S(H)
GBSF1P-S(H) GBSF2P-S(H) GBSF3P-S(H)
GCF1P-S(H) GCF2P-S(H) GCF3P-S(H)
Serial Number Information
The serial number is on the identification plate that also
includes the model number. The identification plate is
located near the top front corner of the left interior wall.
Always have the serial number of your unit available
when calling for parts or service.
Warranty Information
Visit
http://www.delfield.com/warranty to:
Register your product for warranty.
Verify warranty information.
View and download a copy of your warranty.
Regulatory Certifications
Models are certified by:
National Sanitation Foundation (NSF)
Underwriters Laboratories (UL)
Underwriters Laboratories of Canada (cUL)
Section 1
General Information
6 Part Number: 9294839 10/17
General Information Section 1
THIS PAGE INTENTIONALLY LEFT BLANK
Part Number: 9294839 10/17 7
DANGER
Installation must comply with all applicable fire and
health codes in your jurisdiction.
DANGER
Use appropriate safety equipment during installation
and servicing.
nWarning
Do not damage the refrigeration circuit when installing,
maintaining or servicing the unit.
Location
nWarning
This equipment must be positioned so that the plug is
accessible unless other means for disconnection from
the power supply (e.g., circuit breaker or disconnect
switch) is provided.
nWarning
Adequate means must be provided to limit the
movement of this appliance without depending on or
transmitting stress to the electrical conduit or gas lines.
nWarning
To avoid instability the installation area must be capable
of supporting the combined weight of the equipment
and product. Additionally the equipment must be level
side to side and front to back.
nWarning
This equipment is intended for indoor use only. Do not
install or operate this equipment in outdoor areas.
The location selected for the equipment must meet the
following criteria. If any of these criteria are not met, select
another location.
The location MUST be level, stable and capable of
supporting the weight of the equipment.
The location MUST be free from and clear of
combustible materials.
Equipment MUST be level both front to back and side to
side.
Position the equipment so it will not tip or slide.
Front casters MUST be locked once positioned.
Recommended air temperature is 60° - 100°F
(16° - 38°C).
Proper air supply for ventilation is REQUIRED AND
CRITICAL for safe and efficient operation. Refer to
Clearance Requirements chart on page 8.
Do not obstruct the flow of ventilation air. Make sure the
air vents of the equipment are not blocked.
Do not install the equipment directly over a drain.
Steam rising up out of the drain will adversely affect
operation, air circulation, and damage electrical /
electronic components.
Section 2
Installation
Installation Section 2
8 Part Number: 9294839 10/17
Weight of Equipment
Description Models Weight
1 Section Refrigerators
Glass Doors GBR1P-G(H),
GBSR1P-G(H),
GCR1P-G(H)
236 lbs (107 kg)
Solid Doors GBR1P-S(H) 312 lbs (142 kg)
GBSR1P-S(H) 351 lbs (159 kg)
GCR1P-S(H) 282 lbs (128 kg)
2 Section Refrigerators
Glass Doors GBR2P-G(H),
GBSR2P-G(H),
GCR2P-G(H)
322 lbs (146 kg)
Solid Doors GBR2P-S(H),
GBSR2P-S(H) 495 lbs (225 kg)
GCR2P-S(H) 430 lbs (195 kg)
3 Section Refrigerators
Glass Doors GBR3P-G,
GBSR3P-G,
GCR3P-G
485 lbs (220 kg)
Solid Doors GBR3P-S(H) 727 lbs (330 kg)
GBSR3P-S(H) 767 lbs (348 kg)
GCR3P-S(H) 668 lbs (303 kg)
1 Section Freezers
Solid Doors GBF1P-S(H) 336 lbs (152 kg)
GBSF1P-S(H) 354 lbs (161 kg)
GCF1P-S(H) 299 lbs (136 kg)
2 Section Freezers
Solid Doors GBF2P-S(H) 532 lbs (241 kg)
GBSF2P-S(H) 495 lbs (225 kg)
GCF2P-S(H) 445 lbs (202 kg)
3 Section Freezers
Solid Doors GBF3P-S(H),
GBSF3P-S(H) 772 lbs (350 kg)
GCF3P-S(H) 707 lbs (321 kg)
Clearance Requirements
DANGER
Minimum clearance requirements are the same for
noncombustible locations as for combustible locations.
The flooring under the appliance must be made of a
noncombustible material.
DANGER
Risk of fire/shock. All minimum clearances must be
maintained. Do not obstruct vents or openings.
Top
12.00” (305mm)
Keep the vents clean and free of obstruction.
Casters or optional legs must be used and not removed.
Drain Connections
nWarning
Moisture collecting from improper drainage can create a
slippery surface on the floor and a hazard to employees.
It is the owners responsibility to provide a container or
outlet for drainage.
Section 2 Installation
Part Number: 9294839 10/17 9
Dimensions
Model Length Depth Height
1 Section Refrigerators
GBR1P-G(H),
GBR1P-S(H),
GBSR1P-G(H),
GBSR1P-S(H),
GCR1P-G(H),
GCR1P-S(H)
27.34”
(70cm)
32.44”
(82cm)
79.50”
(202cm)
2 Section Refrigerators
GBR2P-G(H),
GBR2P-S(H),
GBSR2P-G(H),
GBSR2P-S(H),
GCR2P-G(H),
GCR2P-S(H)
55.16”
(140cm)
32.44”
(82cm)
79.50”
(202cm)
3 Section Refrigerators
GBR3P-G,
GBR3P-S(H),
GBSR3P-G,
GBSR3P-S(H),
GCR3P-G,
GCR3P-S(H),
82.97”
(211cm)
32.44”
(82cm)
79.50”
(202cm)
1 Section Freezers
GBF1P-S(H),
GBSF1P-S(H),
GCF1P-S(H)
27.34”
(70cm)
32.44”
(82cm)
79.50”
(202cm)
2 Section Freezers
GBF2P-S(H),
GBSF2P-S(H),
GCF2P-S(H)
55.16”
(140cm)
32.44”
(82cm)
79.50”
(202cm)
3 Section Freezers
GBF3P-S(H),
GBSF3P-S(H),
GCF3P-S(H)
82.97”
(211cm)
32.44”
(82cm)
79.50”
(202cm)
Model Volume
1 Section Refrigerators
GBR1P-G(H),
GBR1P-S(H),
GBSR1P-G(H),
GBSR1P-S(H),
GCR1P-G(H),
GCR1P-S(H)
21ft3
(595L)
2 Section Refrigerators
GBR2P-G(H),
GBR2P-S(H),
GBSR2P-G(H),
GBSR2P-S(H),
GCR2P-G(H),
GCR2P-S(H)
46ft3
(1303L)
3 Section Refrigerators
GBR3P-G,
GBR3P-S(H),
GBSR3P-G,
GBSR3P-S(H),
GCR3P-G,
GCR3P-S(H),
71ft3
(2010L)
1 Section Freezers
GBF1P-S(H),
GBSF1P-S(H),
GCF1P-S(H)
21ft3
(595L)
2 Section Freezers
GBF2P-S(H),
GBSF2P-S(H),
GCF2P-S(H)
46ft3
(1303L)
3 Section Freezers
GBF3P-S(H),
GBSF3P-S(H),
GCF3P-S(H)
71ft3
(2010L)
Installation Section 2
10 Part Number: 9294839 10/17
Electrical Service
DANGER
Check all wiring connections, including factory
terminals, before operation. Connections can become
loose during shipment and installation.
nWarning
This appliance must be grounded and all field wiring
must conform to all applicable local and national
codes. Refer to rating plate for proper voltage. It is the
responsibility of the end user to provide the disconnect
means to satisfy the authority having jurisdiction.
Plug units with R290 refrigerant into a receptacle that is
a minimum of 14 (36cm) above the floor.
All electrical work, including wire routing and
grounding, must conform to local, state and national
electrical codes.
The equipment must be grounded.
A separate fuse/circuit breaker must be provided for
each unit.
Check all green ground screws, cables and wire
connections to verify they are tight before start-up.
The maximum allowable voltage variation is ±10% of
the rated voltage at equipment start-up (when the
electrical load is highest).
Ground Fault Circuit Interrupter
Ground Fault Circuit Interrupter (GFCI/GFI) protection is
a system that shuts down the electric circuit (opens it)
when it senses an unexpected loss of power, presumably
to ground. Manitowoc does not recommend the use of
GFCI/GFI circuit protection to energize our equipment.
If code requires the use of a GFCI/GFI then you must
follow the local code. The circuit must be dedicated, sized
properly and there must be a panel GFCI/GFI breaker. We
do not recommend the use of GFCI/GFI outlets to energize
our equipment as they are known for more intermittent
nuisance trips than panel breakers.
Rated Amperages, Horsepower, Voltage & Power Cord
Chart
Maximum 10ft (3m) cord with plug.
Models Amps HP V, Hz, Ph NEMA
Plug
Refrigerators
1 Section
GBR1P-G(H),
GBR1P-S(H),
GBSR1P-G(H),
GBSR1P-S(H),
GCR1P-G(H)
GCR1P-S(H)
4.2 0.22 115, 60, 1 5-15p
2 Section
GBR2P-G(H),
GBR2P-S(H),
GBSR2P-G(H),
GBSR2P-S(H),
GCR2P-G(H)
GCR2P-S(H)
6.0 0.33 115, 60, 1 5-15p
3 Section
GBR3P-G,
GBR3P-S(H),
GBSR3P-G,
GBSR3P-S(H),
GCR3P-G
GCR3P-S(H)
6.5 0.355 115, 60, 1 5-15p
Freezers
1 Section
GBF1P-S(H),
GBSF1P-S(H),
GCF1P-S(H)
7.2 0.55 115, 60, 1 5-15p
2 Section
GBF2P-S(H),
GBSF2P-S(H),
GCF2P-S(H)
10.0 0.68 115, 60, 1 5-15p
3 Section
GBF3P-S(H),
GBSF3P-S(H),
GCF3P-S(H)
14.7 0.55
(x2)
115, 60, 1 5-20P
Energy Use For Energy Star Certified Units®
Models Energy Use
in kWh
Refrigerators
1 Section
GBR1P-G, GBSR1P-G, GCR1P-G 2.08
GBR1P-GH, GBSR1P-GH, GCR1P-GH 1.66
GBR1P-S, GBSR1P-S, GCR1P-S 1.85
GBR1P-SH, GBSR1P-SH, GCR1P-SH 1.70
2 Section
GBR2P-G, GBSR2P-G, GCR2P-G 3.18
GBR2P-GH, GBSR2P-GH, GCR2P-GH 2.91
GBR2P-S, GBSR2P-S, GCR2P-S 2.71
GBR2P-SH, GBSR2P-SH, GCR2P-SH 2.49
3 Section
GBR3P-G,GBSR3P-G, GCR3P-G 4.92
GBR3P-S, GBSR3P-S, GCR3P-S 3.59
GBR3P-SH, GBSR3P-SH, GCR3P-SH 3.54
Section 2 Installation
Part Number: 9294839 10/17 11
Models Energy Use
in kWh
Freezers
1 Section
GBF1P-S, GBSF1P-S, GCF1P-S 5.78
GBF1P-SH, GBSF1P-SH, GCF1P-SH 5.59
2 Section
GBF2P-S, GBSF2P-S, GCF2P-S 10.65
GBF2P-SH, GBSF2P-SH, GCF2P-SH 9.69
3 Section
GBF3P-S, GBSF3P-S, GCF3P-S 10.50
GBF3P-SH, GBSF3P-SH, GCF3P-SH 12.20
Refrigeration
Model BTU/Hour
Capacity
Heat of
Rejection
(BTU)
Charge
1 Section Refrigerators
Glass
Full Height Doors
GBR1P-G,
GBSR1P-G,
GCR1P-G
1920 490 113g
Half Height Doors
GBR1P-GH,
GBSR1P-GH,
GCR1P-GH
1920 540 113g
Solid
Full Height Doors
GBR1P-S,
GBSR1P-S,
GCR1P-S
1920 385 113g
Half Height Doors
GBR1P-SH,
GBSR1P-SH,
GCR1P-SH
1920 400 113g
2 Section Refrigerators
Glass
Full Height Doors
GBR2P-G,
GBSR2P-G,
GCR2P-G
2540 780 113g
Half Height Doors
GBR2P-GH,
GBSR2P-GH,
GCR2P-GH
2540 880 113g
Model BTU/Hour
Capacity
Heat of
Rejection
(BTU)
Charge
Solid
Full Height Doors
GBR2P-S,
GBSR2P-S,
GCR2P-S
2540 565 113g
Half Height Doors
GBR2P-SH,
GBSR2P-SH,
GCR2P-SH
2540 590 113g
3 Section Refrigerators
Glass
Full Height Doors
GBR3P-G,
GBSR3P-G,
GCR3P-G
3865 1175 118g
Solid
Full Height Doors
GBR3P-S,
GBSR3P-S,
GCR3P-S
3865 850 118g
Half Height Doors
GBR3P-SH,
GBSR3P-SH,
GCR3P-SH
3865 895 118g
1 Section Freezers
Solid
Full Height Doors
GBF1P-S,
GBSF1P-S,
GCF1P-S
2035 760 93g
Half Height Doors
GBF1P-SH,
GBSF1P-SH,
GCF1P-SH
2035 790 93g
2 Section Freezers
Solid
Full Height Doors
GBF2P-S,
GBSF2P-S,
GCF2P-S
2485 1275 109g
Half Height Doors
GBF2P-SH,
GBSF2P-SH,
GCF2P-SH
2485 1340 109g
3 Section Freezers
Solid
Full Height Doors
GBF3P-S,
GBSF3P-S,
GCF3P-S
4065 1700 109g/system
Half Height Doors
GBF3P-SH,
GBSF3P-SH,
GCF3P-SH
4065 1795 109g/system
Installation Section 2
12 Part Number: 9294839 10/17
Leveling
After the cabinet has been placed in the desired location,
cabinets with legs must be leveled. Level units from front to
back and from side to side. Leveling will insure proper door
operation and removal of condensate. Cabinets with casters
must have the caster brake set so the cabinet cannot move.
Stabilizing
It is very important that all legs are properly adjusted to
keep the cabinet level, evenly distribute the weight and to
make sure the unit will not rock, lean or be unstable.
Leg & Caster Installation
DANGER
Legs or casters must be installed and the legs or casters
must be screwed in completely to prevent bending.
When casters are installed the mass of this unit will
allow it to move uncontrolled on an inclined surface.
These units must be tethered/secured to comply with
all applicable codes.
nWarning
The unit must be installed in a stable condition with
the front wheels locked. Locking the front casters after
installation is the owner’s and operator’s responsibility.
nWarning
Use a jack to lift the refrigeration unit off the ground
just far enough to remove the leg/caster. Place blocking
underneath the unit. Do not work underneath a raised
unit without proper blocking. Do not lift the unit more
than necessary to remove the leg/caster. Lifting the unit
too far can make the unit unstable.
,Caution
All single-section units require that the swivel casters be
mounted on the front and rigid casters be mounted on
the rear.
To install the legs or casters:
1. Remove unit from skid.
NOTE: The bolts used to hold the unit to the skid should
be re-used as the fourth hex head bolt for each caster
or leg plate installation. The bolt should not measure
over 2” (5cm) in length.
2. Raise unit to access leg/caster mounting holes on
bottom of unit.
3. Attach the legs or casters to bottom of cabinet using
hex head bolts.


Produkt Specifikationer

Mærke: Delfield
Kategori: Fryser
Model: CoolScapes GBSF1P-S

Har du brug for hjælp?

Hvis du har brug for hjælp til Delfield CoolScapes GBSF1P-S stil et spørgsmål nedenfor, og andre brugere vil svare dig




Fryser Delfield Manualer

Fryser Manualer

Nyeste Fryser Manualer
