You can switch saved

patterns via CV.

Pres all 3 buttons

simultaneously to activate

META mode (all buttons will

start flashing rapidly).

In this mode you can quickly

switch between saved

patterns just with an encoder

turn, or by applying CV to CV

IN 1, while CV IN 2 and CV IN 3

will be reffered to a ratchet

function.

Note, when entering this

mode, your current pattern

will be saved to the native

slot, so you can use this as a

hot key for quick saving.

MENUes GLOBAL MENU OPTIONAL

Of course there are additional

tools and settings you can find

in two menus: Global menu

and .Optional menu

Press and hold encoder for a

second to enter Global menu

and navigate through 4 menu

pages. To exit Global menu ,

simply press encoder again.

Press and hold track button to

call for Optional menu. Rotate

encoder to navigate through

pages. Push encoder to apply

selected function to an active

track or press any button to

exit.

Each track has a dedicated

bi-polar CV input. The

destination of each CV input is

represented by 3 color bricks

on the bottom of screen,

referred to a specific track

parameter: Green is for , FILL

Red is for , Yellow is for LENGTH

OFFSET.

CV inputs accepts bi-polar

signals from -5 to +5 v,

or usual 0 to +5v.

Push referred button to init

pattern data of a referred track.

You must confirm erasing with

second press.

Select to enter ratchet page

and set ratchets for desired

Press green button to load or

red to save pattern. On next

page, rotate encoder and select

1 of 16 available slots. Hit lighted

button again to load/save all 3

tracks t from selected slot. o/

Press encoder to exit.

Record User pattern by

tapping track buttons. Hold

track button to clear.

Use buttons to mute tracks.

CV IN

SETTINGS

PAGE

LOAD/SAVE

INITIALIZE

TRACK RATCHET

Select to erase patterns steps.

Instead of Track Init this

function erase data in

dependence of a current

mode, f.e. X pattern will be XO

erased when DOT is in XOX

mode or Euclid pattern when

current mode is euclidean.

AND MORE...

It is possible to flip DOTs

interface upside down. To do

this, press and hold encoder

on startup. Release when

tracks are loaded.

Press top two buttons & Hold

simultaneously to enter swing

parameter page. Rotate

encoder and add groove to

your patterns.

You can link several dots by

using a dedicated link cable.

Linked slave module will use

clock and reset from a master,

until slaves clock and reset

inputs are unpatched. Patch

that inputs to set slave module

run independently.

Converts Euclid pattern to X XO

pattern on the active track for

further editing.

ERASE

EUCLID

TO XOX

CONVERT

MUTE

RECORD

SWING

EUCLID

MODE

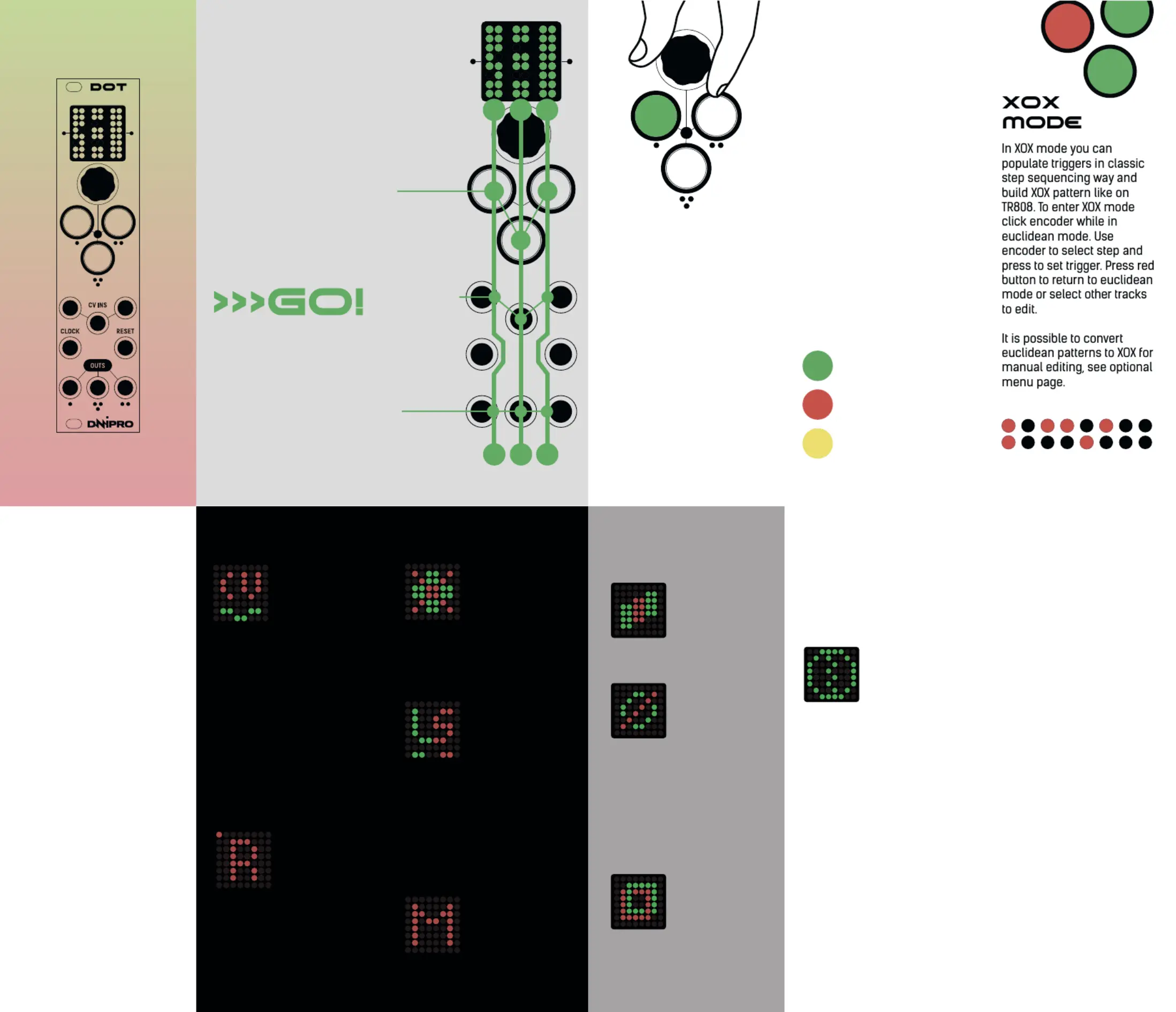

Dot is a 3 channel trigger

sequencer with polymetric

capabilities.

Each of three paired columns

of leds represents a trigger

track, which can be a 16 step

max.

Each track has a dedicated

button, trigger output and cv

input. Clock and reset inputs

are common for all tracks. Select active track by pressing

a corresponding button, rotate

encoder to edit the track.

Each track consists of two

layered patterns: Euclid and

XOX, so there are two modes to

record and modify track data:

Euclidean mode XOX and

mode. Euclid pattern is shown

by green dots on display,

while XOX pattern is red.

In euclidean mode you can

generate an Euclid pattern

which is is based on

euclidean algorithm. There

are 3 parameters that can be

edited with encoder: FILL,

LENGTH and OFFSET. Press

track button several times to

switch parameters, indicated

by a buttons light color. Green

is for FILL, Red is for LENGTH,

Yellow is for OFFSET. Rotate

encoder to edit them. te, No

LENGTH and OFFSET

parameters both reffered to

XOX and Euclid patterns.

Patch the clock input with

pulse to start sequencer

running.

Patch any trigger output to a

module that accepts triggers.

Trigger

outputs

CV inputs

Track

buttons

TRACKS

1 3 2

FILL

LENGTH

OFFSET

シ

ー

ケ

ン

サ

ー

点

ポ

リ

ズ

ム

USER GUIDE 3.0
