1.1 General advice
• Check if the contents of the package is umdamaged and complete.
• For cleaning the instrument please do not use an abrasive cleaner only a dry or
wet piece of soft cloth. Do not allow any liquid to the interior of the device.
• Please store the measuring instrument in a dry and clean place.
• Avoid any force like shocks or pressure to the instrument.
• No responsibility is taken for irregular or incomplete measuring values and their
results, the liability for subsequent damages is excluded!

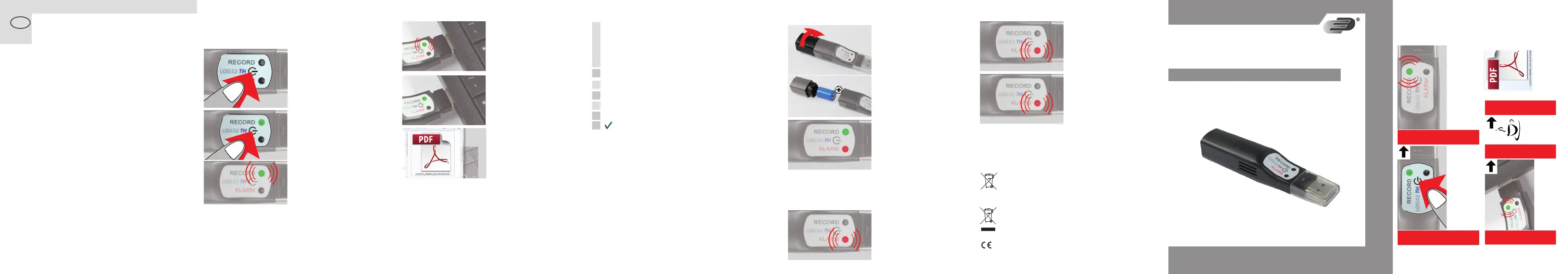

1. Start button, 2. LED green, 3. LED red, 4. battery case, 5. USB-connector
6. USB cover, 7. wall holder, 8. Slits ... this is where the sensor is located
1.2 Overview
1.3 Scope of delivery and usage
Log32TH series loggers are suitable for recording, alarm tracking, and display of
temperature, humidity and dew point measurements. Areas of application include the
monitoring of storage and transport conditions or other temperature and / or moisture-
sensitive processes.
The logger has a built-in USB port can be connected without cables to all Windows
PCs. The USB port is protected by a transparent plastic cap. A battery 3.6 volt ½ AA
is included. The battery is already mounted. A wall holder with two screws and wall
plugs is also included in the package.
The logger has 2 LEDs. The green LED ashes every 30 seconds during recording.
The red LED is used to display limit alarms or status messages (battery change ...
etc.). The logger also has an internal buzzer that supports the user interface.
see Fig.A
Press button for 2 seconds,
beeper sounds for 1 second
LED lights green for 2 sconds - logging
has started!
LED blinks green every 30 sec.
2. First Start & Begin Recording
1.5 Ready to use
The logger is already preset (5 minute recording interval ... etc. see 5 default settings)
and ready for start. It can be used immediately without any software!
1.4 For your safety
This product is exclusively intended for the eld of application described above.
It should only be used as described within these instructions.
Unauthorized repairs, modications or changes to the product are prohibited.
2.1 Restart recording
see 2. The logger is started by default by button and stopped by USB port plug-in.
The measured values are plotted automatically to the PDF le.
NOTE: When you restart the existing PDF le is overwritten.
Important! Always secure the generated PDF les on your PC.
3. Stop recording / Create PDF
Connect logger to USB port.
Beeper sounds for 1 second.
LED blinks green until result PDF is
created (can take up to 40 seconds).
Beeper sounds and LED stays green.
Logger is shown as removeable drive
LOG32TH.
View PDF and save.
PDF will be overwritten with next
log start! 5. Standard settings / Factory settings
Note the following default settings of the data logger before rst use. By using the
LogConnect* software, the setting parameter can easily be changed:
Interval: 5 min.
Start possible by: Key press
Stop possible by: USB connect
Low Alarm: High Alarm:
Temperature: -40,0°C 70,0°C
Humidity: 0,0 %rH 100,0 %rH
Alarm delay: 0 s

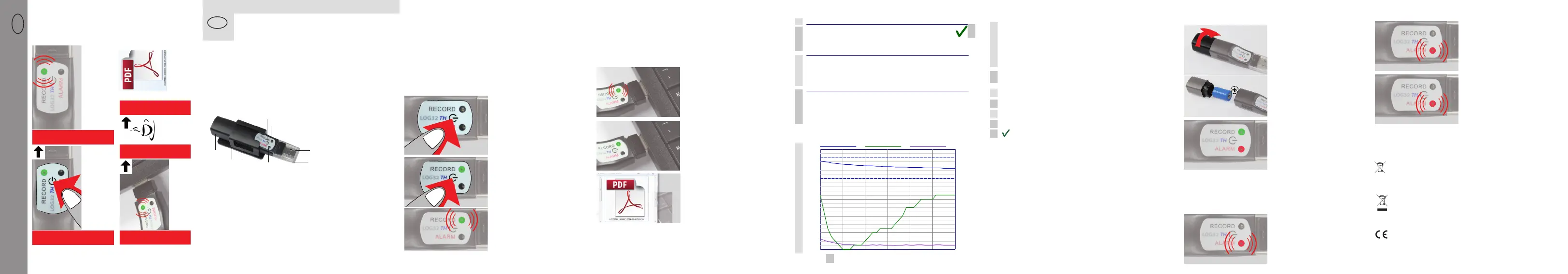

4. Description of PDF result le (see Fig. B)
X
A
Filename: e.g.
LOG32TH_14010001_2014_06_12T092900.DBF
LOG32TH: Device
14010001: Serial
2014_06_12: Start of recording (date)
T092900: time: (hhmmss)
Description: Log run info, edit with LogConnect* software
Conguration: preset parameters
Summary: Overview of measurement results
Graphics: Diagram of measured values
Signature: Sign PDF if required
:Measurement OK :Measurement failed
B
C
D
E
F
G
* LogConnect download link to access the software
http://download.dostmann-service.de , select
Downloads/Software/5005-0172_Log32TH/Software/
GB 1. Introduction
Thank you very much for purchasing one of our products. Before opera-
ting the data logger please read this manual carefully. You will get useful
information for understanding all functions.
www.dostmann-electronic.de
5005-0172
LOG32TH
Bedienungsanleitung
Operating Instructions
Datenlogger für Temperatur und Feuchte
Data logger for temperature and humidity
Schnellstart mit Standardeinstellungen
Aufzeichnung starten.
Gedrückt halten bis
Signalton ertönt.
LED blinkt grün
(alle 30 Sek.)
Logger in USB port warten PDF anschauen
und sichern
1. 2.
3. 4. 5.
6. Battery replacement
Twist rear cap (about 10°),
the battery lid opens.
Remove empty battery and insert
new battery like shown.
Battery change ok:
both LEDs light for 1second, beep sounds.
7. Alarm signals
Logger in record mode
Beeper sounds once each 30 seconds for
1 second, red LED blinks ach
3 seconds - measured values exceeds
selected measurement range
(not with standard settings).
Alarm limits can be changed using
LogConnect* software.
8. Waste disposal
This product has been manufactured using high-grade materials and components which can
be recycled and reused.
Never dispose of empty batteries and rechargeable batteries in household waste.
As a consumer, you are legally required to take them to your retail store or to an
appropriate collection site depending on national or local regulations in order to
protect the environment. The symbols for the heavy metals contained are:
Cd=cadmium, Hg=mercury, Pb=lead
This instrument is labelled in accordance with the EU Waste Electrical and
Electronic Equipment Directive (WEEE). Please do not dispose of this instrument in
household waste. The user is obligated to take end-of-life devices to a designated
collection point for the disposal of electrical and electronic equipment, in order to
ensure environmentally-compatible disposal
This sign certies that the product meets the requirements of the EEC directive and
has been tested according to the specied test methods.
Technical changes, any errors and misprints reserved.
Logger in standby mode (not in record mode)
Red LED blinks once each 4 seconds.
Replace battery.
Red LED blinks twice or more
each 4 sconds. Hardware fault!
* LogConnect download link to access the software
http://download.dostmann-service.de , select
Downloads/Software/5005-0172_Log32TH/Software/
NOTE: Check Logger status: Press start button for appr. 1 second. If the green
LED ashes twice the logger is recording! This procedure can be done as often as
you want.
