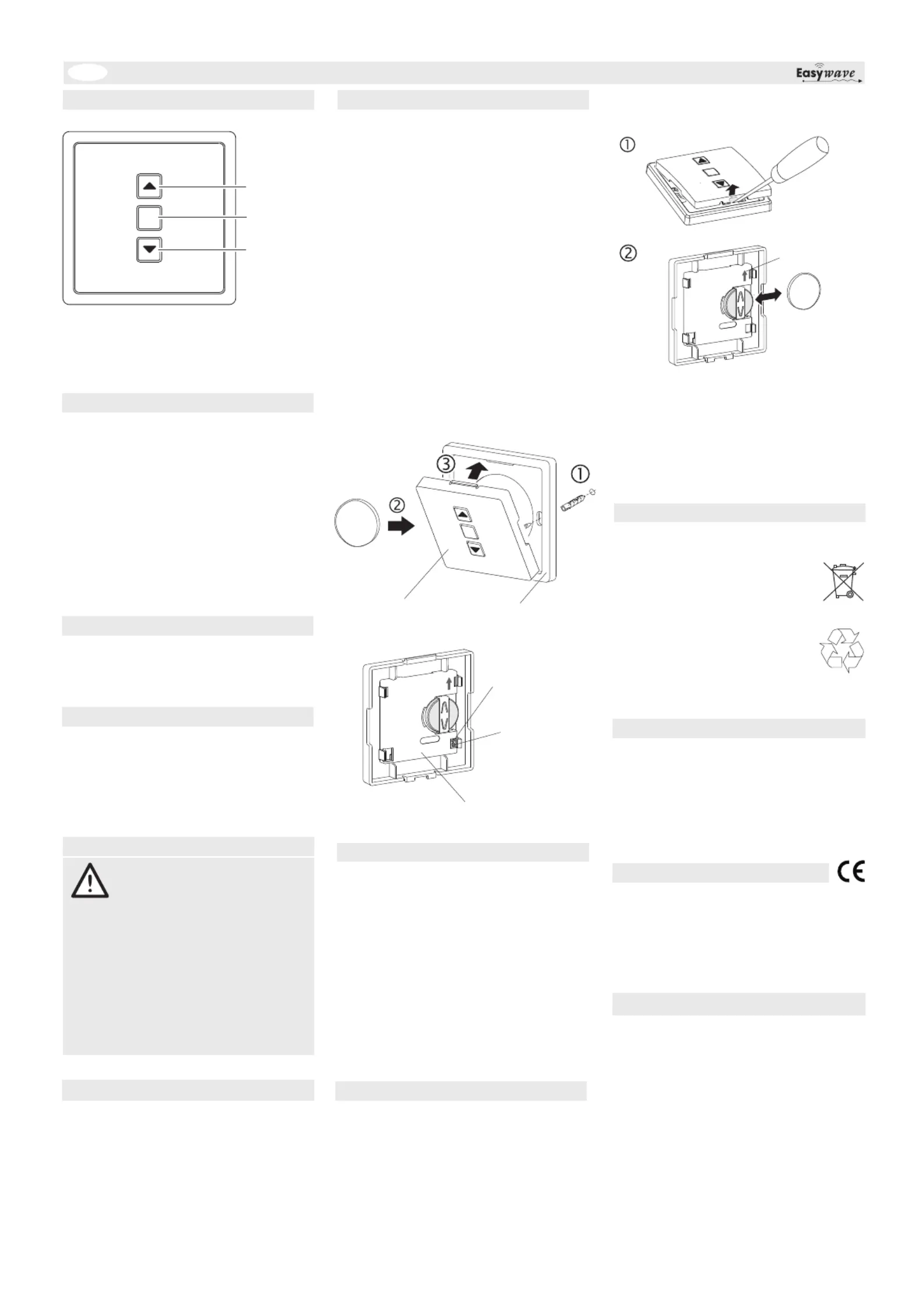

Side 1/1
3.
Note:
Re-insert the transmission group into the
mounting frame.
The transmitter's coding is preserved
even if there is no voltage supply. You do not
need to re-register the code with the wireless
control after a battery change.
Before using the Radio Wall Switch,
carefully read through the operating
instructions!
Note also the operating instructions of the
radio control(s)!
The Radio Wall Switch should only be
operated within sight of the devices to be
controlled! Otherwise persons could be
placed in danger!
Have faulty Radio Wall Switches checked by
the manufacturer!
Do not make any unauthorized alterations or
modifications to the Radio Wall Switch!
Start-Up
Function
Model
Technical Data
Only use the Wireless Wall Switch RTS13 in
dry rooms to switch Easywave wireless
controls.
The manufacturer shall not be liable for any
damage caused by improper or non-intended
use.
Intended Use
Safety Advice
Package Content
Transmission module, 1x battery CR2032,
mounting frame, attachment set, op. instruc-
tion
Frequency: 868.3 MHz
Radiated power: 0.13 mW
Modulation: FSK
Coding: Easywave
Power supply: 1x 3-V-battery, CR2032
Operating
temperature: -20 °C to +60 °C
Range: free-field: approx. 150 m
buildings: approx. 30 m
Degree of protection: IP30
Dimensions: 80 x 80 x 10 mm
Weight: 47.0 g incl. battery
Disposal
Conformity
If, despite correct handling, faults or mal-
functions occur or if the product was da-
maged, please contact your retailer or the
manufacturer.
ELDAT EaS GmbH
Schmiedestraße 2
15745 Wildau
Germany
Phone: + 49 (0) 33 75 / 90 37-310
Fax: + 49 (0) 33 75 / 90 37-90
Internet: www.eldat.de
E-mail: info@eldat.de
Waste electrical products and batteries not
be disposed of with household waste!
Dispose of the waste product via a
collection point for electronic scrap
or via your specialist dealer.
Dispose of used batteries in a
recycling bin for batteries or via the
specialist trade.
Put the packaging material into the
recycling bins for cardboard, paper
and plastics.
Hereby, ELDAT EaS GmbH declares that the
radio equipment type RTS13 is in compliance
with Directive 2014/53/EU.
The full text of the EU declaration of confor-
mity is available at the following internet
address: www.eldat.de
Warranty
Troubleshooting
Within the statutory warranty period we
undertake to rectify free of charge by repair or
replacement any product defects arising from
material or production faults.
Any unauthorized tampering with, or
modifications to, the product shall render this
warranty null and void.
If the wireless control does not react to the
:
- Exchange the battery.
- Check that the wireless connection at the
installation site is not impaired between the
wireless wall switch and the wireless
control.
- Re-register the transmission code with the
wireless control.
- Other wireless devices using the same
frequency or working in direct proximity
may interfere with the device.
Radio Wall Switch
Customer Service
The RTS13 is a wireless switch transmitter
for surface mounting in dry rooms.
The Easywave code is transmitted by
pressing the switch and the connected
Easywave wireless control switched.
Replacing the Battery
1.
2. Replace the battery. Only use batteries of
the type CR2032.
Make sure the polarity is correct!
Carefully lever off the transmission group
out of the mounting frame on the bottom
edge.
transmission
module front mounting frame
CR2032
+
+
+
+
+
CR2032
+
RTS13E5001-01
3 button operation.
1x OPEN/STOP/CLOSE
OPEN (A)
STOP (C)
CLOSE (B)
Direction of
arrow must be
upward!
1.
Insert the enclosed battery.
Make sure the Polarity is correct!
Screw or stick the mounting frame to the
installation site with the help of the screws
and dowels or the adhesive pads.
Make sure that there is no inter-Caution:
ference with the wireless connection. Do
not mount the device in a distribution box,
metal casings, in direct proximity to large
metal objects, on the floor or close to it
2.
3. First snap the transmission group in on
the top and then on the bottom of the
mounting frame. The arrow on the back
of the transmission module must point
upwards.
4. Register the transmission code with the
wireless control. For this read the ope-
rating instructions supplied with the radio
controls.
EN Wall Switch RTS13
transmission module
back
learning button
PTx
LED
UM79772E_0922 DE/EN
