FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620
97545C (4/99)
LEGEND:
*A = RECOMMENDED WATER SUPPLY LOCATION 3/8 O.D. UNPLATED COPPER TUBE CONNECT,
STUB 1-1/2 (38mm) OUT FROM WALL, SHUT OFF BY OTHERS (LEFT SIDE ONLY).
*B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/4 O.D. DRAIN (LEFT SIDE ONLY).
C = ELECTRICAL SUPPLY LOCATION (BOTH SIDES).
NOTES:
1. THERE ARE HOLES AND KNOCKOUTS PROVIDED ON EACH SIDE OF THE MOUNTING BOX THAT ARE
INTENDED TO BE USED TO MOUNT THE BOX. USE SIX SCREWS OR BOLTS (NOT PROVIDED).
*2. WATER AND DRAIN CONNECTIONS MUST BE MADE FROM LEFT SIDE ONLY.

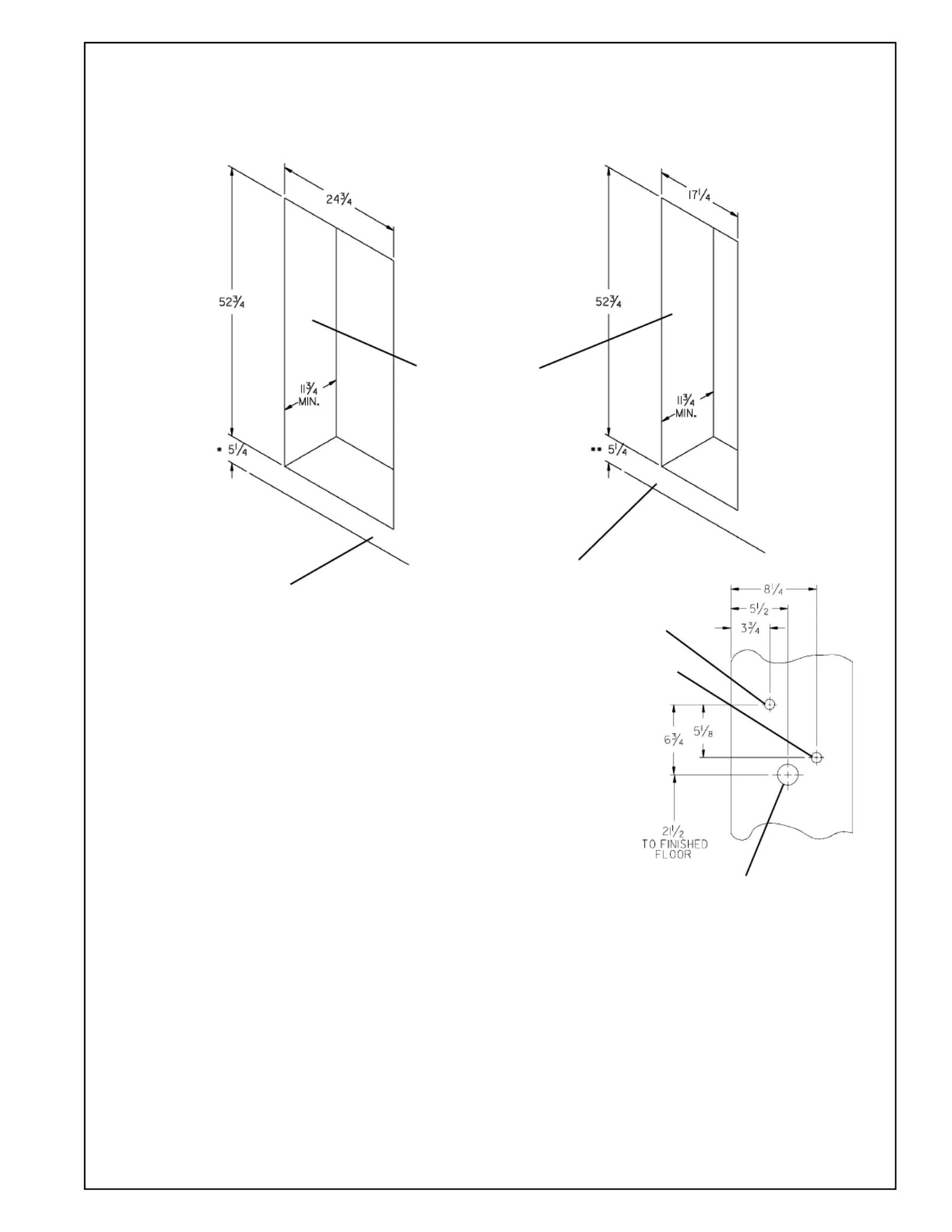

MB23A MOUNTING BOX INSTALLATION
FOUNTAIN WITH CUP DISPENSER
FINISHED FLOOR LINE
SEE PLUMBING
ROUGH-IN
** BASED ON 34 FROM FINISHED FLOOR TO RIM.
(39 TO CENTERLINE OF GLASS FILLER)
FINISHED FLOOR LINE
*A
*B
C
PLUMBING ROUGH-IN
MB23A MOUNTING BOX INSTALLATION
FOUNTAIN ONLY
