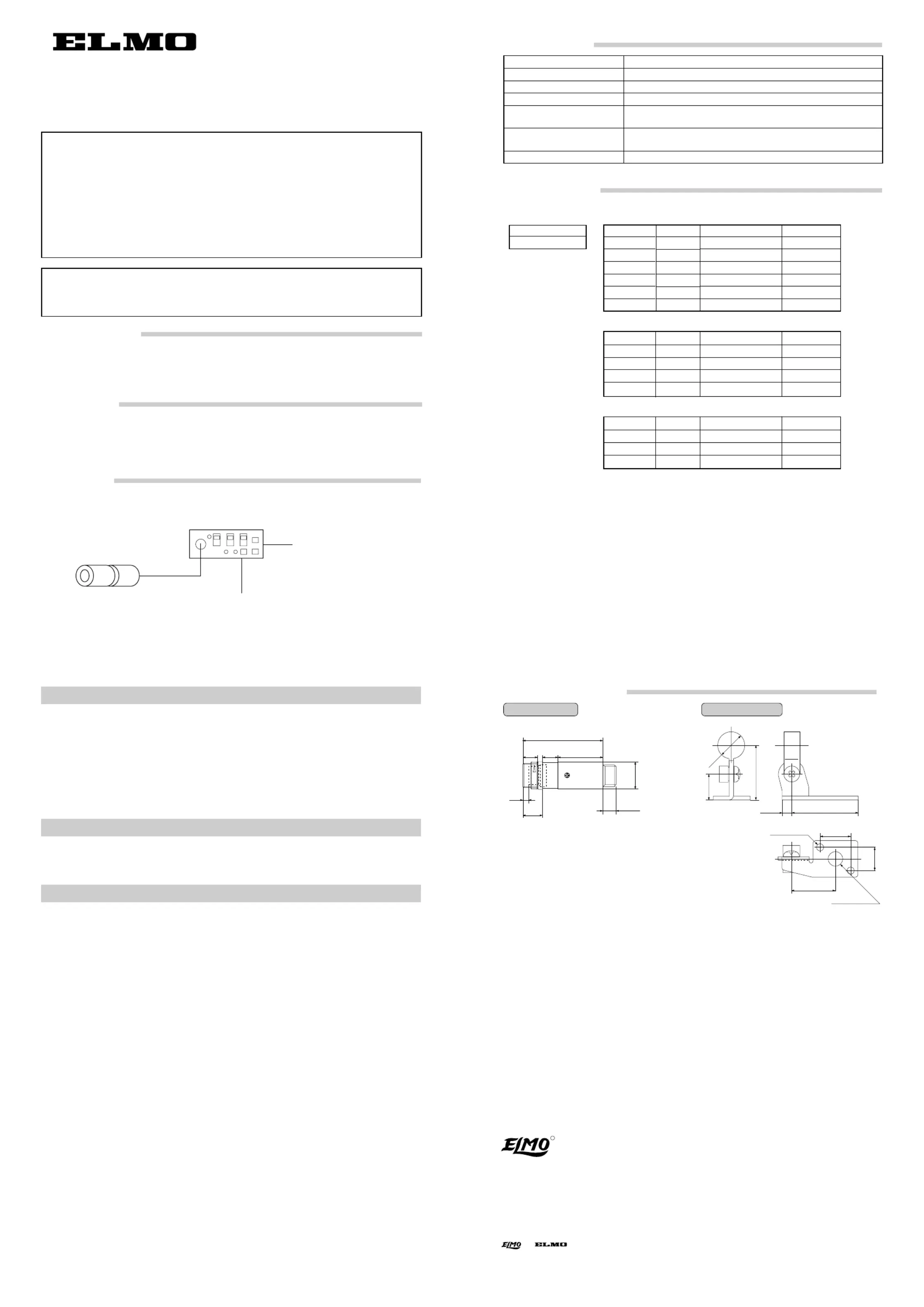

Side 1/1
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
USER-INSTALLER CAUTION: Your authority to operate this FCC verified equipment could be voided
if you make changes or modifications not expressly approved by the party responsible for compliance
to Part 15 of the FCC rules.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
CAUTIONS ON USE
●Please use this apparatus by connecting only with camera control unit Elmo CC431E.
●Read the "CAUTIONS ON USE AND INSTALLATION" in the operation manual of CC431E, and follow
them.
COMPONENTS
(1) Camera head (without lens) .............................................................................. 1
(2) Accessories
(a) Camera holder ............................................................................................. 1
(b) Operation manual ........................................................................................ 1
CONNECTION
Image sensor 1/3 inch IT-CCD
Effective pixels Horizontal: 768 pixels, Vertical: 494 pixels
Effective image area Horizontal: 4.88 mm, Vertical: 3.66 mm
Resolution Horizontal: More than 470 lines, Vertical: More than 350 lines
Standard intensity of 40 lx (F1.6, 3000K)
illumination for objects
Minimum intensity of 3.5 lx (F1.6, 3000K)
illumination for objects
Weight 0.32 oz (9g)
SPECIFICATIONS
Camera control unit
OPTIONAL PARTS
For further details, contact your Elmo dealer.
Type name
CC431E
EXTERIOR DIMENSIONS
Unit : mm [inch]
ø : diameter
Camera Head Camera Holder
●When connecting or discon-
necting the camera cables
(for the camera head and
camera control unit), always
turn off the power switch of
the camera control unit first.
If not, the camera head may
be damaged.
●Design and specifications are subject to change without notice.
Macro lens
Lens
(option) Camera head
Camera control unit
CC431E (option)
DC Supply
(12V)
CAMERA
VIDEO
DC IN 12V
Camera cable
(option)
Camera cable
Type
TT426MA
TT426MB
TT426MC
Focal length
f=26mm
f=26mm
f=26mm
Magnifications
X0.25~X0.4
X0.4~X0.7
X0.7~X1
Type
EMC-02H
EMC-03H
EMC-05H
EMC-12H
EMC-20H
EMC-30H
Nominal length
2m
3m
5m
12m
20m
30m
Diameter
5.0mm
5.0mm
5.0mm
5.0mm
5.0mm
5.0mm
Code #
9833
9833-1
9833-2
9833-3
9833-4
9833-5
Code #
9800
9801
9802
*EMC-54H is not applicable for this model.
CCD Color Camera Head
Operation Manual
M O D E L
U N 4 3 H
Printed in Japan (23552123)
FOCUS LOCK
φ12
[0.472]
6
[0.236]
19.9
[0.783]
7.6
[0.30]
6.6
[0.26]
36
[1.42]
9
[0.354]
2.6
[0.10]
CCD image plane
(in air 7.2)
[0.283]
φ11.5
[0.453]
11.6
[0.457]
24.6
[0.97]
4
[0.157] 30
[1.18]
2-
[0.118]
φ3 hloe 14
[0.55]
20
[0.787]
10.5
[0.413]
1/4-20UNC
DISCLAIMER
We disclaim any responsibility and shall be held harmless for any damages or losses incurred by the
user in any of the following cases:
1. Fire, earthquake or any other act of God; acts by third parties; misuse by the user, whether inten-
tional or accidental; use under extreme operating conditions.
2. Malfunction or non-function resulting in indirect, additional or consequential damages, including
but not limited to loss of expected income and suspension of business activities.
3. Incorrect use not in compliance with instructions in this instruction manual.
4. Malfunctions resulting from misconnection to other equipment.
5. Repairs or modifications made by the user or caused to be made by the user and carried out by an
unauthorized third party.
6. Notwithstanding the foregoing, ELMO’s liabilities shall not, in any circumstances, exceed the pur-
chase price of the product.
There may be a conflict with the Copyright Law and other laws when a customer uses, displays,
distributes, or exhibits an image picked up by a television camera without permission from the copy-
right holder. Please also note that transfer of an image or file covered by copyright is restricted to use
within the scope permitted by the Copyright Law.
COPYRIGHT AND RIGHT OF PORTRAIT
CAUTIONS ON USE AND INSTALLATION
●Carefully handle the units.
Do not drop, or give a strong shock or vibration to the camera. This may cause problems. Treat the
camera cables carefully to prevent cable problems, such as cable breakdown and loosened connec-
tions.
●Do not shoot intense light.
If there is an intense light at a location on the screen such as a spot light, a blooming and smearing
may occur. When intense light enters, vertical stripes may appear on the screen. This is not a malfunc-
tion. Ghosts may occur when there is an intense light near the object. In this case, change the shoot-
ing angle.
●Install the camera in a location free from noise.
If the camera or the cables are located near power utility lines or a TV, etc. undesirable noise may
appear on the screen. In such a case, try to change the location of the camera or the cable wiring.
●Moire
When thin stripe patterns are shot, stripe patterns that are not actually there (moire) may appears as
interference stripes. This is not a malfunction.
●Operating ambient temperature and humidity.
Do not use the camera in places where temperature and humidity exceed the specifications. Picture
quality will lower and internal parts may be damaged.
Be particularly careful when using in places exposed to direct sunlight. When shooting in hot places,
depending on the conditions of the object and the camera (for example when the gain is increased),
noise in the form of vertical strips or white dots may occur. This is not a malfunction.
●Handling of the protection cap.
Keep the protection cap away from children. Children may put them into mouth or swallow them
accidentally. The protection cap protects the image sensing plane when the lens is removed from the
camera, do not throw away.
●When not using the camera for a longtime.
Stop supplying power.
●When cleaning the camera
Always turn off the power and clean with a piece of soft dry cloth. Do not use benzine, alcohol, thinner,
household detergents, chemically treated cloths, etc. If used, coating and printed letters may be dis-
colored. When cleaning the lens, use a lens cleaning paper, etc.
●Avoid using or storing the camera in the following places:
Places filled with highly flammable gas.
Places near gasoline, benzene, or paint thinner.
Places subject to strong vibration.
Places contacting chemicals (such as pesticides), rubber or vinyl products for a long period of time.
ELMO CO., LTD.
6-14, Meizen-cho, Mizuho-ku,
Nagoya, 467-8567 Japan
ELMO Canada Mfg. Corp.
44 West Drive, Brampton,
Ontario, L6T 3T6,
Canada
Tel. 905-453-7880
Fax. 905-453-2391
E-mail:info@elmocanada.com
Web:http://www.elmocanada.com
ELMO Mfg. Corp.
1478 Old Country Road,
Plainview, NY 11803-5034
U.S.A.
Tel. 516-501-1400
Fax. 516-501-0429
E-mail:elmo@elmousa.com
Web:http://www.elmousa.com
OVERSEAS SUBSIDIARY COMPANIES
ELMO (Europe) G.m.b.H.
Neanderstr. 18
40233 D sseldorf,ü
Germany
Tel. 0211-376051-53
Fax. 0211-376630
E-mail:elmoeurope@AOL.com
Web:http://www.elmo.de
and are registered trademarks of ELMO COMPANY, LIMITED.
R
Miniature lens
Type
TT203
TT1655
TT2011
TT3318
Nominal lenght
f=3mm
f=5.5mm
f=11mm
f=18mm
Diameter
2.0
1.6
2.0
3.3
Code #
9289
9283
9288
9295
