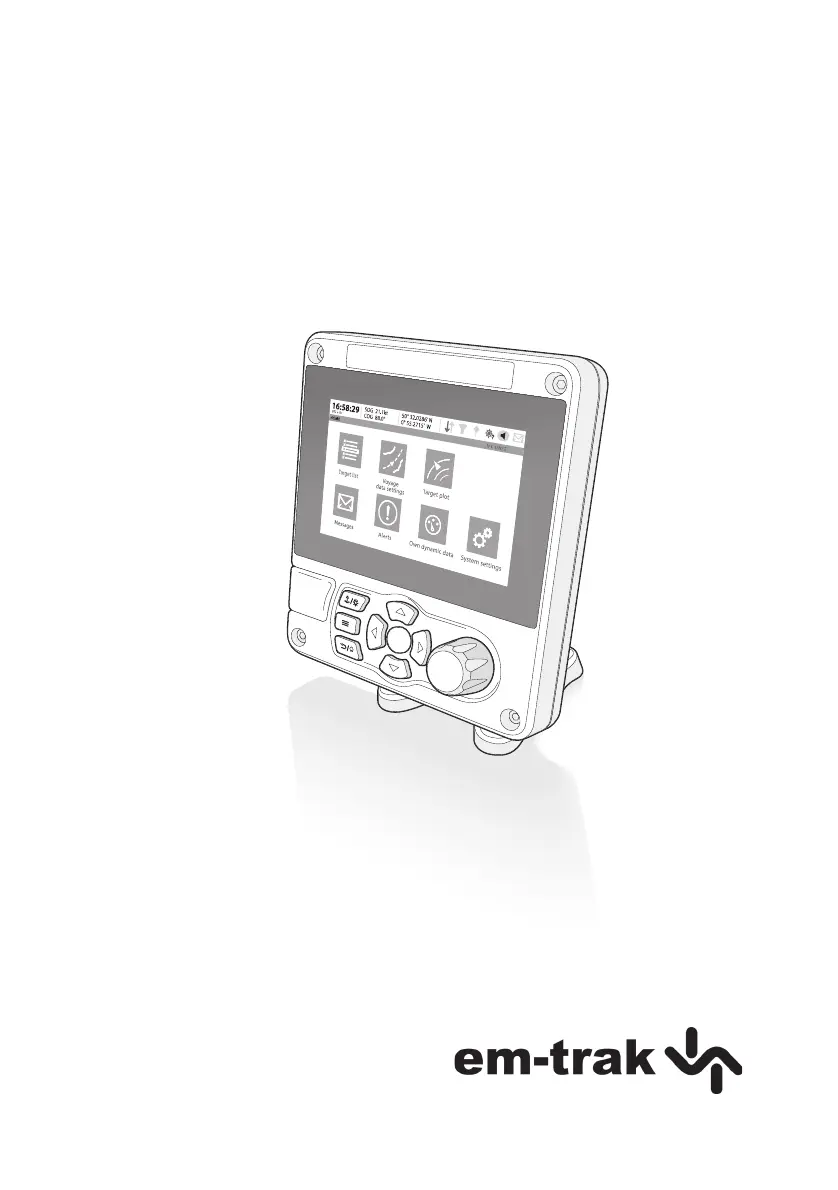

AIS Transceiver
QUICK START GUIDE
Whats in the box?
For full instructions on how to install and use your
AIS Transceiver please refer to the product manual.
Step 1 – Install the transceiver
Front panel controls
What do I need?
201-0627:4
Panel mounted
Overhead mounted
(reverse mounting bracket)
Desk mounted
Step 2 – Install the antennas
GNSS antenna should be at least 5m (16ft)
from radar or satellite communication antennas.
It should also be away from the radar beam path
and mounted on a rigid surface.
VHF antenna should be at least
3m (10ft) from other transmitting radio,
satellite and radar antennas.
Radar beam path
GNSS antenna
3m (10ft) 5m (16ft)
VHF antenna
Power cable
Warranty card
Product
manual Product mounting
template
Quick start
guideFlyer
AIS transceiver
18 way data cable 14 way data cable
Vessel type: Class A / SOLAS or Inland
MMSI number (9 digits):
Vessel name:
Vessel callsign:
IMO number (if available):
Vessel dimensions and GNSS antenna position:
Information needed for installation:
Scroll wheel
(push to select)
Function keys
(up, down, left right)
Back / Home
Micro SD card
slot behind door
Navigation Status /
Screen brightness
Select
Options menu
Display
Mounting bracket
Fixings
Ref A
Antenna
Ref A + Ref B = Length in metres Ref C + Ref D = Beam in metres
Ref B
Stern Bow
Ref C
Ref D
Quick operation
guide
VHF antenna
(Connector
type: PL-259)
Pozidriv (PZ2)
screwdriver
Allen keys (3mm, 4mm)
12V/24V
power supply
DrillSaw (for panel cut-out)
Grounding wire
Surge arrestor
GNSS Antenna
Cable Assy
