NETZANALYSATOR
MPR-53S MODBUS REGISTERTABEL NETWORK ANALYZER
MPR-53/53S
20 1
MODBUS REGISTERTABEL
ADRESSE ADRESSE REGISTER R/W BEREICH EINHEIT MULTIPLIKATOR FORMAT
(HEX)
152 0098 L3 PHASE MIN. SCHEINLEISTUNG R/W (0 - 18000)xCTxVT VA 0.1 unsigned int
154 009A GESAMTE MIN. IMPORTIERTE WIRKLEISTUNG R/W (-18000 - 18000)xCTxVT Watt 0.1 int
156 009C GESAMTE MIN. EXPORTIERTE WIRKLEISTUNG R/W (-18000 - 18000)xCTxVT Watt 0.1 int
158 009E GESAMTE MIN. INDUKTIVE BLINDLEISTUNG R/W (-18000 - 18000)xCTxVT Var 0.1 int
160 00A0 GESAMTE MIN. KAPAZITIVE BLINDLEISTUNG R/W (-18000 - 18000)xCTxVT Var 0.1 int
162 00A2 GESAMTE MIN. SCHEINLEISTUNG R/W (0 - 18000)xCTxVT VA 0.1 unsigned int
164 00A4 L1 PHASE MAX. SPANNUNG R/W (0 - 3000)xUT Volt 0.1 unsigned int
166 00A6 L2 PHASE MAX. SPANNUNG R/W (0 - 3000)xUT Volt 0.1 unsigned int
168 00A8 L3 PHASE MAX. SPANNUNG R/W (0 - 3000)xUT Volt 0.1 unsigned int
170 00AA L1-L2 PHASE-PHASE MAX. SPANNUNG R/W (0 - 5000)xUT Volt 0.1 unsigned int
172 00AC L2-L3 PHASE-PHASE MAX. SPANNUNG R/W (0 - 5000)xUT Volt 0.1 unsigned int
174 00AE L3-L1 PHASE-PHASE MAX. SPANNUNG R/W (0 - 5000)xUT Volt 0.1 unsigned int
176 00B0 L1 PHASE MAX. STROM R/W (0 - 6000)xCT Amper 0.001 unsigned int
178 00B2 L2 PHASE MAX. STROM R/W (0 - 6000)xCT Amper 0.001 unsigned int
180 00B4 L3 PHASE MAX. STROM R/W (0 - 6000)xCT Amper 0.001 unsigned int
182 00B6 L1 PHASE MAX. WIRKLEISTUNG R/W (-18000 - 18000)xCTxVT Watt 0.1 int
184 00B8 L2 PHASE MAX. WIRKLEISTUNG R/W (-18000 - 18000)xCTxVT Watt 0.1 int
186 00BA L3 PHASE MAX. WIRKLEISTUNG R/W (-18000 - 18000)xCTxVT Watt 0.1 int
188 00BC L1 PHASE MAX. BLINDLEISTUNG R/W (-18000 - 18000)xCTxVT Var 0.1 int
190 00BE L2 PHASE MAX. BLINDLEISTUNG R/W (-18000 - 18000)xCTxVT Var 0.1 int
192 00C0 L3 PHASE MAX. BLINDLEISTUNG R/W (-18000 - 18000)xCTxVT Var 0.1 int
194 00C2 L1 PHASE MAX. SCHEINLEISTUNG R/W (0 - 18000)xCTxVT VA 0.1 unsigned int
196 00C4 L2 PHASE MAX. SCHEINLEISTUNG R/W (0 - 18000)xCTxVT VA 0.1 unsigned int
198 00C6 L3 PHASE MAX. SCHEINLEISTUNG R/W (0 - 18000)xCTxVT VA 0.1 unsigned int
200 00C8 GESAMTE MAX. IMPORTIERTE WIRKLEISTUNG R/W (-18000 - 18000)xCTxVT Watt 0.1 int
202 00CA GESAMTE MAX. EXPORTIERTE WIRKLEISTUNG R/W (-18000 - 18000)xCTxVT Watt 0.1 int
204 00CC GESAMTE MAX. INDUKTIVE BLINDLEISTUNG R/W (-18000 - 18000)xCTxVT Var 0.1 int
206 00CE GESAMTE MAX. KAPAZITIVE BLINDLEISTUNG R/W (-18000 - 18000)xCTxVT Var 0.1 int
208 00D0 GESAMTE MAX. SCHEINLEISTUNG R/W (0 - 18000)xCTxVT VA 0.1 unsigned int
210 00D2 L1 PHASE MAX. STROMBEDARF R/W (0 - 6000)xCT Amper 0.001 unsigned int
212 00D4 L2 PHASE MAX. STROMBEDARF R/W (0 - 6000)xCT Amper 0.001 unsigned int
214 00D6 L3 PHASE MAX. STROMBEDARF R/W (0 - 6000)xCT Amper 0.001 unsigned int
216 00D8
L1 PHASE IMPORTIERTE MAX. BEDARF WIRKLEISTUNG
R/W (-18000 - 18000)xCTxVT Watt 0.1 int
218 00DA
L1 PHASE EXPORTIERTE MAX. BEDARF WIRKLEISTUNG
R/W (-18000 - 18000)xCTxVT Watt 0.1 int
220 00DC
L2 PHASE IMPORTIERTE MAX. BEDARF WIRKLEISTUNG
R/W (-18000 - 18000)xCTxVT Watt 0.1 int
222 00DE
L2 PHASE EXPORTIERTE MAX. BEDARF WIRKLEISTUNG
R/W (-18000 - 18000)xCTxVT Watt 0.1 int
224 00E0
L3 PHASE IMPORTIERTE MAX. BEDARF WIRKLEISTUNG
R/W (-18000 - 18000)xCTxVT Watt 0.1 int
226 00E2 L3
PHASE EXPORTIERTE MAX. BEDARF WIRKLEISTUNG
R/W (-18000 - 18000)xCTxVT Watt 0.1 int
228 00E4
L1 PHASE INDUKTIVE MAX. BEDARF BLINDLEISTUNG
R/W (-18000 - 18000)xCTxVT Var 0.1 int
230 00E6
L1 PHASE KAPAZITIVE MAX. BEDARF BLINDLEISTUNG
R/W (-18000 - 18000)xCTxVT Var 0.1 int
232 00E8
L2 PHASE INDUKTIVE MAX. BEDARF BLINDLEISTUNG
R/W (-18000 - 18000)xCTxVT Var 0.1 int
234 00EA
L2 PHASE KAPAZITIVE MAX. BEDARF BLINDLEISTUNG
R/W (-18000 - 18000)xCTxVT Var 0.1 int
236 00EC
L3 PHASE INDUKTIVE MAX. BEDARF BLINDLEISTUNG
R/W (-18000 - 18000)xCTxVT Var 0.1 int
238 00EE
L3 PHASE KAPAZITIVE MAX. BEDARF BLINDLEISTUNG
R/W (-18000 - 18000)xCTxVT Var 0.1 int
240 00F0 L1 PHASE MAX. BEDARF SCHEINLEISTUNG R/W (0 - 18000)xCTxVT VA 0.1 unsigned int
242 00F2 L2 PHASE MAX. BEDARF SCHEINLEISTUNG R/W (0 - 18000)xCTxVT VA 0.1 unsigned int
244 00F4 L3 PHASE MAX. BEDARF SCHEINLEISTUNG R/W (0 - 18000)xCTxVT VA 0.1 unsigned int
246 00F6
GESAMTE IMPORTIERTE MAX. BEDARF WIRKLEISTUNG
R/W (-18000 - 18000)xCTxVT Watt 0.1 int
248 00F8
GESAMTE EXPORTIERTE MAX. BEDARF WIRKLEISTUNG
R/W (-18000 - 18000)xCTxVT Watt 0.1 int
250 00FA GESAMTE INDUKTIVE MAX. BEDARF BLINDLEISTUNG R/W (-18000 - 18000)xCTxVT Var 0.1 int
252 00FC GESAMTE KAPAZITIVE MAX. BEDARF BLINDLEISTUNG R/W (-18000 - 18000)xCTxVT Var 0.1 int
254 00FE GESAMTE MAX. BEDARF SCHEINLEISTUNG R/W (0 - 18000)xCTxVT VA 0.1 unsigned int
ADRESSE ADRESSE REGISTER R/W BEREICH EINHEIT MULTIPLIKATOR FORMAT
(HEX)
32768 8000 SPANNUNGWANDLERVERHÄLTINS R/W 0-40000 - 0.1 short- int
32769 8001 STROMVANDLERVERHÄLTNIS R/W 0-2000 - 1 short- int
32770 8002 BERECHUNGSMETHODE R/W 0-5 - - short- int
32771 8003 BEDARFSZEIT R/W 1-60 minuten 1 short- int
32772 8004 IMPULSRATE R/W 0-6 - - short- int
32773 8005 IMPULSAUSGANG 1 PARAMETEREINSTELLUNG R/W 0-5 - - short- int
32774 8006 IMPULSAUSGANG 2 PARAMETEREINSTELLUNG R/W 0-5 - - short- int
32775 8007 ENERGIEZAHLER 1 AUSWAHL R/W 0-3 - - short- int
32776 8008 ENERGIEZAHLER 2 AUSWAHL R/W 0-3 - - short- int
32777 8009 KOMMUNIKATIONSADRESSE R/W 0-247 - - short- int
32778 800A BAUDRATE R/W 1-5 - - short- int
32779 800B PARITÄT R/W 0-2 - - short- int
32780 800C KENNWORTAKTIVIERUNG R/W 0-1 - - short- int
32781 800D KENNWORT R/W 0-9999 - - short- int
IMPULSEAUSGANG 1-2 IMPULSERATE 0-6: ENERGIEZÄHLER 1 AUSWAHL 0-3: 1-5-BAUDRATE
PARAMETEREINSTELLUNG 0-5 0:1 Watt / Impulse 0: Ein (EC will für alle Konditionen zählen) 1: 38400 bps
0: Aktiv 1:10 Watt / Impulse 1: EC1 will zählen nur wenn Digitaleingang 1(activ) ist 2: 19200 bps
1: Importierte Aktiv 2:100 Watt / Impulse 2: EC1 will zählen nur wenn Digitaleingang 2(activ) ist 3: 9600 bps
2: Exportierte Aktiv 3:1 kW / Impulse 3: EC1 will zählen nur wenn EC2 nicht zählt 4: 4800 bps
3: Reaktiv 4:10 kW / Impulse 5: 2400 bps
4: Importierte Reaktiv 5:100 kW / Impulse ENERGIEZÄHLER 2 AUSWAHL 0-3:
5: Exportierte Reaktiv 6: 1 MW / Impulse 0: Ein (EC will für alle Konditionen zählen) 0-2-PARITÄT :
1: EC will zählen nur wenn Digitaleingang1 1(activ) ist 0: Keine
BERECHUNHD 0-5 : 2: EC will zählen nur wenn Digitaleingang2 1(activ) ist 1: Ungerade
Bitte sehen Sie “Einstellung der 3: EC2 will zählen nur wenn EC1 nicht zählt 2: Gerade
Blindenergieberechungsmethode” auf zweite Seite
0-1 KENNWORTAKTIVIERUNG :
0: Inactiv
1: Aktiv
General
MPR-53/53S is developed for measuring all the electrical parameters on the
network. Measured parameters are shown in 5 separate displays.This allows to
monitor more than 50 parameters at the same time. MPR-53S has also MODBUS
serial interface feature.
Using of MPR-53/53S:
Parameters are shown in L1, L2, L3 displays (VLN; VLL; A; IN; W; VAr; VA; Cos
; kWh, kVarh, THD) by using up-down buttons. Total Active (SW), Total Apparent
Power (SVA) and Frequency (Hz) are selected by back button.
Total Reactive Power (SVAr) and Cos are selected by Esc button.
Digital Inputs
MPR-53/53S has 2 digital inputs which are used to monitor the status of electrical
contacts. Digital input has 2 functions :
- Enabling remote control of the data received through the digital input terminal
(battery, thermostat, circuit breaker, pumps status)
- Controlling energy counters when digital inputs are activated at Energy count
menu. (Example: It is used for measuring of energy separately at the using of
network and generator).
Energy Pulse Outputs
MPR-53/53S has 2 Energy Pulse Outputs. These outputs give the pulses only for
E-1 (Energy Counter). Pulse outputs can be congurable separately.
Pul1 and Pul2: In “o-1 (Pulse1)”, “o-2 (Pulse2)” menus which are in the pulse menu,
device give pulse according to selected energy parameters as [Active energy (ACt,
A-I, A-E), Reactive energy (rEA, r-L, r-C)].
Please refer to the pulse menu for the coefcients of energies.
Monitoring of Min.,Max. and Max. Demand Values:
Min. and max. values are dened for VLN, VLL, A, W, VAr, VA, SW, SVAr, SVA;
demand values are dened for A, W, VAr, VA, SW, SVA, SVAr.
If measured instant value is smaller than min. value which was stored before, it is
stored as new min. value. If measured instant value is greater than max. value which
was stored before, it is stored as new max. value.
Demand value is the average value of the measured values in demand time (15
minute).
If one of dened parameters is displayed (ie. “A”) when deman button is pressed
min., max or max. demand values are displayed. When an undened parameter
is displayed (ie. “Cos ”) if demand button is pressed, instant value is continued to
display.
Monitoring THD Values
When “VLN
” and “THD” leds light on, voltage THD is monitored and also if “A” and
“THD” leds light on, current THD is monitored.
Monitoring Neutral Current
Neutral current can be monitored by scrolling after 3-phases current values has
displayed.
H-L-M LEDs
H-L-M LEDs are dedicated to displaying the min., max. and max. demand values
according to selected parameters.
H: Maximum Value, L: Minimum Value, M: Max. Demand Value
Calculation Methods for Active / Reactive Power Values
If the led on the most left side blinks it represents that active power’s / reactive
power’s direction is negative.
There are two methods for calculating total active and total reactive powers:
1) Active / Reactive power can be calculated by summing import and export values
and displaying as a single value.
2) Active / Reactive power can be calculated according to direction as
import / export.
Note :
1) The dot at the most right digit of the fourth display (During SW is displayed)
represents that displayed value is export active power value. Vice versa,
displayed value is import active power value.
2) The dot at the most right digit of the fourth display (During SVAr is
displayed) represents that displayed value is capacitive reactive power value.
Vice versa, displayed value is inductive reactive power value.
3) The displayed parameter will not change if power is off after 30 seconds of
stand-by (ie. A).
Measured Parameters:
V (Phase Voltage ) CosLN
THD (Total Harmonic
Distortion)
V (Phase to Phase Voltage) AI ( kWh) (Import Active Energy I) Hz. (Frequency)LL
A (Phase Current, Neutral Current) AE (kWh) (Export Active Energy) SW (Total Active Power)
W (Active Power) rI (kVArh) (Import Reactive Energy) SVAr (Total Reactive Power)
VAr (Reactive Power) rE(kVArh) (Export Reactive Energy) SVA (Total Apparent Power)
VA (Apparent Power)
FUNCTIONS OF BUTTONS
In the monitoring mode, it is used to switch between(V
LN
, VLL, A, W, VAr, VA,
Cos , kWh, kVarh, THD) parameters.
At the programming mode, it provides to increase value of desired
parameter and pass to the next menu.
In the monitoring mode, it is used to pass between(V
LN
, VLL, A, W, VAr, VA,
Cos , kWh, kVarh, THD) parameters.
At the programming mode, it provides to decrease value of desired
parameter and pass to the prevides menu.
(SET) In the monitoring mode, it is used to switch between min., max.,
demand and instant values. When it is pressed for 3 seconds, programming
mode it is entered.
In the programming mode, it is used for saving parameters and moving to
the sub menu.
(Back) In the monitoring mode, it is used to switch between SW, SVA and
Hz parameters. It used to switch to the previous digit in submenu.
(ESC) In the monitoring mode, it provides to switch between SVAr and Cosj
values. In the programming mode, it is used to enter to the upper menu or
it is used to quit from the programming mode without saving values.
If user password is activated and set button is pressed for 3 seconds,
a pin code is required in order to enter to the menu.
Current Transformer Ratio Setup
In this menu, current transformer ratio is set between 1 - 2000.
Note: If the current transformer is not used between the system and
MPR-53/53S, current transformer ratio is entered as ‘1’.
Example: If a current transformer which has a ratio of 250/5A is used
between the system and MPR-53/53S; Current transformer ratio is
entered as “50” (250/5).

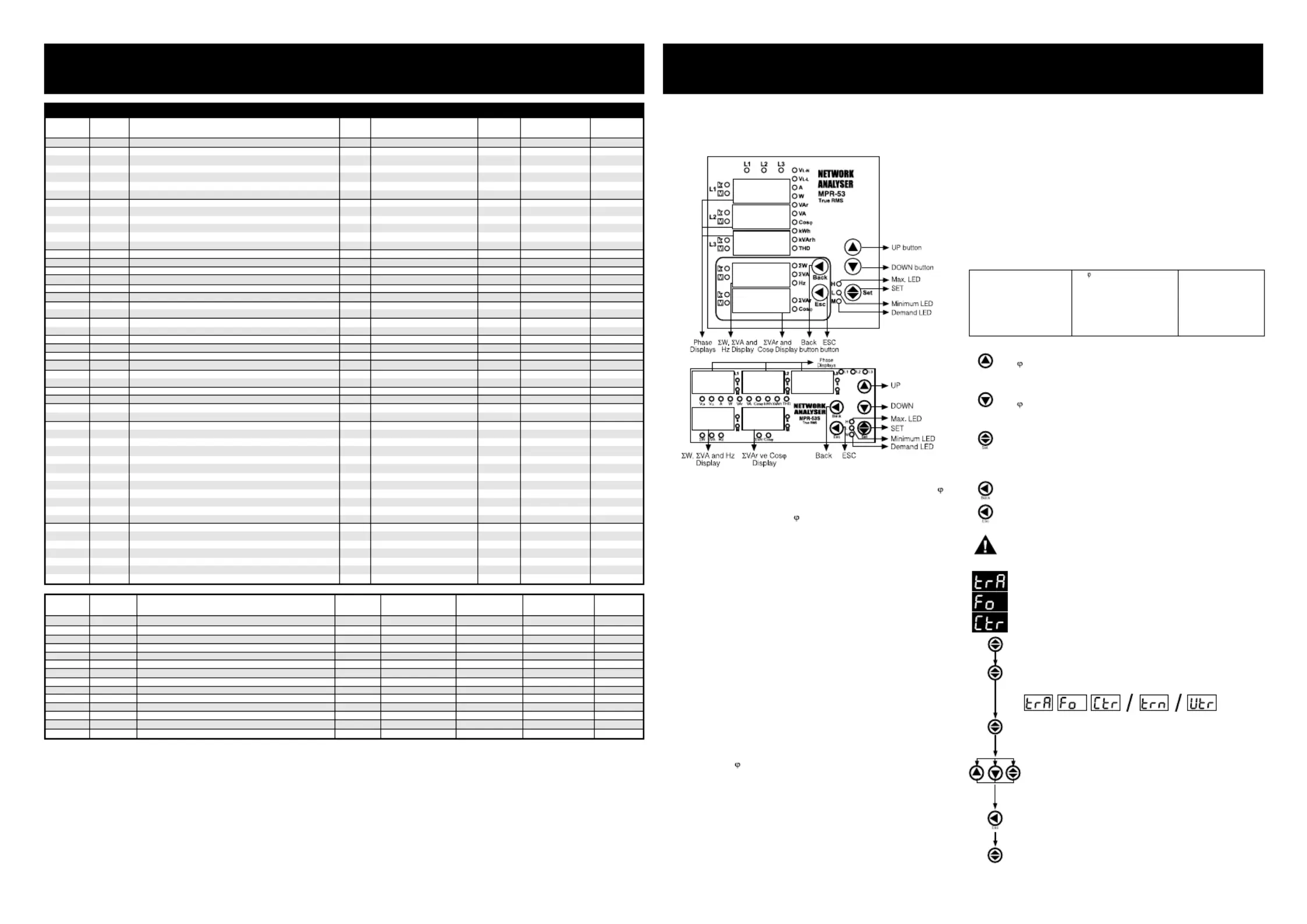

Press SET button for 3 seconds (trA Fo menu is displayed)
Press SET button; trA Fo Ctr menu is displayed (In CT-25 adapted
devices, trA Fo trn is displayed instead.)
( : trA Fo Utr menu can be displayed by scrolling the UP/DOWN Not
buttons.)
Press SET button. Blinking the rst digit of displayed value appears.
(trA Fo Utr menu can be programmed similarly.)
Enter the blinking digit value by scrolling UP/DOWN buttons. Switch
to the other digits by using SET button, use BACK button to go to
previous digit. After you entered the last digit press SET button, “trA
Fo Ctr / trA Fo trn / trA Fo Utr” is displayed. “on” can be selected by
scrolling UP/DOWN buttons. (Data is entered but is not activated
yet. For activating the new data please follow the below steps).
Press ESC button one by one until “SAU E SEt yES” is displayed.
Press SET button. When “SAU E SEt yES” is displayed, if you press
ESC button or choose “no” option instead of “yES” option by using
UP-DOWN buttons, new data will be cancelled and previous value will
be activated.

Produkt Specifikationer

Mærke: ENTES
Kategori: Ikke kategoriseret
Model: MPR-53-DIN

Har du brug for hjælp?

Hvis du har brug for hjælp til ENTES MPR-53-DIN stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret ENTES Manualer

ENTES

ENTES ERB-50 Manual

6 September 2024
ENTES

ENTES GEM-10SH Manual

6 September 2024
ENTES

ENTES RGSR-24S-OG Manual

6 September 2024
ENTES

ENTES RGSR-20S-OG Manual

6 September 2024
ENTES

ENTES RG3-15CL Manual

6 September 2024
ENTES

ENTES MPR-53S-96 Manual

6 September 2024
ENTES

ENTES MPR-47S-L Manual

6 September 2024
ENTES

ENTES ETMO-02-DR Manual

6 September 2024
ENTES

ENTES MPR-45S-L Manual

6 September 2024
ENTES

ENTES MPR-53S-OG-DIN Manual

6 September 2024

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Alpine

Alpine SBS-0515 Manual

8 November 2024
Alpine

Alpine KCE-103V Manual

8 November 2024
Alpine

Alpine KCE-104V Manual

8 November 2024
Advantech

Advantech ECU-1051TL Manual

8 November 2024
Alpine

Alpine DDC-R13A Manual

8 November 2024
Alpine

Alpine HCE-C200F Manual

8 November 2024
Alpine

Alpine CRM-1652RF Manual

8 November 2024
Alpine

Alpine KIT-8MBF Manual

8 November 2024
Alpine

Alpine APF-D200MB Manual

8 November 2024
Alpine

Alpine CDM-9803RR Manual

8 November 2024
