PowerLite Home Cinema 5025UB User's Guide
Welcome to the PowerLite Home Cinema 5025UB .User's Guide
7
Introduction to Your Projector
Refer to these sections to learn more about your projector and this manual.
Projector Features
Notations Used in the Documentation
Where to Go for Additional Information
Projector Part Locations
Projector Features
The PowerLite Home Cinema 5025UB projector includes these special features:
Bright, high-resolution projection system
• Up to 2200 lumens of color brightness (color light output) and 2200 lumens of white brightness (white
light output)
Note: Color brightness (color light output) and white brightness (white light output) will vary depending
on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output
measured in accordance with ISO 21118.
• 1080p native resolution
• Images up to 300 inches (7.62 m) for projection on any wall or screen
• Fujinon lens for uniformity
Full 3D projection
• Active 3D projection with RF active shutter glasses
• Supports side-by-side, top-and-bottom, and frame packing 3D formats
Flexible connectivity
• Two HDMI ports for video device or computer connections
Easy-to-use setup and operation features
• Vertical and horizontal lens shift dials, and vertical keystone correction buttons for flexible projector
placement
• 2.1× optical zoom ratio for improved zooming capability
Product Box Contents
8
Additional Components
Optional Equipment and Replacement Parts
Warranty and Registration Information
Parent topic: Introduction to Your Projector
Product Box Contents
Save all the packaging in case you need to ship the projector. Always use the original packaging (or
equivalent) when shipping.
Make sure your projector box included all of these parts:
1 Projector
2 Remote control
3 Remote control batteries (two AA alkaline)
4 Power cord
5 Projector documentation CD
Parent topic: Projector Features
9
Additional Components
Depending on how you plan to use the projector, you may need to obtain the following additional
components:
• To receive a component video signal, you need a compatible component cable. You can purchase
one from Epson or an authorized Epson reseller.
• To receive an HDMI signal, you need a compatible HDMI cable. You can purchase one from Epson or
an authorized Epson reseller.
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for
video output, you need to obtain an adapter that allows you to connect to the projector's port.HDMI
Contact Apple for compatible adapter options.
• To receive and view a 3D signal, you need a compatible HDMI cable and active shutter 3D glasses.
You can purchase them from Epson or an authorized Epson reseller. If your video source is a 3D Blu-
ray disc, you also need a Blu-ray player that supports 3D playback. See your local computer or
electronics dealer for purchase information.
Parent topic: Projector Features
Related references
Optional Equipment and Replacement Parts
Optional Equipment and Replacement Parts
You can purchase screens, other optional accessories, and replacement parts from an Epson authorized
reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online
at (U.S. sales) or (Canadian sales).epsonstore.com epson.ca
Epson offers the following optional accessories and replacement parts for your projector:
Option or part Part number
Genuine Epson replacement lamp (ELPLP69) V13H010L69
Replacement air filter V13H134A39
RF 3D glasses (ELPGS03) V12H548006
Projector ceiling mount CHF1000
Belkin PureAV HDMI audio video cable, 6 ft AV22300-06
Belkin PureAV HDMI audio video cable, 12 ft AV22300-12
10
Option or part Part number
Belkin PureAV HDMI audio video cable, 3 ft AV22300-03
Belkin Pro Series VGA/SVGA cable, 6 ft F3H982-06
Belkin Pro Series VGA/SVGA cable, 10 ft F3H982-10
Belkin Pro Series VGA/SVGA cable, 25 ft F3H982-25
Kensington security lock ELPSL01
Remote control 1598522
In addition to the accessories listed above, 1-year and 2-year extended service plans are available.
Parent topic: Projector Features
Warranty and Registration Information
Your projector comes with a basic warranty that lets you project with confidence. For details, see the
warranty brochure that came with your projector.
In addition, Epson offers free Extra Care Home Service. In the unlikely event of an equipment failure,
you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit
anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Home Service brochure for
details.
Register your product online using the projector CD or at this site: epson.com/webreg
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features
Notations Used in the Documentation
Follow the guidelines in these notations as you read your documentation:
• must be followed carefully to avoid bodily injury.Warnings
• must be observed to avoid damage to your equipment.Cautions
• contain important information about your projector.Notes
• contain additional projection information.Tips
Parent topic: Introduction to Your Projector
11
Where to Go for Additional Information
Need quick help on using your projector? Here's where to look for help:
• (U.S) or (Canada)epson.com/support epson.ca/support
View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24
hours a day.
• If you still need help after checking this manual and the sources listed above, you can use the Epson
PrivateLine Support service to get help fast. For details, see "Where to Get Help".
Parent topic: Introduction to Your Projector
Related references
Where to Get Help
Projector Part Locations
Check the projector part illustrations to learn about the parts on your projector.
Projector Parts - Front/Top
Projector Parts - Rear
Projector Parts - Base
Projector Parts - Control Panel
Projector Parts - Remote Control
Parent topic: Introduction to Your Projector
12
Projector Parts - Front/Top
1 Lamp cover
2 Horizontal and vertical lens shift dials
3 Exhaust vent
4 Remote receiver
5 Lens shutter
6 Lens
7 Air intake/air filter cover
8 Front adjustable foot
9 Control panel and lights
10 Focus ring
11 Zoom ring
Parent topic: Projector Part Locations
13
Projector Parts - Rear
1 Cable clip holes
2 portHDMI1
3 portHDMI2
4 portsComponent
5 portVideo
6 port (VGA)PC
7 portRS-232C
8 portTrigger out
9 portService
10 Remote receiver
11 AC input port
Parent topic: Projector Part Locations
Related tasks
Installing a Security Cable
Attaching and Removing the Cable Clips
14

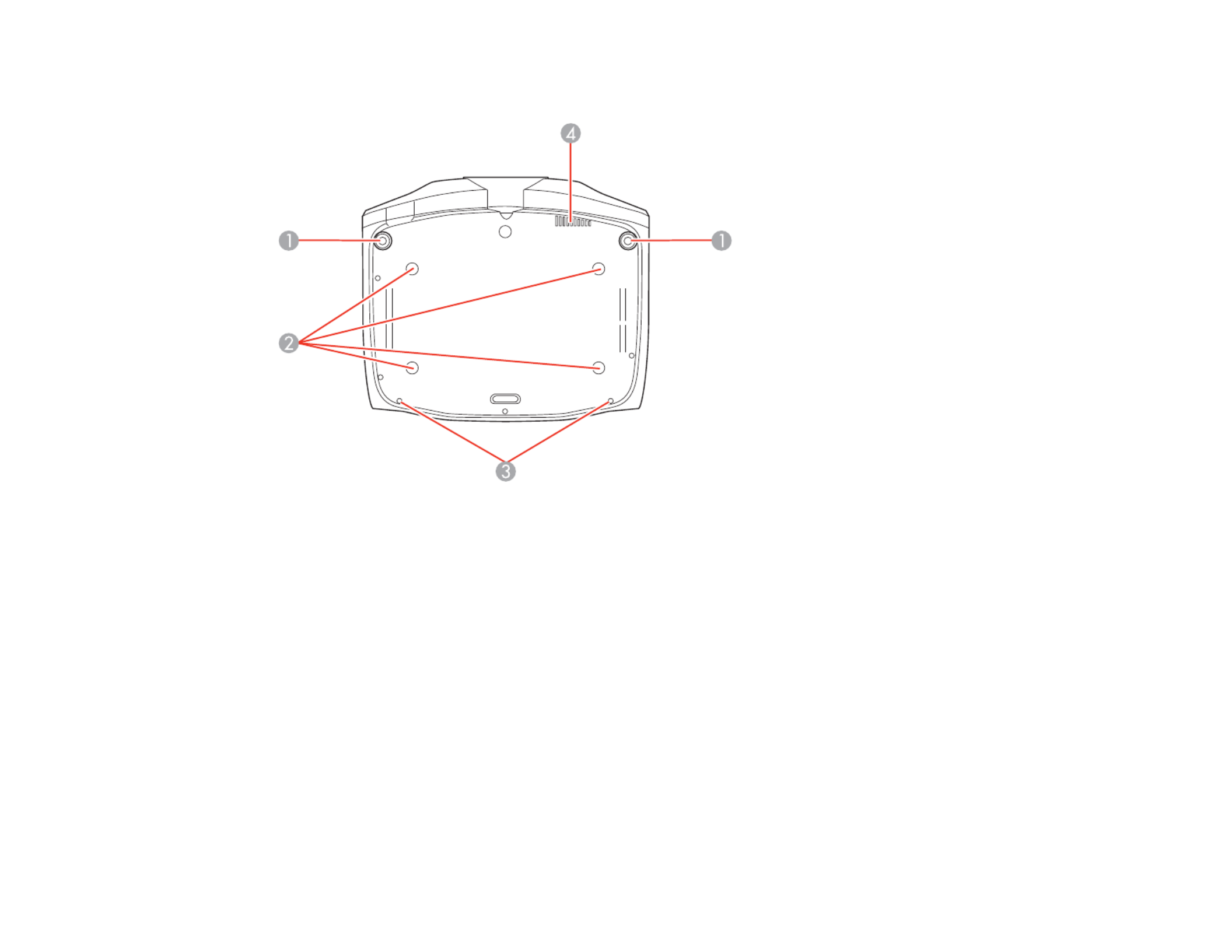

Projector Parts - Base
1 Front adjustable feet
2 Mounting bracket holes
3 Cable cover attachment point
4 Air exhaust vent
Parent topic: Projector Part Locations
15
Projector Parts - Control Panel
1 Status light
2 Lamp light
3 Temp light
4 button (accesses projector menu system)Menu
5 Control panel cover
16
Projector Parts - Remote Control
1 button (turns on projector)On
2 button (controls the Picture-in-Picture mode for HDMI inputs)P-in-P
3 Source buttons (select specific video input sources)
18
4 button (displays the settings menu for HDMI Link)HDMI Link
Link Menu button (displays the main menu of the connected device)
Control buttons (control playback and other features of connected devices that support the HDMI
CEC standard)
5 button (cycles between 2D and 3D modes)2D/3D
6 Arrow buttons (move though on-screen options)
7 button (returns selected setting to default value)Default
8 button (accesses projector menu system)Menu
9 button (optimizes the image based on brightness of content)Auto Iris
10 button (customizable for different functions)User
11 button (accesses the Memory menu)Memory
12 WirelessHD transmitter control buttons (buttons are not functional)
13 button (displays a test pattern)Pattern
14 button (changes the 3D format)3D Format
15 button (adjusts the Frame Interpolation setting)Frame Int
16 button (selects the image aspect ratio)Aspect
17 button (adjusts hue, saturation, and brightness for each RGBCMY color)RGBCMY
18 button (cancels/exits functions)Esc
19 button (selects options)Enter
20 button (reduces blurring around the edges of images when viewing 3D content)Super Res
21 button (selects display modes)Color Mode
22 up/down buttons (adjust volume for devices connected via HDMI Link)Volume
23 button (turns off video projection)Blank
24 Illumination button (lights the remote control)
25 button (turns off the projector)Standby
Parent topic: Projector Part Locations
Related references
Remote Control Operation
19
Projector Memory Options - Memory Menu
20
Front
Rear
Front Ceiling
22
Rear Ceiling
Wherever you set up the projector, make sure to position it squarely in front of the center of the screen,
not at an angle, if possible.
If you project from the ceiling or from the rear, be sure to select the correct option in theProjection
projector's menu system.
Parent topic: Projector Placement
Related references
Projector Feature Settings - Settings Menu
Projection Distance
The distance at which you place the projector from the screen determines the approximate size of the
image. The image size increases the farther the projector is from the screen, but can vary depending on
the zoom factor, aspect ratio, and other settings.
Use the tables here to determine approximately how far to place the projector from the screen based on
the size of the projected image. (Conversion figures may have been rounded up or down.)
23
4:3 Aspect Ratio Image or Screen
Screen or image size Projection distance (1) Offset from lens center Offset from lens center
(2) (3)
Wide to Tele
40 inches (101.6 cm) 57 to 121.7 inches 11 inches (28 cm) 35.0 inches (89 cm)
(144 to 309 cm)
60 inches (152.4 cm) 85.8 to 183.5 inches 16.5 inches (42 cm) 52.4 inches (133 cm)
(218 to 466 cm)
80 inches (203.2 cm) 115 to 245.3 inches 22 inches (56 cm) 70.1 inches (178 cm)
(292 to 623 cm)
100 inches (254 cm) 144.1 to 306.7 inches 27.6 inches (70 cm) 87.4 inches (222 cm)
(366 to 779 cm)
120 inches (304.8 cm) 173.2 to 368.5 inches 33.1 inches (84 cm) 105.1 inches (267 cm)
(440 to 936 cm)
150 inches (381 cm) 216.9 to 461.0 inches 41.3 inches (105 cm) 131.1 inches (333 cm)
(551 to 1171 cm)
180 inches (457.2 cm) 289.8 to 615 inches 54.7 inches (139 cm) 174.8 inches (444 cm)
(736 to 1562 cm)
16:9 Aspect Ratio Image or Screen
Screen or image size Projection distance (1) Offset from lens center Offset from lens center
(2) (3)
Wide to Tele
40 inches (101.6 cm) 46.1 to 94.2 inches 9.1 inches (23 cm) 28.7 inches (73 cm)
(117 to 252 cm)
60 inches (152.4 cm) 69.7 to 149.6 inches 13.4 inches (34 cm) 42.9 inches (109 cm)
(177 to 380 cm)
80 inches (203.2 cm) 93.7 to 200 inches 18.1 inches (46 cm) 57.1 inches (145 cm)
(238 to 508 cm)
24
Screen or image size Projection distance (1) Offset from lens center Offset from lens center
(2) (3)
Wide to Tele
100 inches (254 cm) 117.3 to 250.4 inches 22.4 inches (57 cm) 71.3 inches (181 cm)
(298 to 636 cm)
120 inches (304.8 cm) 141.3 to 300.8 inches 26.8 inches (68 cm) 85.8 inches (218 cm)
(359 to 764 cm)
150 inches (381 cm) 177.2 to 376.4 inches 33.5 inches (85 cm) 107.1 inches (272 cm)
(450 to 956 cm)
180 inches (457.2 cm) 212.6 to 452 inches 40.6 inches (103 cm) 128.7 inches (327 cm)
(540 to 1148 cm)
Parent topic: Projector Placement
Projector Connections
You can connect the projector to a variety of computer, video, and audio sources to display
presentations, movies, or other images, with or without sound.
• For video projection, connect devices such as DVD players, gaming consoles, streaming devices,
digital cameras, smartphones, and tablets with compatible video output ports.
Note: To connect a smartphone or tablet, you may need to obtain an adapter that allows you to
connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies,
and more. Contact your device manufacturer for compatible adapter options.
• Connect any type of computer (Windows or Mac) that has a standard video output (15-pin VGA
monitor) port, or HDMI port.
Caution: High Altitude ModeIf you will use the projector at altitudes above 4921 feet (1500 m), turn on
to ensure the projector's internal temperature is regulated properly.
Connecting to Video Sources
Connecting to Computer Sources
Connecting to External Speakers
Parent topic: Setting Up the Projector
25
Related references
Projector Setup Settings - Extended Menu
Connecting to Video Sources
Follow the instructions in these sections to connect video devices to the projector.
Connecting to an HDMI Video Source
Attaching and Removing the Cable Clips
Connecting to a Component Video Source
Connecting to a Composite Video Source
Parent topic: Projector Connections
Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable.
The HDMI connection provides the best image quality.
1. Connect the HDMI cable to your video source's HDMI output port.
2. Connect the other end to one of the projector's HDMI ports.
Note: If you connected a game console, it may take a few seconds for your image to appear when you
switch to the game console's input source. To reduce the potential lag in response time to game
commands, set your game console's output format to a progressive signal of 480p, 720p, or higher. See
your game console documentation for instructions.
You can also select the Image Processing setting to reduce lag time.Fast
Note: When an audio/video source that meets the HDMI CEC standard is connected to the projector's
HDMI port, you can use the projector's remote control to control certain features of the linked device by
pressing the button on the remote control and setting to .HDMI Link HDMI Link On
26
Parent topic: Connecting to Video Sources
Related references
Input Signal Settings - Signal Menu
Related tasks
Attaching and Removing the Cable Clips
Attaching and Removing the Cable Clips
You can install the cable clips that came with your projector to provide additional support to the HDMI
cables.
1. Plug in the HDMI cables.
2. Insert each guide into the cable clip holes near the port.HDMI
3. Attach the cable clips to the HDMI cables. Be sure to leave the clamps unlocked.
4. Slide each cable clip onto the guides and lock the clamps onto the connectors.
To remove the cable clips, open the clamps and disconnect the cables. Then pinch the sides of each
guide and carefully pull them out of the cable clip holes.
Parent topic: Connecting to Video Sources
Connecting to a Component Video Source
If your video source has component video ports, you can connect it to the projector using an optional
component video cable. Depending on your component ports, you may need to use an adapter cable
along with a component video cable.
1. Connect the component connectors to your video source's color-coded component video output
ports, usually labeled , , or , , . If you are using an adapter, connect these connectorsY Pb Pr Y Cb Cr
to your component video cable.
27
2. Connect the other end to the projector's color-coded video input ports.Component
If your image colors appear incorrect, you may need to change the setting in the projector'sInput Signal
Extended menu.
Note: If you connected a game console, it may take a few seconds for your image to appear when you
switch to the game console's input source. To reduce the potential lag in response time to game
commands, set your game console's output format to a progressive signal of 480p, 720p, or higher. See
your game console documentation for instructions.
You can also select the Image Processing setting to reduce lag time.Fast
Parent topic: Connecting to Video Sources
Related references
Input Signal Settings - Signal Menu
Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the projector using an optional
RCA-style video or A/V cable.
1. Connect the cable with the yellow connector to your video source's yellow video output port.
2. Connect the other end to the projector's port.Video
28
Note: If you connected a game console, it may take a few seconds for your image to appear when you
switch to the game console's input source. To reduce the potential lag in response time to game
commands, set your game console's output format to a progressive signal of 480p, 720p, or higher. See
your game console documentation for instructions.
Parent topic: Connecting to Video Sources
Connecting to Computer Sources
Follow the instructions in these sections to connect a computer to the projector.
Connecting to a Computer for VGA Video
Connecting to a Computer for HDMI Video
Parent topic: Projector Connections
Connecting to a Computer for VGA Video
You can connect the projector to your computer using a VGA computer cable.
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for
video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port.
Contact Apple for compatible adapter options.
1. If necessary, disconnect your computer's monitor cable.
2. Connect the VGA computer cable to your computer's monitor port.
3. Connect the other end to a port on the projector.PC
4. Tighten the screws on the VGA connector.
Parent topic: Connecting to Computer Sources
Connecting to a Computer for HDMI Video
If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.
29
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for
video output, you need to obtain an adapter that allows you to connect to the projector's port.HDMI
1. Connect the HDMI cable to your computer's HDMI output port.
2. Connect the other end to one of the projector's HDMI ports.
Parent topic: Connecting to Computer Sources
Related tasks
Attaching and Removing the Cable Clips
Connecting to External Speakers
To add sound, you can connect your video source and speakers to an audio video receiver, then
connect the receiver to the projector using one of the receiver's compatible video outputs (an HDMI
connection provides the best image quality, if available). You can also connect speakers to any video
source that has its own speaker connections.
30
1 Video source
2 Surround sound speakers
3 Receiver
4 Video cable
Parent topic: Projector Connections
Installing Batteries in the Remote Control
The remote control uses the two AA batteries that came with the projector.
Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,
or mix new and old batteries.
1. Remove the battery cover.
31
2. Insert the batteries with the and ends facing as shown.+ –
3. Replace the battery cover and press it down until it clicks into place.
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat
or flame. Keep batteries out of the reach of children; they are choking hazards and are very
dangerous if swallowed.
Parent topic: Setting Up the Projector
Related references
Remote Control Specifications
32
Using Basic Projector Features
Follow the instructions in these sections to use your projector's basic features.
Turning On the Projector
Turning Off the Projector
Viewing 3D Images
Selecting the Language for the Projector Menus
Adjusting the Image Height
Image Shape
Resizing the Image with the Zoom Ring
Focusing the Image Using the Focus Ring
Adjusting the Color Convergence (Panel Alignment)
Remote Control Operation
Selecting an Image Source
Projection Modes
Image Aspect Ratio
Color Mode
Using Picture in Picture
Turning On the Projector
Turn on the computer or video equipment you want to use before you turn on the projector so it can
display the image source.
33
1. Connect the power cord to the projector's power inlet.
2. Plug the power cord into an electrical outlet.
Note: Direct Power OnWith turned on, the projector turns on as soon as you plug it in.
3. Press the power button on the projector or the button on the remote control to turn on theOn
projector.
The shutter opens and the Status light flashes blue as the projector warms up. Once the projector is
warmed up, the Status light stops flashing and turns blue.
Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is
especially dangerous for children.
If you do not see a projected image right away, try the following:
• Turn on the connected computer or video device.
• Insert a DVD or other video media and press the play button, if necessary.
• Press the button on the projector to detect the video source, or press a source button on theSource
remote control.
Parent topic: Using Basic Projector Features
Related references
Projector Setup Settings - Extended Menu
34
Turning Off the Projector
Before turning off the projector, shut down any computer connected to it so you can see the computer
display during shutdown.
Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary
depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.
Note: When using the Blank feature, the projector lamp is still on. To turn off the lamp, turn off the
projector.
1. Press the power button on the projector or the button on the remote control.Standby
The projector displays a shutdown confirmation screen.
2. Press the power button on the projector or the button on the remote control again. (ToStandby
leave it on, press any other button.)
The shutter closes, the lamp turns off, and the Status light turns off.
3. To transport or store the projector, make sure the Status light is off, then unplug the power cord.
35
Caution: To avoid damaging the projector or lamp, never unplug the power cord when the Status
light is on or flashing.
Parent topic: Using Basic Projector Features
Related tasks
Shutting Off the Picture Temporarily
Transporting the Projector
Viewing 3D Images
You can view 3D images using your projector. Viewing 3D images requires a 3D-compatible video
device and a pair of Epson RF 3D glasses (not included with your projector). You can also convert 2D
images to 3D using the setting in your projector's > menu.2D-to-3D Conversion Signal 3D Setup
You can purchase Epson RF 3D glasses from an Epson authorized reseller. To find the nearest reseller,
call 800-GO-EPSON (800-463-7766). Or you can purchase online at (U.S. sales) orepsonstore.com
epson.ca (Canadian sales).
1. Connect a 3D-compatible video device to the projector using a compatible HDMI cable.
2. Turn on the video device, then turn on the projector.
3. Begin playback from the video device.
Note: Make sure you set the video device to play content in 3D mode.
4. Press the button on the remote control to activate 3D mode, if necessary.2D/3D
36
5. Slide the power switch on the 3D glasses to the position.On
6. Put on the 3D glasses. If you do not see a 3D image, pair the glasses with the projector.
Note: If you change the video source or you are not within range of your projector, the glasses enter
standby mode and the status light flashes green. Slide the power switch on the glasses to the Off
position and then back to the position to resume 3D viewing.On
Pairing the 3D Glasses with the Projector
Charging the 3D Glasses
3D Viewing Range
Parent topic: Using Basic Projector Features
Related tasks
Connecting to an HDMI Video Source
Connecting to a Computer for HDMI Video
Pairing the 3D Glasses with the Projector
Pair the glasses with the projector to establish communication between them for 3D viewing.
1. Turn on the projector.
2. Set the image source to HDMI.
3. Project a 3D image.
37
4. Slide the power switch on the 3D glasses to the position.On
5. Move the glasses within 10 feet (3 m) of the projector, then hold down the button on thePairing
glasses for at least three seconds.
The status light on the glasses flashes green and red. If pairing is successful, the light turns green
for 10 seconds and then turns off.
Parent topic: Viewing 3D Images
Charging the 3D Glasses
Charge the glasses when the status light on the glasses flashes red to indicate a low battery.
38
1 32 ft (10 m)
Parent topic: Viewing 3D Images
Selecting the Language for the Projector Menus
If you want to view the projector's menus and messages in another language, you can change the
Language setting.
1. Turn on the projector.
2. Press the button.Menu
40
3. Select the menu and press .Extended Enter
4. Select the setting and press .Language Enter
5. Select the language you want to use and press .Enter
6. Press or to exit the menus.Menu Esc
Parent topic: Using Basic Projector Features
Adjusting the Image Height
If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust
the image height using the projector's adjustable feet.
1. Turn on the projector and display an image.
2. If the image is tilted, rotate the front feet to adjust their height.
3. Use the vertical and horizontal lens shift dials on the projector to adjust the position of the projected
image as necessary.
41
If the projected image is unevenly rectangular, you need to adjust the image shape.
Adjusting the Image Position Using Lens Shift
Parent topic: Using Basic Projector Features
Related concepts
Image Shape
Adjusting the Image Position Using Lens Shift
If you cannot install the projector directly in front of the screen, you can adjust the position of the
projected image using the lens shift feature.
Note: Wait 30 minutes after turning on the projector before setting the focus, zoom, and lens shift for
maximum accuracy.
1. Turn on the projector and display an image.
42
2. Turn the vertical and horizontal lens shift dials on the projector to adjust the position of the projected
image as necessary.
Note: You cannot move the image to both the horizontal and vertical maximum values.
1 Horizontal width × 47%
2 Vertical height × 96%
Follow these guidelines when using lens shift to adjust your images:
• When adjusting the image height, position the image lower than where you want it to be and then
move it up using the vertical lens shift dial. This will help prevent the image from moving down after
adjustment.
• Keep the vertical and horizontal lens shift dials in their center positions for the clearest picture.
43
Parent topic: Adjusting the Image Height
Image Shape
You can project an evenly rectangular image by placing the projector directly in front of the center of the
screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off
to the side, you may need to correct the image shape for the best display quality.
Correcting Image Shape with the Keystone Buttons
Parent topic: Using Basic Projector Features
Correcting Image Shape with the Keystone Buttons
You can use the projector's keystone correction buttons to correct the shape of an image that is
unevenly rectangular on the sides.
Note: To provide the best possible image quality, adjust the projector's position to correct the image
shape. If this isn't possible, use the keystone correction buttons on the projector to correct the image
shape.
1. Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.
Note: PatternYou can also display the pattern by pressing the button on the remote control.
2. Press one of these keystone buttons on the control panel to display the Keystone adjustment
screen.
44
3. Press a keystone button on the projector's control panel to adjust the image shape.
After correction, your image is slightly smaller.
Note: If the projector is installed out of reach, you can also correct the image shape with the remote
control using the settings in the projector menus.Keystone
Parent topic: Image Shape
Related references
Projector Feature Settings - Settings Menu
Resizing the Image with the Zoom Ring
1. Turn on the projector and display an image. Wait 30 minutes after turning on the projector before
setting the focus, zoom, and lens shift for maximum accuracy.
Note: PatternYou can display a pattern to aid in adjusting the projected image using the button on
the remote control.
45
2. To enlarge or reduce the image size, rotate the projector's zoom ring.
Parent topic: Using Basic Projector Features
Focusing the Image Using the Focus Ring
1. Turn on the projector and display an image. Wait 30 minutes after turning on the projector before
setting the focus, zoom, and lens shift for maximum accuracy.
Note: PatternYou can display a pattern to aid in adjusting the projected image using the button on
the remote control.
2. To sharpen the image focus, rotate the projector’s focus ring.
46
Parent topic: Using Basic Projector Features
Adjusting the Color Convergence (Panel Alignment)
You can use the Panel Alignment feature to manually adjust the color convergence (the alignment of the
red, green and blue colors) in the projected image.
Note: Allow your projector to warm up for at least 10 to 15 minutes and make sure the image is in focus
before you use the Panel Alignment feature. The projected image should be a minimum of 60 inches
(152 cm) diagonally and the projection surface should not be colored or textured, otherwise the
adjustment grids will be difficult to align.
1. Turn on the projector.
2. Press the button.Menu
3. Select the menu and press .Extended Enter
4. Select the setting and press .Panel Alignment Enter
5. Select the setting and press .Panel Alignment Enter
6. Select and press .On Enter
7. Select the setting and choose one of the following:Select Color
• to adjust the red color convergence.R
47
• to adjust the blue color convergence.B
Note: You can only adjust the red or blue color convergence. Green is the standard color panel and
cannot be adjusted.
8. Select the setting and press .Pattern Color Enter
9. Select the pattern you want to use and press .Enter
10. Select and press .Start Adjustments Enter
You see this screen:
11. Use the arrow buttons on the remote control to adjust the color alignment in the corner of the screen
highlighted by the orange box.
12. Press the button to move to the next corner of the screen.Enter
13. When you are finished adjusting each corner of the screen, press .Enter
48
You see this screen:
14. Do one of the following:
• If your projector's panel alignment is now correct, select and press to return to theExit Enter
Panel Alignment menu.
• If your projector needs additional panel alignment, select andSelect intersection and adjust
press . Use the arrow keys on the remote control to highlight the corner of any box on theEnter
screen that is misaligned and press to adjust the color convergence. Repeat this step asEnter
necessary.
Parent topic: Using Basic Projector Features
Remote Control Operation
The remote control lets you control the projector from almost anywhere in the room. You can point it at
the screen, or the front or back of the projector.
49
1. Make sure the connected image source you want to use is turned on.
2. For video image sources, insert a DVD or other video media and press its play button, if necessary.
3. Do one of the following:
• Press the Source button on the projector until you see the image from the source you want.
• Press the button for the source you want on the remote control. If there is more than one port for
that source, press the button again to cycle through the sources.
1 HDMI port sources
2 WirelessHD sources (button is not functional)
3 port (VGA) sourcePC
4 Composite video source
5 Component source
Parent topic: Using Basic Projector Features
51
Color Mode Description
B&W Cinema Best for black and white movies projected in a dark room
3D Images
Color Mode Description
3D Dynamic Best for projecting in a bright room
3D Cinema Best for movies projected in a dark room
3D THX Best for projecting in a dark room
Parent topic: Color Mode
Turning On Auto Iris
In certain color modes, you can turn on the Auto Iris setting to automatically optimize the image based on
the brightness of the content you project.
1. Turn on the projector and switch to the image source you want to use.
2. Press the button.Menu
Note: Auto IrisYou can also press the button on the remote control to access the Auto Iris setting
directly.
3. Select the menu and press .Image Enter
56
Available Picture in Picture Options
You can adjust the following options by pressing the button on the remote control while Picture inMenu
Picture mode is active:
Setting Description
Subscreen Size Adjusts the size of the sub-screen
Subscreen Position Adjusts the location where the sub-screen is displayed
Swap Main/Sub Switches the video source displayed on the main screen with the
source displayed on the sub-screen
Exit Picture in Picture Closes the sub-screen and resumes normal projection
Parent topic: Using Picture in Picture
58
Adjusting Projector Features
Follow the instructions in these sections to use your projector's feature adjustments.
Shutting Off the Picture Temporarily
Projector Security Features
Saving Settings to Memory and Using Saved Settings
Shutting Off the Picture Temporarily
You can temporarily turn off the projected picture if you want to redirect your audience's attention during
a presentation. Any video action continues to run, however, so you cannot resume projection at the point
that you stopped it.
1. Press the button on the remote control to temporarily stop projection.Blank
2. To turn the picture back on, press the button again.Blank
Parent topic: Adjusting Projector Features
Projector Security Features
You can secure your projector to deter theft or prevent unintended use by setting up the following
security features:
• Button lock security to block operation of the projector using the buttons on the control panel.
• Security cabling to physically cable the projector in place.
Locking the Projector's Buttons
Installing a Security Cable
Parent topic: Adjusting Projector Features
Locking the Projector's Buttons
You can lock the buttons on the projector's control panel to prevent anyone from using the projector.
59
1. Press the button.Menu
2. Select the menu and press .Settings Enter
3. Select the setting and press .Lock Setting Enter
4. Select one of these lock types and press :Enter
• To lock the projector's power button, select . To turn the projector on, you must pressChild Lock
the power button for longer than three seconds.
• To lock all buttons except the power button, select .Control Panel Lock
You see a confirmation prompt.
5. Select and press .Yes Enter
6. Restart the projector for the lock settings to take effect.
Unlocking the Projector's Buttons
Parent topic: Projector Security Features
Related references
Projector Feature Settings - Settings Menu
Unlocking the Projector's Buttons
If the projector's buttons have been locked, hold the button on the projector's control panel forEnter
seven seconds to unlock them.
Parent topic: Locking the Projector's Buttons
60
Note: A memory name that has already been used is indicated by a green mark. Saving over a
previously saved memory overwrites the settings with your current settings.
• : Erases the selected memory settingsErase Memory
• : Renames a saved memoryRename Memory
5. Press to exit.Esc
Parent topic: Adjusting Projector Features
62
Adjusting the Menu Settings
Follow the instructions in these sections to access the projector menu system and change projector
settings.
Using the Projector's Menus
Image Quality Settings - Image Menu
Input Signal Settings - Signal Menu
Projector Feature Settings - Settings Menu
Projector Setup Settings - Extended Menu
Projector Memory Options - Memory Menu
Projector Information Display - Info Menu
Projector Reset Options - Reset Menu
Using the Projector's Menus
You can use the projector's menus to adjust the settings that control how your projector works. The
projector displays the menus on the screen.
1. Press the button on the control panel or remote control.Menu
63
You see the menu screen displaying the Image menu settings.
2. Press the up or down arrow button to move through the menus listed on the left. The settings for
each menu are displayed on the right.
Note: The available settings depend on the current input source.
3. To change settings in the displayed menu, press .Enter
4. Press the up or down arrow button to move through the settings.
5. Change the settings using the buttons listed on the bottom of the menu screens.
6. To return all the menu settings to their default values, select .Reset
7. When you finish changing settings on a menu, press .Esc
8. Press or to exit the menus.Menu Esc
Parent topic: Adjusting the Menu Settings
Image Quality Settings - Image Menu
Settings on the Image menu let you adjust the quality of your image for the input source you are currently
using.
64
Produkt Specifikationer
| Mærke: | Epson |
| Kategori: | Beamer |
| Model: | PowerLite Home Cinema 5025UB |
Har du brug for hjælp?
Hvis du har brug for hjælp til Epson PowerLite Home Cinema 5025UB stil et spørgsmål nedenfor, og andre brugere vil svare dig
Beamer Epson Manualer
12 Januar 2025
4 Januar 2025
3 Januar 2025
3 Januar 2025
3 Januar 2025
3 Januar 2025
3 Januar 2025
3 Januar 2025
23 December 2024
14 December 2024
Beamer Manualer
- Beamer Acer
- Beamer Sony
- Beamer Canon
- Beamer Samsung
- Beamer Panasonic
- Beamer Philips
- Beamer Lenco
- Beamer OK
- Beamer Derksen
- Beamer LG
- Beamer Mitsubishi
- Beamer Sharp
- Beamer Technaxx
- Beamer Smart
- Beamer HP
- Beamer Sanyo
- Beamer D-Link
- Beamer Asus
- Beamer Toshiba
- Beamer Pyle
- Beamer Klarstein
- Beamer Kodak
- Beamer InFocus
- Beamer Lenovo
- Beamer Adj
- Beamer Optoma
- Beamer Da-Lite
- Beamer Hama
- Beamer Auna
- Beamer Casio
- Beamer Hisense
- Beamer Maxell
- Beamer Smartwares
- Beamer Blaupunkt
- Beamer JVC
- Beamer Leica
- Beamer Hitachi
- Beamer Medion
- Beamer 3M
- Beamer BenQ
- Beamer Acco
- Beamer Anker
- Beamer Aiptek
- Beamer Viewsonic
- Beamer Dell
- Beamer Vivitek
- Beamer Polaroid
- Beamer Ricoh
- Beamer NEC
- Beamer Stairville
- Beamer OKI
- Beamer Reflecta
- Beamer Nebula
- Beamer Salora
- Beamer Vogel's
- Beamer Overmax
- Beamer RCA
- Beamer Prixton
- Beamer Renkforce
- Beamer Christie
- Beamer Eurolite
- Beamer Yaber
- Beamer XGIMI
- Beamer GPX
- Beamer Dahua Technology
- Beamer Cameo
- Beamer Kogan
- Beamer Barco
- Beamer Planar
- Beamer Speaka
- Beamer ASK Proxima
- Beamer Eiki
- Beamer Naxa
- Beamer Vankyo
- Beamer Emtec
- Beamer Promethean
- Beamer Odys
- Beamer Laserworld
- Beamer Ibm
- Beamer La Vague
- Beamer Tzumi
- Beamer EKO
- Beamer MicroVision
- Beamer Elite Screens
- Beamer Celexon
- Beamer Fun Generation
- Beamer PLUS
- Beamer Futurelight
- Beamer Varytec
- Beamer Ultimea
- Beamer Dracast
- Beamer Dukane
- Beamer Dream Vision
- Beamer Knoll
- Beamer DTS
- Beamer Touchjet
- Beamer Boxlight
- Beamer AAXA Technologies
- Beamer Miroir
- Beamer Mimio
- Beamer AWOL Vision
- Beamer Smart Tech
- Beamer Atlantis Land
- Beamer KickAss
- Beamer Microtek
- Beamer Panamorph
Nyeste Beamer Manualer
5 Marts 2025
5 Marts 2025
30 Januar 2025
30 Januar 2025
30 Januar 2025
30 Januar 2025
30 Januar 2025
30 Januar 2025
29 Januar 2025
13 Januar 2025
