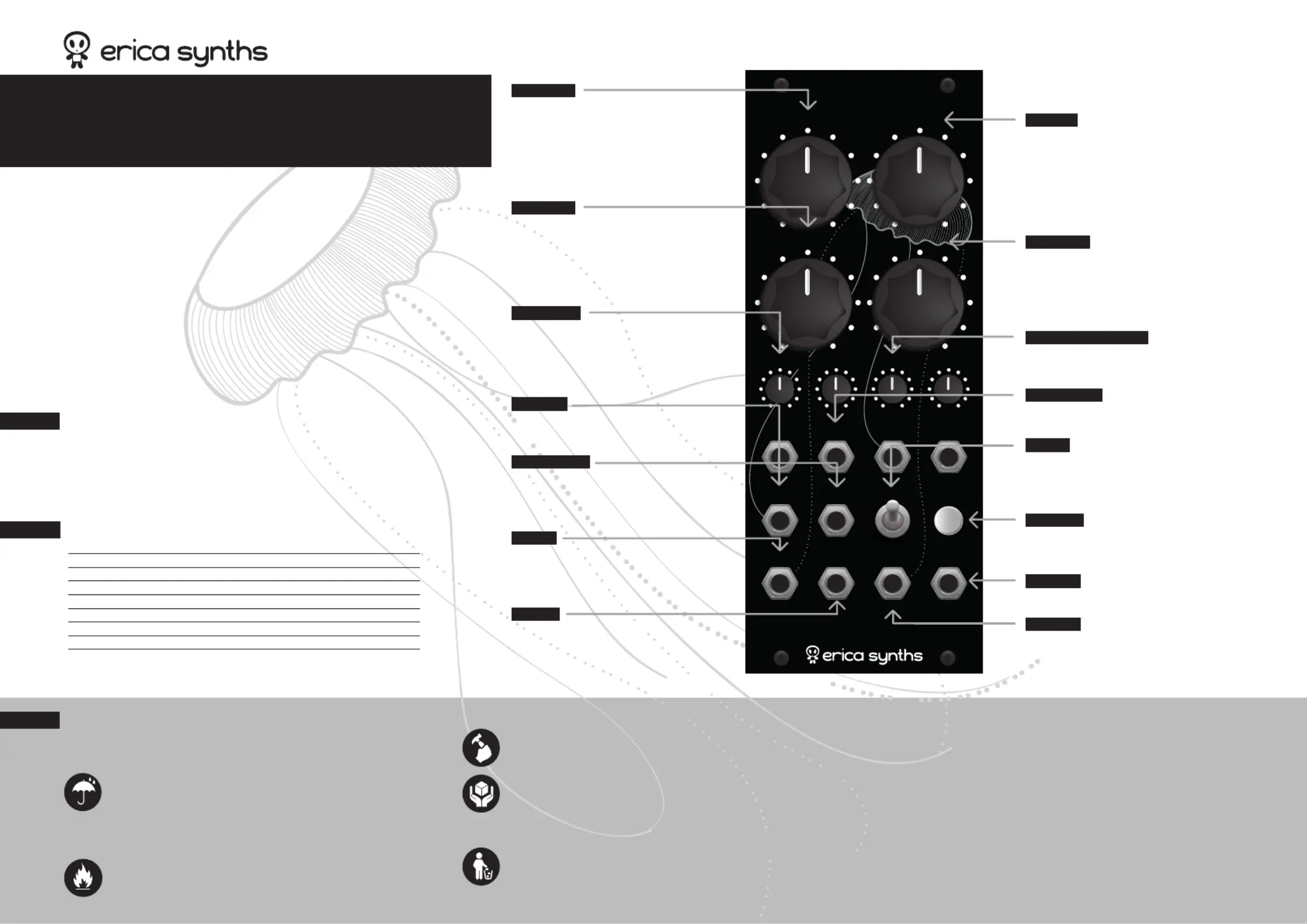

BLACK DADSR EG
A CV D CV S CV R CV
D GATE DELAY OUT
GATE TRIGG BP OUT EG OUT
ATTACK DECAY
SUSTAIN RELEASE
GATE DEL A CV S CV R CV
LOOP M. GATE
Transport the instrument carefully, never let it drop or fall
over. Warranty does not apply to modules with visual
damages.
The module has to be shipped in the original packaging
only. Any module shipped to us for return, exchange and/or
warranty repair has to be in its original packaging. All other
deliveries will be rejected and returned to you. Make sure
you keep the original packaging and technical documentation.
This device complies to the EU guidelines and is manufac-
tured RoHS conforming without use of lead, mercury,
cadmium and chrome. Nevertheless, this device is special
waste and disposal in household waste is not recommended.
User manual by Girts Ozolins@Erica Synths.
Design by Ineta Briede@Black8.
Copying, distribution or any commercial use in any way is
prohibited and needs the written permission by Erica
Synths.Specifications are subject to change without notice.In
case of any questions, feel free to contact us through
www.ericasynths.lv.
You will find Erica Synths terms of warranty at
www.ericasynths.lv
Items for return, exchange and/or warranty repair have to
be registered at SUPPORT on www.ericasynths.lv and send
back to us according to instructions in the support page.
SAFETY INSTRUCTIONS
Please follow the instructions for use of the Erica Synths module below,
‘cause only this will guarantee proper operation of the module and
ensure warranty from Erica Synths.
Water is lethal for most of the electric devices, unless they are made
waterproof. This Erica Synths module is NOT intended for use in a
humid or wet environment. No liquids or other conducting
substances must get into the module. Should this happen, the
module should be disconnected from mains power immediately,
dried, examined and cleaned by a qualified technician.
Do not expose the module to temperatures above +50° C or below
-20° C. If you have transported module in extreme low temperatures,
leave it in room temperature for an hour before plugging it in.
THANK YOU FOR PURCHASING THIS ERICA SYNTHS
BLACK SERIES MODULE!
The Erica Black Series includes high-end modules with unique functionality and
superior build quality. Only the best, highest quality components are used, all inputs
and outputs are protected against undesired overvoltage. When designing the
Black Series, we placed an emphasis on usability with the goal of providing an
enjoyable user experience. Big knobs are assigned to functions that make
dierences in sound. The Erica Black Series consists of a range of modules that are
needed to put together an entire synth. Enjoy!
The Erica Synths Black DADSR (Delay-Attack-Decay-Sustain-Release) is a fully
analogue envelope generator that gives you extended control over events in your
modular synth. Its a looping exponential envelope generator that has voltage
control over each stage of the envelope. An independent Gate Delay section adds
extra functionality to design advanced soundscapes, like delayed modulation
eects, wave morphing, etc.
FEATURES:
Re-triggerable exponential DADSR envelope generator
CV control over each stage
Gate delay with manually controlled delay time
CV attenuators
Looping function
Manual gate button
SPECS:
Attack time (with max CV) 0…2,5” (4,4”)
Decay time (with max CV) 0…5” (12”)
Sustain level 0…10V
Release time (with max CV) 0…4,5” (10”)
Gate delay time 0,7”
CV level (full sweep) -5V - +5V
Panel width 10HP
Module depth 30mm
Power consumption 42mA@+12V, 58mA@-12V
ATTACK
Set the attack time of the envelope
GATE
Patch the gate signal here to start
the envelope. If nothing is patched here,
the gate input is normalled to the gate
DELAY OUT
CV ATTENUATORS
These are CV attenuators for attack, sustain
and release stages
SUSTAIN
Set the sustain level of the envelope
GATE DEL
Set the gate delay time
TRIGG
You can retrigger the envelope at
any stage by applying trigger signal
here. The trigger alone initiates an
AD envelope instead of ADSR
DELAY OUT
This is the gate delay output.
The gate delay section can be used
independently to control other modules
in your modular setup
D GATE
If you wish to use gate delay functionality,
patch the gate signal here
BP OUT
This is the bipolar output the CV here is
centered against 0V and this output serves
as an LFO
EG OUT
This is the envelope generator output
M. GATE
This is the manual gate button. A built in LED
gives a visual reference of the output voltage
RELEASE
Set the release time of the envelope
DECAY
Set the decay time of the envelope
LOOP
This is a LOOP switch. When it’s ON, the envelope
generator outputs a signal for which the rise time
is defined by the Attack setting and the fall time is
defined by the Release knob setting
CV INPUTS
These are CV inputs to alter time/level
for each stage of the envelope
BLACK VC DADSR
ENVELOPE GENERATOR
