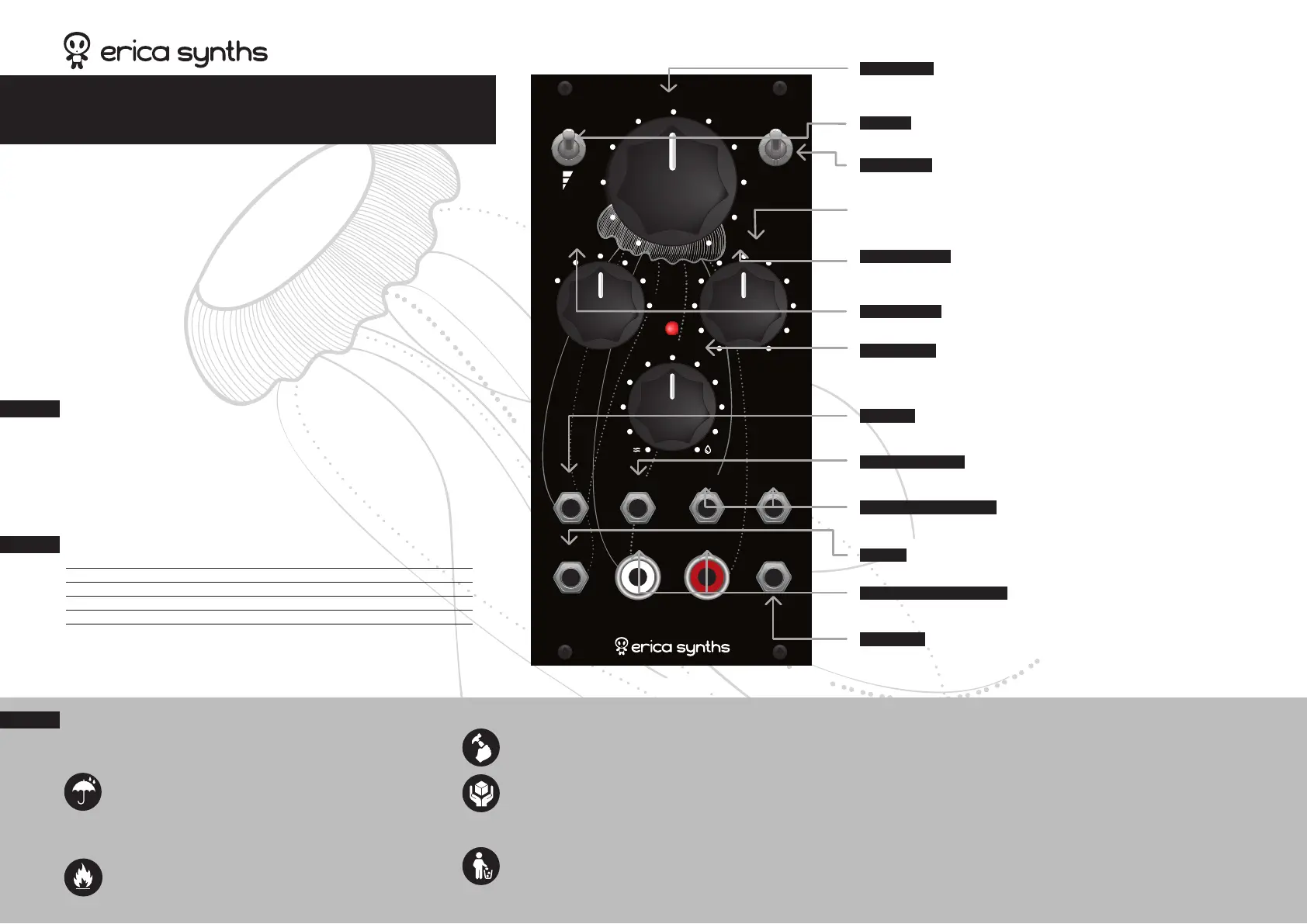

BLACK SPRING REVERB
THANK YOU FOR PURCHASING ERICA SYNTHS
BLACK SERIES MODULE!
Erica Black Series include high-end, unique functionality and superior quality
modules. Only the best, highest quality components are used, all inputs and outputs
are protected against undesired overvoltage. When designing Black Series, we put
design and usability superior. Big knobs are assigned to key functions of the
module, which makes Black Series ideal for live performances. Enjoy!
Erica Synths Black Spring Reverb is a dierent look on spring reverberation units.
Firstly, it has a built in compact spring reverberation tank and vactrol-based audio
compressor, secondly, it can operate an external tank AND combination of both
internal and external ones for eects unheard before. Thirdly, in order to animate
reverb eect, the module has built-in feedback eects – pitch shifters, delay,
various filters, etc; feedback amount and eect parameters can be controlled
manually and via CV, making the module an experimental instrument on its own.
SPECS:
Audio input level -5V - +5V
CV level (full span) -5V - +5V
Power consumption 143mA, -71mA
Module width 12HP
Module depth 30mm
Internal reverb tank dimensions 190mmx67mmx24mm (30mm with spacers)
FEATURES:
Compact spring reverberation tank to install in a ski case
Manually and CV controlled feedback amount
Vactrol-based compressor
7 distinct feedback eects
Selection between internal, external reverberation tanks or combination of both
Feedback Send and Return jack sockets
FEEDBACK
Adjust the feedback amount manually! The FBK CV is added to the Feedback
amount setting. At far CW settings the module goes into self-oscillation and,
basically, you can use it as an instrument on it’s own even with no audio input.
IN LVL
Select input level! Upper setting passes the audio at gain 1, middle setting – gain
0,5, bottom setting turns audio input o.
A small hole on the front panel allows access to the trimpot to adjust the
external spring tank send signal gain. Use a small screwdriver to set optimal,
non distorted signal level
TO TANK /FROM TANK
These are the external spring reverb tank send and receive inputs. The unit is
designed for experiments with dierent external tanks. Experiment!
OUTPUT
This is the audio output
FBK SEND / FBK RTN
These are feedback send and return connectors. It will break internal eects
circuit, and you can use the external eects to filter/animate reverb sound
TANK SEL
Select the reverb tank! Upper setting connects the internal tank, bottom setting –
external one, middle setting – both tanks in parallel
FBK EFFECT
Select the feedback eect to animate the reverb sound! Refer to the table of
eects below!
INPUT
This is the audio input
FBK PARAM
Adjust feedback eect parameter manually! FBK PARAM CV is added to the
potentiometer setting. For optimal results you may also need to adjust the lower
(EXT. TANK SEND)trimpot on the opposite side of the module.
DRY / WET
Adjust the Dry/Wet ratio manually! If you use the module as a sound source at extreme
feedback settings, make sure the Dry/Wet control is all way clockwise!
FBK PARAM CV
This is feedback eects parameter CV input
FBK CV
This is feedback amount CV input
SAFETY INSTRUCTIONS
Please follow the instructions for use of the Erica Synths module below,
‘cause only this will guarantee proper operation of the module and
ensure warranty from Erica Synths.
Water is lethal for most of the electric devices, unless they are made
waterproof. This Erica Synths module is NOT intended for use in a
humid or wet environment. No liquids or other conducting
substances must get into the module. Should this happen, the
module should be disconnected from mains power immediately,
dried, examined and cleaned by a qualified technician.
Do not expose the module to temperatures above +50° C or below
-20° C. If you have transported module in extreme low temperatures,
leave it in room temperature for an hour before plugging it in.
