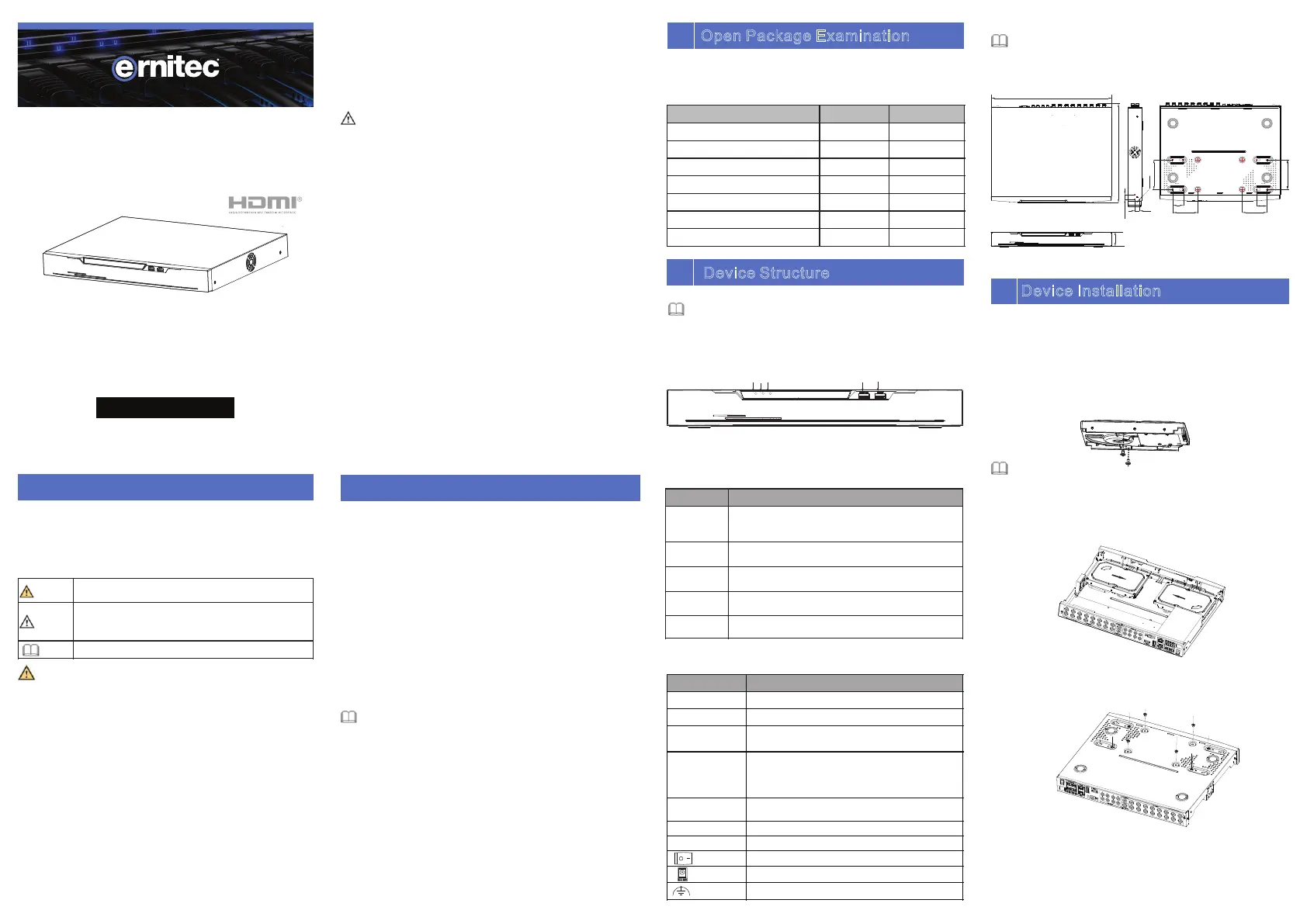

Fully understand this document before using this device, and
strictly observe rules in this document when using this device. If
you install this device in public places, provide the tip "You have
entered the area of electronic surveillance" in an eye-catching
place. Failure to correctly use electrical products may cause fire
and severe injuries.
It alerts you for moderate dangers which, if not
avoided, may cause minor or moderate injuries.
It alerts you about risks. Neglect of these risks may
cause device damage, data loss, device
performance deterioration, or unpredictable results.
It provides additional information.
ŸStrictly observe installation requirements when installing the
device. The manufacturer shall not be held responsible for
device damage caused by users' non-conformance to these
requirements.
ŸStrictly conform to local electrical safety standards and use
power adapters that are marked with the LPS standard when
installing and using this device. Otherwise, this device may be
damaged.
ŸUse accessories delivered with this device. The voltage must
meet input voltage requirements for this device.
ŸIf this device is installed in places with unsteady voltage, ground
this device to discharge high energy such as electrical surges in
order to prevent the power supply from burning out.
ŸWhen this device is in use, ensure that no water or any liquid
flows into the device. If water or liquid unexpectedly flows into
the device, immediately power off the device and disconnect all
cables (such as power cables and network cables) from this
device.
Precautions Special Announcement
, For more information please refer to website.
ŸAvoid heavy loads, intensive shakes, and soaking to prevent
damages during transportation and storage. The warranty does
not cover any device damage that is caused during secondary
packaging and transportation after the original packaging is
taken apart.
ŸProtect this device from fall-down and intensive strikes, keep the
device away from magnetic field interference, and do not install
the device in places with shaking surfaces or under shocks.
ŸClean the device with a soft dry cloth. For stubborn dirt, dip the
cloth into slight neutral cleanser, gently wipe the dirt with the
cloth, and then dry the device.
ŸDo not jam the ventilation opening. Follow the installation
instructions provided in this document when installing the device.
ŸKeep the device away from heat sources such as radiators,
electric heaters, or other heat equipment.
ŸKeep the device away from moist, dusty, extremely hot or cold
places.
ŸIf the device is installed outdoors, take insect- and moisture-
proof measures to avoid circuit board corrosion that can affect
monitoring.
ŸRemove the power plug if the device is idle for a long time.
ŸAll complete products sold by the manufacturer are delivered
along with nameplates, quick setup guide and accessories after
strict inspection. The manufacturer shall not be held responsible
for counterfeit products.
ŸThe manufacturer will update this manual according to product
function enhancement or changes and regularly update the
software and hardware described in this manual. Update
information will be added to new versions of this manual without
prior notice.
ŸThis manual may contain misprints, technology information that
is not accurate enough, or product function and operation
description that is slightly inconsistent with the actual product,
the final interpretation of company is as a standard.
ŸThis manual is only for reference and does not ensure that the
information is totally consistent with the actual product. For
consistency, see the actual product.
NOTE
ŸIf this device is installed in places where thunder and lightning
frequently occur, ground the device nearby to discharge high
energy such as thunder strikes in order to prevent device
damage.
CAUTION
NOTE
CAUTION
WARNING
WARNING
Table 2 1 - Front panel description
Port Name Description
2 REC
Indicator
Hard disk status indicator.
This indicator flashes when data is transmitted.
4 MOUSE Support connecting to a USB mouse.
5 BACKUP Support connecting to a USB flash drive or USB
removable hard disk.
1 POWER
Indicator
When the XVR is operating, the POWER indicator
is steady on. When the XVR is shut down, the
POWER indicator is turned off.
Open the package, check the appearance of product for no
obvious damage, and confirm the item list for table 1-1 is
consistent.
Table 1 1- Packing li
st
Open Package Examination
1
2.1 Device Ports
Different devices may have different ports and multi-head
cables; Please refer to the actual product.
NOTE
Device Structure2
2 2 Device Dimensions.
Different devices may have different dimensions; Please
refer to the actual product.
NOTE
Figure 2-2 Dimensions (Unit: mm)
3 NET
Indicator
The network status indicator.
This indicator flashes when network is working.
Network Video Recorder
Phillips head screw
Power cord
Power adapter
Mouse
Quick Setup Guide
1
Terminal block
1
12
1
1
1
2
Component
Table 2 2 - Rear panel description
Remark
Quantity
Optional
Optional
Front panel description of device, please refer to table 2-1.
Rear panel description of device, please refer to table 2-2.
The hard di sk of the XVR must be provided by the user. Take the
following steps to install the hard disks：
Step 1 Remove the screws for fixing the cover and take down the
cover.
Step 2 Take out the screws and mount two of them to the screw
holes of hard disk, as shown in figure 3-1.
Figure 3 1 - Installing the hard disk screws
3Device Installation
Step 3 Route the screws through the gourd holes on the base,
push the hard disk to the appropriate position on the left, as
shown in figure 3-2.
ŸJust screw the screws about 1 to 2 turns instead to the end.
NOTE
Figure 3 2- Installing hard disk
Step 5 In stall other hard disks following step 2,step 3 and step 4,
and insert the hard disk data cable and power cable, then
replace the upper cover and fasten the fixing screws.
Figure 3 3- Fixing hard disk
Name Description
VIDEO IN Port Plug in analog camera by coaxial line.
CVBS OUT Output analog video signal.
AUDIO OUT/
AUDIO IN
Audio output / Audio input.
LAN1/LAN2
RJ 45 100/1000 Mbps adaptive Ethernet
interface.LAN1 is deployed default gateway
and used for external network. LAN2 is used
for internal network.
Video o utput interface.HDMI /VGA
USB USB 2.0 port, Connect USB flash or mouse.
Alarm I/O
Alarm input/Alarm output.
Power switch.
DC12V.
Ground.
2
13
POWE RR EC NET
4 5
Figure 2-1 Front panel
DC 12V
372
318
46
32
76
95
32
76
95
14
16
3-M3
Step 4 Turn the device over, and mount other two screws to the
holes, as shown in figure 3-3. Then fasten all the screws.
PoE NVR
16CH
Quick Setup Guide
Item no.: 0070-10403
