1
DA4 HD 8K L and DA6 HD 4K L • Setup Guide
IMPORTANT NOTE:
Go to www.extron.com for the complete user guide, installation instructions, and specications before connecting
the product to the power source.
This guide provides basic instructions for an experienced technician to install the DA HD 8K L distribution ampliers.
Overview
The Extron DA4 HD 8K L and DA6 HD 8K L distribution ampliers distribute one HDMI input signal to four or six outputs
simultaneously at resolutions up to 8K @ 30 Hz 4:4:4 or 8K @ 60 Hz 4:2:0, and comply with HDMI 2.1 and HDCP 2.2. The DAs also
feature EDID Minder® Plus, remote control and monitoring via Ethernet, USB, or RS-232, and discrete display control via CEC.
For complete instructions, see the DA HD 8K L Series User Guide at www.extron.com.

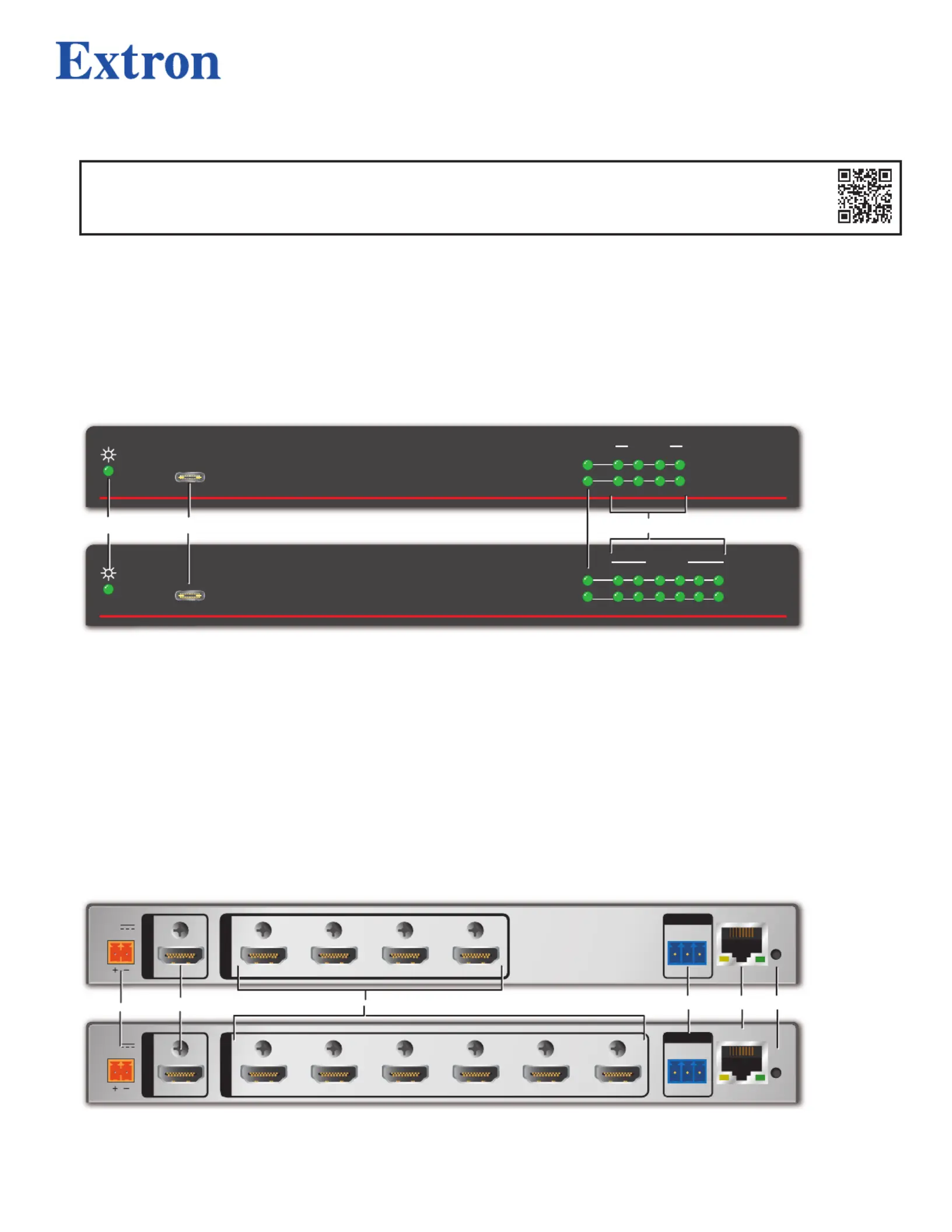

Front Panel
DA4 HD 8K L
CONFIG
INPUT 1
SIGNAL
HDCP
e
2 3 4
OUTPUTS
DA6 HD 8K L
CONFIG
INPUT 1
SIGNAL
HDCP
e
2 3 4 5 6
OUTPUTS
A
A
A
A
A
A C
C
C
C
C
CB
B
B
B
B
B D
D
D
D
D
D
A — Lights when power is applied to the unit.Power status LED
B USB-C Config port — Connect a PC to this port to configure and monitor the DA via Simple Instruction Set (SIS™ ™) or
Product Configuration Software (PCS).
C — Input LEDs
• Signal LED — Lights when a TMDS signal is detected on the HDMI input. If the source requires HDCP encryption, this LED
may light only when HDCP is authenticated.
• HDCP LED — Lights when the source requires HDCP encryption and it has been authenticated with the HDMI input.
D — Outputs LEDs
• HDCP LEDs — Light when HDCP is authenticated between a DA output and the corresponding sink device.
• Signal LEDs — Light when HPD is detected from the corresponding sink device and a TMDS signal is detected at the
input.
Rear Panel
POWER
12V
--A MAX 21 43
INPUT
REM O T E
OUTPU T S
LAN
RS-232
T x R x G
R
POWER
12V
--A MAX 21 63 4 5
INPUT
REM O T E
OUTPU T S
LAN
RS-232
T x R x G
R
D
D
D
D
D
D
A
A
A
A
A
A B
B
B
B
B
BE
E
E
E
E
E F
F
F
F
F
F
C
C
C
C
C
C

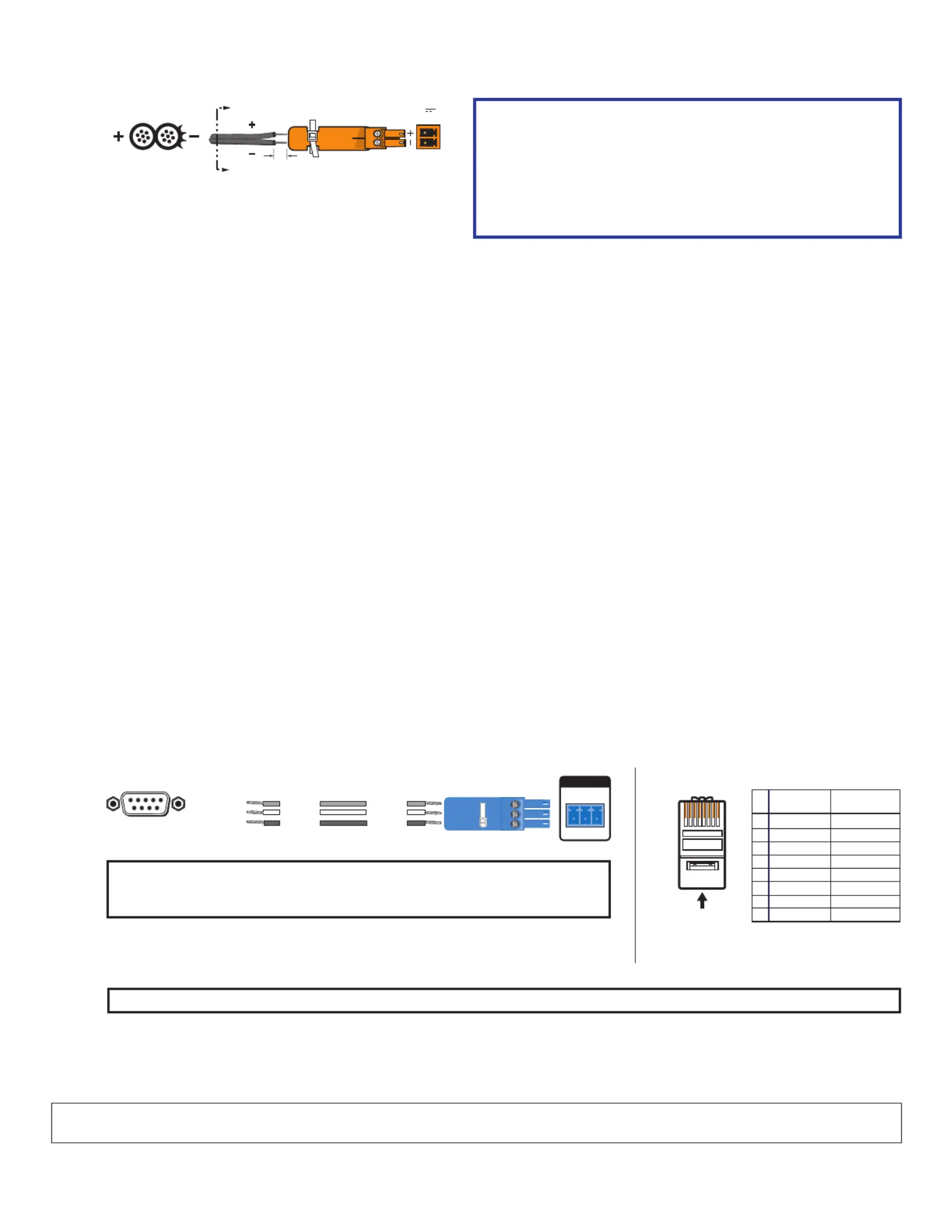

A Power input — Connect the provided 12 VDC, 3.0 A power supply to this 2-pole 3.5 mm captive screw port (see the power
Attention and diagram to wire the connector on ).page 2
