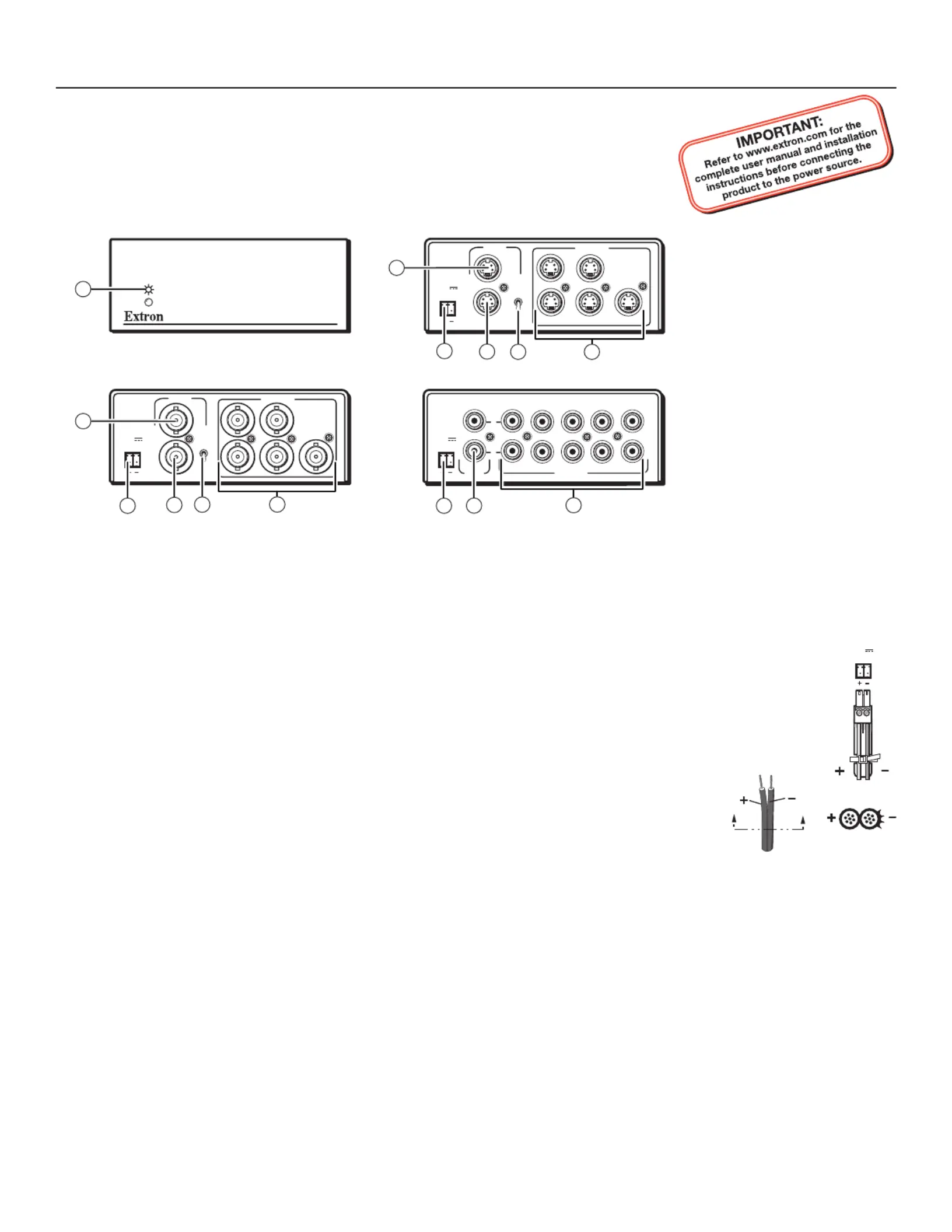

Setup Guide — MDA 5V, 5SV, 5A RCA
The Extron® MDA 5 series of mini distribution amplifiers distribute buffered
composite video (MDA 5V), buffered S-video (MDA 5SV), and amplified stereo audio
(MDA 5A RCA). Unless otherwise stated, these instructions apply to all three of the
amplifiers.
W These instructions provide a quick setup guide for experienced installers.
Installation and service must be performed by authorized personnel only.
MDA 5V
POWER
12V
.5A MAX
4
3
5
INPUT
IN HIGH Z
75 Ohm
LOOP 2
1
OUTPUTS
3
7
2 4 6
Rear Panel MDA 5V
DISTRIBUTION AMPLIFIER
Front Panel All Models
1
MDA 5SV
POWER
12V
.5A MAX
4
3
5
INPUT
IN HIGH Z
75 Ohm
LOOP 2
1
OUTPUTS
47
6
2
Rear Panel MDA 5SV
MDA 5A RCA
POWER
12V
.34A MAX
INPUT OUTPUTS
1 2 3 4 5
L
R
582
Rear Panel MDA 5A RCA
3
Step 1
Turn all the equipment off and disconnect all cables.
Step 2
Mount the unit in a convenient location, in a rack, under a desk, or on a projector mounting system. Follow the
instructions included with the appropriate mounting kit.
Step 3
Connect the external 12 VDC power supply (provided) to the 2-pole, captive screw power
connector (b). When power is applied to the unit, the front panel LED (
a) lights green.
C Voltage polarity is important. Identify the negative lead by the ridges on the side (see figure
at right).
C Always use a power supply specified by Extron for this unit. Use of an unauthorized power
supply voids all regulatory compliance certification and may cause damage to the supply
and the distribution amplifier.
Step 4
For the MDA 5V:
Connect a video source to the video input (c), using composite video (BNC) connectors.
For the MDA 5SV:
Connect a video source to the video input (c), using S-video (4-pin mini DIN) connectors.
For the MDA 5A RCA:
Connect an audio source to the audio inputs (c), using unbalanced stereo to RCA connectors. Left channel input goes to
the upper input; right channel input goes to the lower input.
Indicators and
Connectors
a
Power LED
b
Power supply input
c
Video input
d
Video loop to local
monitor
e
Audio input (left channel
top; right channel
bottom)
f
High Z/75 Ohm switch
g
video outputs
h
audio outputs (left
channel top; right
channel bottom)
POWER
12V
.5A MAX
SECTION A–A
RidgesSmooth
Power Supply
Output Cord
A A
