Installation Guide — BB 700M
The Extron® BB 700M is a wall box for wall-mounting Extron TLP 700MV TouchLink™ panels. It provides access for A/V signals
and 12 VDC power. A trim ring (TR 700M), is available as an optional accessory.
This Installation Guide provides instructions for mounting the BB 700M in a new installation or retrofitting an existing drywall.
Retrofit an Existing Installation (After the Drywall is in Place)
1. Remove the screws holding the top and bottom endplates of the BB 700M
to the U-plate (sides and back). Separate and remove the endplates.
2. Use the trim ring or the back face of the U-plate to mark the position
where the hole will be cut.
N The hole is 9.55 inches (24.26 cm) wide x 6.55 inches (16.64 cm) high.
T Use a level and temporarily secure the trim ring to the wall to ensure the
position of the hole is marked as accurately as possible. Once the hole
is marked, remove the trim ring to avoid damaging it while cutting the
drywall.
3. Use a drywall saw to cut out a hole where the TLP 700MV will be
installed. Cut the lines that you marked in step .on 2
4. Run the cable conduits through the wall to the top of the hole. Leave
some slack to connect the conduit to the BB 700M and the cables to the
TLP 700MV.
5. If necessary, clear the cables and conduits from the space behind the
hole so that it is clear for the U-plate to be inserted.
6. Insert the U-plate into the hole (see figure 1).
N The tabs of the wall box sit on the outer face of the drywall.
7. Pull back the cables that were cleared out of the way in step .5
8. Secure one or more conduits to one of the endplates. There are
punch-outs in the top and bottom endplates (see figure 2).
9. Slide the endplates into the gap between the back of the U-plate and
the top flanges on the side of the U-plate . (see inset in figure 2) The
endplate must pass the drywall so that it can be pushed up behind it.
10. Snap the four plastic ribs from the TR 700M trim ring so that the trim
ring fits over the metal tabs of the BB
700M (see inset in figure 3).
11. Secure the trim ring to the wall with
four screws through the holes in the
frame (two on each side).
12. Finish installing the TLP 700MV as
described in steps to 8 11 on the next
page (and see figure 3).
8
9

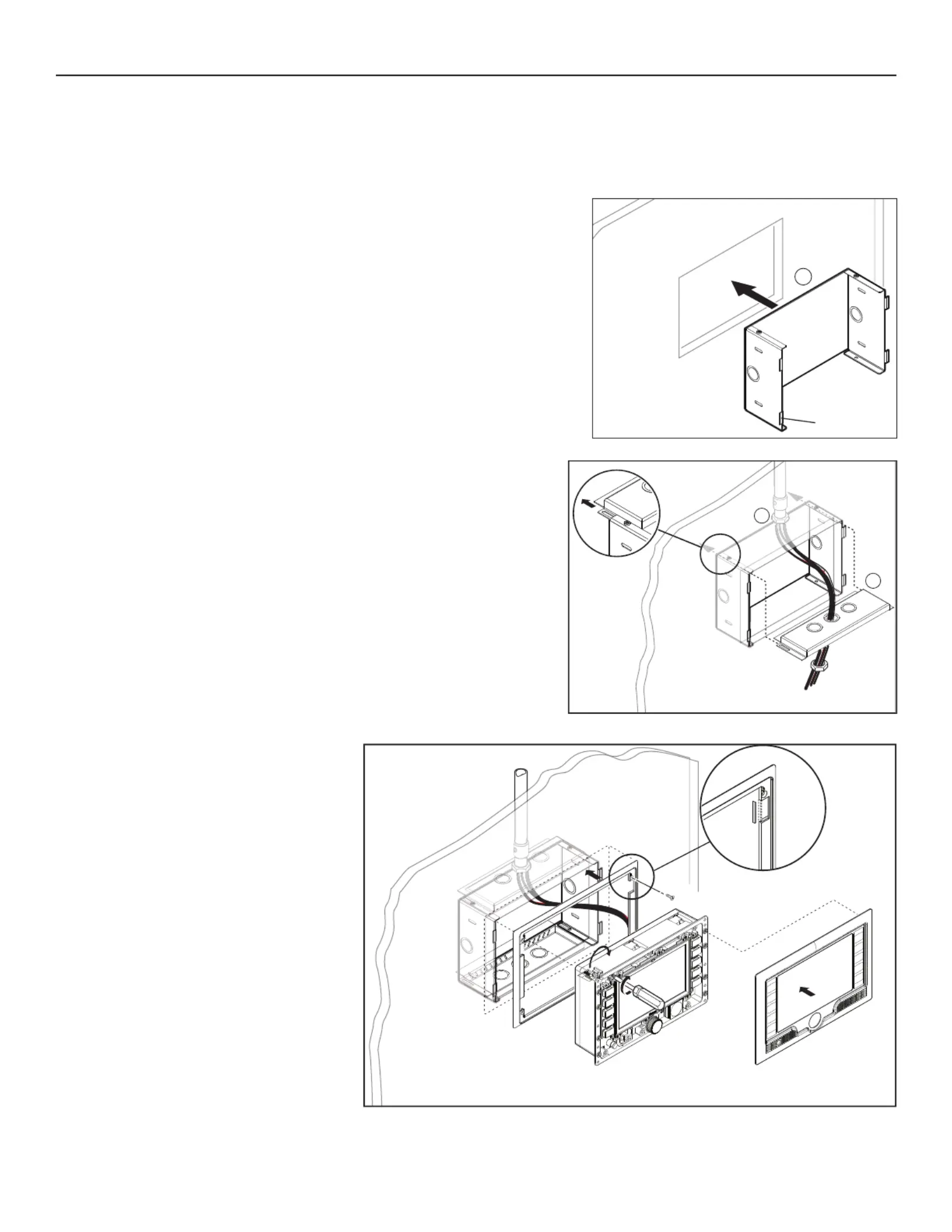

Figure 2
6
Tabs (4)
Figure 1

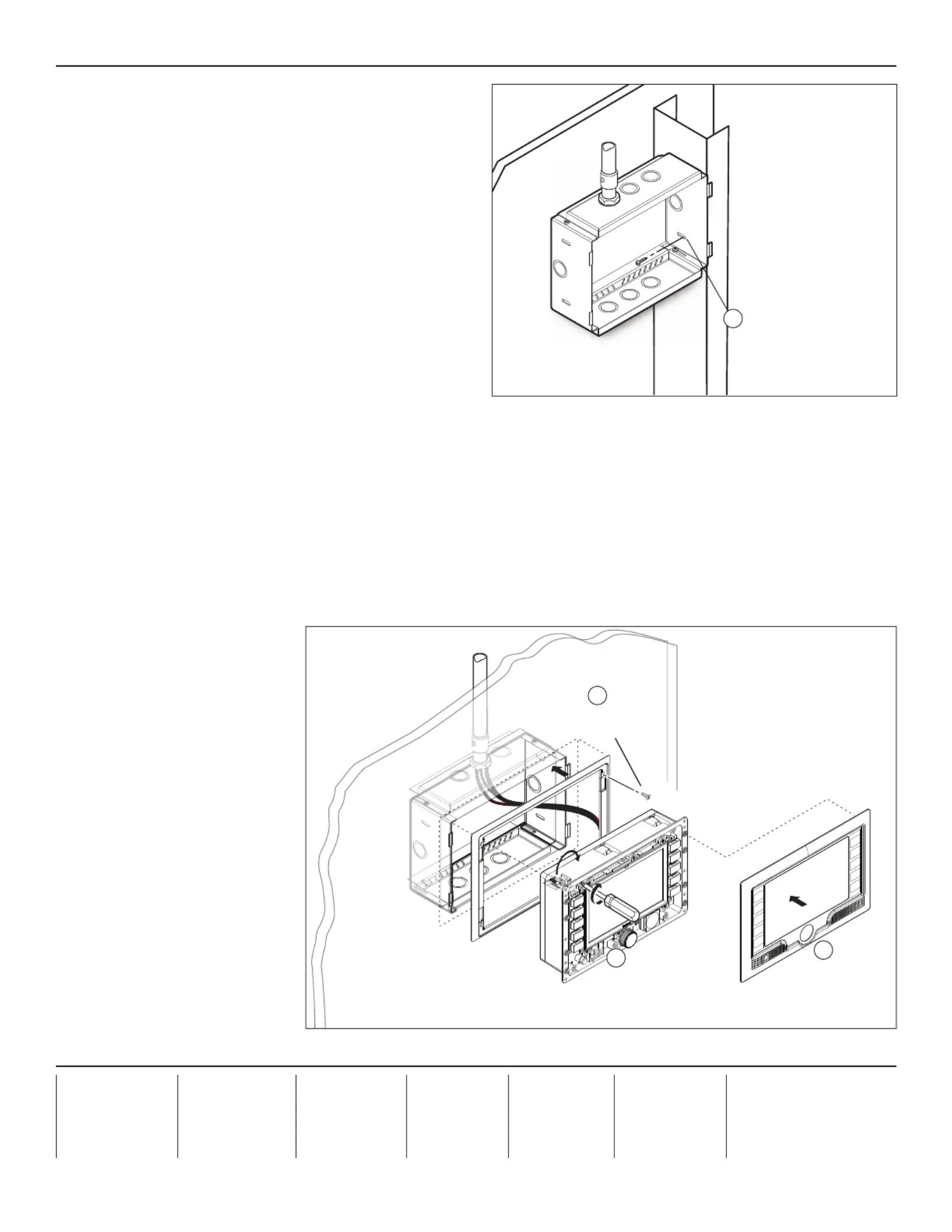

Faceplate Snaps to Unit
(4 plcs ea side)
Tighten Screws to
Rotate Locking Arms
Trim Ring Break
Off Rib
Screws (4)
Figure 3
