INTRODUCTION
This wireless module is designed to be installed in a Wi-Safe 2
compatible smoke/heat alarm or Wi-Safe 2 compatible Carbon
Monoxide alarm which offers an additional option for wireless
connectivity (and which is not already wireless enabled). For the current
range of Wi-Safe 2 compatible products see www.reangeltech.com
When the wireless module is tted into a Wi-Safe 2 compatible
FireAngel Safety Technology Limited smoke/heat alarm or carbon
monoxide alarm it enables the unit to be wirelessly interlinked with
other Wi-Safe 2 enabled products.
When any of the interlinked products are triggered by smoke/heat
(or carbon monoxide in the case of CO alarms), that unit will transmit
messages to the other units in the network, sounding all the alarms
in the system simultaneously, which means they provide the earliest
warning of re, to the maximum number of people. Any number of units
from two, up to fty alarms can be interlinked into a single network.
NOTE: You will need the User Manual of the product into which you are
installing the wireless module in order to then wirelessly interconnect
the product with other alarms in the network. If this is not available
please contact Technical Support on 0330 094 5830 or download from
www.reangeltech.com
Please read these tting instructions carefully before proceeding,
paying particular attention to the ESD handling guidelines below.
HOW TO INSTALL A WI-SAFE 2
WIRELESS MODULE (W2-MODULE)
When you’re ready to install the wireless module into the compatible
alarm, ensure you observe ESD handling guidelines.
• Remove the label which covers the module aperture at the back
of the unit.
• Avoid carpeted areas in cool, dry areas if possible, and reduce
static electricity if necessary by touching a grounded metal object.
• Carefully remove the module from its packaging, handling
the module only by the protective plastic cover, to avoid
electrostatic discharge.
• Be careful not to touch the components or connector pins.
• Carefully plug the module into the aperture in the unit as shown,
pushing down until it lies at within the base of the unit.
The unit is now ready to be “learned – in” (interlinked) to additional
Wi-Safe 2 products.
“LEARNING IN” (INTERLINKING)
YOUR WI-SAFE 2 UNITS
The process below describes ‘learning in’ two Wi-Safe 2 alarms into a
network, “Alarm 1” and “Alarm 2”. Alarm 2 will be the unit into which
you have installed the Wireless Module.
It is recommended that you read through these instructions prior
to starting the process.
Alarm 1: Before starting, refer to the product’s User Manual to ensure
the alarm is activated and ready to be learned in, with its mounting
plate (if appropriate) attached. Please test the unit once after mounting
to baseplate.
Alarm 2: Using a pen, a very small screwdriver or paper clip that has
been opened out, briey push and release the learn button located in
a small hole in the wireless module.
The red LED next to the learn in button will ash briey then light up
for approximately ve seconds to show that it is ready to receive the
“learn in” signal. During the next 5 seconds you will need to briey
press the test button on Alarm 1 to wirelessly interlink the two alarms.
Alarm 1: Will give an audible sound consisting of 2 cycles of 3
loud beeps.
Alarm 2: The red LED on the wireless module of alarm 2 will ash to
indicate that it has been “learned-in” successfully.
NOTE: If the test button is not pressed quickly enough (before the red
LED on the wireless module of Alarm 2 has extinguished), the learn-in
process will fail. If this happens, repeat the “learn-in” process again,
as described above.
Additional products should be “learned-in” in the same way. When
learning in additional alarms, any alarm already in the network, can be
used as ‘Alarm 1’. This means that you can “learn-in” the additional
alarm into any unit already in the network. It will then become part of
the whole network.
NOTE: You do not need to “learn in” the additional alarm into each
alarm in the network.
After completing the “learn-in” procedure, test the alarms as described
in “alarm test” in the product’s user manual.
If any interlinked alarm fails to respond to the “alarm test”, repeat
the learning in process. If the product continues to fail to operate
correctly, please contact Technical Support on 0330 094 5830 or
email technicalsupport@reangeltech.com
For information about where to position the alarm, and operational
guidelines, please see the User Manual for the host product.
NOTE: The wireless range of the module is over 200 metres in clear air/
clear line of sight. Always ensure that after any building work or after
repositioning large items of furniture (beds, sofas, shelving units etc.),
you carry out an alarm test on all networked alarms to ensure they are
all still communicating. It is recommended not to exceed 35m as the
maximum distance between any interlinked Wi-Safe 2 alarm. Ideally,
each unit should have three or more units within 35m of its location.
TROUBLESHOOTING
Problem Solution (Alarm with W2 Module)
Your alarm does not
sound during testing.
• Check positioning. The wireless signal might be blocked or out of range.
• If you are in the process of learning in the alarm and it does not test – repeat the process.
• If the alarm still fails to self test, please contact Technical Support (see below).
Your smoke alarm
activates when no
smoke is visible.
• If the alarm is sounding but the red LED is only ashing once every 45 seconds, this indicates
that an interlinked alarm has initiated alarm. Vacate the property if there is a re hazard.
Your alarm chirps
intermittently.
• If your alarm is chirping once every 4 hours, it is indicating that another alarm in the network has
entered a low power pack condition. Locate the alarm with the low battery condition and replace
the alarm as soon as possible and in any event within 30 days.
Other interlinked units
fail to silence when one
unit is silenced.
• Interlinked units that have sensed a hazard can’t be silenced. If one or more unit remains in
alarm, all other interlinked units will emit their audible warning again within 4 minutes. Vacate the
property if there is a re hazard.
You experience frequent
unwanted alarms.
• Any activated alarm will cause other interlinked alarms to sound. Carry out these checks on the
activated alarms in particular (red LED ashing rapidly during alarm).
The amber LED is
ashing and the alarm
is making a “chirping”
sound.
• If the amber LED is double ashing and the alarm is making a “chirping” sound, this indicates
that the wireless module has a low power pack condition, or is faulty. The W2 Module should be
replaced as soon as possible.
If the alarm fails to
operate correctly,
the advice of the
manufacturer should be
sought.
• If you have any questions about the operation of your alarm, please contact Technical Support
between 9am - 5pm Monday – Friday. Telephone:
0330 094 5830
.
RF range can be reduced by walls, and other obstructions in the
building. The distance between units should be reduced if obstructions
may interfere with RF range.
Unlearning your Wi-Safe 2 Unit:
To remove an alarm / module from a network, push and release, then
push and hold the learn button. When the red LED goes out, release
the button. Once the LED has ashed 5 times you have successfully
‘Unlearned’ the alarm / module.
When removing an alarm / module from any Wi-Safe 2 network it is
generally good practice to “unlearn” every alarm/module (in the same
way as mentioned before) and rebuild the network once again by
following the “learning-in” process.
NOTE: It is important not to rush the Wi-Safe 2 system and is also
good practice to allow several minutes after un-learning the system
before rebuilding the network once again.
WARRANTY
FireAngel Safety Technology Limited warrants to the original
purchaser that its enclosed Wireless Module be free from defects
in materials and workmanship under normal residential use and
service for a period of 5 (ve) years from the date of purchase.
Provided it is returned with postage prepaid and proof of purchase
date, FireAngel Safety Technology Limited hereby warrants that
during the 5 (ve) year period commencing from the date of purchase
FireAngel Safety Technology Limited, at its discretion, agrees to
replace the unit free of charge. The warranty on any replacement
W2-Module, will last for the remainder of the period of the original
warranty in respect of the wireless module originally purchased – that
is from the date of original purchase and not from the date of receipt of
the replacement product.
FireAngel Safety Technology Limited reserves the right to offer
an alternative product similar to that being replaced if the original
model is no longer available or in stock. This warranty applies to
the original retail purchaser from the date of original retail purchase
and is not transferable. Proof of purchase is required. This warranty
does not cover damage resulting from accident, misuse, disassembly,
abuse or lack of reasonable care of the product, or applications not
in accordance with the user manual. It does not cover events and
conditions outside of FireAngel Safety Technology Limited’s control,
such as Acts of God (re, severe weather etc). It does not apply to retail
stores, service centres or any distributors or agents.
FireAngel Safety Technology Limited will not recognise any changes to
this warranty by third parties. FireAngel Safety Technology Limited shall
not be liable for any incidental or consequential damages caused by
the breach of any expressed or implied warranty. Except to the extent
prohibited by applicable law, any implied warranty of merchantability
or tness for a particular purpose is limited in duration for 5 (ve) years.
This warranty does not affect your statutory rights. Except for death or
personal injury, FireAngel Safety Technology Limited shall not be liable
for any loss of use, damage, cost or expense relating to this product
or for any indirect or consequential loss, damages or costs incurred by
you or any other user of this product.
RETURNS
If your W2-Module fails to operate correctly and you cannot resolve the
problem, please contact your dealer.
Tel.: 0330 094 5830
E-Mail: technicalsupport@reangeltech.com
DISPOSAL
Waste electrical products should not be disposed of with
your other household waste, but within the waste electronic
and electrical equipment (WEEE) recycling scheme. Please
recycle where facilities exist. Check with your local authority,
or contact our technical support team for recycling /disposal advice as
regional variations may apply.
WARNING: Do not attempt to open
WARNING: Do not burn or dispose of in re
TECHNICAL SPECIFICATION
Compliance:
EN 301 489-1
EN 301 489-3
EN 300 220-2
Max RF power: +10dBm
Frequency: 868MHz
Contains: 10 year lithium battery
Hereby, FireAngel Safety Technology Limited, declares that this
W2-Module is in compliance with the essential requirements and
other relevant provisions of Directive 2014/53/EU. The declaration of
conformity may be consulted at http://spru.es/EC-W2-Module
FURTHER INFORMATION
FireAngel Safety Technology Limited
Vanguard Centre, Coventry, CV4 7EZ
www.reangeltech.com
Red LED Amber LED Audible signal Status Action required
Flashes once every 45
seconds
Single chirp every four
hours
Other alarm in network
has low battery
Locate alarm with low
battery and replace
Flashes once every 45
seconds 3 loud beeps repeating
Other alarm with W2
Module in network in
alarm
Check if there is a re
hazard and vacate
property
Flashes once every 45
seconds
Double ashes at the
same time as the red
LED
Single chirp at the
same time as the LED
ash
Radio module low
battery
Call Technical Support
if within warranty. If not
replace the W2 Module
immediately
Flashes once every 45
seconds
Double ashes every
45 seconds, 20-25
seconds after the red
LED
Single chirp at same
time as the red LED
ash
Radio module fault
Call Technical Support
if within warranty. If not
replace the W2 Module
immediately
ALARM INDICATORS
GN1830R8

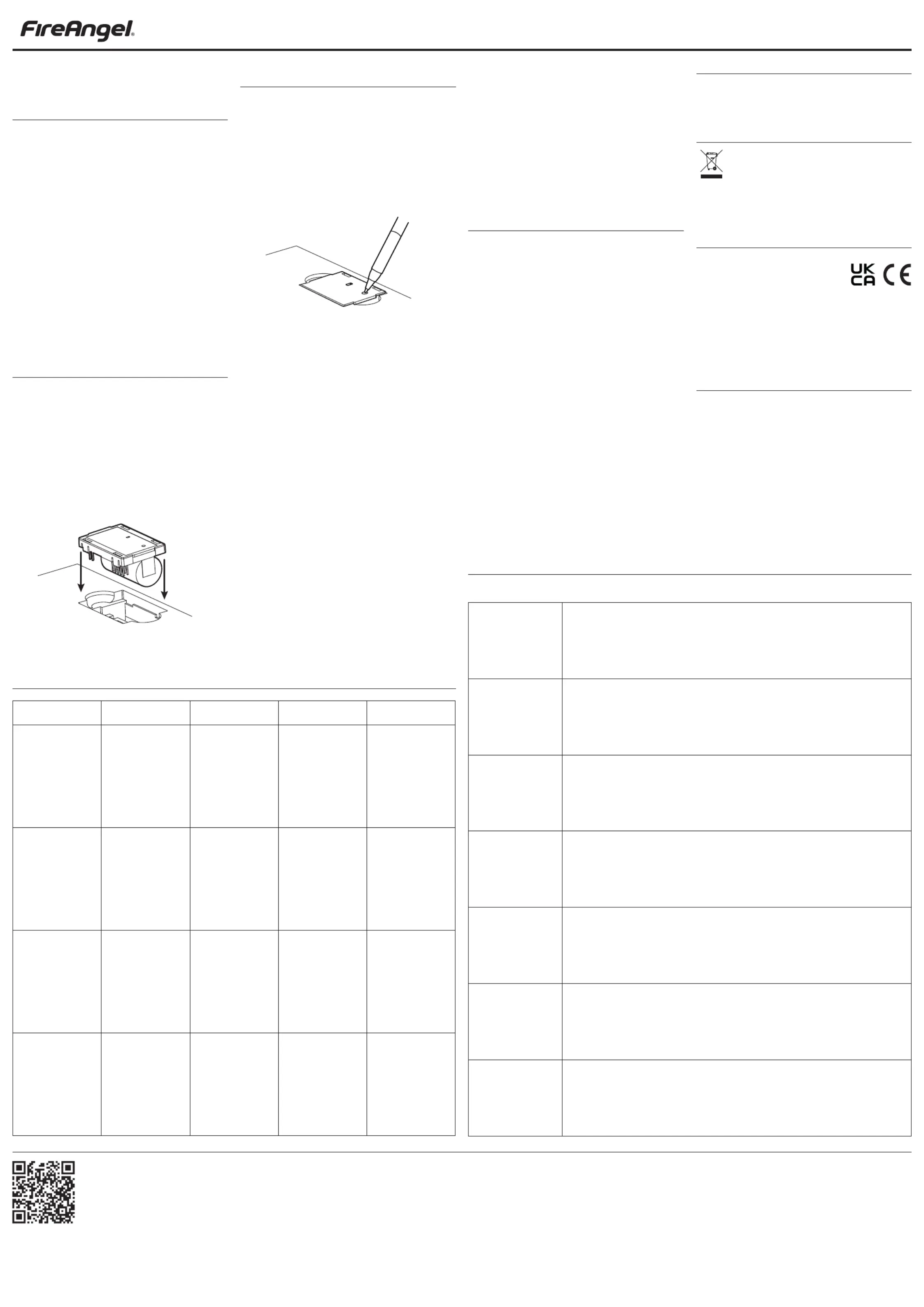

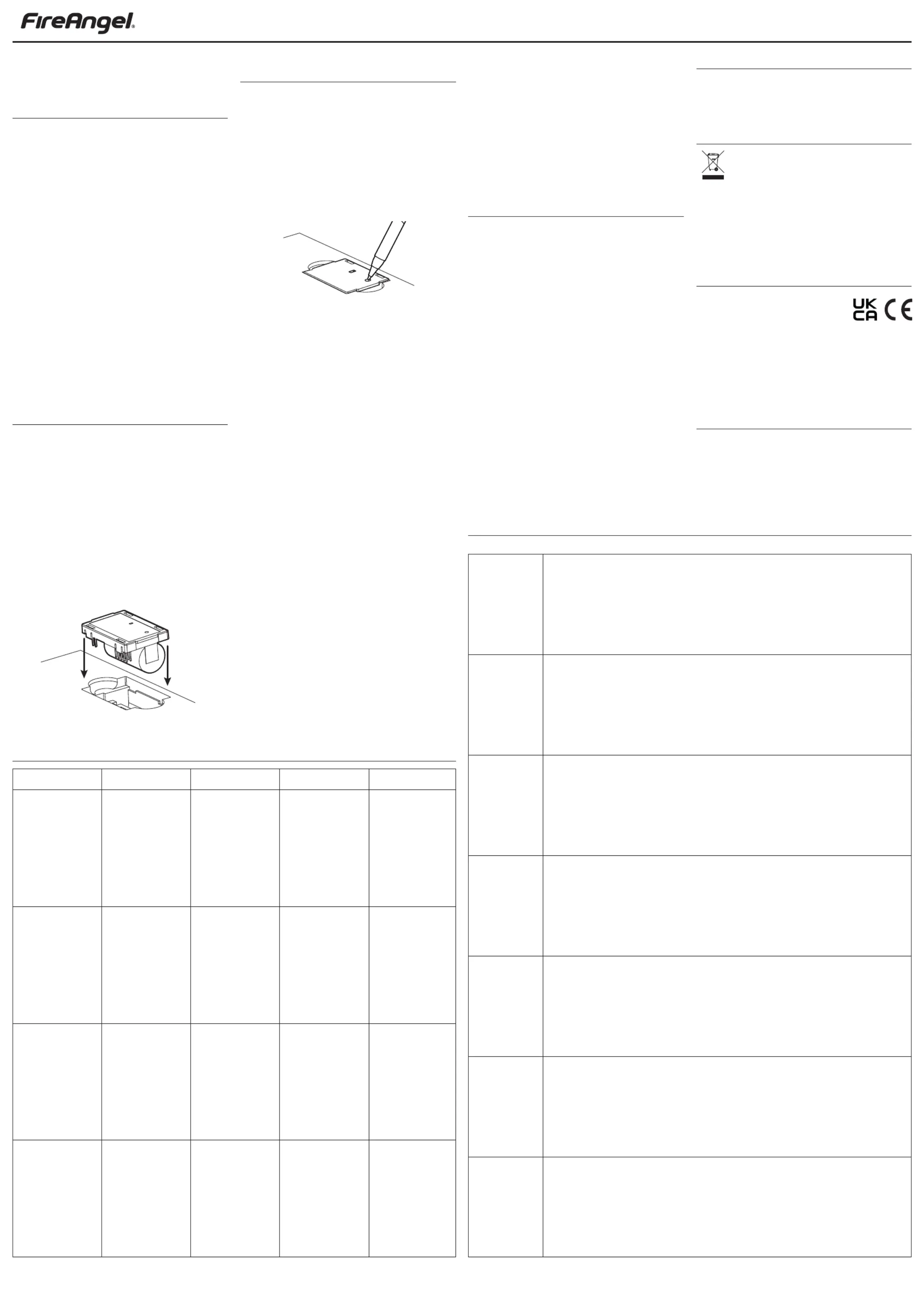

W2-MODULE P-LINE INSTALLATION GUIDE - (EN)
EN To view the manual online in your
language, scan the QR code.
ً.ﺎﻴﺋﻮﺿ ﺔﻌﻳﺮﺴﻻﺍ ﺔﺑﺎﺠﺘﺳﻻﺍ ﺰﻣﺭ ﺢﺴﻣﺍ ،ﻚﺘﻐﻠﺑ ﺖﻧﺮﺘﻧﻹﺍ ﻰﻠﻋ ﻞﻴﻻﺪﻻﺍ ضﺮﻌﻻ AR
BG За да видите ръководството онлайн
на Вашия език, сканирайте QR кода.
CZ
Chcete-li zobrazit příručku online ve svém
jazyce, naskenujte QR kód.
DK Scan QR-koden for at se manualen online på dit sprog.
EE Selleks, et näha juhendit veebis oma emakeeles skannige
QR-kood.
ES Escanée el código QR para consultar el manual en línea en
su idioma.
FI Skannaamalla QR-koodin voit näyttää oppaan verkossa
omalla kielelläsi.
GR
Για να δείτε την ηλεκτρονική έκδοση του εγχειριδίου στη
γλώσσα σας, σκανάρετε τον κώδικα QR
HR
Za mrežni prikaz priručnika na vašem jeziku,
skenirajte kȏd QR.
HU
Ha szeretné online megtekinteni az útmutatót a saját
nyelvén, olvassa be a QR-kódot.
IT Per leggere il manuale online nella tua lingua, scansiona il
codice QR.
LT Norėdami perskaityti vadovą internete savo kalba,
nuskaitykite QR kodą.
LV Lai tiešsaistē skatītu rokasgrāmatu savā valodā, skenējiet
kvadrātkodu.
NO Skann QR-koden for å se håndboken på nett på ditt språk.
PL Aby wyświetlić tę Instrukcję online w swoim języku zeskanuj
kod QR.
PT Para ver o manual online no seu idioma, leia o código QR.
RO Pentru a vizualiza online manualul în limba dumneavoastră
scanați codul QR.
RU
Для просмотра руководства на своем языке в сети
Интернет отсканируйте QR-код.
SE Skanna QR-koden för att visa bruksanvisningen online på
ditt språk.
SI Skenirajte QR-kodo, da si na spletu ogledate priročnih v
svojem jeziku.
SK Na zobrazenie online návodu vo svojom jazyku naskenujte
kód QR.
UA Щоб переглянути інструкцію в режимі онлайн вашою
мовою, відскануйте QR-код.

Produkt Specifikationer

Mærke: FireAngel
Kategori: Ikke kategoriseret
Model: FS1521W2-T

Har du brug for hjælp?

Hvis du har brug for hjælp til FireAngel FS1521W2-T stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret FireAngel Manualer

FireAngel

FireAngel Wi-Safe 2 W2-LFS-630-EU Manual

2 September 2024
FireAngel

FireAngel FP1014W2-R Manual

27 August 2024
FireAngel

FireAngel WRLYM-1EU Manual

27 August 2024
FireAngel

FireAngel FS1521W2-T Manual

27 August 2024
FireAngel

FireAngel WG-1EU Manual

27 August 2024
FireAngel

FireAngel FP1000W2-R Manual

3 August 2024
FireAngel

FireAngel WRLYM Manual

25 Juli 2024
FireAngel

FireAngel BW-PF-T Manual

22 Juli 2024
FireAngel

FireAngel WG-2 Manual

19 December 2022

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Kramer

Kramer VP-8X8 Manual

25 November 2024
Kramer

Kramer PT-2C Manual

25 November 2024
Lazer

Lazer Bob+ Manual

25 November 2024
Dometic

Dometic DPS 80 Manual

25 November 2024
Kramer

Kramer 102MX Manual

25 November 2024
Kramer

Kramer FC-18 Manual

25 November 2024
Kramer

Kramer DSP-62-UC Manual

25 November 2024
Kramer

Kramer KC-BRAINware-25 Manual

25 November 2024
Kramer

Kramer KC-BRAINware-50 Manual

25 November 2024
Tiger

Tiger SKF-H101 Manual

25 November 2024
