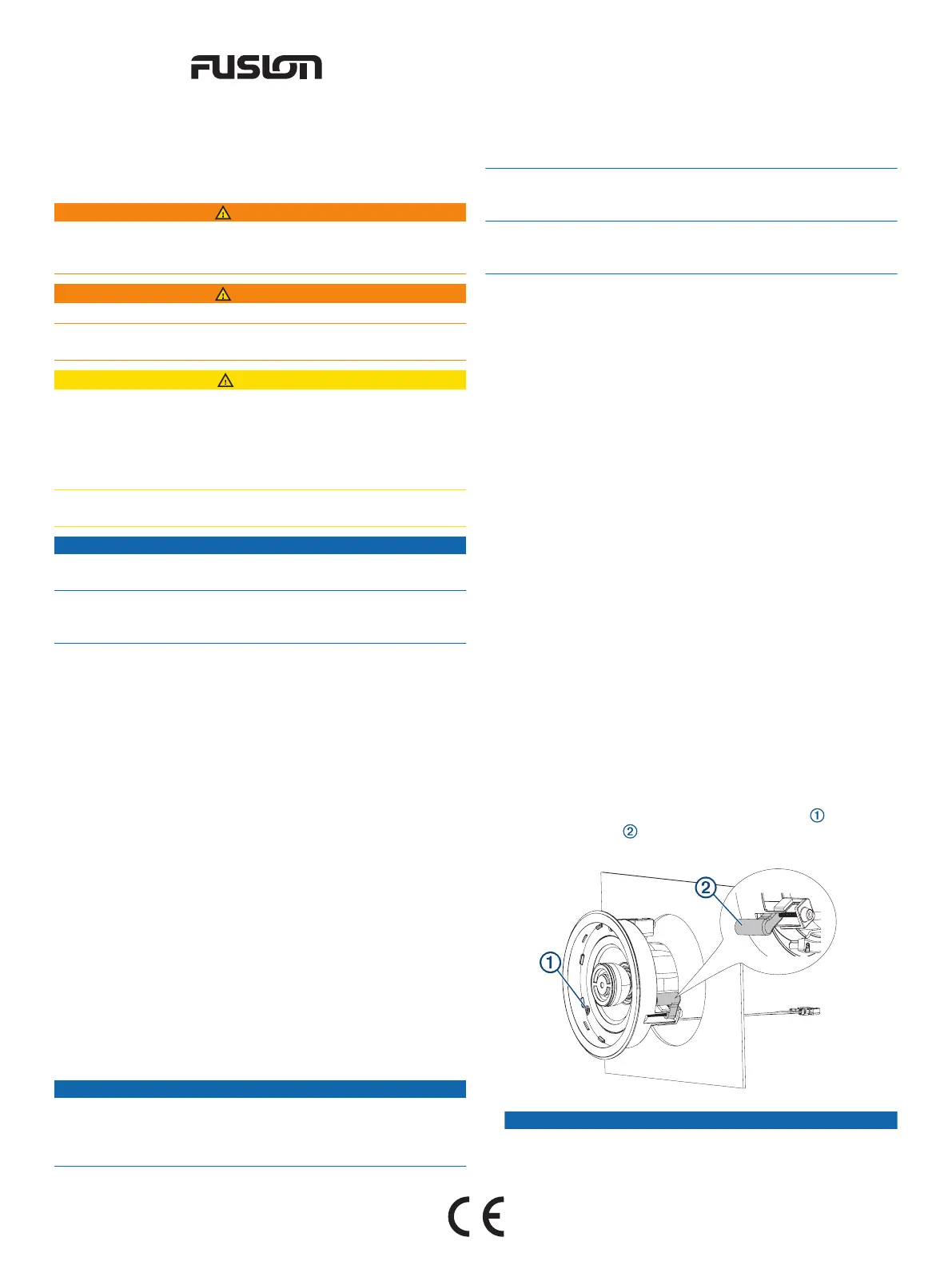

Side 1/8
®
Flush Mount Series Speaker and
Subwoofer Installation Instructions
Important Safety Information
WARNING
See the guide in the Important Safety and Product Information
product box for product warnings and other important
information.
WARNING
This device must be installed according to these instructions.
Disconnect the vehicle's or vessel's power supply before
beginning to install this device.
CAUTION
Continuous exposure to sound pressure levels over 100 dBA
may cause permanent hearing loss. The volume is typically too
loud if you cannot hear people speaking around you. Limit the
amount of time you listen at high volume. If you experience
ringing in your ears or muffled speech, stop listening and have
your hearing checked.
Always wear safety goggles, ear protection, and a dust mask
when drilling, cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite
side of the surface.
It is strongly recommended that you have your audio system
installed by a professional installer to ensure optimum
performance.
You must read all installation instructions before beginning the
installation. If you experience difficulty during the installation, go
to for product support.www.fusionentertainment.com
After installing the subwoofer, you should run the subwoofer at
low to medium volumes for the first few hours of use. This helps
to improve the overall sound by gradually loosening up the
moving components of the subwoofer, such as the cone, spider,
and surround
Tools Needed
• Phillips screwdriver
• Torque screwdriver with a Phillips bit
• Appropriate saw or utility knife to cut surface material
• 18 AWG (0.82 mm2) speaker wire
• Marine sealant such as 3M™ 4200 or 5200
• Speaker spade connectors (recommended)
• Wire strippers (optional)
• Crimping tool (optional)
• Electrical tape (optional)
NOTE: For customized installations, additional tools and
materials may be needed.
Mounting Considerations
NOTICE
When mounting the speaker in an area exposed to weather or
water, you must mount the speaker on a vertical surface. If you
mount the speaker on a horizontal surface facing up, water can
gather in and around the speaker, causing damage over time.
If you intend to mount the speakers outside the boat, you must
mount them in a location well above the waterline, where they
are not submerged or damaged by docks, pilings, or other
pieces of equipment. When mounted correctly, these speakers
are rated for protection from the front of the speaker. Water
exposure and damage to the rear of the speaker voids the
warranty.
You must turn off the audio system before making any
connections to the stereo, amplifier, or speakers. Failure to do
so could result in permanent damage to the audio system.
You should protect all terminals and connections from grounding
and from each other. Failure to do so could result in permanent
damage to the audio system and void the product warranty.
When selecting a mounting location for the speakers, observe
these considerations:
• You must select mounting locations that provide sufficient
clearance for the mounting depth of the speakers as
specified in the product specifications.
• You must select a mounting location where the panel
thickness is not thinner or thicker than specified in the
product specifications.
• You should select a flat mounting surface for the best seal.
• You should protect the speaker wires from sharp objects and
always use rubber grommets when wiring through panels.
• To avoid interference with a magnetic compass, you should
not mount the speakers closer to a compass than the
compass-safe distance value listed in the product
specifications.
Selecting the correct mounting location optimizes the
performance of each speaker. FUSION
® speakers are designed
to perform in the widest possible range of mounting locations,
but the more you plan the installation, the better the speakers
will sound. For more information on speaker placement and
specifications, go to .www.fusionentertainment.com
Mounting the Speakers
1Use the included template with a rotary tool or jigsaw to cut
the hole for the speaker.
2Connect the speaker wires while observing polarity (Speaker
Wiring, page 2).
3Apply marine sealant on the speaker and the mounting
surface.
4Place the speaker in the cutout.
5Using a #2 Phillips screwdriver, turn the screws to extend
the mounting tabs lightly hold the speaker to mounting
surface.
NOTICE
Although you may use a power screwdriver to initially turn the
screws on the mounting tabs, you must use a torque
screwdriver to complete the installation. Using power tools to
October 2019
190-02582-90_0B
