For your safety
Serious injury e.g. caused by an electric
shock, fire, or material damage are possible
in case of improper assembly. Read and
observe these instructions completely.
Product features
The smoke alarm device Dual Q is a battery-
operated combination of smoke and heat
alarm device for private residential units or
similarly inhabited areas as per DIN 14676.
The smoke alarm device Dual Q detects the
development of smoke in a timely manner
and warns occupants before the smoke gas
concentration becomes dangerous. The
warning comes in the form of acoustic
(tone) and optical (LED) signals.
• Loud, pulsating alarm signal
(at least 85 dB (A)).
• Fire and heat alarms alerted differently.
• Muffled alarm signal (approx. 75 dB (A))
during function test.
• Smoke detection by photoelectric
scattering principle.
• Heat detection via maximum and
differential function.
• Integrated function button for alarm
acknowledgement, function test and
muting, for example.
• Smoke detection can be switched off.
• Automatic smoke evaluation self-test
with tracking of soiling.
• "Fouling/malfunction" indication.
• Signalling of technical faults can be
delayed up to 12 h in darkness.
• Up to 40 smoke alarm devices can be
networked on each wire.
Electrical devices may only be
installed and connected by a
qualified electrician!
Configuration and installation may
only be performed by an expert
As per DIN 14676, configuration, installation
and maintenance of the smoke alarm device
may only be performed by a qualified expert.
For this purpose, Gira offers the "Certified
expert for smoke alarm devices in accor-
dance with DIN EN 14676" online course,
complete with certificate.
More detailed information can be found
under "akademie.gira.de".
• One module interface for three optional
modules with simultaneous use of the
networking terminal
• Meets requirements of the new Q Label
quality seal
Q Label means
• Tested longevity of the smoke alarm
device (up to 10 years after activation)
• Fewer false alarms
• Increased stability, e.g. against external
factors
• Permanently installed, non-removable
battery
Scope of delivery
• 1x smoke alarm device Dual Q
• 1x set of mounting hardware
• 1x assembly and operating instructions
Accessories
The following optional accessories can be
used:
• Relay module for smoke alarm
device Dual (item no. 2340 00)
• Radio module for smoke alarm device
Dual
(item no. 2347 00)
• KNX Module for smoke alarm device
Dual
(item no. 2343 00)
• Spacer sleeves (item no. 2342 00)

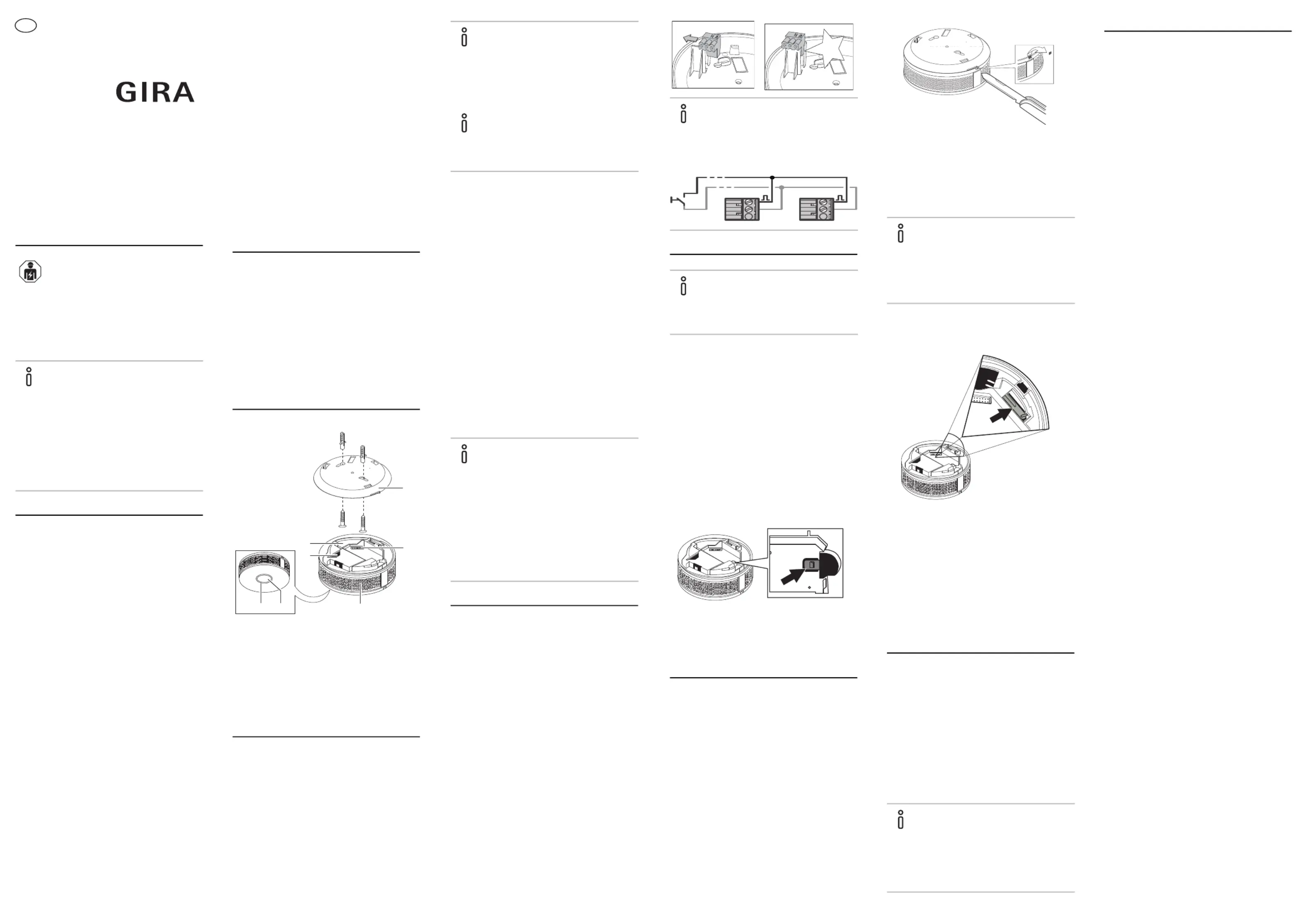

Device description
Selecting the installation location
When selecting the installation location for
the smoke alarm device, the specifications
of DIN 14676 apply. The most important
specifications are as follows:
• Attach as close as possible to the centre
of the ceiling (min. distance of 50 cm
from walls, lights and other obstructions)
• One smoke alarm device per room (max.
60 m2 area)
• Do not mount it in the direct proximity of
heat sources.
1 Mounting plate
2 Module interface
3 Smoke penetration openings
4 Function button
5 Ring indicator
6 Battery
7 230 V connection for power supply via
230 V base
1
45
2
7
6
3
Minimum protection/optimum protec-
tion
The following applies to flats and houses:
Minimum protection
• One smoke alarm device in every
bedroom, every child's room and in the
hallway/staircase (escape route).
• In the case of open connections across
two levels, a smoke alarm device is to be
mounted at the highest level.
• In the case of buildings spanning several
floors, a smoke alarm device must be
mounted on each floor.
Optimum protection
• One smoke alarm device per room and
floor
• In the case of larger buildings, use
networked smoke alarm devices
• Use specialised alarm devices (e.g. heat
detectors) in sensitive areas such as
kitchens, garages etc.
Wiring smoke alarm devices
A maximum of 40 Dual Q smoke alarm
devices can be networked together using a
two-core cable (e.g. telephone cable J-
Y(St)Y 2 x 2 x 0.6 mm). This enables an
alarm to be triggered over all the smoke
alarm devices in a residential unit at the
same time.
The maximum cable length varies
depending on the cable type and cross-
section used (for 1.5 mm2 = maximum 400
m).
Network the smoke alarm devices with one
another as follows:
1. Remove the pre-perforated cut-out for
the cable inlet from the mounting plate
with a suitable tool.
2. Wire the two-lead cable to the 3-pole
terminal block.
3. Push the terminal block onto the guide
rail of the bracket (will audibly engage).
System description of smoke alarm
devices
More detailed information with regard to ins-
tallation as per 1DIN 4676 can be found in
the "System description of smoke alarm devi-
ces", which is available in the Gira download
area (www.gira/download).
Inadmissible installation locations
The Dual Q smoke alarm device is suitanot -
ble for installation in caravans, campers,
boats etc.
Deceptive alarms
Some sites are unsuitable for the
installation of a smoke alarm device as
deceptive alarms are repeatedly triggered
due to local conditions (e.g. welding/
soldering work, very heavy water/cooking
vapour and similar fumes).
More detailed information with regard to
unsuitable installation sites can be found in
the "System description of smoke alarm
devices".
Deactivating smoke detection
Optionally, smoke detection of the smoke
alarm device can be deactivated. This
enables the smoke alarm device to also be
used in rooms which are unsuitable for
conventional smoke alarm devices. In this
case, the smoke alarm device only operates
as a heat detector and triggers an alarm
• As soon as the speed at which the
ambient air is heating up lies outside
normal parameters.
• If the ambient temperature is over
+54 °C.
Smoke detection can be deactivated as
follows:
1. Break out the DIP switch cover plate
with a suitable tool.
2. Set the DIP switches to the "ON"
position. Smoke detection is now
deactivated, and only heat detection is
active.
Installing the smoke alarm device
1. Install the mounting plate. For "surface-
mounted installation" of the networking
cable, use the spacer sleeves.
Optional: Before installation, you can
activate theft protection of the smoke alarm
device to impede unauthorised removal of
or tampering with the smoke alarm device.
For this purpose, cut out the pre-perforated
cut-out on the housing of the smoke alarm
device with a suitable tool. The lock can
only be opened with a tool when in the
locked state.
Networking terminal
An external button (e.g. emergency switch)
can also be connected in parallel via the net-
working terminal.
Termination of CE conformity
The CE conformity of the smoke alarm device
as per EN 14604 is terminated if the DIP
switch cover plate is broken out.
Click
N
N
N
NN N
N
N
NN
2. Lock the smoke alarm device on the
mounting plate (set in place and turn
clockwise).
Removal is carried out in the reverse
order (turn anti-clockwise and pull off).
3. Wait for the initialisation phase (approx.
30 s) and then carry out the function test
(see "Function test").
Activation/deactivation
The smoke alarm device features an internal
activation button (grey).
When locking the smoke alarm device into
the mounting plate/230 V base, the smoke
alarm device is activated automatically.
Alternatively, the activation button for the
function test can also be held manually (the
power supply of the smoke alarm device is
activated automatically. Initialisation phase
30 s).
The smoke alarm device is deactivated
automatically when the lock is disengaged.
Information and
recommendations for the expert
Declaration of performance
The Declaration of performance according
to Directive (EC) No. 765/2008, Directive
(EU) No. 305/2011 (Construction Products'
Regulations - CPR) and the Construction
Product Act CPA can be found either in the
download area (gira.de/Konformitaet) or
directly via the online catalogue at the
product (katalog.gira.de).
Briefing and transfer
Maintenance book for smoke
alarm devices
Gira offers the "Maintenance book for smoke
alarm devices" in the download area.
All the important data of the initial installa-
tion of the smoke alarm device should be
entered here.
Briefing and transfer of the
Instructions
Explain all the functions of the product to
the end user or their representative.
These instructions are part of the product
and must be transferred to the end user or
their representative for safekeeping.
Technical data
Type of alarm: Optical smoke alarm
and heat detector
Area of application: Inside (ceiling)
Installation in
recreational vehicles,
motor homes, etc: Not suitable!
Power
supply: via the smoke alarm
device battery
(encapsulated, not
replaceable)
In addition, AC 230
V when using item
no. 2331 02
Battery life: up to 10 years (after
activation)
Acoustic signal: Alarm: at least 85 dB
(A)
Test: approx. 75 dB
(A)
Optical indication: Ring indicator (red
LED) indicates
status and faults
Networking: Wired, with modules
Integrated interface:
For KNX module,
wireless module and
relay module
Function key for: Function test
Muting
Alarm
acknowledgement
Delaying "fault"
display
Ambient
temperature: -5 °C to +55 °C
Storage
temperature:
-20 °C to +65 °C
Transport
temperature:
-20 °C to +65 °C
Installation height: Max. 6 m
Protection type: IP 42
Housing dimensions: 125 x 48 mm (dia. x
h)
Weight: approx. 250 g
Standards: DIN EN 14604
RoHS/WEEE-
compliant: Yes
Environmentally
compliant disposal: Governed by EAR
6LE000969 D/A 34/22
Dual Q smoke alarm
device
2346 02
Assembly and operating instructions
en
Produkt Specifikationer
| Mærke: | Gira |
| Kategori: | Røgdetektor |
| Model: | Basic Q |
Har du brug for hjælp?
Hvis du har brug for hjælp til Gira Basic Q stil et spørgsmål nedenfor, og andre brugere vil svare dig
Røgdetektor Gira Manualer
3 August 2024
29 Juli 2024
26 Juli 2024
20 Juli 2024
Røgdetektor Manualer
- Røgdetektor Ikea
- Røgdetektor Hager
- Røgdetektor Ei Electronics
- Røgdetektor Gigaset
- Røgdetektor Emos
- Røgdetektor TFA
- Røgdetektor Nedis
- Røgdetektor Abus
- Røgdetektor Clas Ohlson
- Røgdetektor Smartwares
- Røgdetektor Trust
- Røgdetektor Blaupunkt
- Røgdetektor Bavaria
- Røgdetektor Vivanco
- Røgdetektor König
- Røgdetektor FireAngel
- Røgdetektor Elro
- Røgdetektor Mercury
- Røgdetektor Malmbergs
- Røgdetektor Alecto
- Røgdetektor Flamingo
- Røgdetektor Olympia
- Røgdetektor B/R/K
- Røgdetektor GEV
- Røgdetektor JUNG
- Røgdetektor ORNO
- Røgdetektor Netatmo
- Røgdetektor M-e
- Røgdetektor Somfy
- Røgdetektor EQ3
- Røgdetektor Brennenstuhl
- Røgdetektor Elgato
- Røgdetektor EVE
- Røgdetektor Pentatech
- Røgdetektor Eminent
- Røgdetektor GLORIA
- Røgdetektor Fibaro
- Røgdetektor X-Sense
- Røgdetektor EQ-3
- Røgdetektor Dahua Technology
- Røgdetektor Chacon
- Røgdetektor Stabo
- Røgdetektor First Alert
- Røgdetektor Nexa
- Røgdetektor Kogan
- Røgdetektor Esylux
- Røgdetektor Homematic IP
- Røgdetektor H-Tronic
- Røgdetektor Kidde
- Røgdetektor Schwaiger
- Røgdetektor Inovonics
- Røgdetektor Ajax
- Røgdetektor AngelEye
- Røgdetektor KlikaanKlikuit
- Røgdetektor Marquant
- Røgdetektor FireX
- Røgdetektor Interlogix
- Røgdetektor DSC
- Røgdetektor Fito
- Røgdetektor FirstAlert
- Røgdetektor Satel
- Røgdetektor FireHawk
- Røgdetektor Chuango
- Røgdetektor ETiger
- Røgdetektor TEF
- Røgdetektor SAVS
- Røgdetektor Jalo Helsinki
- Røgdetektor Fito Profi-line
- Røgdetektor System Sensor
- Røgdetektor Pristine
- Røgdetektor Cavius
- Røgdetektor Jemay
- Røgdetektor Mircom
- Røgdetektor WisuAlarm
- Røgdetektor BRK DICON
- Røgdetektor STI
- Røgdetektor Cordes
- Røgdetektor Deltronic
- Røgdetektor Insafe
- Røgdetektor Gewiss
- Røgdetektor Egardia
- Røgdetektor Qolsys
Nyeste Røgdetektor Manualer
14 Oktober 2024
8 Oktober 2024
8 Oktober 2024
3 Oktober 2024
2 Oktober 2024
2 Oktober 2024
1 Oktober 2024
1 Oktober 2024
30 September 2024
29 September 2024
