You will be alerted to an imminently hazardous situation which
may result in serious injury or even death!
You will be alerted to a potentially dangerous situation that
could result in serious injury, even death!
You will be alerted to a potentially dangerous situation that
may result in minor injury!
Your attention is drawn to a possible situation that could result
in property damage and possibly environmental damage and
disrupt operations.
If you have any questions, please do not hesitate to contact our support at
support@graugear.de
or visit our website
www.graugear.de
1. Dangers due to electric current and voltage!
2. Possible dangers during assembly due to sharp-edged components!
• Please read the operating instructions before assembly.
• Avoid contact with sharp or pointed objects.
• Do not use force during assembly.
• Only use suitable tools or supplied accessories and tools.
Safety information
For your own safety and to avoid physical damage as well as damage to property, equipment
and loss of data, please observe the following instructions
Warning signs
3. Danger of heat generation due to insufficient ventilation of the
product/power supply!
• Avoid external heat supply and provide air exchange.
• Keep fan outlets and heat sinks free.
• Avoid direct sunlight on the product/power supply.
• Make sure there is enough environmental space for the product/power supply.
• Do not place any objects on the device/power supply.
• Please be sure to read the instructions for use.
• Keep small parts and accessories safe from children.
• Keep and dispose of plastic bags and packaging from children.
• Never put small parts and packaging into children's hands!
4. Danger of suffocation! Danger due to small parts and packaging!
• Please be sure to read the operating instructions.
• Use the product only if all specifications and requirements are met.
• Always perform a data backup of storage media to be installed.
• Always perform a data backup before commissioning.
• Always perform a data backup before connecting new hardware.
• Only use the accessories supplied with the product.
5. Possible data loss / data loss during commissioning.
6. Cleaning of the product.
• Take the product out of operation before each cleaning.
• Do not use aggressive / harsh cleaners.
• Make sure that there is no residual moisture in the device after cleaning.
• It is best to use an antistatic cloth for cleaning.
7.
Disposal of the product - environmental pollution, recycling not possible!
•
Avoid any contact with electrically conductive parts, there is a danger to life due to electric shock.
•
Please read the operating instructions before use.
•
Make sure the product is not energized before opening or working on it.
•
Please do not remove the contact protection cover under any circumstances.
•
Avoid contact with live parts.
•
Do not touch any plug-in connectors with metallic or pointed objects.
•
Use the product only in designated environments.
•
If necessary, operate the product only with power supplies that correspond to the nameplate.
•
Do not expose the product or power supply to moisture and liquid, steam and dust.
•
Do not make any independent modifications to the product.
•
Do not connect / use the product during a thunderstorm.
•
In case of repair, please contact the specialist dealer or GrauGear.
Cutting and hand injuries possible during assembly.
Danger to life due to choking and swallowing.
Irrecoverable data loss possible!.
Damaging cleaning agent - scratches, color changes, moisture damage or short circuit on the device.
"The adjacent symbol on the product and packaging indicates that this product must not
be disposed of with other household waste. If necessary, remove old batteries,
rechargeable batteries and lamps before returning the product (if possible without
destroying the old device and if it is not to be reused).
According to the Waste Electrical and Electronic Equipment (WEEE) Directive, you may
not dispose of this product and any batteries/rechargeable batteries it may contain in
your normal household waste.
If you wish to dispose of this product/batteries, please take them to a suitable disposal
point (recycling collection point in your city) or return them to your point of purchase."
Ohlstedter Strasse 17, 22949 Ammersbek / Germany
Made in China
www.graugear.de
© Copyright 2021 by CHAB GmbH. All Rights Reserved
G-M2HS05-F
Windows and the Windows logo are registered trademarks of Microsoft Corporation.
Apple, macOS, MAC, iTunes and Macintosh are registered trademarks of Apple Computer.
In this case, overheating and/or failure of the product/power supply unit is possible.

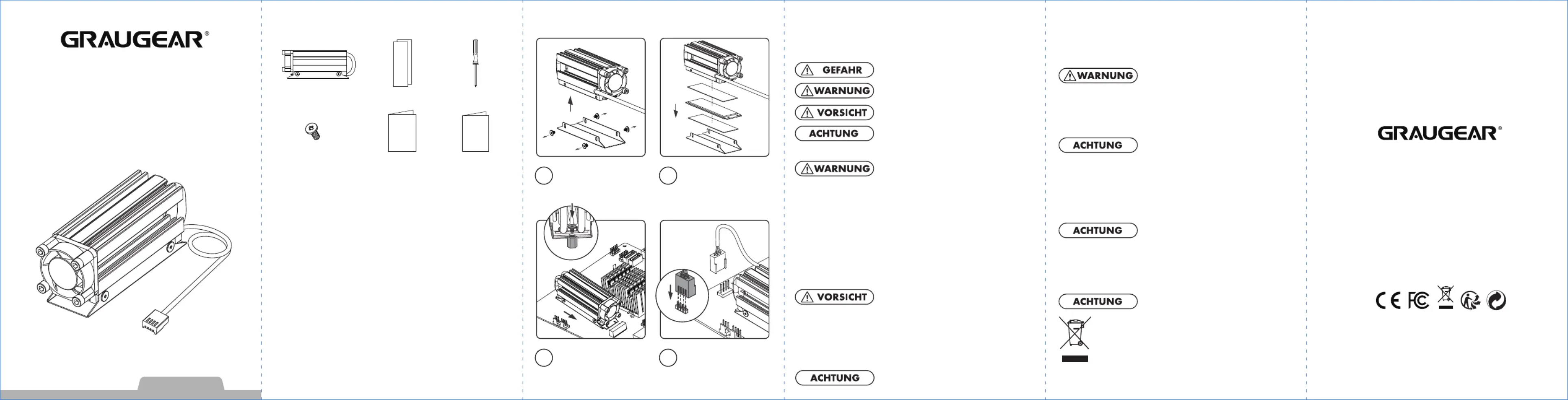

Installation
Unscrew all 4 screws and remove
the bracket from Heatsink.
1Install the M.2 SSD with thermal
pads into bracket and reattach
the bracket with 4 screws
2
Place the Heat Pipe Cooler with
M.2 SSD into the M.2 slot of
motherboard and attach the SSD
mounting screw.
3Plug the 4 Pin connector into the
4 Pin socket on the motherboard
and the installation is complete.
4
SYS_FAN
G-M2HS05-F
Features
Screwdriver
Manual Warranty card
Package Contents
4x Thermal Pad
SSD mounting screw
Specification
• Fan Rated Voltage : DC12V
• Fan Rated Current : 70mA(Max 90mA)
• Fan Rated Speed : 8500RPM
• Fan Dimension : 25x25x10 mm
• Fan Cable Type : 4 Pin (Connection to MB SYS_FAN)
• Cable length : 500mm
• Air flow : 2.87CFM
• Dimension : L87 mm x W26 mm x H34 mm
• Weight : 100 g
• Heat Pipes : 4mm heatpipe x 2
• Heat Pipe from copper provides maximum cooling performance.
• 25 mm PWM fan which is ablo to control the speed of fan by changing
temperatures.
• Reduces the heat of M.2 SSD up to 50%
• Design for PC
• Compatible with single/double sided M.2 2280 SSDs
Heat Pipe Cooler
for M.2 2280 SSD
