Safety instructions

Electrical equipment must only be installed

and assembled by a qualied electrician in ac-

cordance with the relevant installation stand-

ards, guidelines, regulations, directives, safety

and accident prevention regulations of the

country.

Failure to comply with these instructions may

result in damage to the device, re or other

hazards.

Hazard due to electric shock. Do not operate

device without application module.

Hazard due to electric shock. The device is not

suited for safe disconnection of the mains

supply. Even when the device is switched o󰀨,

the load is not galvanically separated from the

mains supply.

Do not connect any non-dimmable lamps, their

transformers or operating devices. Observe

manufacturer's data.

Hazard of re. During operation with conven-

tional transformers, fuse each transformer on

the primary side according to manufacturer's

data. Use safety transformers that comply with

EN 61558-2-6 (VDE 0570 Part 2-6) only.

These instructions are an integral component

of the product and must be retained by the end

user.

Design and layout of the device

(3)

(1)

(4)

(7)

(6)

(9)

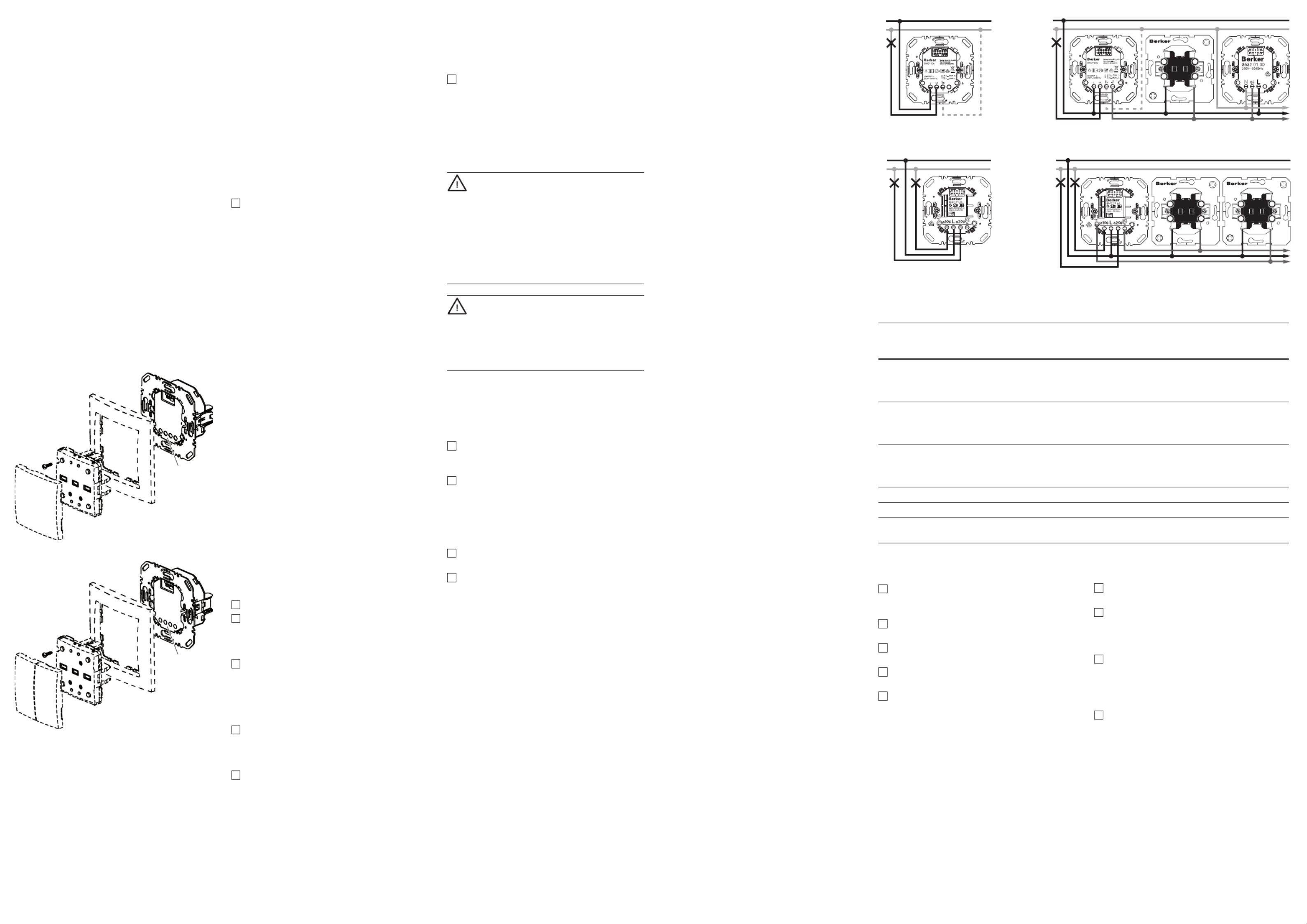

Figure 1: Push-button dimmer (comfort) 1gang

(3)

(8)

(6)

(9)

(2)

(5)

Figure 2: Push-button dimmer 2gang

(1) Push-button dimmer (comfort) 1gang

(2) Push-button dimmer 2gang

(3) Frame (not within scope of delivery)

(4) Application module 1gang (see “Accessories”)

(5) Application module 2gang (see “Accessories”)

(6) Screw for dismantling protection

(not for design lines R.1/R.3/R.8)

(7) Design cover button 1gang

(8) Design cover button 2gang

(9) Terminals

Function

Correct usage

- Switching and dimming of incandescent lamps,

HV halogen lamps and dimmable 230 V LED

lamps; electronic or dual-mode transformers

with low voltage halogen lamps

- Additional for push-button dimmer 2gang:

Switching and dimming of dimmable ener-

gy-saving lamps possible

- Only suitable for use in indoor areas with no

drip and no spray water

- Installation into wall box according to

DIN 49073 (recommendation: deep box)

- Operate with suitable application module

(see “Accessories”)



No mixed load operation of capacitive and

inductive loads possible at the output.

Product characteristics

- Automatic setting of load-dependent dimming

principle and optional settings via the applica-

tion module e.g. for dimmable 230 V LED

lamps

- Soft start for bulb protection

- Electronic short circuit protection

- Electronic overload and overheating protection

- Electronic interference signal suppression

e.g. for ripple control impulses

Additionally for push-button dimmers 1gang, and

comfort 1gang:

- Minimal switch-on brightness either specied at

the factory and settable manually via the appli-

cation module.

Additionally for push-button comfort dimmer

1gang:

- Extension unit for push-button (NO contact) or

motion detector extension units

(see “Accessories”)

Additionally for push-button dimmer 2gang

- Di󰀨erent load types at each output possible

- Output wattage ratings independent from each

other

- Possible to operate only output 1

- Connection of extension unit push-button

(NO contact) per each output possible

Information on dimming behaviour



Do only use dimmable loads.



Short term ickering during load detection of

ohmic loads possible. No operation is possible

during load detection. These are not defects of

the device.



Flickering of connected lamps possible due to

the load falling below the specied minimum

level, ripple control impulses from power sta-

tions, or replacement of 230 V LED lamps and

(for push-button dimmer 2gang) energy-saving

lamps.



If the switching and dimming performance of

230 V LED lamps is unsatisfactory in the fac-

tory setting, a load setting must be carried out.

► See operating instructions of the application

module.



When circuiting several loads to one output

(parallel circuiting), optimise dimming perfor-

mance via load ne-setting if necessary.

Operation

These instructions describe the installation of the

push-button dimmer inserts. Refer to the operating

manual of the appropriate application module for

information on operation and load adjustment.



Push-button dimmer comfort 1gang, and

push-button dimmer 2gang: The operation of

extension units is only possible if an application

module is attached to the insert.

Information for electricians

Mounting and electrical connection

DANGER!

Electrical shock when live parts are

touched.

An electric shock can lead to death.

Isolate all power before working on the

device and cover any live parts in the

area!

CAUTION!

Do not interconnect the outputs of

push-button dimmer 2gang.

Operating both outputs on a joint load

will destroy the device.

Circuiting and mounting the push-button

dimmer

A MCB max. 16 A has been installed as device

protection.

Connect the push-button dimmer according to

the connection diagram (Figure 3 to 6).



The push-button dimmers (comfort) 1gang,

possess an optional N terminal (Figures 3 and

4). Operation without neutral conductor possi-

ble.



On the push-button dimmer 2gang, a load must

be connected to output 1 as a power supply.

Optional on push-button dimmers comfort

1gang and 2gang: Connect suitable extension

units (Figure 4 and 6).



Illuminated mechanical push-button extensions

must be equipped with a separate N terminal.



Only use motion detector extension units if a

push-button dimmer comfort 1gang, is operated

with a suitable motion detector application

module (see “Accessories”).

Mount the push-button dimmer into a wall box

(recommendation: deep box). The connecting

terminals must be at the bottom.

Attach frame and application module.

► See operating instructions of the application

module.

Technical data

Rated voltage AC 230 V~, + 10%/- 15%

Mains frequency 50/60 Hz

MCB max. 16 A

Load cable length max. 100 m

Power values (see Table 1)

Connecting terminals 1 x 2.5 mm² or

2 x 1.5 mm²

Installation orientation Connecting terminals

downwards

Installation depth 32 mm

Degree of protection IP20

Operating temperature -5°C … +45°C

Storage/transport temperature -20°C … +60°C

Relative humidity (without dewing)

- For push-button dimmer (comfort)

1gang 10 ... 95%

- For push-button dimmer 2gang 0 ... 65%

Extension units on push-button dimmer

comfort 1gang

Number of push-button extension units

or motion detector extension units unlimited

Extension unit cable length max. 50 m

Extension units on push-button dimmer 2gang

(per output)

Number of extension units unlimited

Extension unit cable length max. 50 m

Accessories

LED compensation module 2913

Application modules for push-button dimmer

(comfort) 1gang

Button 1gang 8514 11 xx

KNX radio button 1gang quicklink 8514 51 xx

KNX radio button 4gang quicklink 8564 81 xx

Motion detector 1.1 m 8534 11 xx

Motion detector 2.2 m 8534 21 xx

IR motion detector comfort 1.1 m 8534 12 xx

IR motion detector comfort 2.2 m 8534 22 xx

KNX radio motion detector

comfort 1.1 m quicklink 8534 51 xx

KNX radio motion detector

comfort 2.2 m quicklink 8534 61 xx

Application modules for push-button dimmer

2gang

Button 2gang 8514 21 xx

KNX radio button 2gang quicklink 8514 61 xx

KNX radio button 4gang quicklink 8564 81 xx

Universal push-button dimmer 1gang

(R, L, C, LED)

Universele tastdimmer 1-voudig

(R, L, C, LED)

Order no./bestelnr.: 8542 11 ..

Universal push-button dimmer

comfort 1gang (R, L, C, LED)

Universele tastdimmer Comfort

1-voudig (R, L, C, LED)

Order no./bestelnr.: 8542 12 ..

Universal push-button dimmer 2gang

Universele tastdimmer 2-voudig

Order no./bestelnr.: 8542 21 ..

Operating and

assembly instructions

Bedienings- en

montagehandleiding

Berker GmbH & Co. KG

Zum Gunterstal

66440 Blieskastel, Germany

Tel.: + 49 6842 945 0

Fax: + 49 6842 945 4625

e-mail: info@berker.de

www.berker.com

07/2021

6LE003237C

Load types Push-button

dimmer

1gang

8542 11 xx

Push-button

dimmer

comfort 1gang

8542 12 xx

Push-button

dimmer

2gang (per output)

85 42 21 xx

Incandescent lamps, HV halogen lamps

- at 50 Hz

- at 60 Hz

20 ... 350 W

20 ... 325 W

20 ... 350 W

20 ... 325 W

35 ... 300 W

LV halogen lamps

- with conventional transformers

- with electronic/bi-mode transformers

20 ... 200 VA

20 ... 400 VA

20 ... 200 VA

20 ... 400 VA

35 ... 300 VA

Dimmable 230 V LED lamps (phase cut-on)

- at 50 Hz

- at 60 Hz

3 ... 60 W

3 ... 55 W

3 ... 60 W

3 ... 55 W

12 ... 40 W

Dimmable 230 V LED lamps (phase cut-o󰀨) 3 ... 120 W 3 ... 250 W 12 ... 40 W

Dimmable energy-saving lamps - - 15 ... 54 W

Power consumption (standby) < 0.3 W < 0.3 W 0.3 W (output 1)

0.7 W (output 2)

Table 1: Load types - Power values at 25°C

5031

Figure 3: Push-button dimmer 1gang Figure 4: Push-button dimmer (Comfort) 1gang with optional extension units

Figure 5: Push-button dimmer 2gang Figure 6: Push-button dimmer 2gang with optional push-button extension units



Power reduction per 10°C over 25°C for

push-button dimmers 1gang, and comfort

1gang: approx. -8%



Power reduction per 5°C over 25°C for

push-button dimmer 2gang: -10 ... -30%



Mixed loads possible to lowest maximum load.



Power data for LED lamps are typical values

for 230 V mains voltage.



Push-button dimmer (comfort) 1gang:

For LED loads of 50 W or more, we recom-

mend operation in “LED mode 2”. ► See oper-

ating instructions of the application module.

If the switching/dimming behaviour here is not

satisfactory, then, alternatively the “Load fac-

tory setting” or “LED mode 1” can be selected.

Note: In “LED mode 1”, the connection output

is typically limited to 60 W, depending on the

LED!



Do not use non-dimmable energy-saving lamps

or 230 V LED lamps.



With 230 V LED lamps, the power supply to

the dimmer can cause the lamp to glow weakly,

even when it is switched o󰀨.



Conventional transformers should be operated

with at least 50% nominal load. Nonetheless,

75% is recommended because in individual

cases, depending on the transformer, unstable

dimming performance may occur.



Carry out loading of conventional, electronic

and dual-mode transformers according to man-

ufacturer's instructions.

Troubleshooting

Device switches o󰀨 and can no longer be

switched on after a certain time.

Electronic overheating protection has triggered.

Reduce connected load.

Check the installation situation.

Device briey switches o󰀨 and on again.

Short circuit protection has triggered, but in the

meantime there is no longer a fault.

Push-button dimmer 2gang switches both

outputs o󰀨.

Load at output 1 is defective and interrupts the

power supply of the joint push-button dimmer.

Repair load at output 1.

Warranty

We reserve the right to realise technical and

formal changes to the product in the interest of

technical progress.

Our products are under guarantee within the

scope of the statutory provisions.

If you have a warranty claim, please contact the

point of sale.

Important information on Table 1:

Produkt Specifikationer

Mærke:	Hager
Kategori:	Ikke kategoriseret
Model:	85422100

Har du brug for hjælp?

Hvis du har brug for hjælp til Hager 85422100 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret Hager Manualer

9 December 2024

9 December 2024

9 December 2024

9 December 2024

9 December 2024

9 December 2024

9 December 2024

9 December 2024

9 December 2024

9 December 2024

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

EOTech EXPS3 Manual

26 December 2024

Schwinn 430 Manual

26 December 2024

Mount-It! MI-SB52 Manual

26 December 2024

Taga Harmony GTCS-606-6R SE Manual

26 December 2024

Taga Harmony TA-600multi Manual

26 December 2024

Taga Harmony TA-900multi Manual

26 December 2024

Taga Harmony TCW-100R v.3 Manual

26 December 2024

Taga Harmony TCW-180R Manual

26 December 2024

Taga Harmony TCW-380R Manual

26 December 2024

Taga Harmony TCW-600R v.2 Manual

26 December 2024
