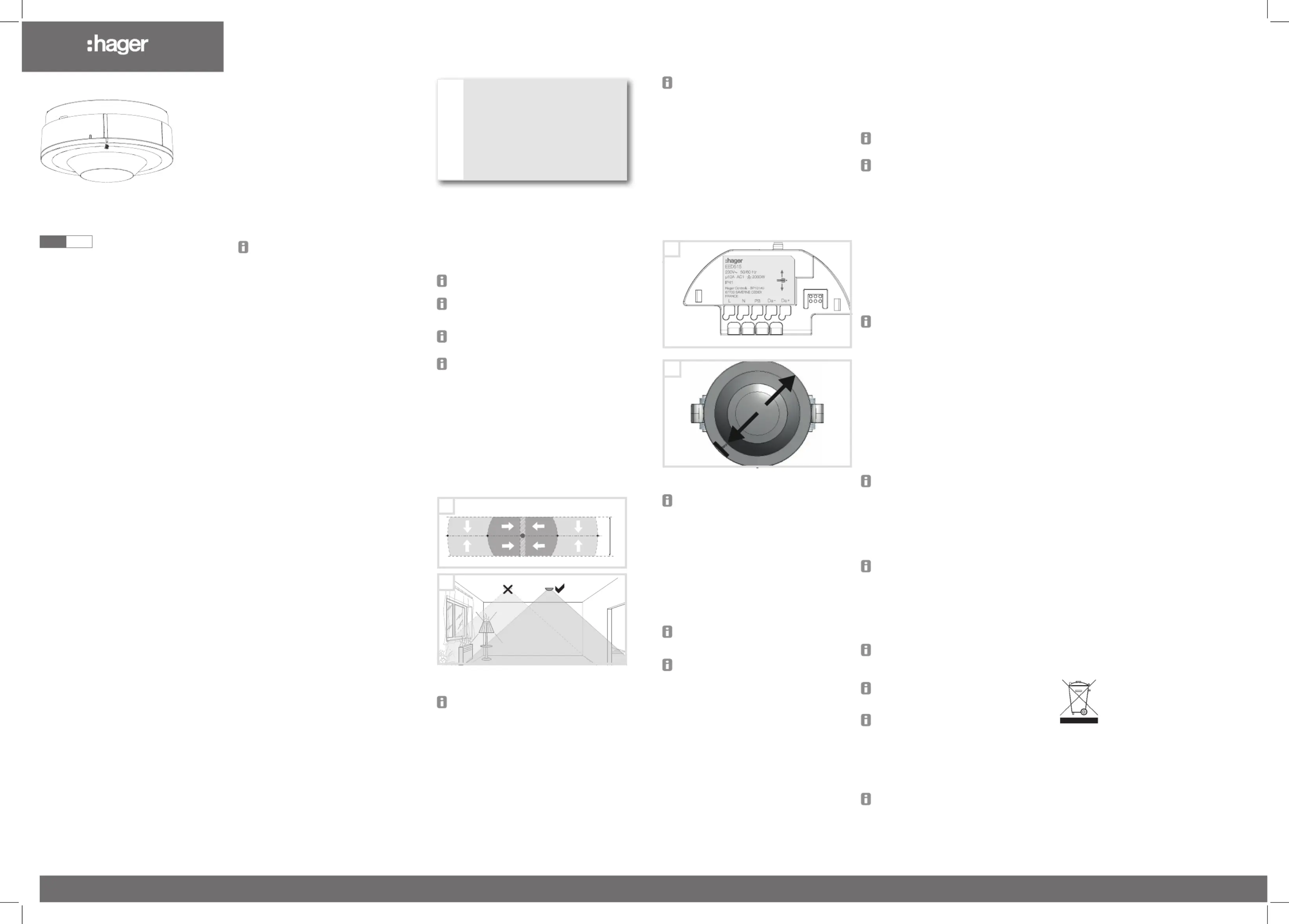

6LE007301A

01 02

EED505

Motion detector corridor DALI-2

360° built-in

EED515

Motion detector corridor DALI-2

360° surface-mounted

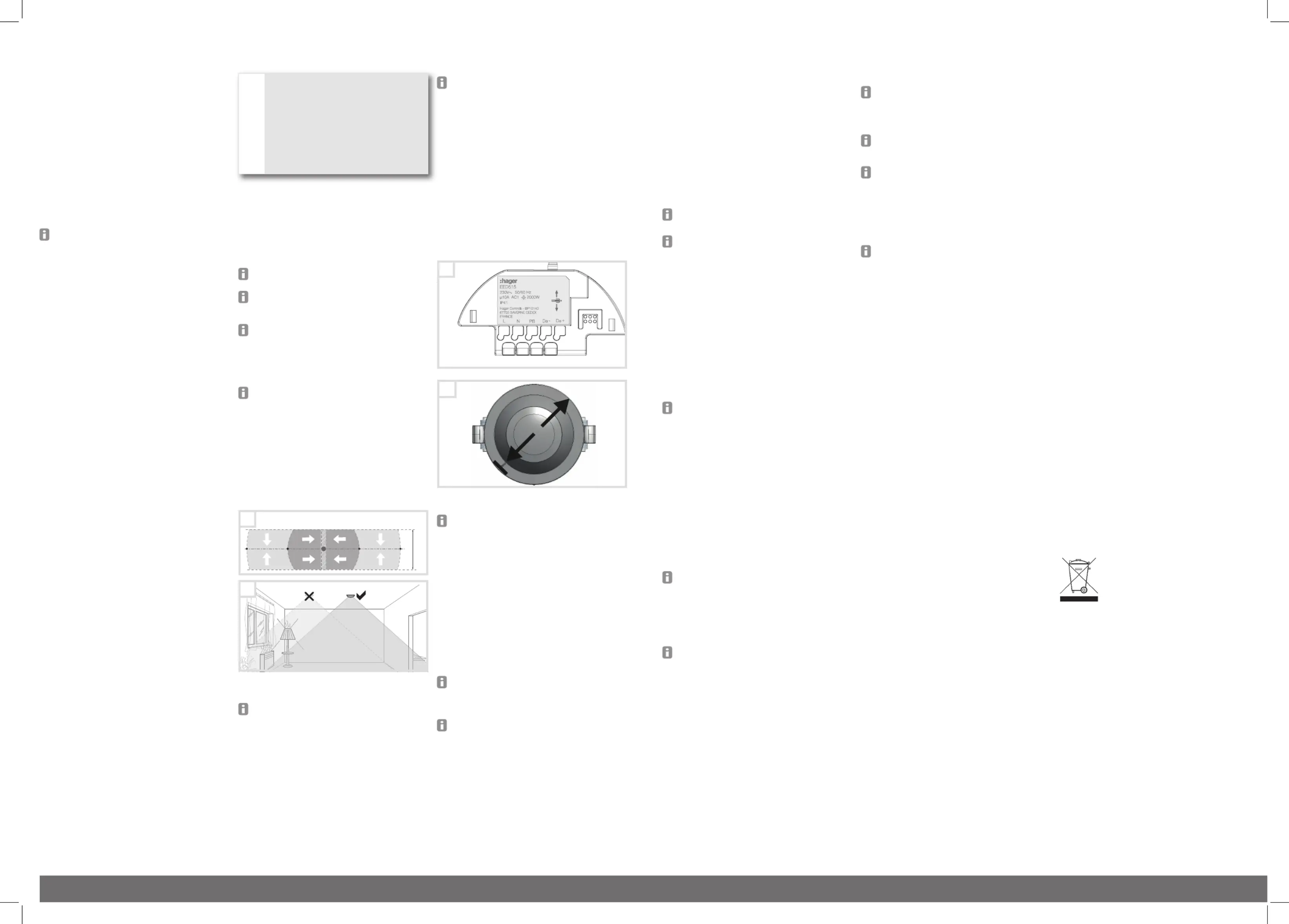

EED505

Rilevatore di movimento per corri-

doio DALI-2 360° da incasso

EED515

Rilevatore di movimento per

corridoio DALI-2 360° a parete

Safety instructions

Electrical equipment may only be installed and

assembled by a qualified electrician in accor-

dance with the relevant installation standards,

regulations, directives and safety and accident

prevention directives of the country.

Failure to comply with these installation inst-

ructions may result in damage to the device,

fire or other hazards.

Due to its detection behaviour the device is not

suitable for use in burglary detection or alarm

systems.

These instructions are an integral component

of the product and must be retained by the end

user.

Design and layout of the device

(Figure 3/4)

Additional figures can be found on page 05.

(1) connecting terminals

(2) Mounting device locking screw

(3) Unlocking opening

(4) Fastening grids

(5) Detector lens with integrated status LED red/

green

(6) Response brightness potentiometer

(7) Potentiometer delay time

(8) Cover for potentiometer

(9) Locking screw

(10) Fixing springs

(11) Strain relief with mounting device for cable

ties

(12) Cover for connection compartment

(13) Cable entry cut-out

Function

Correct use

- Automatic switching and control of DALI-2

loads.

- EED505: Cavity installation

- EED515: Surface-mounted installation or instal-

lation on mounting boxes according to valid

standard (e.g. DIN 4907)

Product characteristics

- Detection of motion especially in hallways/long

aisles

- Response brightness and daylight control can

be set

- Delay time adjustable

- Master-slave operation

- Operation mode: automatic/semiautomatic is

adjustable via IR configuration hand-held trans-

mitter (see Accessories)

- Older DALI devices can be controlled without

guarantee

Behaviour during operation

The motion detector detects heat motion caused

by people, animals, or objects in accordance with

IEC 63180.

- will be switched on for the delay time if move-

ments are detected in the detection area and

the set response brightness is undershot. Each

detected movement restarts the delay time.

- will be switched off if no additional movements

are detected in the detection area and the set

delay time has elapsed or the set response

brightness is exceeded.

Information for electricians

Installation and electrical connection

DANGER !

Touching live parts can result in an

electric shock!

An electric shock can be lethal!

Disconnect the connecting cables

before working on the device and

cover all live parts in the area!

Selecting installation location

The motion detector must be installed horizontally

and with a distance of 1 m to doors on the corridor

ceiling. It has a detection area of 30 x 5 m. The de-

tection area depends on the installation height. At an

installation height of 3 m, the range at ground level

is approx. 30 m in length and approx. 5 m in width

(Figure 1).

The installation of the device near doors should

be avoided.

At an installation height greater than 3 m, the

detection area increases. At the same time, the

detection sensitivity decreases.

The device must be completely installed and

closed to meet the degree of protection IP41.

Observe the motion orientation: a distinction is

made between "direct approach" and "transverse

motion". Motions transverse to the motion detec-

tor can be detected better than motions toward

the motion detector (Figure 1).

Avoid sources of interference in the detection

area. Sources of interference, e.g. heating

elements, ventilation systems, air conditioners

and lamps that are cooling down can cause

undesired switching (Figure 2).

Select an installation location that is free of

vibration. Vibrations can cause undesired

switching.

7m 7m 15m15m

Connecting and installing the built-in variant

EED505 (Figure 7)

Observe installation direction. Install the device

in such a way that the arrow shown in figure 10

corresponds to the axle of the corridor.

Establish installation opening Ø 68 mm.

Connect motion detector according to the con-

necting diagram (Figure 5).

Establish strain relief on the corresponding

mounting devices (11) with cable ties.

Attach cover (12).

Configure settings.

Insert the two fixing springs (10) through the

installation aperture while pressing upwards

and allow them to spring back.

Connecting and installing the surface-mounted

variant EED515 (Figure 6).

Pay attention to mounting orientation (Figure 8).

Observe installation direction. Install the device

in such a way that the arrow shown in figure 8

corresponds to the axle of the corridor.

Feed the connection cable through the insertion

opening (13).

Install device socket under the ceiling using the

screw dowel set enclosed. If available, install

device socket in a flush-mounted box.

Connect device according to connection diagram

(Figure 5).

Snap device application module onto base.

Screw in locking screw (9).

Configure settings.

Close cover (8).

Commissioning

The device is in warm-up phase after voltage

recovery. (up to 45s). During this time the status

LED is flashing green.

Testing the detection

In test mode, the motion detector works with ma-

ximum response brightness. If motion is detected,

the load is switched for approx. 2 seconds.

Set the potentiometer response brightness (6)

to the Test position (Figure 3/4)

The device is in test mode.

Carry out test by moving in the detection area.

If the motion detector switches on without mo-

tion in the detection area, then sources of inter-

ference are present (see Installation location).

After 2 minutes in test mode and no detected

movement, the device is automatically set to

the standard value (500 Lux).

Setting the response brightness

The response brightness is the brightness value

saved in the motion detector; when this value is

undershot the connected load is switched on if move-

ments are detected. The brightness threshold can be

set continuously between approx. 5 and 2000 Lux

(daytime operation/brightness-independent).

Turn the response brightness potentiometer (6)

to the desired position.

Setting the delay time

The delay time is the period of time set in the

motion detector which is the shortest time that the

lighting is switched on when the response bright-

ness is undershot and motion is detected. The

delay time can be set between pulse /approx. 2 s)

and approx. 5 s to 60 min.

Turn the delay time potentiometer (7) to the

desired position.

Detecting the DALI-2 status

A detector parameter means that it is possible to

select the dimming status after starting (restoration

of the power supply). After the device is started,

a DALI status is displayed using the green or red

LED. This setting can be activated or deactivated.

The green LED flashes whilst a DALI-2 device

is being detected.

The red LED flashes when a DALI-2 bus error

is detected, e.g. no device is connected or a

DSI ballast is detected.

Operating mode: Dimming function active in

Automatic mode

After the detection operation, the DALI-2 output

regulates the brightness using the specified

software or remote control value. This selection

is saved as standard. The output is activated for

the duration set on the potentiometer (7). If the

potentiometer is set to , no light control Adr/On

occurs. The DALI output is set to the last set value,

100% or another value that can be changed using

the IR remote control or the push-button.

In the basic setting, the setpoint is 500 lux.

Operating the priority input

A connected push-button is used for forced

switching of the output. The duration of the forced

switching is specified using the time set on the

potentiometer (7).

Set the dimming value by holding down the

connected push-button.

Commissioning with the IR configuration hand-

held transmitter

The commissioning can also be carried out via

the IR configuration hand-held transmitter (see

Accessories).

A detailed description of the EE807 hand-held

transmitter can be found in the enclosed inst-

ructions.

Operation by IR hand-held transmitter

The IR hand-held transmitter can be used to con-

trol the lighting connected to the motion detector,

e.g. on/off.

A detailed description of the EE808 hand-held

transmitter can be found in the enclosed inst-

ructions

Master-slave operation

To extend the detection area, it is possible to

connect additional devices (slave) in parallel to the

master - master/slave operation (Figure 5).

Only relay devices (EER5XX) can be used as

a slave. A further DALI-2 device (EED5XX) is

not suitable for use.

Additional information on the master-slave

configuration is available on the website on the

download page for the device.

Switches must not be connected to the PB input

of the slave device in slave mode.

Master settings (EED5XX)

Setting the response brightness (6).

Setting the delay time (7).

Slave settings (EER5XX)

A detailed description of the EER5XX Salve

device can be found in the corresponding inst-

ructions.

Set the response brightness potentiometer (6)

to the SL position.

Adjust the potentiometer delay time (7) to suit

the respective application case (additional

information on application cases is available on

the download page for the device).

Adjusting the detection area

If the detection area of the detector is too wide or

covers areas that should not be monitored, the

adhesive strips provided can restrict the detection

area if required.

Appendix

Technical data

Supply voltage 230 V~, +10%/-15%

240 V~, +6/-6%

Frequency 50/60 Hz

Power consumption without load <0.5 W

Delay time, adjustable

- Operation 5 s ... 60 min

- Factory setting ~ 15 min

Response brightness, adjustable 5 ... 2000 Lux

- Factory setting 500 Lux

Recommended installation height 2.5 m ... 3.5 m

maximum installation height 4 m

Detection area Ø motion (installation height 3 m)

transverse motion towards detector ~ 30 x 5 m

approach detector ~ 14 x 5 m

Detection angle approx. 360°

Cable length between

first and last device max. 50 m

Number of slave devices per master max. 10

Upstream circuit breaker 10A

Quantity of DALI-2 devices max. 24

DALI information

- DALI voltage 16 V

- Guaranteed current 48 mA

- Maximum current 250 mA

Relative humidity (no condensation) 30°C, 95%

Operating temperature -5 °C ... +45 °C

Storage/transport temperature -20 °C... +70 °C

Degree of protection IP41

Protection class II

Impact resistance IK 04

Operating altitude < 2000 m

Dimensions EED505 (Ø x H) 85 x 75.9 mm

Dimensions EED515 (Ø x H) 105 x 59.7 mm

Connection cross-section

- Plug-in terminals (2x) 0.5 ... 2.5 mm²

- Recommended conductor

cross-section 1.5 mm²

Accessories

IR configuration hand-held transmitter EE807

IR hand-held transmitter EE808

Correct Disposal of this product (Waste

Electrical & Electronic Equipment).

(Applicable in the European Union and other

European countries with separate collection

systems).

This marking shown on the product or its literature indi-

cates that it should not be disposed with other household

waste at the end of its working life. To prevent possible

harm to the environment or human health from uncon-

trolled waste disposal, please separate this device from

other types of wastes. Recycle the device responsibly to

promote the sustainable reuse of material resources.

Household users should contact either the retailer where

they purchased this product, or their local government of-

fice, for details of where and how they can take this device

for environmentally safe recycling.

Business users should contact their supplier and check

the terms and conditions of the purchase contract. This

product should not be mixed with other commercial was-

tes of disposal.

Produkt Specifikationer

Mærke:	Hager
Kategori:	Bevægelsesdetektor
Model:	EED515

Har du brug for hjælp?

Hvis du har brug for hjælp til Hager EED515 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Bevægelsesdetektor Hager Manualer

9 December 2024

9 December 2024

9 December 2024

9 December 2024

9 December 2024

9 December 2024

9 December 2024

9 December 2024

9 December 2024

9 December 2024

Bevægelsesdetektor Manualer

Nyeste Bevægelsesdetektor Manualer

Hikvision DS-PI-D80 Manual

8 December 2024

Hikvision DS-PI-T100 Manual

8 December 2024

Hikvision DS-PI-T150 Manual

8 December 2024

Theben TheLuxa P220 WH Manual

6 December 2024

Theben thePrema S360 KNX UP Manual

6 December 2024

IFM OG5099 Manual

5 December 2024

Theben TheLuxa P300 BK Manual

5 December 2024

Optex RLS-2020S Manual

5 December 2024

Optex BXS-R Manual

5 December 2024

Optex HX-80N Manual

5 December 2024
