EER501CH
Presence detector/motion detec-
tor Mini 360° built-in
Rilevatore di presenza/rilevatore
di movimento 360° da incasso
z
y
Tel. 041 269 90 00 Fax 041 269 94 00 hager.ch - 06.2022Hager SA, Sedelstrasse 2, 6020 Emmenbrücke, Switzerland
(3)
(4)
(2)
(1)
1
(5) (6)
3
L
L
L‘ N
N
PE
4
PB
6
X
X
5
N
PE
L
N
LPB
L‘
Master Slave-1
NL PB
L‘
max. slave ≤ 10
Safety instructions
Electrical equipment must only be installed and
assembled by a qualified electrician in accord-
ance with the relevant installation standards,
regulations, directives and safety and accident
prevention directives of the country.
Failure to comply with these installation in-
structions may result in damage to the device,
fire or other hazards.
Due to its detection behaviour, the device is not
suitable for use in burglary detection or alarm
systems.
These instructions are an integral component
of the product and must be retained by the end
user.

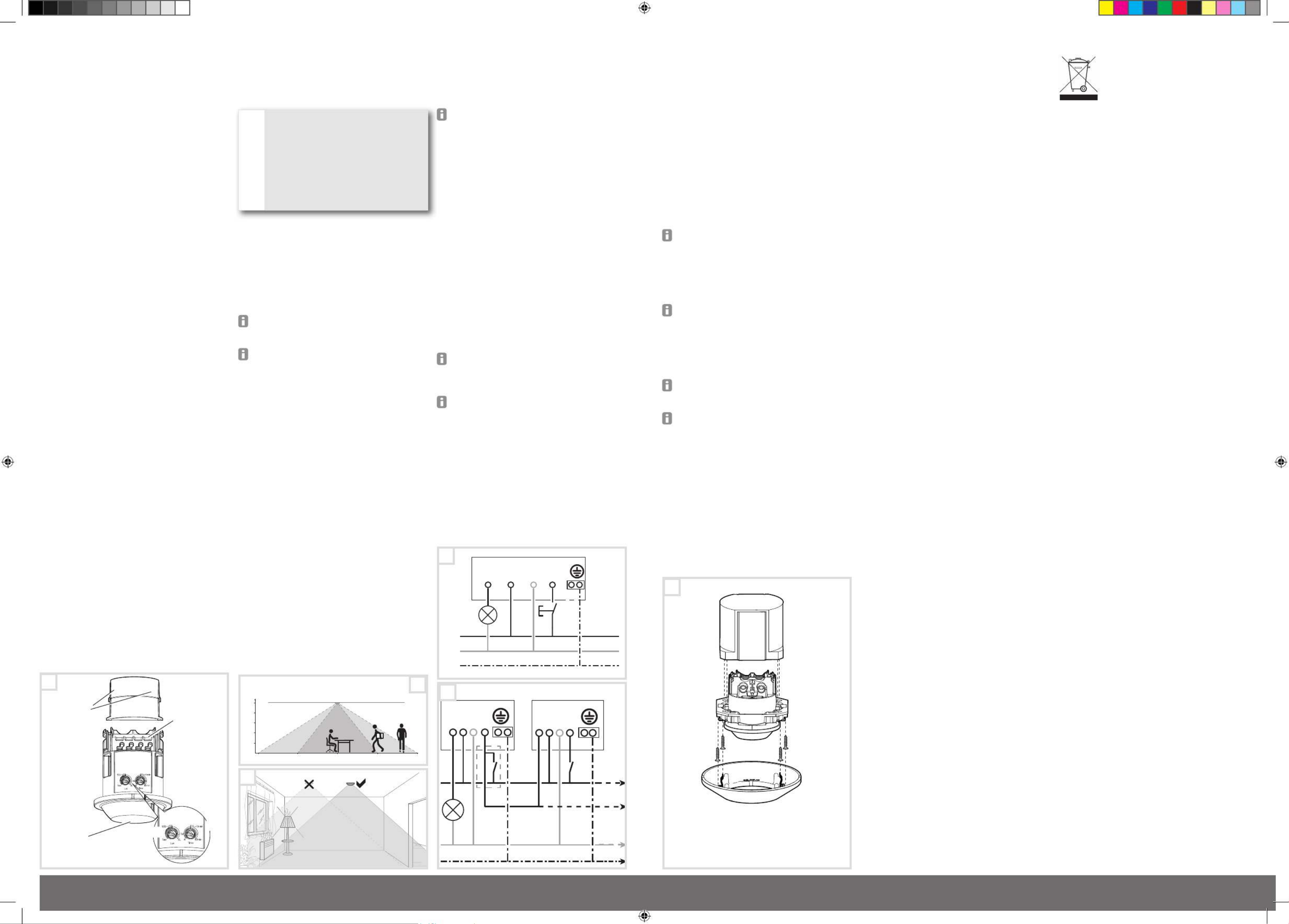

Design and layout of the device
(Figure 1)
(1) Cover for connection department
(2) Strain relief with mounting device for cable
ties
(3) Securing clips
(4) Detector lens with integrated status LED red/
green
(5) Response brightness potentiometer
(6) Delay time potentiometer
Function
Correct usage
- Automatic switching of electric loads depending
on heat motion and ambient brightness
- Installation in flush-mounted housing, size 1
Product characteristics
- Combination of presence and motion detector
with enhanced detection sensitivity in the cen-
tral presence-detection area
- Response brightness adjustable
- Delay time adjustable
- Master-slave operation
- Optional: Operation modes automatic/semiauto-
matic are adjustable via IR configuration hand-
held controller (see Accessories)
Behaviour during operation
The motion detector detects heat motion caused
by people, animals, or objects in accordance with
IEC 63180.
- Will be switched on for the delay time if move-
ments are detected in the detection area and
the set light level is undershot. Each detected
movement restarts the delay time.
- Will be switched off if no additional movements
are detected in the detection area and the set
delay time has elapsed or the set light level is
exceeded.
Information for electricians
Installation and electrical connection
DANGER!
Electrical shock when live parts are
touched!
An electric shock can lead to death!
Isolate all power before working on
the device and cover any live parts in
the area!
ç
Selecting installation location
The motion detector must be installed horizontally
on the ceiling. It has a detection angle of 360°. The
diameter of the detection area depends on the in-
stallation height. At an installation height of 2.5 m,
the diameter at ground level is approx. 10 m. The
diameter of the inner detection area with enhanced
detection sensitivity is 5 m (Figure 3).
At an installation height greater than 2.5 m, the
detection area increases. At the same time, the
detection sensitivity decreases.
Observe the motion orientation: A distinction is
made between "direct approach" and "trans-
verse motion". Motions transverse to the motion
detector can be detected better than motions
toward the motion detector (Figure 2).
If used as a presence detector, the device must
be installed so that areas with less motion activ-
ity (desk, seating area) are within the detection
area (Figure 2).
Avoid sources of interference in the detection
area. Sources of interference, e.g. heating
elements, ventilation systems, air conditioners
and lamps that are cooling down can cause
undesired switching (Figure 3).
Select an installation location that is free of
vibration. Vibrations can cause undesired
switching.
Connecting and installing (Figure 6)
Install flush-mounted fixing plate (8) on
flush-mounted housing (7).
Connect the presence detector according to the
connecting diagram (Figure 4).
Establish strain relief on the corresponding
mounting devices (2) with cable ties.
Snap presence detector into flush-mounted
housing. In so doing, observe the installation
direction (11) of the presence detector.
Configure settings.
Attach presence detector cover (9) to
flush-mounted fixing plate (8) until the mounting
springs (10) snap in.
Commissioning
The device is in warm-up phase after power is
connected (up to 45 s). During this time the sta-
tus LED is flashing green. If the device is set to
slave mode, the status LED flashes alternately
red and green and the relay is open.
Testing the detection
In test mode, the motion detector works with max-
imum response brightness. If motion is detected,
the load is switched for approx. 2 seconds. After
approx. 20 cycles, the operating cycles decrease in
order to protect the connected load.
Set the response brightness potentiometer (5)
to the Test position (Figure 1).
Set potentiometer delay time (6) to minimal (left
end stop) (Figure 1).
The device is in test mode.
Carry out test by moving in the detection area.
If the motion detector switches on without mo-
tion in the detection area, then sources of inter-
ference are present (see Installation location).
After 15 minutes in test mode, the device is
automatically set to the standard values (500
Lux/15 min).
Setting the response brightness
The response brightness is the brightness value
saved in the motion detector; when this value is
undershot the connected load is switched on if
movements are detected. The brightness threshold
can be set continuously between approx. 5 and
2000 Lux (daytime operation/brightness-independ-
ent).
Turn the response brightness potentiometer (5)
to the desired position.
Setting the delay time
The delay time is the period of time set in the
motion detector which is the shortest time that the
lighting is switched on when the light level is under-
shot and motion is detected. The delay time can be
set between pulse (approx. 2 s) and approx. 5 s to
60 min.
Turn the delay time potentiometer (5) to the
desired position.
Commissioning with the IR configuration hand-
held controller
The commissioning can also be carried out via the
IR configuration hand-held controller (see Acces-
sories).
A detailed description of the EE807 hand-held
controller can be found in the enclosed instruc-
tions.
Operation by IR hand-held controller
The IR hand-held controller can be used to control
the lighting connected to the motion detector, e.g.
on/off.
A detailed description of the EE808 hand-held
controller can be found in the corresponding
instructions.
Master-slave operation
To extend the detection area, it is possible to
connect additional devices (slave) in parallel to the
master - master/slave operation (Figure 6).
Additional information on the master-slave
configuration is available on the website on the
download page for the device.
Switches must not be connected to the PB input
of the slave device in slave mode.
Master settings (Figure 1)
Set the response brightness (5).
Set the delay time (6).
Slave settings (Figure 1)
Set the response brightness potentiometer (5)
to the position (Figure 1).SL
Adjust the potentiometer delay time (6) to suit
the respective application case (additional
information on application cases is available on
the download page for the device).
Adjusting the detection area
If the detection area of the detector is too wide or
covers areas that should not be monitored, the
adhesive strips provided can restrict the detection
area if required.
Appendix
Technical data
Supply voltage 230 V~, +10%/-15%
240 V~, +6/-6%
Frequency 50/60 Hz
Power consumption without load <0.5 W
Delay time, adjustable
- Operation 5 s ... 60 min
- Test mode, pulse 2 s
- Factory setting ~ 15 min
Response brightness, adjustable 5 ... 2000 Lux
- Factory setting 500 Lux
Recommended installation height 2.5 m ... 3.5 m
Maximum installation height 4 m
Detection area Ø motion (installation height 2.5 m)
transverse motion to detector ~ 10 m
Towards detector ~ 5 m
Detection area Ø presence
(installation height 2.5 m) ~ 5 m
Detection angle approx. 360°
Cable length between
first and last device max. 50 m
Number of slave devices per master max. 10
NO contact non-isolated with
zero cross switching 10 A AC1, 230 V~
Upstream circuit breaker 10 A
Incandescent and halogen lamps 230 V 2000 W
LED lamps/
compact fluorescent lamps 20 x 20 W (400 W)
Conventional transformers 1500 VA
Electronic transformers 1500 W
Fluorescent lamps
-parallel compensated 1000 W/130 μF
- with electronic ballast 1000 W
Relative humidity (no condensation) 30°C, 95%
Operating temperature -5 °C ... +45 °C
Storage/transport temperature -20 °C... +70 °C
Degree of protection IP41
Protection class II
Impact resistance IK 04
Operating altitude < 2000 m
Dimensions (Ø x H) 62 x 86.2 mm
Connection cross-section
- Plug-in terminals (2x) 0.5 ... 2.5 mm²
Accessories
IR configuration hand-held transmitter EE807
IR hand-held transmitter EE808
