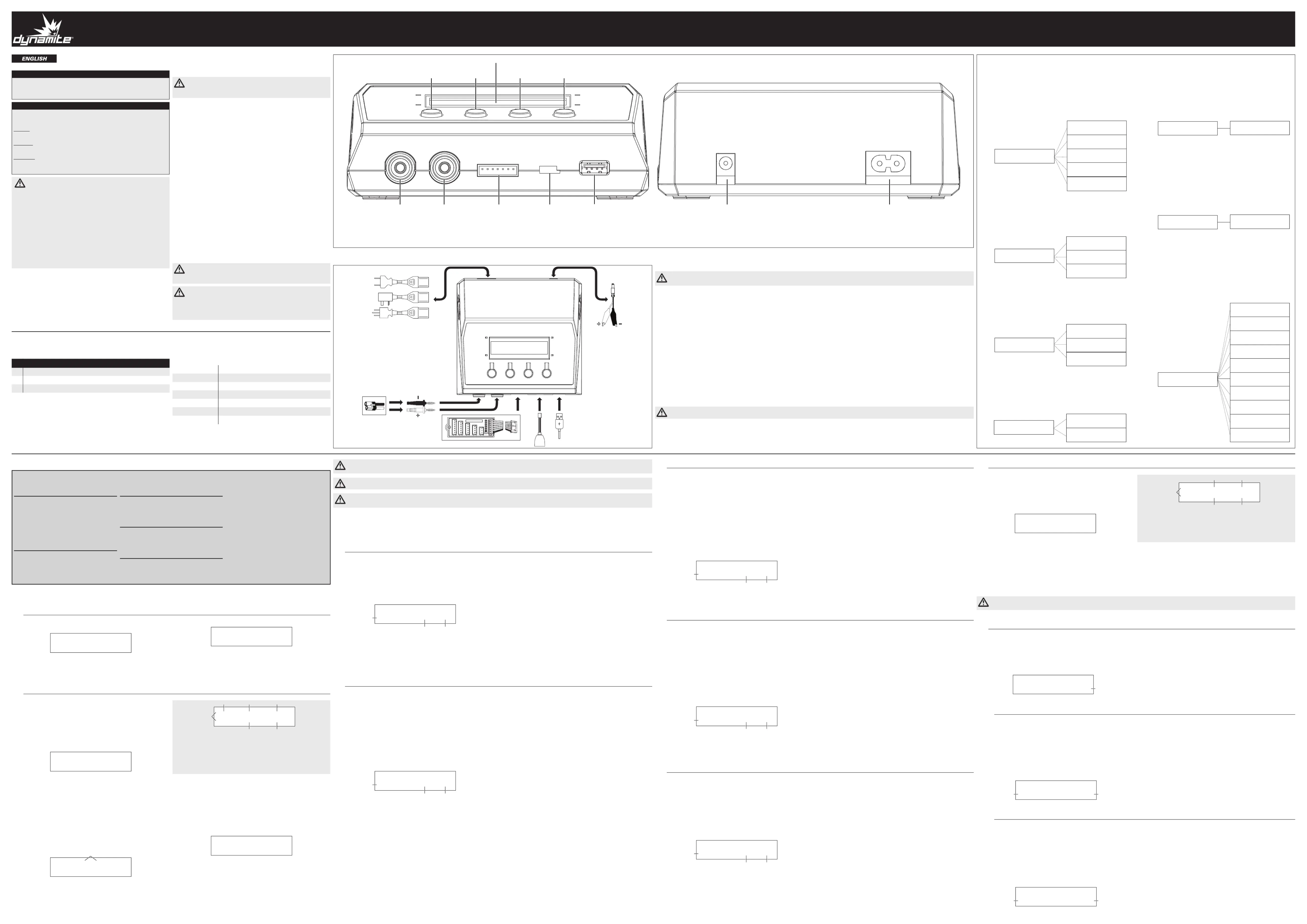

Side 1/2
Prophet™ Precept™ 80W LCD AC/DC Multi-Chemistry Battery Charger
InstructIon Manual | BedIenungsanleItung | Manuel d’utIlIsatIon | Manuale dI IstruzIonI (dYnc2015)
NOTICE
All instructions, warranties and other collateral documents are subject to change
at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit
horizonhobby.com and click on the support tab for this product.
Meaning of Special Language
The following terms are used throughout the product literature to indicate various
levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical
property damage AND a little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of
physical property damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of
property damage, collateral damage, and serious injury OR create a high probability
of superficial injury.
WARNING: Read the ENTIRE instruction manual to become familiar with
the features of the product before operating. Failure to operate the product
correctly can result in damage to the product, personal property and cause
serious injury.
This is a sophisticated hobby product. It must be operated with caution and
common sense and requires some basic mechanical ability. Failure to operate
this Product in a safe and responsible manner could result in injury or damage
to the product or other property. This product is not intended for use by
children without direct adult supervision. Do not attempt disassembly, use with
incompatible components or augment product in any way without the approval of
Horizon Hobby, LLC. This manual contains instructions for safety, operation and
maintenance. It is essential to read and follow all the instructions and warnings in
the manual, prior to assembly, setup or use, in order to operate correctly and avoid
damage or serious injury.
Age Recommendation: Not for children under 14 years. This is not a toy.
This appliance is not intended for use by persons with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
SAFETY PRECAUTIONS AND WARNINGS
WARNING: Failure to exercise caution while using this product and comply
with the following warnings could result in product malfunction, electrical
issues, excessive heat, FIRE, and ultimately injury and property damage.
 
 
 
 
 
 
 
 -
ning.
 
 
 
 
 
 
 
 

 
to avoid short circuit between the charge leads. Reverse the sequence when
disconnecting.
 
 
charges.
 
 
WARNING: Never leave charger unattended, exceed maximum charge rate,
charge with non-approved batteries or charge batteries in the wrong mode.
Failure to comply may result in excessive heat, fire and serious injury.
CAUTION: Always ensure the battery you are charging meets the
specifications of this charger and that the charger settings are correct. Not
doing so can result in excessive heat and other related product
malfunctions, which can lead to user injury or property damage. Please
contact Horizon Hobby or an authorized retailer with compatibility questions.
Included Items:
JST_XH Balance adapter
Banana plug to EC3™ battery connector

OPTIONAL ACCESSORIES
DYN4012 - DC Power Cord
DYN5006 - Charge Adapter Banana to Deans Male
DYN5014 - Charge Adapter: Banana to Traxxas® Male
DYN5033 - Temperature Sensor
SPECIFICATIONS
 
 
Charge Current 
Discharge Current 
Operating Temperature 
Balance Current Drain 
Charging Mode 
GETTING STARTED
CAUTION: Never connect the AC and DC input cords to an active power source at the same time. This will void the warranty, cause product damage and possibly
injure the user.
A.
H. I. J. K.
L.
F. G.B. C. D. E.
 
 
C. Balance Circuit Adapter Board Connector
D. Temperature Sensor Port
 
F. DC Power Input Port
G. AC Power Input Port
 
 
 
 
L. LCD Screen
PROGRAM SELECT
LiPo BATT
LiPo CHARGE
4.6V 22.2V(6S)
LiPo STORAGE
2.5A 19.8V(6S)
LiPo DISCHARGE
5.0A 18.0V(6S)
LiPo BALANCE
5.5A 22.2V(6S)
LiPo FAST CHG
0.1A 7.4V(2S)
PROGRAM SELECT
NiMH BATT
NiMH CHARGE Man
CURRENT 0.1A
NiMH DISCHARGE
0.1A AUTO
NiMH CYCLE
DCHG>CHG 5
PROGRAM SELECT
NiCd BATT
NiCd CHARGE Man
CURRENT 0.1A
NiCd DISCHARGE
0.1A AUTO
NiCd CYCLE
DCHG>CHG 1
PROGRAM SELECT
Pb BATT
Pb CHARGE
0.1A 2.0V (1P)
Pb DISCHARGE
0.1A 2.0V (1P)
PROGRAM SELECT
SAVE DATA
SAVE [01] Pb
2.0V 5000mAh
PROGRAM SELECT
LOAD DATA
LOAD [01] Pb
2.0V 5000mAh
USER SET
PROGRAM->
Key Beep ON
Buzzer ON
Input Power Low
Cut-Off 11.0V
Waste Time
CHG>DCHG 1min
Capacity Cut-Off
ON 5000mAh
Saftey Timer
ON 180min
Temp Select
Temp Cut-Off 80C
NiMH Sensitivity
D. Peak Default
NiCd Sensitivity
D. Peak Default
LiPo/LiIo/LiFe
LiPo
V. Type 3.7V
CHK Time 10min
PROGRAMMING QUICK GUIDE
Press the Battery Type/Memory Button (H) to change among main menu screens or to get to these main menu screens from a submenu screen.
Press the to get to submenus for adjusting operating parameters, to save value changes, or to start chosen battery charging actions.Select/Start Button (K)
Press the or Decrease (I) Up (+) Buttons (J)
JST _XH ADAPTER
2S 3S 4S 6S5S
Not to scale.
Not all wiring shown.
Not all connectors shown.
LITHIUM BATTERIES (LI-PO)
Ni-MH BATTERIES
Pb BATTERIES
Ni-Cd BATTERIES
SAVE DATA
LOAD DATA
USER SET
OPERATING YOUR CHARGER
1 SELF TEST AND PROGRAM SELECT SCREENS
LITHIUM
2 
3 
4 
5 
6 
7 
Ni-MH
8 
9 NI-MH CHARGING
10 NI-MH DISCHARGING
11 
12 
Ni-Cd
13 NI-CD CHARGING
14 NI-CD DISCHARGING
15 
Pb
16 
17 PB CHARGING
18 PB DISCHARGING
USER SETTINGS
19 
20 LOAD DATA
21 
a 
b 
c 
d 
e 
f 
g 
h 
i 
j 
22 
23 
TABLE OF CONTENTS
1 SELF TEST AND PROGRAM SELECT SCREENS
arger is powered ON, there is a series of self tests and the screen will
show the charger brand name and model number.
DYNAMITE
DYNC2015

PROGRAM SELECT
LiPo BATT
From any screen, press the Battery Type/Memory Button (H) to go back to the
main menu.
2 LITHIUM BATTERIES
Press the Battery Type/Memory Button (H) to change among the 7 main menu screens
and go to the PROGRAM SELECT Lithium BATT screen. Press the Select/Start Button (K)
to enter this menu. This is the menu in which you set the standard Lithium battery charge
parameters.



 section.
LiPo CHARGE
4.6A 22.2V(6S)
Press the or to go to one of the control screens Down (–) Button (I) Up (+) Button (J)


Select/Start Button (K) and adjust charging parameters
as needed. Press and hold the Select/Start Button

the charger compares the battery to charger settings. The screen will show battery and your
settings information.
(A) does not match, press the
Battery Type/Memory Button and change the lithium battery charging parameters
as needed. If the R: information matches S:, press the to confirm. Select/Start Button
After confirmation, charging starts and information will show on the LCD screen.
R: 3SER S:3SER
CONFIRM (ENTER)
A
Li3S 2.0A 12.59V
BAL 022:43 01082
A
B C D
EF
A. A Li-Po battery pack is balance charging
B. Battery pack has 3 cells in series
C. 
D.
E. 
F.
During charging, the can be pressed to show several parameter Down (–) Button


Up (+) Button Down (–) Button to see charge voltages for each cell and the to return
to the Charge Monitor screen. To change the charging rate during charging, press the
Select/Start Button, then increase or decrease the rate using the Down (–) Button
and Up (+) Button

Press the Battery Type/Memory Button
4.20 4.20 4.20
0.00 0.00 0.00
3 LITHIUM CHARGING
Press the Battery Type/Memory Button (H) until you reach the 7 main menus.
Then press the Battery Type/Memory Button until you reach the PROGRAM
SELECT Lithium BATT screen. Press the to enter this menu.Select/Start Button (K)
Press the or to reach the CHARGE screen Down (–) Button (I) Up (+) Button (J)
and set charging parameters. The charging amperage (A)
(C) (B) is dependent on the number of cells in series and Lithium
battery type.
LiPo CHARGE
4.6A 22.2V(6S)
A
BC
To select values other than the existing parameters:
 Select/Start Button (A) so the charge current value flashes
 Down (–) Button Up (+) Button or to DECREASE or INCREASE the
charge current value
 Select/Start Button (C) again to save the value and the voltage value
flashes
 Down (–) Button Up (+) Button or to DECREASE or INCREASE the
 (B)
 Select/Start Button again to save the voltage value
If no parameters are flashing, you can press the or to Down (–) Button Up (+) Button
select another program such as BALANCE, FAST CHG, STORAGE or DISCHARGE.
To start charging, press and hold the for 3 seconds.Select/Start Button
CAUTION:
process as batteries can cause fire, collateral damage and injuries.
CAUTION:
CAUTION:
the Lithium charge programs will damage the battery or the charger.
4 LITHIUM BALANCING CHARGING
This program menu is specifically designed for the balanced charging of Lithium
batteries, including Li-Po, Li-Fe and Li-Ion battery packs. In balance charging, each
cell in the battery pack is monitored and charged to the same capacity and voltage
levels, ensuring the optimum performance of the pack. Balance charging requires a
battery with a balance adapter connector and a balance adapter board that has been
designed for your charger and your battery.
Press the Battery Type/Memory Button (H) until you reach the 7 main menus.
Then press the Battery Type/Memory Button until you reach the PROGRAM
SELECT Lithium BATT screen. Press the to enter this menu.Select/Start Button (K)
Press the or to reach the BALANCE screen and Down (–) Button (I) Up (+) Button (J)
set charging parameters. The charging amperage (A) 
(C) (B) is dependent on the number of cells in series .
LiPo BALANCE
5.5A 22.2V(6S)
A
BC
To select values other than the existing parameters:
 Select/Start Button (A) so the charge current value flashes
 Down (–) Button Up (+) Button or to DECREASE or INCREASE the
charge current value
 Select/Start Button (C) again to save the value and the voltage value
flashes
 Down (–) Button Up (+) Button or to DECREASE or INCREASE the
 (B)
 Select/Start Button again to save the voltage value
If no parameters are flashing, you can press the or Down (–) Button Up (+) Button
to select another program such as CHARGE, FAST CHG, STORAGE or DISCHARGE.
To start charging, press and hold the for 3 seconds.Select/Start Button
5 LITHIUM FAST CHARGING
Near the end of a standard charging cycle the charger switches from Constant

the battery pack as close as possible to the maximum capacity. In Fast Charge, the

final capacity of the battery will be less than what you would get using the standard
charge method.
Press the Battery Type/Memory Button (H) until you reach the 7 main menus.
Then press the Battery Type/Memory Button until you reach the PROGRAM
SELECT Lithium BATT screen. Press the to enter this menu.Select/Start Button (K)
Press the or to reach the FAST CHG screen Down (–) Button (I) Up (+) Button (J)
and set charging parameters.
The charging amperage (A)(C) is
dependent on the number of cells in series .(B)
LiPo FAST CHG
0.1A 7.4V(2S)
A
BC
To select values other than the existing parameters:
 Select/Start Button (A) so the charge current value flashes
 Down (–) Button Up (+) Button or to DECREASE or INCREASE the
charge current value
 Select/Start Button (C) again to save the value and the voltage value
flashes
 Down (–) Button Up (+) Button or to DECREASE or INCREASE the
 (B)
 Select/Start Button again to save the voltage value
If no parameters are flashing, you can press the or Down (–) Button Increase
Button to select another program such as CHARGE, BALANCE, STORAGE or
DISCHARGE.
To start charging, press and hold the for 3 seconds.Select/Start Button
6 LITHIUM STORAGE CHARGING



-

Press the Battery Type/Memory Button (H) until you reach the 7 main menus.
Then press the Battery Type/Memory Button until you reach the PROGRAM
SELECT Lithium BATT screen. Press the to enter this menu.Select/Start Button (K)
Press the or to reach the STORAGE screen Down (–) Button (I) Up (+) Button (J)
and set charging parameters.
The charging amperage (A)(C) is
dependent on the number of cells in series .(B)
LiPo STORAGE
2.5A 11.1V(3S)
A
BC
To select values other than the existing parameters:
 Select/Start Button (A) so the charge current value flashes
 Down (–) Button Up (+) Button or to DECREASE or INCREASE the
charge current value
 Select/Start Button (C) again to save the value and the voltage value
flashes
 Down (–) Button Up (+) Button or to DECREASE or INCREASE the
 (B)
 Select/Start Button again to save the voltage value
If no parameters are flashing, you can press the or Down (–) Button Up (+) Button
to select another program such as CHARGE, BALANCE, FAST CHG or DISCHARGE.
To start charging, press and hold the for 3 seconds.Select/Start Button
7 LITHIUM DISCHARGING
A battery pack’s capacity can be verified by discharging the pack to its minimum
voltage level and measuring the current as the pack is discharged.
Press the Battery Type/Memory Button (H) until you reach the 7 main menus.
Then press the Battery Type/Memory Button until you reach the PROGRAM
SELECT Lithium BATT screen. Press the to enter this menu.Select/Start Button (K)
Press the or to reach the DISCHARGE Down (–) Button (I) Up (+) Button (J)
screen and set discharging parameters.
The discharging amperage (A)(C) is
dependent on the number of cells in series .(B)
LiPo DISCHARGE
5.0A 18.0V(3S)
A
BC
To select values other than the existing parameters:
 Select/Start Button (A) so the discharge current value flashes
 Down (–) Button Up (+) Button or to DECREASE or INCREASE the
discharge current value
 Select/Start Button (C) again to save the value and the voltage value
flashes
 Down (–) Button Up (+) Button or to DECREASE or INCREASE the
 (B)
 Select/Start Button again to save the voltage value
If no parameters are flashing, you can press the or to Down (–) Button Up (+) Button
select another program such as CHARGE, BALANCE, FAST CHG or STORAGE.
To start discharging, press and hold the for 3 seconds.Select/Start Button
8 NICKEL-METAL HYDRIDE (NI-MH) BATTERIES
Press the Battery Type/Memory Button (H) to change among the 7 main menu
screens and go to PROGRAM SELECT Ni-MH BATT screen. Press the Select/Start
Button (K) to enter this menu. This is the menu in which you set the standard Ni-MH
battery charge parameters.

 section.
PROGRAM SELECT
NiMH BATT
Press the or to go to one of the control Down (–) Button (I) Up (+) Button (J)

connect your Ni-MH battery to the charger. Press the and Select/Start Button (K)
adjust charging parameters as needed. Press and hold the Select/Start Button

sequence. After confirmation, charging starts and information will show on the LCD
screen.
NiMH 2.0A 7.59V
CHG 022:43 01082
A
B C
DE
A. A Ni-MH battery pack is charging
B. 
C. 
D.
E. 
During charging, the or can be pressed to show Down (–) Button Up (+) Button
several parameter messages on the LCD screen including: Ni-MH Sensitivity, Capacity
Cut-off, Safety Timer setting, Temperature Cut-off, External Temperature and Input


Press the Battery Type/Memory Button
CAUTION:
Ni-MH charge programs will damage the battery or the charger.
9 NI-MH CHARGING
Press the Battery Type/Memory Button (H) until you reach the 7 main menus.
Then press the Battery Type/Memory Button until you reach the PROGRAM
SELECT NiMH BATT screen. Press the to enter this menu.Select/Start Button (K)
Press the or to reach the NiMH CHARGE Down (–) Button (I) Up (+) Button (J)
screen and set charging parameters. The charging amperage can be set between (A)

NiMH CHARGE Man
CURRENT 0.1A A
To select a value other than the existing parameter:
 Select/Start Button (A) so the charge current value flashes
 Down (–) Button Up (+) Button or to DECREASE or INCREASE the
charge current value
 Select/Start Button again to save the value
If no parameters are flashing, you can press the or Down (–) Button Increase
Button
To start charging, press and hold the for 3 seconds.Select/Start Button
10 NI-MH DISCHARGING
A battery pack’s capacity can be verified by discharging the pack to its minimum
voltage level and measuring the current as the pack is discharged.
Press the Battery Type/Memory Button (H) until you reach the 7 main menus.
Then press the Battery Type/Memory Button until you reach the PROGRAM
SELECT NiMH BATT screen. Press the to enter this menu.Select/Start Button (K)
Press the or to reach the NiMH Down (–) Button (I) Up (+) Button (J)
DISCHARGE screen and set discharging parameters. The discharging amperage (A)
 (B)

NiMH DISCHARGE
0.1A AUTO BA
To select values other than the existing parameters:
 Select/Start Button (A) so the discharge current value flashes
 Down (–) Button Up (+) Button or to DECREASE or INCREASE the
discharge current value
 Select/Start Button (B) again to save the value and the voltage value
flashes
Down (–) Button Up (+) Button or to DECREASE or INCREASE the voltage
 Select/Start Button again to save the voltage value
If no parameters are flashing, you can press the or Down (–) Button Increase
Button
To start discharging, press and hold the for 3 seconds.Select/Start Button
11 NI-MH CYCLE CHARGING

program. Cycling Ni-MH batteries can increase capacity and rejuvenate neglected
batteries. Discharge capacity and average battery voltage help you compare batteries
for the best run time and power.
Press the Battery Type/Memory Button (H) until you reach the 7 main menus.
Then press the Battery Type/Memory Button until you reach the PROGRAM
SELECT NiMH BATT screen. Press the to enter this menu.Select/Start Button (K)
Press the or Down (–) Button (I) Up (+) Button (J)

NiMH CYCLE
DCHG>CHG 5 BA
To select values other than the existing parameters:
 Select/Start Button (A) so the cycle type flashes
 Down (–) Button Up (+) Button or to set the cycle type as
CHG>DCHG or DCHG>CHG
 Select/Start Button again to save your choice and the number of
cycles flashes(B)
 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

 Select/Start Button again to save the cycle count value
If no parameters are flashing, you can press the or Down (–) Button Increase
Button to select another program such as CHARGE or DISCHARGE.
To start cycling, press and hold the for 3 seconds.Select/Start Button
When Using an External DC Power Source:
 DC Power Input Port (F).
 
 LCD Screen (L).
NOTICE: Always connect cable polarities correctly.
NOTICE:
using with sources other than a standard AC wall outlet.
When Using an External AC Power Source:
 AC Power Input Port (G).
 
 LCD Screen (L).
CAUTION: Always power ON the charger before connecting a battery, or damage to the charger and the battery can result.
 
 
 
 

Produkt Specifikationer

Mærke: Horizon
Kategori: Batterioplader
Model: DYNC2015

Har du brug for hjælp?

Hvis du har brug for hjælp til Horizon DYNC2015 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Batterioplader Horizon Manualer

Horizon

Horizon DYNC2015 Manual

27 August 2024
Horizon

Horizon DYN4110 Manual

27 August 2024
Horizon

Horizon DYN4300 Manual

18 August 2024

Batterioplader Manualer

Nyeste Batterioplader Manualer

Fischer

Fischer B 7.2V Manual

13 November 2024
Sofar Solar

Sofar Solar 12KTLX-G3 Manual

12 November 2024
Absina

Absina 52-230-1005 Manual

12 November 2024
V-TAC

V-TAC OHR60K-100 Manual

6 November 2024
Ikea

Ikea LITOSFÄR 605.466.96 Manual

6 November 2024
V-TAC

V-TAC S6-EH3P12K-H Manual

5 November 2024
Digitus

Digitus DK-3P16-075 Manual

4 November 2024
Digitus

Digitus DK-3P16-050 Manual

4 November 2024
Digitus

Digitus DK-3P16-100 Manual

4 November 2024
Digitus

Digitus DK-1P32-S-100 Manual

4 November 2024
