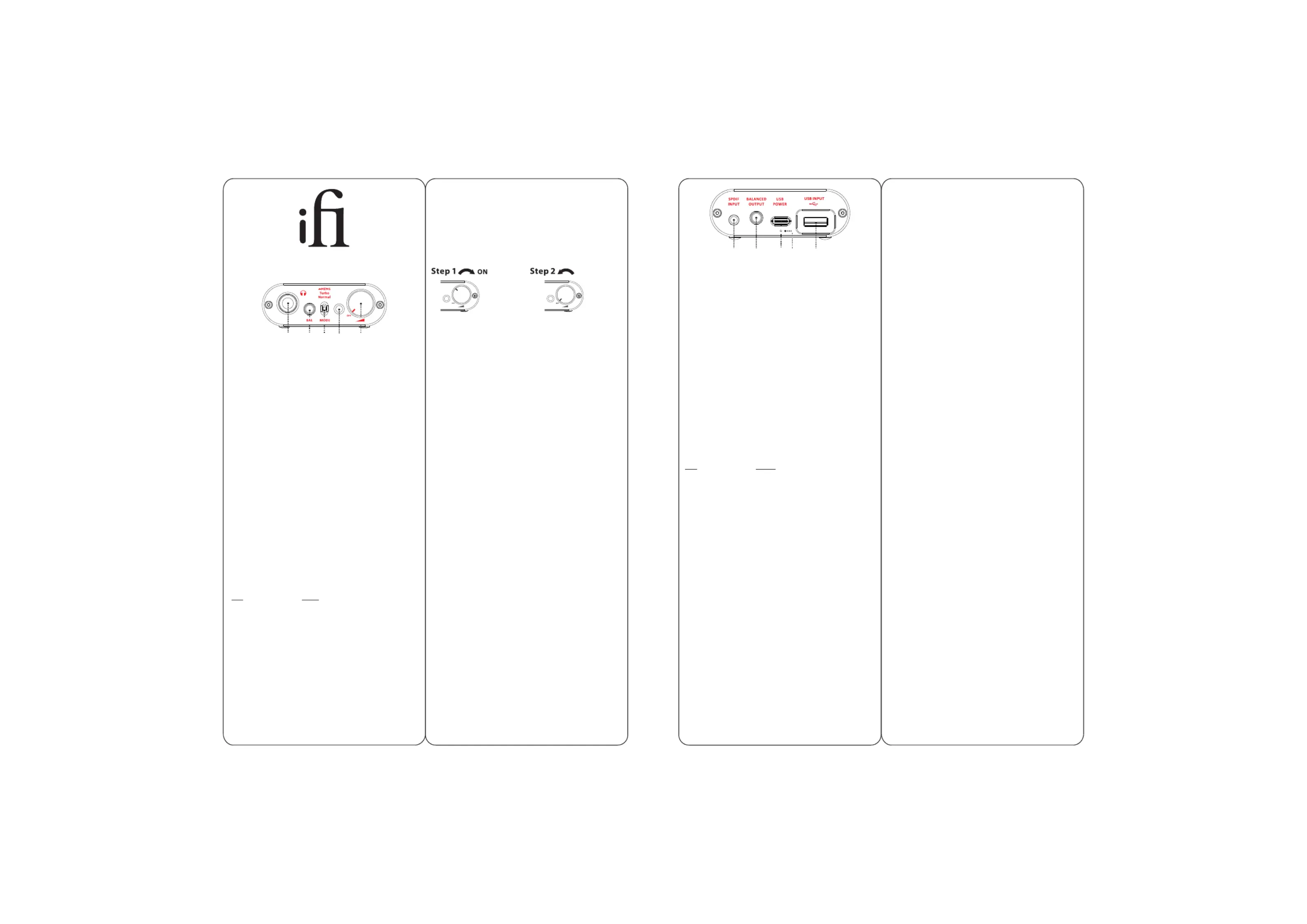

5. ON/OFF and Analogue Volume Control
The analogue volume control in iDSD Diablo-X is sonically
superior to any digital volume control.
Warning: Due to the high power of iDSD Diablo-X, always start off at a low
volume level so that there is no risk of damage to your headphones or your
hearing. iFi audio is not responsible for any hearing or equipment damage from
misuse.
Power ON. Power OFF.
Tip: For Apple iOS and Android devices, please use the Diablo-X on battery power,
otherwise you may receive error messages from your device.
Tip: For connection to Apple devices, an Apple Lightning to a USB Camera Adapter
is required. For connection to Android devices, a USB On-The-Go (OTG) cable and
appropriate OS support are required.
For more information, please refer to www.ifi-audio.com.
ifi-audio.com Ver1.0
1 3 4 5
1. Single-ended 6.3mm output
Connection for 6.3 single ended headphones . Please use 3.5 to
6.3 mm adaptor for 3.5 single ended headphones.
2. Balanced 4.4mm analogue output
Connect balanced dynamic headphones to this output when in
Normal or Turbo mode. When in xMEMS mode, connect xMEMS
IEMs to this output only.
Tip: As iDSD Diablo-X is balanced, we recommend the 4.4mm output.
3. Power Mode
There are two different types of power output levels to drive
different headphones from the sensitive in-ear monitors (IEMs)
to the most demanding over-ear headphones, and one mode
specifically designed for xMEMS headphones.
Approximate listening time (in Battery mode with typical headphones):
xMEMS up to a maximum of hours (4)6
Normal up to a maximum of 9 hours (8)
Turbo up to a maximum 6 hours (4)
Tip: xMEMS transducers are a piezoelectric technology that has specific drive
requirements, and can only be used with the Power Mode switch in the xMEMS
position.
4. Audio Format LED (kHz)
The LED colour scheme indicates the audio format and sampling
frequency received by the iDSD Diablo-X from the music source.
LED Mode
Yellow PCM 48/44.1kHz
White PCM 768/705.6/384/352.8/192/176.4/
96/88.2kHz
Cyan DSD 128/64
Red DSD 512/256
Green MQA
Blue MQA Studio
Magenta tOriginal Sample Ra e*
*MQB
Warning: Installing GTO enabled firmware may result in the LED's on this device no
longer changing in accordance with the above table
2
10876 9
6. S/PDIF 3.5mm Coaxial/Optical input
When USB is not used, connect to a Coaxial/Optical cable (through
a Toslink Mini-Plug).
Tip: a Toslink Mini-Plug to Toslink adaptor is included for connecting a Toslink
optical cable.
Tip: The SPDIF standard supports PCM only up to 192kHz.
7. Balanced 4.4mm fixed level analogue output
This is an analogue output via 4.4mm > XLR or other balanced
interconnects. You could use this for an ac tive speaker or an
amplifier.
Warning: Do not insert 4.4mm headphones to this source as the full volume is
likely to damage your headphones or your hearing.
8. USB-C (5V) battery charge input
For charging only. Due the very high-power nature of iDSD
Diablo-X, it will take ~12 hours and ~6 hours for a standard and
high-powered charger respectively to fully recharge the iDSD
Diablo-X.
9. LED for Battery Status
LED Status
White* > 75%
Green* > 25%
Red* > 10%
Red (flashing) ≤ 10%
*Battery LED will flash when it is charging.
10. USB3.0 'Type A' input port
For data transfer only. Connect your phone to the iDSD Diablo-X
with a Lightning to a USB Camera Adapter (Apple) or USB On-
The- Go (OTG) cable (Android). When using other audio sources,
please connect with a USB cable.
Tip: It is preferable to use a USB 3.0 over using a USB 2.0 port on the PC.
Tip: The iDSD Diablo-X comes with a pre-installed firmware optimised for MQA.
This version also handles up to PCM384/DSD256.
Tip: For firmware optimised to run PCM768/DSD5 12(non-MQA) please install
corres ponding firmware.
Tip: For all latest firmware updates please refer to our website here: www.ifi-
audio.com/downloads/
i
i
i
ii D
D
D
DDS
S
S
SSD D
D D
D D
D DD D i
i
i
iia
a
a
aa b
b
b
bbl
l
l
ll o
o
o
oo-
-
-
-- X
X
X
XX
Technologies
- Octa-DSD512/PCM768 and 2X DX D.
- Native DSD/PCM Burr-Brown® chipset.
- Fully balanced 4.4mm output.
- Performance boosting Direct-Drive® and Headamp Turbo®.
- Zero Jitter/Femto clock system upgraded for lower phase-noise/jitter*.
- Digital engine upgraded with iFi custom ultra-low noise Op-Amp Ov2028*.
- Analogue section upgraded with iFi custom ultra-low noise Op-Amp
Ov2627*.
- Ultra-low impedance OS-CON polymer capacitors and Panasonic audio-
grade ECPU film capactiors*.
- Ultra-low noise power supply*.
* editionDiab lo-X
Specifications
Digital Inputs:
Formats supported:
DAC:
Frequency Resp onse:
SNR:
Balanced:
UnB AL:
Dynamic range:
Balanced:
UnB AL:
THD + N:
Balanced:
UnB AL:
Headphone Max Output:
Balanced:
UnB AL:
Fixed Audio utput:
Power consumption:
xMEMS:
Turbo:
Normal:
Battery:
Power System:
Dimensions:
Net weight:
Limited Warranty:
*12 months typic al or as permitted/required by loca l resell er laws.
**Specifications are subjec t to cha nge without notice.
USB 3.0 type 'A' (USB2.0 compatible)/
S-PDIF (3.5mm coaxial/optical)
DSD 512 / 22.6MHz
PCM 768kHz
MQA Full Decoder
Bit-Perfect DSD & DXD DAC by Burr Brown
10Hz-80kHz(-3dB)
-120dB
-114dB
-120dB
-114dB
0.002%
0.001%
>28Vpp (@ xMEMS)
>19.2V/611 mW (@ 600 )Ω
>12.6V/4,980 mW (@ 32 ) Ω
>9.6V/153 mW (@ 600 )Ω
>8.8V/2,417 mW (@ 32 )Ω
Balanced 4.4mm
8W
12W
5W
Lithium-polymer 4800mAh approx.
Charging via USB-C
BC V1.2 compliant up to 1000mA charging current
166 x 72 x 25 mm (6.5" x 2.8" x 1.0")
330g (0.73 lbs)
12 months*
