IFi Audio xDSD Gryphon Manual

IFi Audio Modtager xDSD Gryphon

Læs nedenfor 📖 manual på dansk for IFi Audio xDSD Gryphon (2 sider) i kategorien Modtager. Denne guide var nyttig for 4 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere

Download PDF
Side 1/2
10. Input selector/Bluetooth pairing
This button cycles between the following inputs:
USB > Bluetooth > S/PDIF > Line (Balanced 4.4mm/S-E 3.5mm)
Note : Please select the input channel according to your audio source input mode. For
example, you need to switch the input channel to ’USB’ when using the USB input.
The xDSD Gryphon receives Bluetooth signals via aptX, aptX HD, aptX Adaptive, a ptX LL,
LDAC, LHDC/HWA, AAC and SBC.
Bluetooth pairing
When the Bluetooth input is selected, the Bluetooth icon in the
display will flash and search for a previously paired device. If a
stored device is not found, it will automatically enter pairing
mode and flash.
Press and hold the button (1s) to enter pairing mode until the
Bluetooth icon flashes. To pair, find the ‘iFi Hi-Res Audio’
Bluetooth device from the nearby devices list on your phone.
The xDSD Gr yphon can store up to 8 paired Bluetooth devices.
11. OLED display
The OLED display shows the audio format, sampling rate,
volume, input mode, XSpace/XBass II and battery level.
6. Multi-function knob
Controls:
- Power ON/OFF (long press 3s)
- Analogue volume control (turn)
- Mute/Unmute (a short press)
- Menu settings (long press item 9 Settings button (1s). Control
menu refer to item 9)
Power ON/OFF
Long press the power switch to power on/off.
Analogue volume control
Warning: Due to the high power of xDSD Gryphon, always start at a low volume level, so
there is no risk of dama ge to your headphones or your hearing. iFi audio is not responsible
for any hearing or equipment damage from misuse.
Menu settings
I) USB data port charger (Item 15. USB-C input)
'ON', this port can be used for charging.
'OFF', this por t is for signal input only.
II) BT voice prompt
ON/OFF mode, turn on/off Bluetooth voice announcement.
III) Screen Brightness
With the 'high' and 'low' brightness modes, the display will remain
On. With the brightness mode 'off', if no operation is performed,
the display will go to sleep after three seconds.
VI) Digital filter
The following 3 digital filters are available:
'BP' , no digital filteringBit-Perfect
'GTO' Upsampled to 384/352kHz, minimum filtering,
no pre -ringing, minimum post ringing
'STD' Modest filtering, modest pre and post ringing
7. XSpace Matrix LED
The XSpace Matrix(on/off ) recreates a holographic sound field.
It is a pure analogue signal processing circuit designed for
listening to headphones as if one was listening to speakers. This
addresses the 'music inside the head' sensation, which makes for
uneasy listening.
8. XBass II LED
Many headphones lack the correct bass response. XBass II is an
analogue circuit designed to 'add back' the lost bass response for
more accurate reproduction of the original music.
Tip: Sonically-hindering DSP is NOT used for XBass II nor XSpace matrix systems. They use the
highest-quality discrete components and op erate purely in the analogue domain. Hence all
the clarity and resolution of the original music is retained.
9. Settings
Cycles between:
Off > XBass II > XSpace > XBass II and XSpace (short press)
Menu settings (long press)/Return to Home (short press)
1. S-Balanced 3.5mm headphone output
Connect 3.5mm headphones.
2. Balanced 4.4mm headphone output
Connect balanced 4.4mm Pentaconn headphones.
3. Audio Format LED (kHz)
The LED colour scheme indicates the audio format and sampling
frequency received by the xDSD Gryphon from the music source.
LED Mode
Yellow PCM 48/44.1kHz
White PCM 768/705.6/384/352.8/192/176.4/
96/88.2kHz
Cyan DSD 128/64
Red DSD 512/256
Green MQA
Blue MQA Studio
Magenta Original Sample Rate*
*MQB
4. INPUT LED
LED INPUT
Magenta USB
Blue Bluetooth
Green S/PDIF
Yellow Line (Balanced 4.4mm/S-E 3.5mm)
5. Volume LED
The LED colour scheme indicates the current volume level.
LED Volume
Red -2 to +6 dB (100%-92%)
Yellow -20 to -3 dB (91%-74%)
Green -38 to -21 dB (73%-56%)
Magenta -56 to -39 dB (55%-38%)
Blue -95 to -57 dB (37%-0%)
Flashing LED -Mute

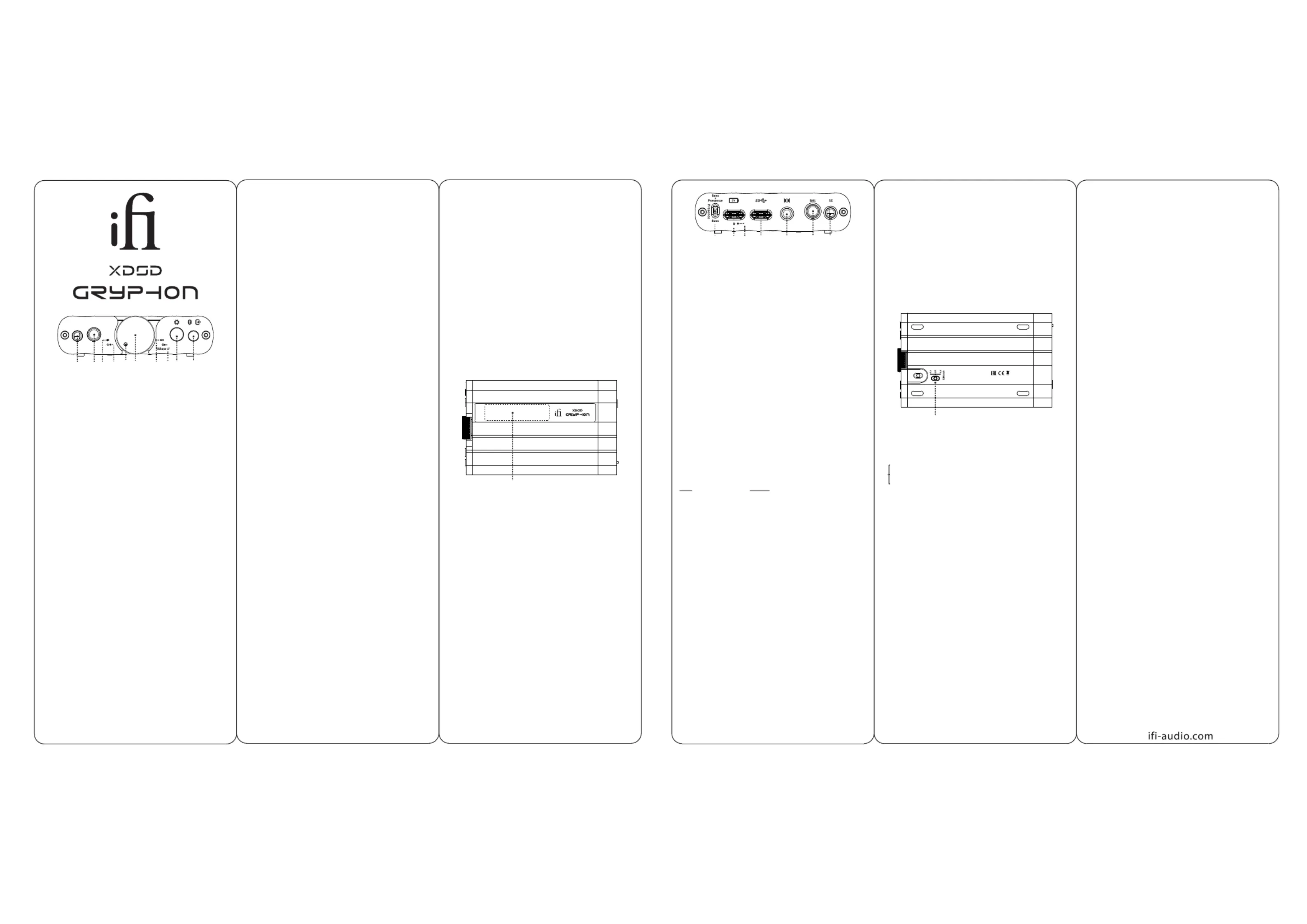

651 2 3 4 7 8 9 10
11
12 13 14 15 16 17 18
12. XBass II mode adjustment
Research into headphone frequency response showed that a
purely 'flat' response is not correct. Our long present XBass fits
the profile of the low-frequency correction required. However, it
was also shown that a certain amount of upper midrange boost is
needed to give many headphones a more 'natural' sound.
This upper midrange region is usually called the 'presence'
region; we have used this term to indicate the upper midrange
correction. In the xDSD Gryphon, XBass II (or perhaps better HP-
EQ) can be selected to have either Bass + Presence correction,
only Bass or only Presence correction.
13. USB-C (5V) charging input
For charging only. Due to the very high-power nature of xDSD
Gryphon, it will take ~12 hours and ~6 hours for a standard and
high-powered charger, respectively, to fully recharge.
Tip: W he n the xDSD Gryphon is off and a 5V USB power supply is detec te d, the LED will
change colour to show the various states of c harge (see next section).
Tip: We advise you to charge the xDSD Gryphon switched off. You ca n listen to music while
charging, but it may take longer to b e fully charged, depending on the vo lume lev el and
the headphones used.
Tip: The xDSD Gryphon may be slightly warm to touch when it is simulta ne ously in use and
being charge d.
14. LED for Battery Status
LED Status
Green* > 85%
Yellow * ≤ 85%
Red (flashing) ≤ 10%
*Battery LED will flash when it is charging.
15. USB-C input
Connect your phone to the xDSD Gryphon with a Lightning to
USB Camera Adapter (Apple) or USB On-The-Go (OTG) cable
(Android). When using other audio sources, please connect
with a USB cable. This U SB-C port is for data transfer only, it can
also be configured to charge, see item 6, M enu Settings(I).
Tip: For Apple iOS and Android devices, please use battery power, otherwise you
may receive error messages from your device.
Note : For use with PC it is necessary to download drivers.
Tip: For the required driver and all the latest firmw are updates please refer to ou r website:
www.ifi-audio.com/do wnload-hub/
16. S/PDIF 3.5mm Coaxial/Optical input
When USB-C (item 15) is not used, connect to a Coaxial/Optical
cable (through a Toslink Mini-Plug).
Tip: The USB signal has priority ove r S/PDIF. To enter S/PD iF mode, plea se make sure there
is no signal going through the USB input.
19
19. iEMatch switch
With the iEMatch, even the most sensitive In-Ear-Monitors
(IEMs) can be matched to the xDSD Gryphon.
= 3.5mm headphones
= off
= 4.4mm headphone
iEMatch
of f
3.5
4.4
Technology li cense d from AMR -Audio, UK
Asse mbled in China
4.4
kH z
IN PU T
XS pac e
/
3.5
S- BAL BA L
Ver1.2
Specifications
Inputs: USB-C
TM
Bluetooth 5.1 (aptX, aptX HD, aptX Adaptive, aptX LL,
LDAC, LHDC/HWA, AAC and SBC Codec)
S-PDIF 3.5mm Coaxial
Balanced 4.4mm
Single-Ended 3.5mm
Formats:
DSD DSD512/256/128/64, Octa/Quad/Double/Singl e-Speed
DXD 768/705.6/384/352.8kHz), Double/Single-Speed DXD
PCM 768/705.6/384/352.8/192/176.4/96/88.2/48/44.1kHz
MQA Decoder
Bluetooth Up to 96kHz
DAC: Bit-Perfect DSD & DX D DAC by Burr Brown
Line Section
Outputs:
Balanced: 6.7V max. (variable)
UnB AL: 3.5V max. (variable)
Output Impedance:
Balanced: ≤200Ω
UnB AL: ≤100Ω
SNR:
Balanced: <110dB(A) @ 0dBFS
UnB AL: <110dB (A) @ 0dBFS
THD+N:
Balanced: <0.007% @ 0dBFS
UnB AL: <0.015% @ 0dBFS
Headphone Section
Outputs:
Balanced: 6.7V max. @ 600Ω
UnB AL: 3.5V max. @ 600Ω
Output Power:
Balanced: >1000mW @ ; >74mW @ 60032Ω Ω
UnB AL: >320mW @ 32 ; >40mW @ 300Ω Ω
Output Impedance:
Balanced: <1Ω
UnB AL: <1Ω
THD+N: <0.005% (1V @ )16Ω
SNR:
Balanced: <116dB(A) @ 0dBFS
UnB AL: <115dB (A) @ 0dBFS
Battery: Lithium-polymer 3600mAh
Power System: Charging via USB -C, BC V1.2 compliant up to
1900mA charging current
Dimensions: 123 x 75 x19 mm
4.8" x 3.0" x 0.7"
Weight: 215 g (0.5 Ibs)
Warranty period: 12 months
*Spec ifications are subjec t to change without notice.
17. Balanced 4.4mm line input/output
a) Output (variable) - when the input mode is U SB, Bluetooth or
S/PDIF
b) Input - when the input mode is Line
18. Single-ended 3.5mm input/output
a) Output (variable) - when the input mode is U SB, Bluetooth or
S/PDIF
b) Input - when the input mode is Line
