3. Balanced 4.4mm analogue output
This is an analogue output via 4.4mm > XLR or other balanced
interconnects. You cou ld use this for an active speaker or an
amplifier.
Tip: A s the ZEN DAC Sig na ture V2 is b alanced, t his i s th e recommended o utput.
4. Variable/Fixed switch
This switch will determine whether or not the ZEN DAC Signature
V2 analogue volume control is used.
5. RCA analogue output
This is an analogue output.

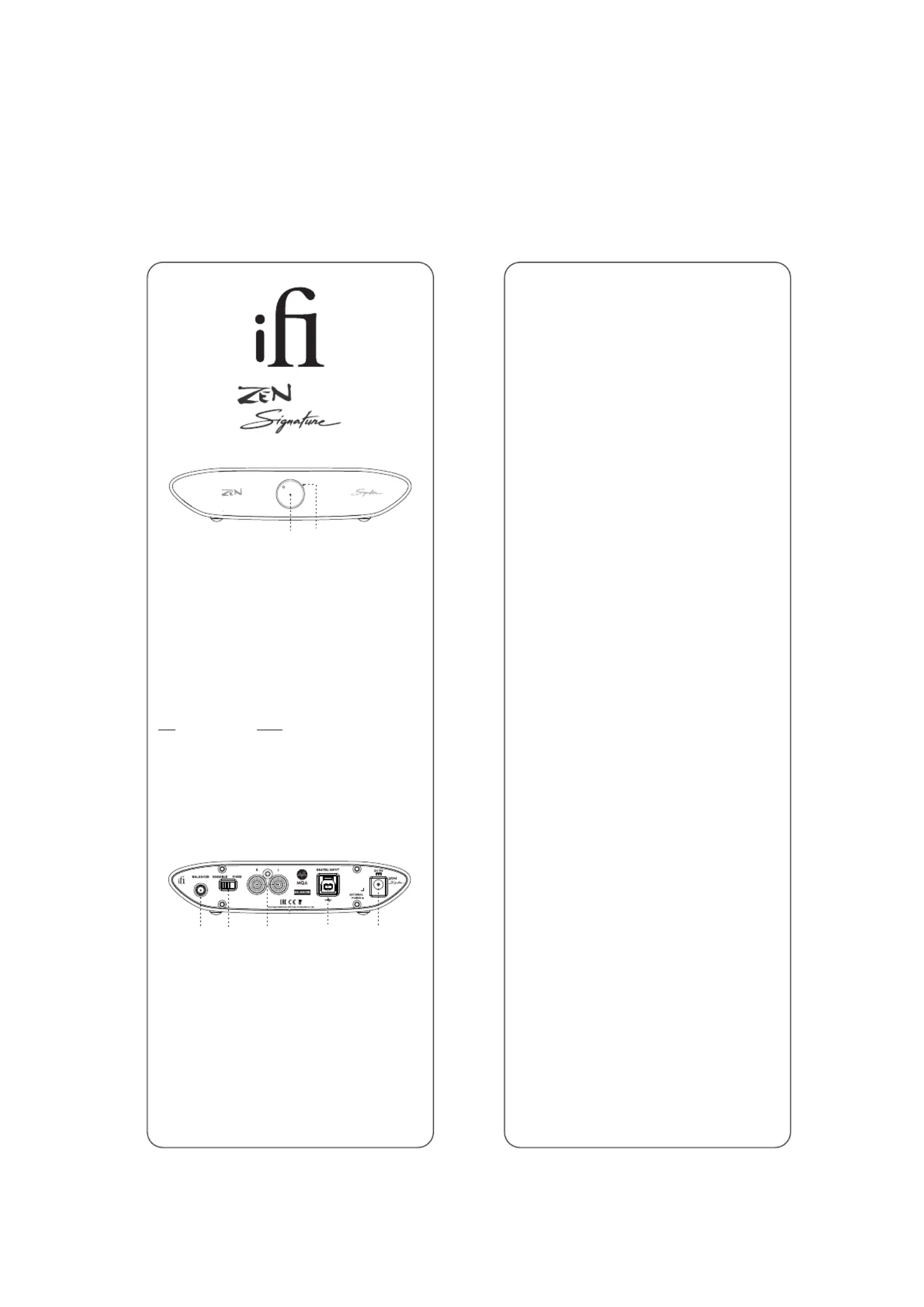

Thank you for purchasing the DAC Signature V2 f rom ZEN se ries.
The DAC Signature V2 is a balanced USB-audio DAC amplifie r.
1. Analogue Volume control
The analogue volume control in the ZEN DAC Signature V2 is
superior to any digital volume contro l. It can be used to control
the headphone volume or the pre-amplifier volume (when set
to 'Variable'). If the output at the rear is se t to 'Fixed' the volume
control is bypassed.
2. Audio Format LED (kHz)
The LED colour scheme indicates the audio format and
sampling frequency received by the ZEN DAC Signature V2
from the music so urce.
LED Mode
Yellow PCM 44.1/48kHz
White PCM 88.2/96/176.4/192/352.8/384kHz
Cyan DSD 64/128
Red DSD 256
Green MQA
Blue MQA Studio
Magenta Original Sam ple Rate*
*MQB
Ver1.0
ifi-audio.com
Inpu t vo lta ge: DC 5V /2.5A
Input: USB3.0 B S ocket (USB2.0 compatible)
Formats: 44.1/48/88.2/96/176.4/192/352.8/384kHz PCM
2.8/3.1/5.6/6.2/11.2/12.4MHz DSD
353/384KHz DXD
MQA
DAC: Bit-Perfect D SD & DXD DAC by Burr Brown
Line Section
Output:
Balanced 4.4mm: 2V / 6.2V max. (variable) 4.2V fixed
UnBA L RCA: 1V / 3.3V max. (variable) 2.1V fixed
Zout:
Balanced: <= 200 Ohm
UnBA L: <= 100 Ohm
SNR: <-116dB(A) @ 0dBFS (UnB AL/BAL)
DNR: >116dB(A) @ -60dBFS (UnBA L/BAL)
THD+N : <0.0015% @ 0dBF S (UnBA L/BAL)
Power consumption: No Signal ~0.5W
Max Signal ~2.5W
Dimensions: 158 x 117 x 35 mm
6.2" x 4.6" x 1.4"
Net weight: 505 g (1.11 lbs)
Warranty period: 12 months
Specifications are subject to change without notice.
DAC
DAC
1 2
6. USB-audio and power input
This is a USB input. It connects the ZEN DAC Signature V2 to
the computer audio so urce and prov ides the pow er supply.
7. 5 poDC V wer
ZEN DAC V2 is powered by 5 volts, either via the Signature
enclose USB able(for connection to laptop o PC) o DC ower d c r r p
supply.
No te: For u se wi th PC it is necessary to download drivers.
Tip: For all latest firmware updates please refer to our website here:
https://ifi-audio.com/download-hub/
Specification
3 4 5 6 7
DAC
V2
V2
