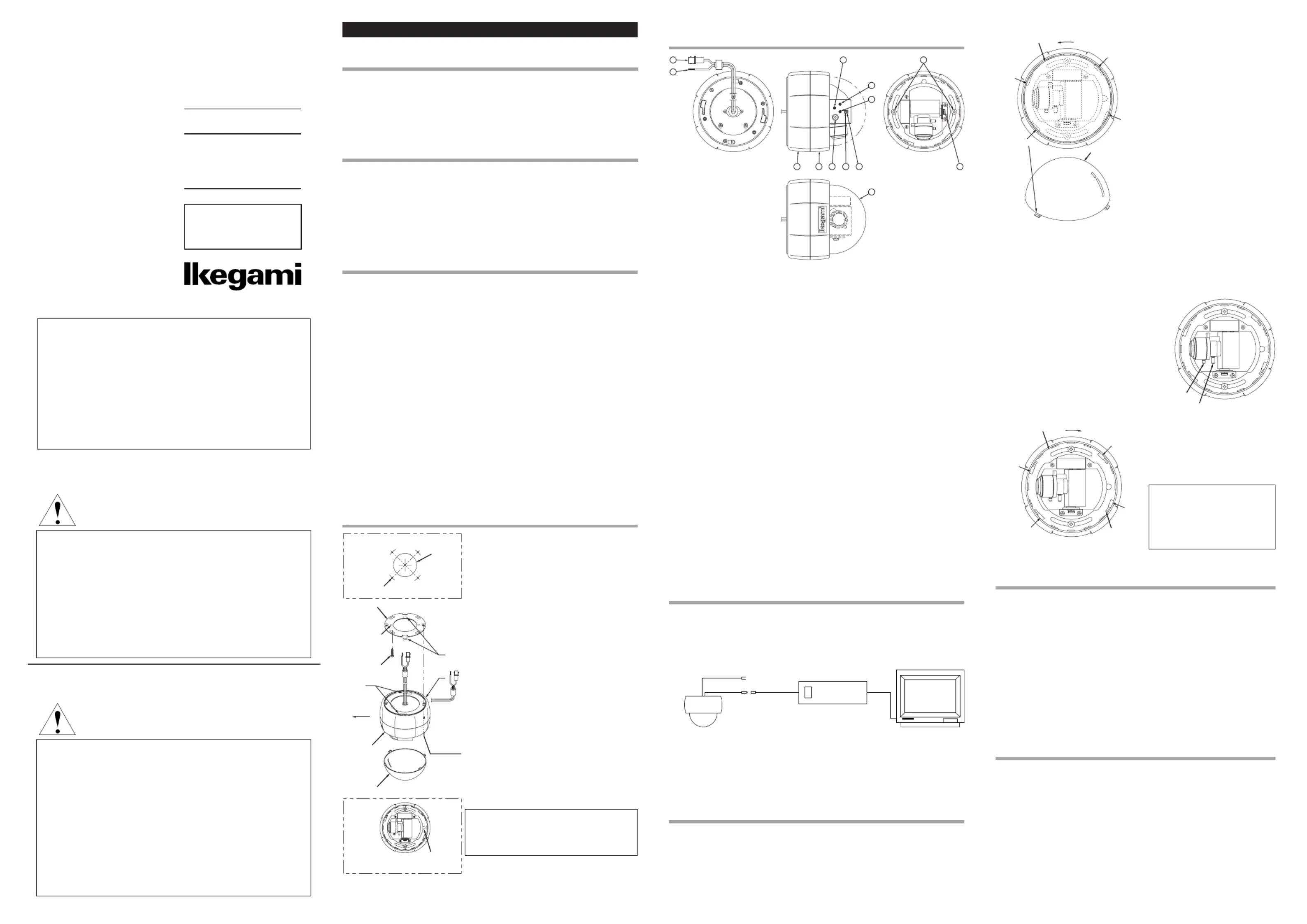

INSTRUCTION MANUAL

MODEL

ICD-68

B/W Dome Camera

OUTDOOR USE WARNING

WARNING – TO PREVENT FIRE OR

ELECTRIC SHOCK, DO NOT

EXPOSED THIS APPLIANCE TO

RAIN OR MOISTURE.

E-1. Handling precautions

(1) Do not open the camera housing unless absolutely necessary. Otherwise, the

internal precision parts may be damaged, resulting in troubles.

(2) Do not use the camera in any place where it is exposed to water or high moisture.

Preferably use the camera at ambient temperatures of -10 to +50 C.°

(3) While moving the camera, be careful not to drop or shock it.

(4) Do not touch the CCD faceplate.

E-2. General

The ICD-68 is a dome-shaped black-and-white camera which employs 1/3” CCD and is

compatible with AC 24V power supply.

This lens built-in type camera which incorporates the exclusive automatically

controllable iris and variable focal lens is equipped with the basic functions such as high

sensitivity, backlight compensation, mirror imaging and line lock, for general-purpose

monitoring. Since small dome shape design is employed for the outside, it is best suited

as an indoor monitor camera that gives weight to interior decorating effect. (The unit is for

interior monitoring only.)

E-3. Features

(1) Small dome

Since the camera and lens are encased in the small dome shell which is quite

different from the housing of ordinary camera, it is possible to monitor by image

without awareness of the location of camera. (Indoor only)

(2) Integration with variable focal lens

The unit is integrated with the focal lens variable from standard angle to x2.3 wide

angle. Imaging focal depth can be adjusted freely by removing the dome cover.

(3) High sensitivity

Employment of the high-sensitivity CCD with on-chip microlens and the high-

performance AGC signal processing provide the unit with high sensitivity of the

minimum subject illuminance as low as 0.3 lux at F1.6 (at full wide).

(4) Line lock

Since the operation of the unit is synchronized with the power supply frequency, a

stable monitor image can be obtained without generation of screen scrolling at the

time of switching of camera in automatic sequential image switching operation when

plural sets of camera are used in the monitor system.

(5) Backlight compensation

Backlight can be compensated effectively according to the intensity of subject backlight.

(6) Mirror image function

Since the unit is equipped with the mirror image function that can horizontally invert

the image by switch operation, the image obtained by indirect monitoring with use of

mirror can be flipped back to the normal image.

E-4. Setting of Camera

①Lens direction adjusting screw (Vertical direction)

Loosen this screw for adjusting the vertical direction of screen.

②Lens direction adjusting screw (Horizontal direction)

Loosen this screw for adjusting the horizontal direction of screen.

③Iris level control (IRIS LEVEL)

This control is for adjusting the lens aperture. The screen light level can be adjusted

freely to be easy to see.

④Line lock phase control (LL PHASE)

This control is for adjusting the line lock phase.

⑤Backlight compensation level control (BLC LEVEL)

This control is for adjusting the effect of backlight compensation when the backlight

selector switch is turned ON.

⑥Backlight compensation selector switch (BLC)

This switch is for selecting ON/OFF of the backlight compensating function.

⑦Mirror image selector switch (MIR)

This switch is for selecting either of the normal image and the mirror image.

⑧Test monitor image output terminal (MON. OUT)

Positioning and focus adjustment can be made easily by connecting this terminal to

the VIDEO IN or the video input terminal of the monitor when setting the camera.

(Connect to 75 terminal.)Ω

⑨Dome cover

⑩Lower case

⑪Upper case

⑫AC 24V power supply input cable

Input the power supply of AC 24V 10%.±

※This installation should be made by a qualified service person and should

conform to all local codes.

⑬Video output cable

This is the cable with video signal output terminal, which is connected to the video

input terminal of the monitor or the switcher. (Connect to 75 terminal.)Ω

Ikegami Electronics (U.S.A.), Inc.

37 Brook Avenue, Maywood, New Jersey 07607, U.S.A.

Phone: (201) 368-9171, FAX 201-569-1626

Ikegami Electronics (Europe) GmbH

Ikegami Strasse 1, 41460 Neuss 1, F.R. Germany

TEL. 02131-123-0/FAX 02131-102820

Ikegami Electronics (Europe) GmbH U.K. Branch

Unit E1 Cologne Court Brooklands Close, Windmill Road Sunbury-

on-Thames Middlesex TW16 7EB, UK

TEL. 01932-769700/FAX 01-92-769710

K32775

English

E-6. Connection

6-1.

Cable with power supply input and video output terminals

• This cable is the video/power composite cable.

• Connect the power supply cable to the AC 24V±10% power supply.

• The cable with BNC connector is the video output terminal. Connect it to the VIDEO

IN or video input terminal of the monitor or the switcher. (Connect to 75 terminal.)Ω

• Use a coaxial cable for video output.

E-5.

Names of parts and their functions

Distribution

hole

ø50 - ø60

Mounting dimensions

M4 mounting screw position PCD93

Mounting

metal

△ mark

M4 mounting

screws (4 pos.)

Setscrew

(Camera

body

inside)

Camera

front side

Camera body

Dome cover

Insert a screwdriver and turn the

setscrew clockwise to fix the camera.

Step 1 Drill a distribution hole (approx. 50 mm -

60 mm dia.) and prepared holes for M4

mounting screws. However, it is not

necessary to drill the distribution hole

when leading out the cables from the

side of the camera body.

Step 2 Remove the dome cover from the

camera body according to the procedure

of “How to Remove the Dome Cover”.

Step 3 Fix the attached mounting metal with M4

screws. The mark stamped on the△

mounting metal indicates the camera

front side that should come to the front

when mounting camera.

Step 4 Fit the portions “A” of the mounting metal

into the holes A’ (2 pos.) and turn the

camera body fully counterclockwise.

When leading out the cables from the

side of the camera and connecting them,

draw out the cables through the notch

“B”.

Step 5 Tighten the setscrew provided inside the

camera body with screwdriver and fix the

camera to the mounting metal.

Step 6 After the completion of lens adjustment

and user setting-up, mount the dome

cover according to the procedure of

“How to Mount the Dome Cover”.

CAUTION

After setting the camera, turn the dome cover

clockwise and make sure that it has been

mounted securely.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

NOTE: This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This

equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

CAUTION; ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY

APPROVED BY THE PART RESPONSIBLE FOR COMPLIANCE COULD

VOID THE USERS AUTHORITY TO OPERATE THE EQUIPMENT.

NOTA: Este equipo p1-ha sido probado y p1-ha demostrado cumplir con los límites

establecidos para los dispositivos digitales de la clase A, en conformidad con

el Apartado 15 de los Reglamentos de la FCC. Estos límites han sido

diseñados para proporcionar una protección razonable contra la

interferencia perjudicial si el equipo se utiliza en un entorno comercial. Este

equipo genera, utiliza y puede radiar energía radioeléctrica, y, si no se

instala y usa de acuerdo con las instrucciones, puede causar interferencias

perjudiciales en las comunicaciones por radio, en conformidad con el

Apartado 15 de los Reglamentos de la FCC. Estos límites han sido

establecidos para proporcionar una protección razonable, el usuario tendrá

que corregir la interferencia corriendo él a cargo de los gastos pertinentes.

PRECAUCIÓN; CUALQUIER CAMBIO O MODIFICACIÓN QUE NO HAYA

SIDO APROBADO EXPRESAMENTE POR LA PARTE RESPONSABLE

PODRÍA ANULAR LA AUTORIZACIÓN QUE TIENE EL USUARIO PARA

UTILIZAR EL EQUIPO.

El signo de exclamación en el interior de un triángulo equilátero tiene la

finalidad de avisar al usuario de la presencia de instrucciones de utilización y

mantenimiento (servicio) importantes en el manual que acompaña al aparato.

Thank you very much for your wise choice of the Ikegami B/W Dome

Camera. Please carefully read this Instruction Manual to keep your camera

at full capacity.

Muchísimas gracias por haber elegido la Cámara en blanco y negro con forma

de cúpula de Ikegami. Lea cuidadosamente este manual de instrucciones

para mantener su cámara en las mejores condiciones de funcionamiento.

6-2.

Test monitor video output terminal (MON. OUT)

• This terminal is the video output terminal (pin jack).

• Positioning and focus adjustment can be made easily by connecting this terminal to

the VIDEO IN or the video input terminal of the monitor when setting the camera.

E-7. Lens Adjustment

Adjustment of variable focus lens

Remove the dome cover before lens adjustment.

①

Dome cover

Catch A

● Adjustment of field angle and focus

(1) Turn the zoom lever (WIDE⇔TELE) near the camera and set the field angle

as desired.

(2) Next, adjust the focus by turning the focus lever (FAR⇔NEAR).

(3) If desired imaging field can not be obtained, repeat the steps (1) and (2).

(4) When the adjustment is over, tighten the treaded portions of the zoom lever

and focus lever to fix the levers.

The zoom lever and focus lever have threaded

portions. Adjust the levers after the threaded

portions are loosened and tighten the threaded

portions to fix the levers after adjustment.

Catch D

Catch C

Catch B

②Dome cover

1. Turn the dome cover in the

direction 1 (counterclockwise).

2. The dome cover can be removed

by holding up the catches A and

B while pressing around the

catches B and D (or A and C) of

the dome cover.

Focus lever

Zoom lever

● How to Mount the Dome Cover

②

Dome cover 1. Fit and press the catches (4 pos.)

of the dome cover into the

mounting holes of the camera①

body and mount the dome cover.

Turn the dome cover in the

direction

②

(clockwise) and fix it.

CAUTION

After the completion of dome cover

mounting, make sure that the

catches have been completely

moved up to the catch fixing

positions.

Mounting

hole

①

Mounting

hole

Mounting

hole

Mounting

hole

Catch fixing

position

11 10

8 1

6 7

ICD-68

VCR

MONITOR

POWER

E-8.

Warranty and after-sale service

A warranty accompanies this product. Read and fill out the warranty card that you

have received at your dealer. Keep this card in a safe place.

· Please consult Ikegami Electronics (U.S.A.) Inc. or your dealer for full warranty

information. Your dealer will repair or replace free of charge within the warranty

period according to the warranty coverage.

· For repairs after the expiration of the warranty period, consult your dealer or

sales representative. It will first be judged whether the trouble is repairable or

not. Charged servicing will then be made upon request of the user.

· Before you ask for servicing, take trouble of reading the Instruction Manual. If

the unit still fails, take note of the model number, date of purchase, problem, etc.

in detail, and inform your dealer or sales representative.

· If you have questions about the after-sale service, contact your dealer or sales

representative.

※ We suggest you ask for preventive inspection earlier.

E-9. Specifications

(1) Imaging device: 1/3 inch, interline transfer type CCD

No. of effective pixels:

512 (H) x 492 (V) lines, approx. 250,000 pixels

(2) Sensing area: 4.8 (H) x 3.6 (V) mm

(3) Scan system: EIA, 2:1 interlace

(4) Sync system: Line lock (phase adjustable)

(5) Vertical sync frequency: 60Hz

(6) Horizontal sync frequency: 15.75kHz

(7) Video output: ①VIDEO OUTPUT: VS1. 0Vp-p/75Ω

②MON. OUTPUT: VS1. 0Vp-p/75Ω

(8) Horizontal resolution: 380 TV lines

(9) S/N ratio: 48 dB (at standard illuminance, weight-ON)

(10) Subject illuminance • Rated illuminance:Approx. 300 lux

(tungsten light source, at • Range of illuminance for actual use:

89.9% subject reflectance): Approx. 0.3 - 100,000 lux

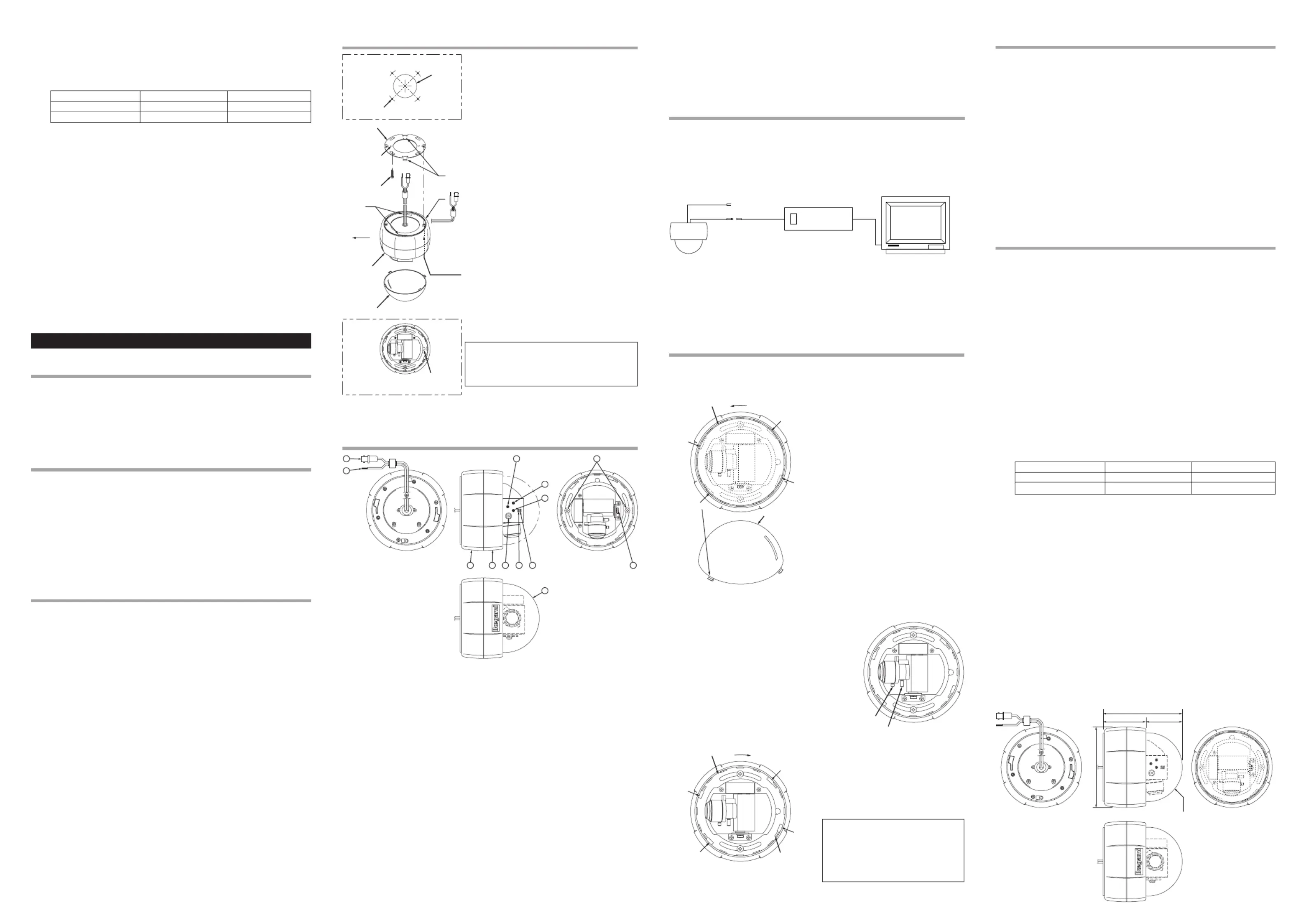

● How to Remove the Dome Cover

②

(Typical connections)

Produkt Specifikationer

Mærke:	Ikegami
Kategori:	Overvågningskamera
Model:	ICD-68

Har du brug for hjælp?

Hvis du har brug for hjælp til Ikegami ICD-68 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Overvågningskamera Ikegami Manualer

Ikegami ECO-312700 Manual

29 August 2024

Ikegami ICD-809 Manual

29 August 2024

Ikegami ICD-38 Manual

29 August 2024

Ikegami ICD-68 Manual

29 August 2024

Ikegami ICD-E11 Manual

29 August 2024

Ikegami Hyper Dynamic IPD-BX11 Manual

29 August 2024

Ikegami ISD-A21 Manual

29 August 2024

Ikegami ISD-A15 Manual

29 August 2024

Ikegami High Performance IPD-DM100 Manual

29 August 2024

Ikegami ICD-525 Manual

29 August 2024

Overvågningskamera Manualer

Nyeste Overvågningskamera Manualer

Hikvision DS-2CE12KF3T-LS Manual

18 December 2024

Bolin Technology B6-420 Manual

18 December 2024

Hikvision DS-2CE16U0T-LF Manual

18 December 2024

Hikvision DS-2CE10KF3T-LSYE Manual

18 December 2024

Hikvision DS-2CE10KF3T-LS Manual

18 December 2024

Hikvision DS-2CE76U0T-LMF Manual

18 December 2024

Hikvision DS-2CE12KF3T-LSYE Manual

18 December 2024

Hikvision DS-2CE72KF3T-LS Manual

18 December 2024

Hikvision DS-2CE17U0T-LF Manual

18 December 2024

Hikvision DS-2CE72KF3T-LSYE Manual

18 December 2024
