INSTRUCTION MANUAL

MODEL

ICD-505

COLOR CAMERA

OUTDOOR USE WARNING

WARNING – TO PREVENT FIRE OR

ELECTRIC SHOCK, DO NOT

EXPOSED THIS APPLIANCE TO

RAIN OR MOISTURE.

Ikegami Electronics (U.S.A.), Inc.

37 Brook Avenue, Maywood, New Jersey 07607, U.S.A.

Phone: (201) 368-9171, FAX 201-569-1626

Ikegami Electronics (Europe) GmbH

Ikegami Strasse 1, 41460 Neuss 1, F.R. Germany

TEL. 02131-123-0/FAX 02131-102820

Ikegami Electronics (Europe) GmbH U.K. Branch

Unit E1 Cologne Court Brooklands Close, Windmill Road

Sunbury-on-Thames Middlesex TW16 7EB, UK

TEL. 01932-769700/FAX 01-92-769710

K32567-1

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

NOTE: This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This

equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

CAUTION; ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY

APPROVED BY THE PART RESPONSIBLE FOR COMPLIANCE COULD

VOID THE USERS AUTHORITY TO OPERATE THE EQUIPMENT.

NOTA: Este equipo p1-ha sido probado y p1-ha demostrado cumplir con los límites

establecidos para los dispositivos digitales de la clase A, en conformidad con

el Apartado 15 de los Reglamentos de la FCC. Estos límites han sido

diseñados para proporcionar una protección razonable contra la interferencia

perjudicial si el equipo se utiliza en un entorno comercial. Este equipo genera,

utiliza y puede radiar energía radioeléctrica, y, si no se instala y usa de

acuerdo con las instrucciones, puede causar interferencias perjudiciales en

las comunicaciones por radio, en conformidad con el Apartado 15 de los

Reglamentos de la FCC. Estos límites han sido establecidos para

proporcionar una protección razonable, el usuario tendrá que corregir la

interferencia corriendo él a cargo de los gastos pertinentes.

PRECAUCIÓN; CUALQUIER CAMBIO O MODIFICACIÓN QUE NO HAYA

SIDO APROBADO EXPRESAMENTE POR LA PARTE RESPONSABLE

PODRÍA ANULAR LA AUTORIZACIÓN QUE TIENE EL USUARIO PARA

UTILIZAR EL EQUIPO.

El signo de exclamación en el interior de un triángulo equilátero tiene la

finalidad de avisar al usuario de la presencia de instrucciones de utilización y

mantenimiento (servicio) importantes en el manual que acompaña al aparato.

Thank you very much for your wise choice of the Ikegami Color CCD

Camera. Please carefully read this Instruction Manual to keep your

camera at full capacity.

Muchísimas gracias por haber elegido la cámara CCD en color de

Ikegami. Lea cuidadosamente este manual de instrucciones para

mantener su cámara en las mejores condiciones de funcionamiento.

E-1. Handling precautions

(1) Do not open the case of camera and never touch inside, where

precision parts are assembled. A trouble or accident may result.

(2) Do not install the unit where it is exposed to water splash, high

humidity and heavy dust. Internal parts may be damaged.

Preferably use the camera at ambient temperatures of -10 to +50°C.

(3) Be very careful not to drop or shock the camera.

(4) Never touch the CCD surface.

E-2. General

The ICD-505 are single CCTV cameras that employ a 1/3-inch CCD

(Charge Coupled Device) respectively, with 380,000 picture elements.

The units feature high resolution, high sensitivity and high picture

quality, and are equipped with many functions: back-light

compensation, automatic electronic shutter, automatic iris control and

others. The cameras are best suited for general-purpose monitoring.

E-3. Features

(1) Digital processing

(2) High-quality picture and high resolution

(3) High-sensitivity design

(4) Equipped with back-light compensating function

(5) 2-way automatic iris controlling function

(6) Automatic white balance

(7) AES (Automatic Electronic Shutter)

(8) Flange focal distance adjusting mechanism

(9)

The camera measures 53mm in depth in order to fit in a limited space.

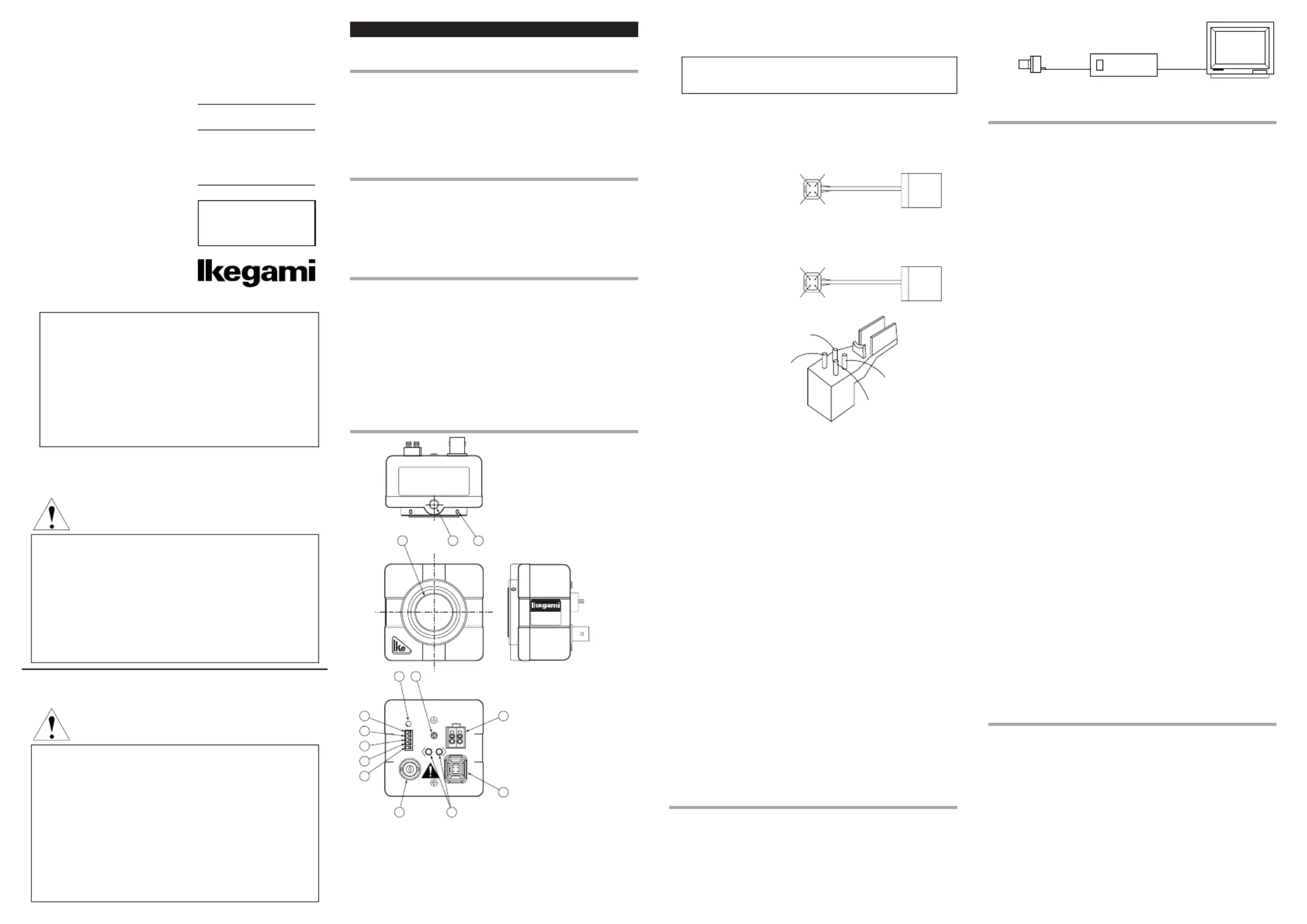

E-4. Names of parts and

their functions

English

CLASS 2

AES

BLC

AGC

OFF

VIDEOD C

L L INT

VIDEO OUT

IRIS LEVEL

LL PHASE

POWER

LENS

MAX40mA

Digital Process

CO LO R CA MERA

C O L O R C A M E R A

M O D E L I C D – T YP E505

A C 2 4 V 6 0 H z 3 . 6 W / DC 1 2V 3 . 6 W RE V.

S E R . N O .

D A T E

I KE G AM I T SU S H IN K I CO ., LTD . MA D E I N JA PA N

F D N

DC12V3.6W

- +

AC24V60Hz3.6W

12 5

③Holder mounting screw holes

These holes are used to fix the camera on the camera holder. They

are also applicable to general tripods.

Note: To attach the camera on a tripod or a camera holder, be

sure to use mounting screws.

(1/4" -20UNC) that are shorter than 5.5 mm.

④Auto iris lens connector

The connector is specifically used to connect the auto iris lens. Use the

optional auto iris lens control connector plug (E4-191J-150 or equivalent).

• For the video type auto iris lens

Set the lens selector switch to VIDEO position.

— Connector cable leads —

1. Red (power)

2. Not used

3. White (video)

4. Black (shielded)

* Dress the tip of the green lead to prevent a short-circuit.

• For the DC type auto iris lens

Set the lens selector switch to DC position.

— Connector cable leads —

1. Damping coil (-)

2. Damping coil (+)

3. Driving coil (+)

4. Driving coil (-)

* Connect the leads as shown above.

Refer also to the instructions of the lens.

⑤Iris level control (IRIS LEVEL)

This control adjusts the sensitivity with a DC iris lens in use.

⑥Line lock phase control (LL PHASE)

This control adjusts the phases of the video output and the power line.

■Precautions in setting the LL PHASE

1.Press the LL PHASE’s “<” and “>” buttons at once, and the

phase will be back to its factory setting.

2.When the “<” and “>” buttons have been pressed at once, push

the “>” button once more to put the data in memory.

⑦AES selector switch

The switch turns on and off the AES function. When an auto iris

lens is used, be sure to keep this switch at OFF position.

⑧Backlight compensation selector switch

The switch turns on and off the backlight compensation function.

⑨AGC selector switch

The switch turns on and off the AGC function.

⑩Lens selector switch

The switch has two positions, for a video iris lens and a DC iris lens.

⑪Sync system selector switch

Used to choose between the internal sync and the line lock. Set the

selector to INT for use in internal sync, and LL for use in line lock. The

line lock cannot be used in regions with the power frequency of 50Hz.

⑫Power indicator (POWER)

The LED indicator stays on in green while the camera power is on.

⑬Video output connector (VIDEO OUT)

The output connector is connected to the video input connector of a monitor,

switcher or the like. (Terminate the terminal with a 75-ohm impedance.)

⑭AC24V/DC12V power input terminal

Keep the input power at AC24V (21.6-26.4 V) or DC12V (10.5-15.0 V).

※This installation should be made by a qualified service person

and should conform to all local codes.

E-5. Connection

Video output connector (VIDEO OUT)

• This is the output connector of video signal.

• The connector is used to connect the video camera to the video

input connector of a monitor, switcher or the like. (To be connected

with 75-ohm impedance)

• Use a coaxial cable for connection.

ICD-505 VCR MONITOR

E-6. Specifications

(1) Imaging device: 1/3 inch, interline transfer type CCD

(2) No. of effective Approx. 380,000 pixels,

picture elements: 768(H) and 494(V) lines

Color filter: Color difference line

sequential system

(3) Sensing area: 4.8(H) x 3.6(V) mm

(4) Horizontal resolution: 480 lines

(5) Minimum illuminance:

1 lux/F1.4 (at subject reflectance of 89%)

(6) S/N ratio:

48 dB/rms or better

(at rated illuminance)

(7) TV system: 2: 1 interlace, as per NTSC system

(8) Sync system: Internal sync: Crystal lock or Line lock

(phase adjustable)

(9) Vertical sync frequency: Int: 59.94Hz

Line lock: 60Hz

(10)

Horizontal sync frequency

: Int: 15.734KHz

Line lock: 15.750KHz

(Varies with power frequency for line-

lock SC notsynchronized)

(11)Video output: VBS 1.0Vp-p/75 ohms

(12)White balance: TTL method, ATW

(13)Backlight compensation: On/off, switchable

(BLC)

(14)AES:

On/off, switchable, AES range 1 : 1600

(15)AGC: On/off, switchable

(16)Auto iris function: Video iris/DC iris, switchable

(DC iris level adjustable)

(17)Flange focal distance

adjustment function: Provided

(18)Lens mount: CS mount

(19)Camera mount:

1/4"-20UNC (top and bottom mounting)

(20)Ambient operating

temperature: -10 to +50°C

(21)Power supply: AC24V ±10%, 60Hz /

DC12V (10.5-15.0 V)

(22)Power consumption: Approx. 3.6W

(23)Input/output connectors: (1) Video output; BNC

(2) AC24V/DC12V input;

2-pin terminal block

(3) Lens; 4-pin (applicable plug, E4-

191J-150 or equivalent option)

(24)Outer dimensions: 64(W) x 64(H) x 53(D) mm

(projections and accessories not included)

(25)Weight: Approx. 250g (8.8 oz)

(26)Accessories: Operation manual, 1 copy

(27)Option: Lens connector plug E4-191J 150 or

equivalent 1pc.

E-7. Warranty and after-sale

service

A warranty accompanies this product. Read and fill out the warranty card

that you have received at your dealer. Keep this card in a safe place.

Please consult Ikegami Electronics (U.S.A.) Inc. or your dealer for full

warranty information. Your dealer will repair or replace free of charge

within the warranty period according to the warranty coverage.

· For repairs after the expiration of the warranty period, consult your

dealer or sales representative. It will first be judged whether the

trouble is repairable or not. Charged servicing will then be made

upon request of the user.

Before you ask for servicing, take trouble of reading the Instruction Manual.

If the unit still fails, take note of the model number, date of purchase,

problem, etc. in detail, and inform your dealer or sales representative.

· If you have questions about the after-sale service, contact your

dealer or sales representative.

※ We suggest you ask for preventive inspection earlier.

①Lens mount (CS mount)

This is used to mount the lens on the camera. Many types of CS

mount lens can be attached.

②Focus lock screw (2 locations)

Used to mechanically fix the CS mount after adjusting the camera’s

flange focal distance. To adjust the distance, turn the CS mount and

move it to and from until a desired distance is obtained. The two lock

screws are positioned 90 to each other on top.°

Auto iris lens

Numbers of connector pins

(Typical connections)

Produkt Specifikationer

Mærke:	Ikegami
Kategori:	Overvågningskamera
Model:	ICD505

Har du brug for hjælp?

Hvis du har brug for hjælp til Ikegami ICD505 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Overvågningskamera Ikegami Manualer

Ikegami ECO-312700 Manual

29 August 2024

Ikegami ICD-809 Manual

29 August 2024

Ikegami ICD-38 Manual

29 August 2024

Ikegami ICD-68 Manual

29 August 2024

Ikegami ICD-E11 Manual

29 August 2024

Ikegami Hyper Dynamic IPD-BX11 Manual

29 August 2024

Ikegami ISD-A21 Manual

29 August 2024

Ikegami ISD-A15 Manual

29 August 2024

Ikegami High Performance IPD-DM100 Manual

29 August 2024

Ikegami ICD-525 Manual

29 August 2024

Overvågningskamera Manualer

Nyeste Overvågningskamera Manualer

Hikvision DS-2CE12KF3T-LS Manual

18 December 2024

Bolin Technology B6-420 Manual

18 December 2024

Hikvision DS-2CE16U0T-LF Manual

18 December 2024

Hikvision DS-2CE10KF3T-LSYE Manual

18 December 2024

Hikvision DS-2CE10KF3T-LS Manual

18 December 2024

Hikvision DS-2CE76U0T-LMF Manual

18 December 2024

Hikvision DS-2CE12KF3T-LSYE Manual

18 December 2024

Hikvision DS-2CE72KF3T-LS Manual

18 December 2024

Hikvision DS-2CE17U0T-LF Manual

18 December 2024

Hikvision DS-2CE72KF3T-LSYE Manual

18 December 2024
