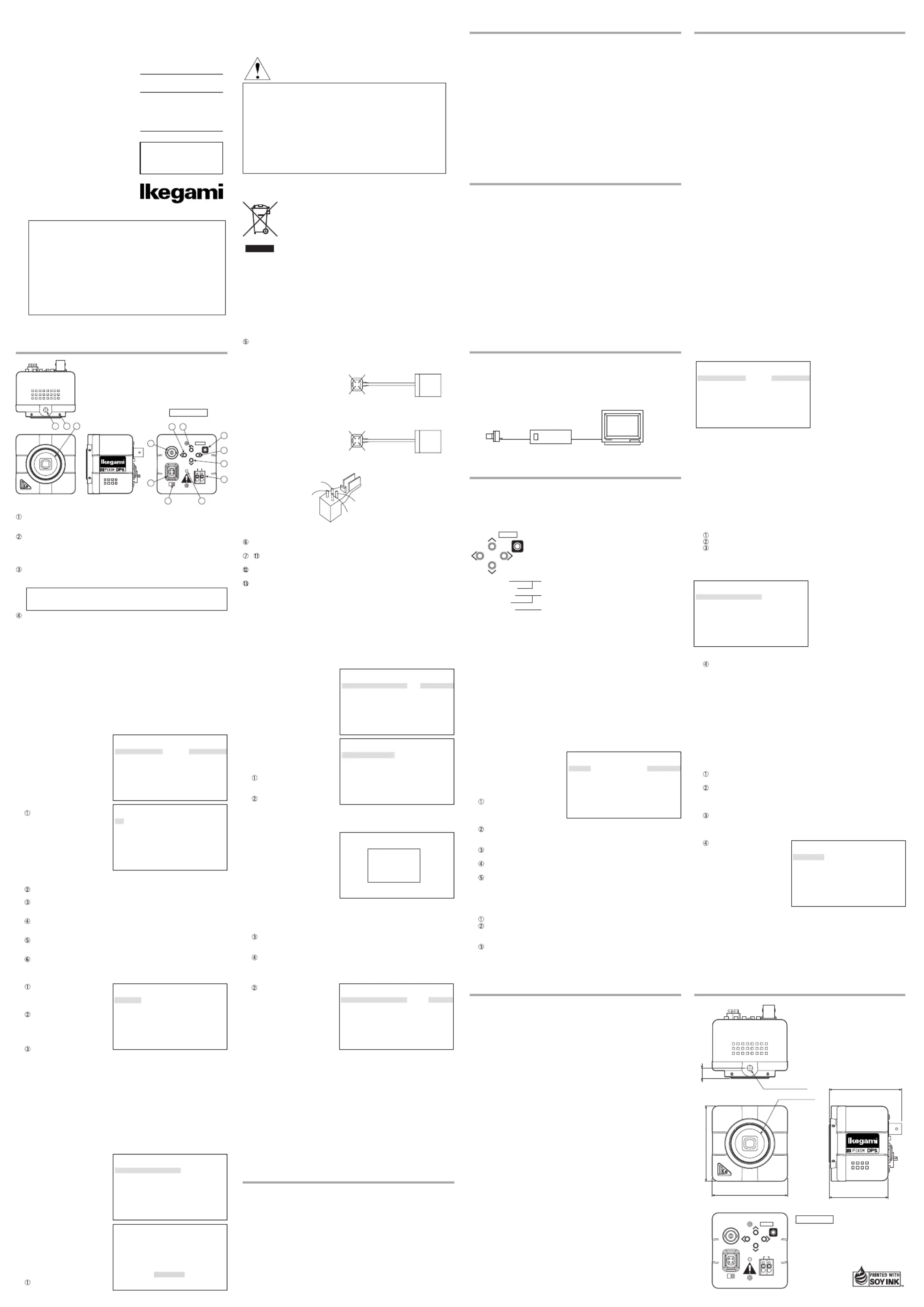

Side 1/2

Ikegami Tsushinki Co., Ltd.

INSTRUCTION MANUAL

MODEL

ISD-A10

COLOR CAMERA

OUTDOOR USE WARNING

WARNING – TO PREVENT FIRE OR

ELECTRIC SHOCK, DO NOT

EXPOSED THIS APPLIANCE TO

RAIN OR MOISTURE.

Ikegami Electronics (U.S.A.), Inc.

37 Brook Avenue, Maywood, New Jersey 07607, U.S.A.

Phone: (201) 368-9171, FAX 201-569-1626

Ikegami Electronics (Europe) GmbH

Ikegami Strasse 1, 41460 Neuss 1, F.R. Germany

TEL. 02131-123-0/FAX 02131-102820

Ikegami Electronics (Europe) GmbH U.K. Branch

Unit E1 Cologne Court Brooklands Close, Windmill Road

Sunbury-on-Thames Middlesex TW16 7EB, UK

TEL. 01932-769700/FAX 01-92-769710

K36089

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

NOTE: This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This

equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

CAUTION; ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY

APPROVED BY THE PART RESPONSIBLE FOR COMPLIANCE COULD

VOID THE USERS AUTHORITY TO OPERATE THE EQUIPMENT.

Thank you very much for your wise choice of the Ikegami DPS

Camera. Please carefully read this Instruction Manual to keep your

camera at full capacity.

This DPS camera is equipped with a 1/3" WDR digital image device.

Instructions for Disposal of Electric and Electronic

Equipment in Private Household

Disposal of used Electric and Electronic Equipment

(Applicable in the European Union and other

European countries with separate collection systems)

This symbol on the product, or in the related documents in the

package, indicates that this product shall not be treated as

normal household waste. Instead, it should be taken to a

proper applicable collection point or depot for the recycling of

electric and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent

possible negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this

product. The recycling of materials will help to conserve natural resources.

For more detailed information about recycling of this product, please contact

your local city authority, your household waste disposal service or the place

where you purchased the product.

1. Handling precautions

4. Names of par their functions

Operation

Connection

Appearance View

Specifications

7. Warranty and after-sale service

VIDEO OUT

LENS

MAX40mA

UERL

POWER

DC VIDEO

+–

CLASS 2

DC12V330mA

AC24V50/60Hz370mA

SE T U P

64 8.5

61.5

2-1/4"-20UNC

1"-32UN-2B

(1) Imaging device: 1/3-inch WDR digital imaging device

(2) No. of effective pixels: Approx. 380,000 pixels, 720(H) x 540(V)

(3) Scanning system: NTSC/PAL-compatible

(4) Sync system: INT/Line-Lock (phase adjustable)

(5) Video output: VBS 1.0 Vp-p/75 ohms

(6) Horizontal resolution: 480 TV lines

(7) S/N ratio: 50 dB (luminance signal, at rated illumination,

Detail OFF and Weight ON)

(8) Minimum subject

illumination: 1 lux/F1.4 (AGC ON)

0.03 lux/F1.4 (electronic sensitivity up x32)

(Light source color temperature 3100K, subject

reflectance 89.9%)

(9) AGC: ON (AGC, HYPER-AGC)/OFF (LOW, MID,

HIGH) selectable

(10) Electronic sensitivity up: Automatic (up to 32 times: interlocked with AGC

mode)

(11) White balance: ATW/ATWex/AWC/MANU selectable

(12) WDR function: Variable at 36 levels

(13) Iris level: Adjustable

(14) Camera ID: Up to 24 characters (alphanumeric and symbols)

(15) Power supply: AC 24 V 10% (50/60 Hz), DC 12 V (10.5-15 V)±

(16) Power consumption: Approx. 5.2 W

(17) Ambient operating

temperature: -10 to +50 C°

(18) Camera mount: 1/4" -20UNC (top and bottom mountable)

(19) Outer dimensions: 64(W) x 64(H) x 61.5(D) mm

(20) Weight: Approx. 350 g

(21) Input/output connectors: • VIDEO OUT; BNC

• LENS; 4P (applicable plug E4-191J-150 or

equivalent)

• AC24V/DC12V input; 2P push-in terminal

(22) Accessories: • Instruction Manual, 1 copy

• Lens connector plug, 1 pc. (PAL system) (E4-

191J-150 or equivalent)

* Specifications and design are subject to change for product improvements

without notice.

• Do not install the camera in a water-splashed or highly humid place.

• Do not use the camera where the ambient temperature drops below -10 C or °

rises above +50 C. The images and component parts may be adversely °

affected or the camera may get in trouble.

• Never open the case of the camera because there are precision parts inside.

Otherwise a trouble or accident may result.

• Donotputanythingmetallicandotherforeignsubstancesthroughthevent.A

trouble,fireorelectricshockmayresult.

• Be sure to turn off the power before installing or making connections.

•Donotinstallthecamerainplacesexposedtovibrationsandshocks.

• Be very careful not to drop or shock the camera while carrying it in.

• Do not touch the imaging device

• Do not orient the camera to the sun.

• Some types of lenses may cause hunting, light amount drop or other

problems. In such case, readjust the lenses.

* Because of the digital image device characteristics, images may look rugged

at high temperatures. This does not mean the camera is in trouble.

2. General

This color camera is provided with a 1/3-inch approximate wide dynamic range

(WDR) digital image device. It features WDR, high sensitivity and high

resolution, and is equipped with many functions such as backlight

compensation, automatic iris control and line lock. The camera is best suited

for being set up at ATMs and being housed in other systems. General CCTV

lenses can also be employed, which enables the camera for general-purpose

monitoring.

Up Switch (U) Used to select SETUP items (up and down).

Down Switch (D)

Right Switch (R) Used to modify the settings.

Left Switch (L)

Enter Switch (E) Used to enter and quit the setup mode and to save

the settings.

* To enter the setup mode, hold down the E button longer than 2 seconds.

6-3. Entering the setup mode and its basics

6-3-1. SETUP MENU (Main menu)

Hold down the E button longer

than 2 seconds, and the menu at

left appears onscreen. A

highlighted item is now selected.

(1) CAMERA ID

Up to 24 characters can be displayed onscreen.

(2) LIGHT CONTROL

The backlight compensation and spot photometry modes are selected. The

wide dynamic level and DC type iris lens are adjusted.

(3) GAIN

The gain control and electronic sensitivity up modes are selected. The

electronic sensitivity multiplying factor is also selected.

(4) WHITE BALANCE

The white balance mode is selected. The manual white balance settings are made.

(5) SYNC

The sync systems (INT and LL) are selected and set up.

(6) MENU LOCK

The saved settings can be locked.

(7) SETUP

The EXIT, CANCEL or RESET action is selected and executed.

EXIT: Used to save the settings and to quit the menu.

CANCEL: Used to return the settings to the previously saved ones.

RESET: Used to return the settings to the factory ones.

* New settings are not saved if EXIT is selected to quit the menu.

3. Features

(1) Wide dynamic range (WDR)

The WDR function provides for backlight compensation in a wide dynamic

range. Being shot even in wide-illumination-fluctuating spots, bright-and-

dark subjects can be captured clearly and in a natural look.

(2) Automatic white balance

Thanks to the automatic follow-up white balance control (ATW), the white

balance adjusts itself no matter how greatly the subject's color temperature

fluctuates.

(3) High-quality picture and high resolution

The camera is designed for low smear level and low noise. The DSP

(Digital Signal Processor) effectively enhances details, which achieves

crisp and sharp images with high signal-to-noise ratio. The high resolution

is backed up by a horizontal resolution of 480 TV lines and a vertical

resolution of 400 TV lines.

(4) High sensitivity

Various modes of automatic gain control (AGC) are available to finely

adjust the camera settings depending on the subject's illumination

conditions. With the AGC and slow shutter in combination, high sensitivities

of up to 0.03 lux/F1.4 are achieved.

(5) Camera setup function

The control buttons on the back of the camera enable to change and save

the camera's settings.

(6) Two-way automatic iris control

This function is available to switch between video type iris lens and DC

type iris lens. In other words, almost all types of CCTV automatic iris

lenses can be employed.

(7) The flange focal distance adjusting mechanism makes it easy to readjust

the focus tracking when a zoom lens is used.

Lens mount (CS mount)

This is used to mount the lens on the camera. Many types of CS mountlens can

be attached.

Focus lock screw (2 locations)

Used to mechanically fix the CS mount after adjusting the camera’s flange

focal distance. To adjust the distance, turn the CS mount and move it to and

from until a desired distance is obtained. The two lock screws are positioned

90 to each other on top.°

Holder mounting screw holes

These holes are used to fix the camera on the camera holder. They are also

applicable to general tripods.

Note:To attach the camera on a tripod or a camera holder, be sure to use

mounting screws.

(1/4" -20UNC) that are shorter than 5.5 mm.

Video output terminal (VIDEO OUT)

Used for the video signal output, this terminal is connected to the video input

terminal of a monitor, switcher or the like. (To be terminated with a 75-ohm

impedance)

Auto iris lens connector (LENS)

The connector is specifically used to connect the auto iris lens.

¥ For the video type auto iris lens

Set the lens selector switch to VIDEO position.

— Connector cable leads —

1. Red (power)

2. Not used

3. White (video)

4. Black (shielded)

* Dress the tip of the green lead to prevent a short-circuit.

¥ For the DC type auto iris lens

Set the lens selector switch to DC position.

— Connector cable leads —

1. Damping coil (-)

2. Damping coil (+)

3. Driving coil (+)

4. Driving coil (-)

* Connect the leads as shown above.

Refer also to the instructions of the lens.



Lens selector switch

The switch has two positions, for a video iris lens and a DC iris lens.

- Camera setup function switches

Refer to the Operation chapter.

Power indicator (POWER)

The LED indicator stays on in green while the camera power is on.

DC12V/AC24V power input terminal

Keep the input power at DC10.5-15.0 V or AC24V 10% ±

 *This installation should be made by a qualified service person and should

conform to all local codes.

Auto iris lens

Numbers of connector pins

ISD-A10 VCR MONITOR

SET UP

ＳＥＴＵＰ ＭＥＮＵ



→ＣＡＭＥＲＡＩＤＯＦＦ

ＬＩＧＨＴＣＯＮＴＲＯＬ

ＧＡＩＮ

ＷＨＩＴＥＢＡＬＡＮＣＥＡＴＷ

ＳＹＮＣＩＮＴ

ＭＥＮＵＬＯＣＫＯＦＦ

ＳＥＴＵＰＥＸＩＴ

ＳＥＴＵＰ ＭＥＮＵ



→ＣＡＭＥＲＡＩＤＯＦＦ

ＬＩＧＨＴＣＯＮＴＲＯＬ

ＧＡＩＮ

ＷＨＩＴＥＢＡＬＡＮＣＥＡＴＷ

ＳＹＮＣＩＮＴ

ＭＥＮＵＬＯＣＫＯＦＦ

ＳＥＴＵＰＥＸＩＴ

ＩＤＥＤＩＴ



→ＩＤ

□□□□□□□□□□□□□□□□□□□□□□□□

ＩＤＡＬＬＣＬＥＡＲ

ＩＤＰＯＳＩＴＩＯＮＵＰ

ＣＨＡＲ．ＣＯＬＯＲＷＨＩＴＥ

ＢＡＣＫＣＯＬＯＲＧＲＡＹ

ＲＥＴ

ＷＨＩＴＥＢＡＬＡＮＣＥ



→ＲＧＡＩＮＩ―――――Ｉ―――――Ｉ



ＢＧＡＩＮＩ―――――Ｉ―――――Ｉ



ＲＥＴ

ＳＰＥＣＩＡＬＭＥＮＵＶ１．００



→ＶＩＤＥＯＳＴＡＮＤＡＲＤ

ＣＯＬＯＲＢＡＲ 

ＣＨＲＯＭＡＩ―――――Ｉ―――――Ｉ



ＤＥＴＡＩＬＩ―――――Ｉ―――――Ｉ



ＳＥＴＵＰ０ＩＲＥ

ＲＥＴ

ＳＥＬＥＣＴＶＩＤＥＯＳＴＡＮＤＡＲＤ



→ＶＩＤＥＯＳＴＡＮＤＡＲＤＮＴＳＣ

ＲＥＴ

ＳＹＮＣＬＬ



→ＰＨＡＳＥＩ―――――Ｉ―――――Ｉ



＋９０ＤＥＧ

ＲＥＴ

ＬＩＧＨＴＣＯＮＴＲＯＬ



→ＢＡＣＫＬＩＧＨＴＣＭＰ．ＯＦＦ

Ｗ．ＤＹＮＡＭＩＣＩ―――――Ｉ―――――Ｉ



ＩＲＩＳＬＥＶＥＬＩ―――――Ｉ―――――Ｉ



ＲＥＴ

ＧＡＩＮＣＯＮＴＲＯＬ



→ＧＡＩＮＡＧＣ

ＳＥＮＳＵＰＯＦＦ

ＳＬＯＷＳＨＵＴＴＥＲｘ２

ＲＥＴ

１ＳＰＯＴＺＯＮＥ



→ＡＤＪＵＳＴＺＯＮＥ

ＲＥＴ

ＳＰＥＣＩＡＬＭＥＮＵＶ１．００



→ＶＩＤＥＯＳＴＡＮＤＡＲＤ

ＣＯＬＯＲＢＡＲ 

ＣＨＲＯＭＡＩ―――――Ｉ―――――Ｉ



ＤＥＴＡＩＬＩ―――――Ｉ―――――Ｉ



ＳＥＴＵＰ０ＩＲＥ

ＲＥＴ

ＷＡＲＲＮＩＮＧ！！

Ｉｆｔｈｅｓｅｔｔｉｎｇｏｆｔｈｅ

ｖｉｄｅｏｓｔａｎｄａｒｄｉｓｃｈａｎｇｅｄ,

ａｌｌｔｈｅｓｅｔｔｉｎｇｓａｒｅ

ｉｎｉｔｉａｌｉｚｅｄ．



Ｄｏｙｏｕｃｈａｎｇｅｔｈｅｓｅｔｔｉｎｇ?



→ＣＡＮＣＥＬ

ＯＫ

6-3-2. SPECIAL MENU

Highlight EXIT on the SETUP

MENU screen. Hold down the L

and R buttons together, and the

screen at left appears onscreen.

(1) VIDEO STANDARD Used to switch between the video signal systems

(NTSC/PAL).

(2) COLOR BAR Used to turn on and off the color bars.

(3) CHROMA Used to adjust the chroma level.

(4) DETAIL Used to adjust the details.

(5) SETUP Used to select the setup levels (0 IRE and 7.5 IRE).

(6) RET Used to go back to the main menu screen.

6-4. Setup procedures

6-4-1. CAMERA ID

(1) CAMERA ID ON/OFF setting

Highlight CAMERA ID. Using the

E, L or R button, access the

ON/OFF setting. Decide the ON

or OFF setting with the L or R

button.

(2) ID characters setting

Keep CAMERA ID highlighted

and press the E button. The

screen at right shows up.

Press the E button on ID, and

the cursor appears. With the

L or R button, select a

character. Press the E button

to save it, and the character

box advances to the next

one. To delete a character,

press the E button to go

through the code and place

the cursor in the character to delete. Press the L or R button to get the box

blank.

ID ALL CLEAR

Highlight this item and press the E button. The ID code is cleared.

ID POSITION

Highlight this item and press the L or R button. In this way, the ID code can

be positioned up or down.

CHAR. COLOR

Highlight this item and the press the L or R button to choose from four

character colors: white, transparent, gray and magenta.

BACK COLOR

Highlight this item and the press the L or R button to choose from four

background colors.

RET

Press the E button to go back to the main menu screen.

6-4-2. LIGHT CONTROL

(1) Select LIGHT CONTROL on

the main menu screen. Press

the E button, and the screen at

right shows up.

* The IRIS LEVEL item appears

only when the lens selector

switch at the camera's back is

set at DC.

(2) BACKLIGHT CMP.

Highlight this item and the

backlight compensation modes

can be selected (ON, 1SPOT,

2SPOT and OFF).

Usual backlight

compensation is made.

1SPOT

Select 1SPOT and press the

E button. Press the E button again on ADJUST ZONE, and the photometric

field setting screen shows up. Each time the E button is pressed, the

photometric frame color turns blue, green and red in this order

• Blue

Using the U, D, L or R

button, the field can be

moved wherever you like.

• Green

Using the U, D, L or R

button, the field can be

enlarged.

• Red

Using the U, D, L or R

button, the field can be

reduced.

* To quit the field setting screen, hold down the E button longer than 2

seconds. Once the 1SPOT ZONE screen appears, select RET and press

the E button. The previous menu shows up.

2SPOT

As with the 1SPOT mode, two photometric fields can be preset. Take the

same procedure as for the 1SPOT mode.

OFF

The backlight compensation function is off.

(3) W. DYNAMIC

The wide dynamic level can be varied with the L and R buttons. The

intermediate level is initially set. In shooting scenes with greatly fluctuating light

quantities, move the marker to the right to get a higher effect. Position the

marker while watching an actual scene.

(4) IRIS LEVEL

This item appears when the DC type iris lens is in use. Move the marker to the

right, and the aperture is reduced (images get darker). Position the marker

while watching an actual scene.

(5) RET

Press the E button to go back to the main menu screen.

6-4-3. GAIN

(1) Select GAIN on the main menu

screen. Press the E button, and

the screen at right shows up.

(2) GAIN

With the L and R buttons, the

gain control modes can be

selected.

AGC

This mode is initially set to

automatically optimize the

sensitivity and noise levels.

HYP-AGC

This mode is higher in sensitivity than AGC. But images may look rugged at

higher sensitivities.

LOW

This fixed-gain mode keeps the sensitivity low for brighter spots.

MID

This fixed-gain mode keeps the sensitivity middle between HIGH and LOW.

HIGH

The fixed-gain mode keeps the sensitivity high for darker spots.

(3) SENS UP

The electronic sensitivity up modes can be selected with the L and R buttons.

At all the positions but OFF, the automatic gain control function turns on itself.

The HYP-AGC mode can also be switched on.

OFF (initial setting)

S/N

The signal-to-noise ratio priority mode is used in shooting subjects that vary

in brightness and move slightly.

STD

The standard mode is used in shooting subjects in brightness-changing

spots to suppress both blurry images and rugged looks.

MOVE

The motion priority mode is used in shooting subjects that vary in

brightness and move greatly like on the street and in parking lots.

* Note: With the sensitivity multiplying factor at maximum, the motion-dependent

blurriness and ruggedness look the same in all the 3 modes.

(4) SLOW SHUTTER

The electronic sensitivity multiplying factor can be adjusted with the L and R

buttons.

x2, x4, x8, x16, x32

The higher the factor, the higher the sensitivity, but motions at maximum factor

look unnatural.

6-4-4. WHITE BALANCE

The white balance mode is selected. The manual white balance settings are

made.

(1) The white balance modes can be switched with the L and R buttons.

ATW (initial setting)

White balance is automatically followed up.

ATW Ex

White balance is automatically followed up, but the color temperature range

gets higher than the ATW mode. Compared with the ATW mode, color

fading may be caused under usual light sources.

AWC

This is the so-called one-push automatic white balance control. Shoot a

target white subject and press the E button, and the white balance will be

adjusted.

MANUAL

Select MANUAL, press the

E button and the screen at

left appears onscreen.

R GAIN is used to adjust the

reddish shades.

B GAIN is used to adjust the

bluish shades.

6-4-5. SYNC

(1) The INT and LL modes can be

selected with the L and R buttons.

(2) INT

The internal sync mode is selected.

(3) LL

The line lock mode is selected. Press the E button, and the screen at right

shows up.

PHASE

With the L or R button,

move the marker to finely

adjust the phase.

+90DEG

With the E button, the phase

angle can be adjusted to 0 , °

90 , 180 or 270 in the ° ° °

increment of 90 .°

RET

Used to go back to the main

menu screen.

* The LL mode is not effective when the camera is on DC power.

6-4-6. MENU LOCK

The menu lock function protects saved settings against accidental modifications.

(1) Locking

Get the saved settings locked with the L and R buttons.

(2) Operation

When locked, EXIT alone is effective and all the other actions are inoperative.

(3) Unlocking

Press the U, R, D, L, U, D and E buttons in this order. If a wrong button is

pressed halfway, start all over again.

6-4-6. SPECIAL MENU

(1) Highlight SETUP on the main

menu screen and hold down the

L and R buttons together. The

SPECIAL MENU screen at right

shows up.

(2) VIDEO STANDARD

The video signal systems

(NTSC/PAL) are switched here.

Select VIDEO STANDARD,

press thee button and the

warning screen at right shows

up.

CANCEL: Used to go back to

the SPECIAL MENU screen.

OK: Used to go to the

SELECT VIDEO

STANDARD screen. (See at

right.)

Highlight VIDEO

STANDARD. With the L or

R button, the NTSC and

PAL systems can be

switched each other.

* Each time another system

is selected, the current

settings will be back to their factory ones.

* Select RET, and the SPECIAL MENU screen reappears.

(3) COLOR BAR

Press the E button to get the color bars displayed. Press the E button again to

go back to the SPECIAL MENU screen.

(4) CHROMA

With the L and R buttons, the chroma level can be adjusted. Make the

adjustment to your desired level while watching an image onscreen.

(5) DETAIL

With the L and R buttons, the details can be adjusted. Make the adjustment to

your taste while watching an image onscreen.

(6) SETUP

With the L and R buttons, the setup level can be selected: 0 IRE and 7.5 IRE.

(7) RET

Used to go back to the main menu screen.

VIDEO OUT

LENS

MAX40mA

UERL

POWER

DC VIDEO

+–

CLASS 2

DC12V330mA

AC24V50/60Hz370mA

SE T UP

7 8

6 12

Back View

Video output connector (VIDEO OUT)

• This is the output connector of video signal.

• The connector is used to connect the video camera to the video input

connector of a monitor, switcher or the like. (To be connected with 75-ohm

impedance)

• Use a coaxial cable for connection.

(Typical connections)

6-1. User setup

This camera can be user-set for picture quality, sync control, IDs, etc. The

SETUP MENU comes in a tree format. The onscreen display of characters is

used to make various settings.

6-2. SETUP switches and their functions

The pushbuttons and their markings at left are provided on

the back of the camera.

ＳＰＯＴＺＯＮＥ−１ＥＮＴ：２ＳＥＣ→ＲＥＴ

A warranty accompanies this product. Read and fill out the warranty card that you

have received at your dealer. Keep this card in a safe place.

•

Please consult Ikegami Electronics (U.S.A.) Inc. or Ikegami Electronics

(Europe) GmbH or your dealer for full warranty information. Your dealer will

repair or replace free of charge within the warranty period according to the

warranty coverage.

• For repairs after the expiration of the warranty period, consult your dealer or

sales representative. It will first be judged whether the trouble is repairable

or not. Charged servicing will then be made upon request of the user.

• Before you ask for servicing, take trouble of reading the Instruction Manual. If

the unit still fails, take note of the model number, date of purchase, problem,

etc. in detail, and inform your dealer or sales representative.

• If you have questions about the after-sale service, contact your dealer or sales

representative.

* We suggest you ask for preventive inspection earlier.

Back View



Produkt Specifikationer

Mærke:	Ikegami
Kategori:	Overvågningskamera
Model:	ISD-A10

Har du brug for hjælp?

Hvis du har brug for hjælp til Ikegami ISD-A10 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Overvågningskamera Ikegami Manualer

Ikegami ECO-312700 Manual

29 August 2024

Ikegami ICD-809 Manual

29 August 2024

Ikegami ICD-38 Manual

29 August 2024

Ikegami ICD-68 Manual

29 August 2024

Ikegami ICD-E11 Manual

29 August 2024

Ikegami Hyper Dynamic IPD-BX11 Manual

29 August 2024

Ikegami ISD-A21 Manual

29 August 2024

Ikegami ISD-A15 Manual

29 August 2024

Ikegami High Performance IPD-DM100 Manual

29 August 2024

Ikegami ICD-525 Manual

29 August 2024

Overvågningskamera Manualer

Nyeste Overvågningskamera Manualer

Hikvision DS-2CE12KF3T-LS Manual

18 December 2024

Bolin Technology B6-420 Manual

18 December 2024

Hikvision DS-2CE16U0T-LF Manual

18 December 2024

Hikvision DS-2CE10KF3T-LSYE Manual

18 December 2024

Hikvision DS-2CE10KF3T-LS Manual

18 December 2024

Hikvision DS-2CE76U0T-LMF Manual

18 December 2024

Hikvision DS-2CE12KF3T-LSYE Manual

18 December 2024

Hikvision DS-2CE72KF3T-LS Manual

18 December 2024

Hikvision DS-2CE17U0T-LF Manual

18 December 2024

Hikvision DS-2CE72KF3T-LSYE Manual

18 December 2024
