Ikegami Tsushinki Co., Ltd.
INSTRUCTION MANUAL
MODEL
OUTDOOR USE WARNING
ISD-A14
COLOR CAMERA
U021042-00
■ Ikegami Electronics (U.S.A.), Inc.
37 Brook Avenue, Maywood, N.J. 07607, U.S.A.
Phone: (201) 368-9171, FAX (201) 569-1626
www.Ikegami.com
Instructions for Disposal of Electric and Electronic
Equipment in Private Household
Disposal of used Electric and Electronic Equipment
(Applicable in the European Union and other European
countries with separate collection systems)
Thank you very much for your wise choice of the Ikegami Color
Camera. Please carefully read this Instruction Manual to keep your
camera at full capacity. This video camera is equipped with a 1/3"
Digital Pixel Sensor (DPS) system.
This symbol on the product, or in the related documents in
the package, indicates that this product shall not be treated
as normal household waste.Instead, it should be taken to a
proper applicable collection point or depot for the recycling
of electric and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent
possible negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste
handling of this product. The recycling of materials will help to
conserve natural resources.
For more detailed information about recycling of this product, please
contact your local city authority, your household waste disposal service
or the place where you purchased the product.
NOTE:
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
CAUTION;
ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PART RESPONSIBLE FOR COMPLIANCE
COULD VOID THE USERS AUTHORITY TO OPERATE THE
EQUIPMENT.
4.

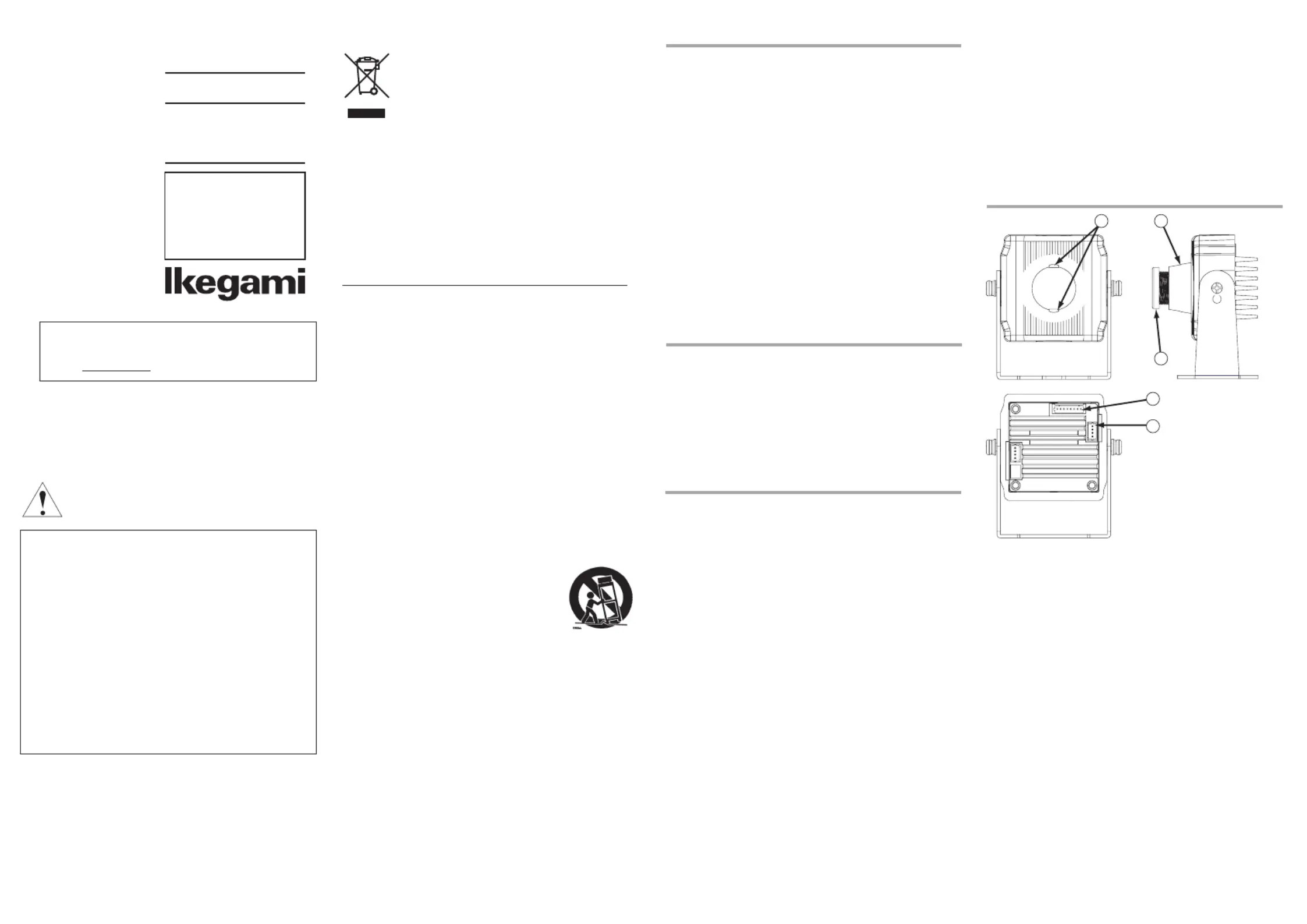

Names of parts and their functions
①Focus lock screw
With focus adjustment complete, this is used to
mechanically lock the lens. Tighten up the two screws,
upper and lower, to lock the lens.
②Lens mount
This is used to mount the lens on the camera.
③Set-up unit connector
Just hook up the set-up unit (sold separately), and the
camera's settings can be readily modified. For details
on the set-up unit, contact your local salesperson.
④Video output and DC12V power input connectors
This connector is used to connect the video output cable
and power input cable. Use the accompanying harness.
The power input DC jack is of the Center Plus type.
* This installation should be made by a qualified service
person and should conform to all local codes.
* Note: Before making connection, be sure that the
power is in the range of DC12V ± 10%. Be very
careful not to employ AC power because
otherwise the camera may get damaged.
⑤Lens
M12 mount lens can be mounted on the camera.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
2. General
3. Features
1. Handling precautions
This color camera is equipped with a 1/3" Digital Pixel Sensor
(DPS) system. It features WDR, high sensitivity and high
resolution, and is equipped with many functions. The camera
is best suited for being set up at ATMs and being housed in
other systems.
• Do not install the camera in a water-splashed or highly
humid environment.
• Do not use the camera where the ambient temperature
drops below -10°C or rises above +50°C. The images
and component parts may be adversely affected or the
camera may not function correctly.
• Never open the camera case because there are precision
electrical and electronic components inside and an
accident may result.
• Be sure to turn off the power before installing or making
connections.
• Be careful not to drop or give a strong shock to the
camera while transporting it.
• Do not touch the image sensor.
• Do not orientate the camera directly towards the sun.
• Images on the screen may look slightly rough at high
temperatures because of the image sensor
characteristics. This is not a system failure, however.
(1) Hyper Wide Light Dynamic Range (Hyper WDR)
The WDR function provides for very effective
compensation of high light and dark areas in screen. This
situation may occur generally outside or viewing from
indoor to outdoor scenes. Even in large light fluctuations,
bright-and-dark subjects can be captured and viewed
clearly with a natural appearance.
(2) Small-size cube shape
The small-size cube shape of the camera allows it to be
most suitable to be installed into various devices such as
ATM units.
(3) High-quality picture and high resolution
The camera is designed for smear-free imaging and low
noise. The well-designed DSP, Digital Signal Processor,
effectively enhances details, which achieves crisp and
sharp images with a high signal-to-noise ratio. The high
resolution of a horizontal resolution of 520 TV lines
(690HTVL-Effective) is assured.
(4) Automatic white balance
Thanks to the automatic follow-up white balance control
(ATW), the white balance adjusts itself no matter how
great the subject's color temperature fluctuates.
(5) Automatic Sensitivity Control
In conjunction with the wide dynamic control by the
multi-sampling system, the camera incorporates the
automatic sensitivity control function that always provides
adequate and bright images even through its fixed-iris
lens.
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any of the ventilation openings. Install in accordance
with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or grounding
type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for
your safety. When the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11) Only use the attachments/accessories specified by the
manufacturer.
12) Use only with a cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for
long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
15) CAUTION - These servicing instructions are for use by qualified
service personnel only. To reduce the risk of electric shock, do
not perform any servicing other than that contained in the
operating instructions unless you are qualified to do so.
(6) Scene File
In addition to normal setting (NORMAL), there are four
patterns for scene files (setting files) that are preset
beforehand to a particular scene. By selecting those
patterns, it is easy to carry out image setting suited to the
scene without having to carry out specialized image
adjustment.
(7) FOCUS EZ function
Thanks to this function, as the focus point is judged at a
glance, the focus adjustment is performed easily.
WARNING – TO PREVENT FIRE OR
ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
The apparatus shall not be exposed to
dripping or splashing and that no
objects filled with liquids, such as vases,
shall be placed on the apparatus.
4
3
2
5
1
