Side 1/20

Washer-dryer

Instructions for use

! This symbol reminds you to read this instruc-

tion manual.

Contents

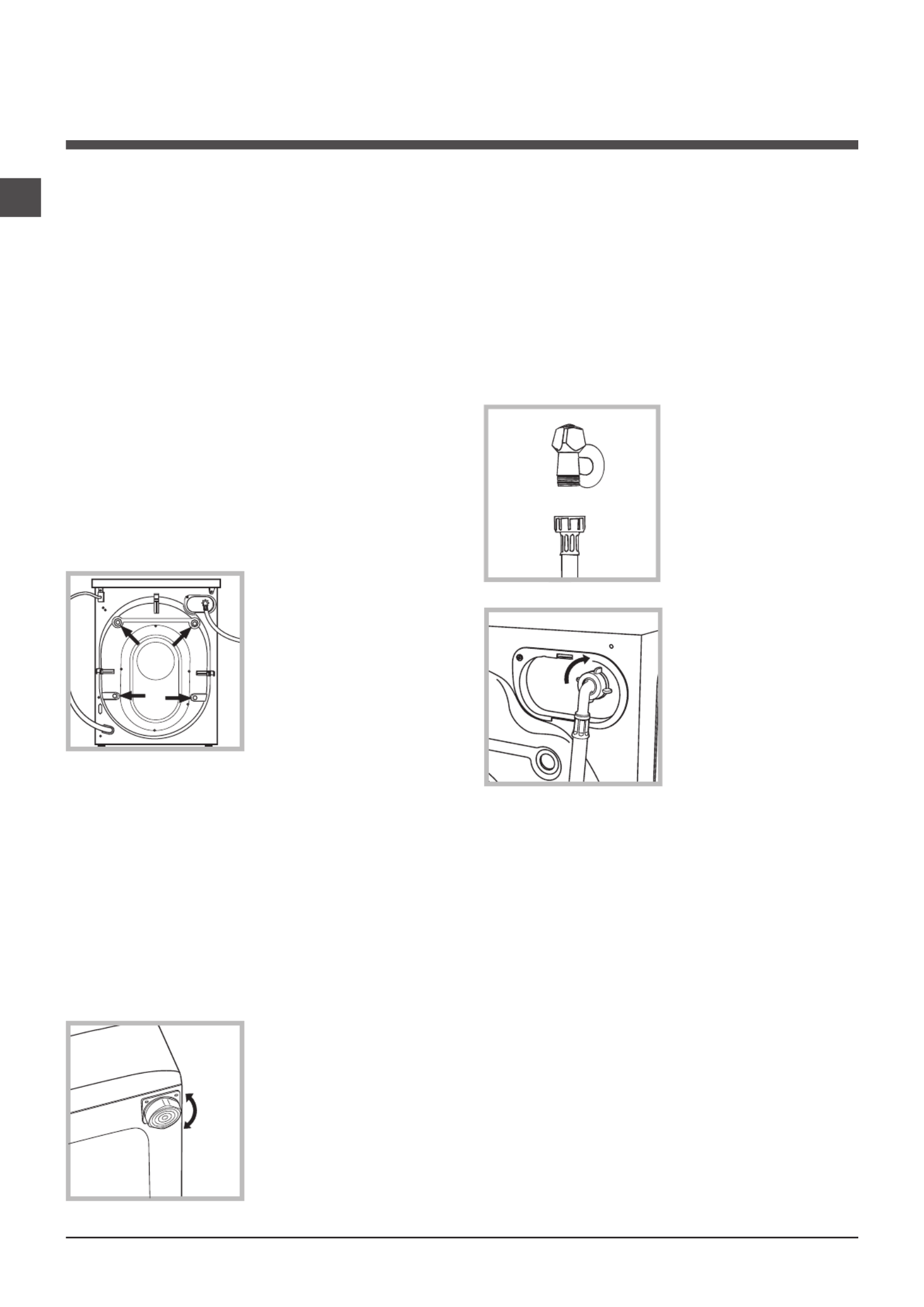

Installation, 2-3-4-5

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Care and maintenance, 6

Cutting off the water and electricity supplies

Cleaning the washer-dryer

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

Precautions and tips, 7

General safety

Disposal

Opening the porthole door manually

Description of the washer-dryer, 8-9

Control panel

Display

How to run a wash cycle or a drying cycle, 10

Wash cycles and options, 11-12

Table of wash cycles

Wash options

Push&Wash+Dry

Detergents and laundry, 13-14

Detergent dispenser drawer

Preparing the laundry

Special wash cycles

Load balancing system

Troubleshooting, 15-16

Assistance, 17-18

XWDE 1071681

English,1

Connecting the drain hose

Connect the drain

hose, without bending

it, to a draining duct or

a wall drain situated

between 65 and 100

cm from the floor;

The drain hose may

b e c o n n e c t e d t o

an under-sink trap.

Before connecting

the drain hose from

the machine ensure

that any blanks or

removable ends have

been taken off the

spigot.

If it is placed over the

edge of a basin or sink

be sure the free end of

the hose should not

be underwater.

! We advise against the use of hose extensions; in

case of absolute need, the extension must have the

same diameter as the original hose and must not

exceed 150 cm in length. Ensure that if the drain

hose is pushed into a standpipe, that the end does

not go down more than 15cms (6 inches). If the hose

is pushed down too far, this may cause the machine

to self -syphon ie. continuously empty as it is filling.

Electric connection

Before plugging the appliance into the mains

socket, make sure that:

• the socket is earthed and in compliance with

the applicable law;

• the socket is able to sustain the appliance’s

maximum power load indicated on the Technical

Data Plate fixed on the machine;

65 - 100 cm

Where it connects to

the waste water pipe

cut end off spigot or

remove the blanking cap

• the supply voltage is included within the values

indicated on the Technical Data Plate fixed on

the machine.

• the socket is compatible with the washing

machine’s plug. If this is not the case, replace

the socket or the plug.

Your appliance is now supplied with a 13 amp

fused plug it can be plugged into a 13 amp

socket for immediate use. Before using the

appliance please read the instructions below.

WARNING - THIS APPLIANCE MUST BE EARTHED.

THE FOLLOWING OPERATIONS SHOULD BE

CARRIED OUT BY A QUALIFIED ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA

approved fuse to BS 1362 should always be

used, and the fuse cover re-fitted. If the fuse

cover is lost, the plug must not be used until a

replacement is obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of

the correct colour as indicated by the coloured

marking or the colour that is embossed in words

on the base of the plug. Replacements can be

obtained directly from your nearest Service Depot.

Removing the plug:

If your appliance has a non-rewireable moulded

plug and you should wish to re-route the mains

cable through partitions, units etc., please

ensure that either:

the plug is replaced by a fused 13 ampere

rewireable plug bearing the BSI mark of approval.

or:

the mains cable is wired directly into a 13

amp cable outlet, controlled by a switch, (in

compliance with BS 5733) which is accessible

without moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself,

you make the pins unusable so that it cannot be

accidentally inserted into a socket.

Instructions for connecting cable to an alternative

plug:

Important: the wires in the mains lead are

coloured in accordance with the following code:

Green & Yellow Earth

Blue Neutral

Brown Live

As the colours of the wires in the lead may

not correspond with the coloured markings

identifying the terminals in your plug, proceed

as follows:

Connect Green & Yellow wire to terminal

marked E or or coloured Green or Green &

Yellow.

Connect Brown wire to terminal marked L or

coloured Red.

Connect Blue wire to terminal marked N or

coloured Black.

If a 13 amp plug (BS 1363) is used it must be

fitted with a 13 amp fuse, either in the plug or

adaptor or at the distribution board.

If you are in any doubt regarding the electrical

supply to your machine, consult a qualified

electrician before use.

How to connect an alternative plug:

The wires in this mains lead are coloured in

accordance with the following code:

BLUE NEUTRAL (N)

BROWN LIVE (L)

GREEN & YELLOW EARTH (E)

Disposing of the appliance:

When disposing of the appliance please

remove the plug by cutting the mains cable

as close as possible to the plug body and

dispose of it as described above.

! The washing machine should not be installed

in an outdoor environment, not even where

the area is sheltered, because it may be very

dangerous to leave it exposed to damp, rain

and thunderstorms.

! When the washing machine is installed, the

mains socket must be within easy reach.

! Do not use extensions or multiple sockets.

! The power supply cable must never be bent

or dangerously compressed.

! The power supply cable must only be

replaced by an authorised serviceman.

Warning! The company denies all liability if and

when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and

before you use it for the first time, run a wash

cycle with detergent and no laundry, using the

wash cycle “Auto Clean” (see “Cleaning the

washing machine”).

GREEN &

YELLOW

BROWN

BLUE

13 ampere fuse

CROSS-BAR

CORD GRIP

Technical data

Model XWDE 1071681

Dimensions

width 59.5 cm

height 85 cm

depth 60.5 cm

Capacity

from 1 to 10 kg for wash

programme

from 1 to 7 kg for the drying

programme

Electrical

connections

please refer to the technical

data plate fixed to the machine

Water con-

nections

maximum pressure

1 MPa (10 bar)

minimum pressure

0.05 MPa (0.5 bar)

drum capacity 71 litres

Spin speed up to 1600 rotations per

minute

Energy ra-

ted

programmes

according to

regulation

EN 50229

wash: programme 11; tem-

perature 60°C; using a load

of 10 kg.

drying: the smaller load

(3kg) must be dried by se-

lecting the “ ” dryness le-

vel. The load must consist of

3 sheets, 2 pillowcases and

1 hand towel; the remainder

of the load must be dried by

selecting the “ ” dryness

level.

This appliance conforms to

the following EC Directives:

- 2004/108/EC (Electroma-

gnetic Compatibility)

- 2006/95/EC (Low Voltage)

- 2012/19/EU (WEEE)

Care and maintenance

Cleaning the pump

The washer-dryer is fitted with a self-

cleaning pump which does not require any

maintenance. Sometimes, small items (such

as coins or buttons) may fall into the protective

pre-chamber at the base of the pump.

! Make sure the wash cycle has finished and

unplug the appliance.

To access the pre-chamber:

1. Take off the cover

panel on the front

of the machine by

first pressing it in

the centre and then

pushing downwards

on both sides until

you can remove it

(see figures).

2. Unscrew the lid

by rotating it anti-

clockwise ( )see figure :

a little water may

trickle out. This is

perfectly normal.

3. Clean the inside thoroughly.

4. Screw the lid back on.

5. Reposition the panel, making sure the hooks

are securely in place before you push it onto

the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If

there are any cracks, it should be replaced

immediately: during the wash cycles, water

pressure is very strong and a cracked hose

could easily split open.

! Never use second-hand hoses.

Cutting off the water and electricity

supplies

• Turn off the water tap after every wash cycle.

This will limit wear on the hydraulic system inside

the washer-dryer and help to prevent leaks.

• Unplug the washer-dryer when cleaning it and

during all maintenance work.

Cleaning the washer-dryer

• The outer parts and rubber components

of the appliance can be cleaned using a soft

cloth soaked in lukewarm soapy water. Do not

use solvents or abrasives.

• The washer-dryer has a “Auto Clean”

programme for its internal parts that must be

run with no load in the drum.

For maximum performance you may want

to use either the detergent (i.e. a quantity

10% the quantity specified for lightly-soiled

garments) or special additives to clean the

washer-dryer. We recommend running a

cleaning programme every 40 wash cycles.

To start the programme press buttons and A

B simultaneously for 5 seconds (see figure).

The programme will start automatically and

will last approximately 70 minutes. To stop the

cycle press the START/PAUSE button.

Cleaning the detergent dispenser

drawer

To remove the drawer,

press lever (1) and pull

the drawer outwards

(2) (see figure).

Wash it under running

water; this procedure

should be repeated

frequently.

Caring for the door and drum of your

appliance

• Always leave the porthole door ajar in order to

prevent unpleasant odours from forming.

Description of the washer-dryer

Control panel

TEMPERATURE

button

WASH

CYCLE

SELECTOR

KNOB

Detergent dispenser drawer

ON/OFF

button

SPIN

button

START/PAUSE

button

and indicator light

DELAYED

START

button

OPTION

buttons

Detergent dispenser drawer: used to dispense

detergents and washing additives (see “Detergents and

laundry”).

ON/OFF button: press this briefly to switch the

machine on or off. The START/PAUSE indicator light which

flashes slowly in a green colour shows that the machine

is switched on. To switch off the washer-dryer during the

wash cycle, press and hold the button for approximately 3

seconds; if the button is pressed briefly or accidentally the

machine will not switch off.

If the machine is switched off during a wash cycle, this

wash cycle will be cancelled.

PUSH&WASH+DRY :button (see “Wash cycles and

options”).

WASH CYCLE SELECTOR KNOB: used to set the

desired wash cycle ”).(see “Table of wash cycles

OPTION buttons:press to select the available options.

The indicator light corresponding to the selected option will

remain lit.

TEMPERATURE button: press to reduce or

completely exclude the temperature; the value appears on

the display.

SPIN button: press to reduce or completely exclude

the spin cycle; the value appears on the display.

DELAYED START button: press to set a delayed

start for the selected wash cycle; the delay period appears

on the display.

DRYING :button press to decrease or exclude drying;

the selected drying level or time will appear on the display

(see “How to run a wash cycle or a drying cycle”).

START/PAUSE button and indicator light: when the

green indicator light flashes slowly, press the button to

start a wash cycle. Once the cycle has begun the indicator

light will remain lit in a fixed manner. To pause the wash

cycle, press the button again; the indicator light will flash

in an amber colour. If the symbol is not illuminated, the

door may be opened. To start the wash cycle from the

point at which it was interrupted, press the button again.

Standby mode

This washer-dryer, in compliance with new energy saving

regulations, is fitted with an automatic standby system

which is enabled after about 30 minutes if no activity is

detected. Press the ON-OFF button briefly and wait for the

machine to start up again.

Consumption in off-mode: 0,5 W

Consumption in Left-on: 8 W

DISPLAY

PUSH&WASH+DRY

button

DRYING

button

The display is useful when programming the machine and provides a great deal of information.

The duration of the available wash cycles and the remaining time of a running cycle appear in section ; if the DELAYED A

START option has been set, the countdown to the start of the selected wash cycle will appear.

Pressing the corresponding button allows you to view either the maximum spin speed, temperature and drying time values

attained by the machine during the set wash cycle, or the values selected most recently (if compatible with the set wash

cycle).

The hour-glass flashes while the machine processes the data on the basis of the selected programme. After a maximum of

10 minutes, the icon remains lit in a fixed manner and the final amount of time remaining is displayed. The hour-glass icon

will then switch off approximately 1 minute after the final amount of time remaining has appeared.

The “wash cycle phases” corresponding to the selected wash cycle and the “wash cycle phase” of the running wash cycle

appear in section :B

Main wash

Rinse

Spin/Drain

Drying

The “delay” symbol , when lit, indicates that the set “delayed start” value has appeared on the display.

There are three levels in section concerning the washing options.C

Section includes the icons related to the three different drying levels as well as the icon , which lights up when a timed D

drying option is set.

DOOR LOCKED indicator light:

The lit symbol indicates that the door is locked. To prevent any damage, wait until the symbol turns off before opening the

door.

To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED symbol is switched

off the door may be opened.

Display

How to run a wash cycle or a

drying cycle

Rapid programming

1. LOAD THE LAUNDRY. Open the porthole door.

Load the laundry, making sure you do not exceed

the maximum load value indicated in the table of

programmes and wash cycles on the following page.

2. ADD THE DETERGENT. Pull out the detergent

dispenser drawer and pour the detergent into the relevant

compartments as described in “Detergents and laundry”.

3. CLOSE THE DOOR.

4. Press the “PUSH&WASH+DRY” button to start the

programme.

Traditional programming

1. Press the button; SWITCH THE MACHINE ON.

the START/PAUSE indicator light will flash slowly in a

green colour.

2. LOAD THE LAUNDRY. Open the porthole door.

Load the laundry, making sure you do not exceed

the maximum load value indicated in the table of

programmes and wash cycles on the following page.

3. ADD THE DETERGENT. Pull out the detergent

dispenser drawer and pour the detergent into the relevant

compartments as described in “Detergents and laundry”.

4. CLOSE THE DOOR.

5. SELECT THE WASH CYCLE. Use the WASH CYCLE

SELECTOR knob to select the desired wash cycle. A

temperature and spin speed is set for each wash cycle;

these values may be adjusted. The duration of the cycle

will appear on the display.

6. CUSTOMISE THE WASH CYCLE. Use the relevant buttons:

Modify the temperature and/or spin

speed. The machine automatically displays the

maximum temperature and spin speed values set for

the selected cycle, or the most recently-used settings

if they are compatible with the selected cycle. The

temperature can be decreased by pressing the

button, until the cold wash “OFF” setting is reached.

The spin speed may be progressively reduced by

pressing the button, until it is completely excluded

(the “OFF” setting). If these buttons are pressed again,

the maximum values are restored.

Setting the drying cyclea

The first time the button is pressed, the machine will

automatically select the maximum drying cycle which is

compatible with the selected wash cycle. Subsequent

presses will decrease the drying level and then the drying

time, until the cycle is excluded completely (“ ”).OFF

Drying may be set as follows:

- Based on the desired laundry dryness level:A

Cupboard :suitable for laundry which can be put

back in a cupboard without being ironed.

Hanger : ideal for clothes which do not need to be

dried fully.

Iron :suitable for clothes which will need ironing

afterwards. the remaining dampness softens creases,

making them easier to remove.

B - Based on a set time period: between 210 and 30 minutes

If your laundry load to be washed and dried is much

greater than the maximum stated load (see adjacent

table of wash cycles), perform the wash cycle, and

when the cycle is complete, divide the garments into

groups and put some of them back in the drum. At this

point, follow the instructions provided for a “Drying

only” cycle. Repeat this procedure for the remainder of

the load.

Note: a cooling-down period is always added to the end

of each drying cycle.

Drying only

Press button to perform the drying-only cycle.

After selecting the desired cycle (compatible with

the type of garments), press button to exclude

the washing phase and start the drying phase at the

maximum level for the selected cycle. The drying level

or time may be set and changed by pressing the drying

button .

(Not compatible with cycles 13 and 14).

Setting a delayed start.

To set a delayed start for the selected cycle, press the

corresponding button repeatedly until the required delay

period has been reached. When this option has been

activated, the symbol lights up on the display. To

remove the delayed start setting, press the button until

the text “OFF” appears on the display.

Modify the cycle settings.

• Press the button to enable the option; the indicator

light corresponding to the button will switch on.

• Press the button again to disable the option; the

indicator light will switch off.

! If the selected option is not compatible with the set

wash cycle, the indicator light will flash and the option

will not be activated.

! The options may affect the recommended load value

and/or the duration of the cycle.

7. Press the START/START THE WASH CYCLE.

PAUSE button. The corresponding indicator light will

turn green, remaining lit in a fixed manner, and the door

will be locked (the DOOR LOCKED symbol will be lit).

To change a wash cycle while it is in progress, pause

the washer-dryer using the START/PAUSE button

(the START/PAUSE indicator light will flash slowly in an

amber colour); then select the desired cycle and press

the START/PAUSE button again. To open the door

while a cycle is in progress, press the START/PAUSE

button; if the DOOR LOCKED symbol is switched

off the door may be opened. Press the START/PAUSE

button again to restart the wash cycle from the point at

which it was interrupted.

8. This will be THE END OF THE WASH CYCLE.

indicated by the text “ ” on the display; when the END

DOOR LOCKED symbol switches off the door may

be opened. Open the door, unload the laundry and

switch off the machine.

! If you wish to cancel a cycle which has already begun,

press and hold the button. The cycle will be stopped

and the machine will switch off.

Produkt Specifikationer

Mærke:	Indesit
Kategori:	Vaskemaskine
Model:	XWDE 1071681X W UK

Har du brug for hjælp?

Hvis du har brug for hjælp til Indesit XWDE 1071681X W UK stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Vaskemaskine Indesit Manualer

Indesit W 144 XS Manual

15 Januar 2025

Indesit WN860WSK Manual

15 Januar 2025

Indesit lna 1000 Manual

15 Januar 2025

Indesit wia 600 Manual

15 Januar 2025

Indesit wite 127 Manual

14 Januar 2025

Indesit XWD 61452 Manual

13 Januar 2025

Indesit IM 712B MY TIME UA Manual

13 Januar 2025

Indesit IM 602B MY TIME UA Manual

13 Januar 2025

Indesit IM 600 MY TIME UA Manual

12 Januar 2025

Indesit IM 762 MY TIME EE Manual

9 Januar 2025

Vaskemaskine Manualer

Nyeste Vaskemaskine Manualer

Vedette VLT1155W Manual

22 Marts 2025

Vedette VLT612E2 Manual

22 Marts 2025

Vedette VLT6112at Manual

22 Marts 2025

Vedette LTV6011 Manual

22 Marts 2025

Vedette VED6012EL Manual

22 Marts 2025

Vedette VT16022Q Manual

22 Marts 2025

Vedette VT16024Q Manual

22 Marts 2025

Vedette TVC651 Manual

22 Marts 2025

Vedette VT6522Q Manual

22 Marts 2025

Vedette VT602BQ Manual

22 Marts 2025
