BlueKeeper
Wireless Audio Gateway
User Guide
2
Introduction
JK Audio combines Bluetooth* Wireless Technology with profes-
sional audio electronics in a convenient desktop design.
BlueKeeper pairs to your cell phone like a Bluetooth wireless
headset. Connect your favorite microphone and headphones for
dramatically improved sound quality at both ends of the call.
BlueKeeper also pairs to Bluetooth equipped sound cards and
music players in full bandwidth stereo A2DP mode.
What is an Audio Gateway?
BlueKeeper allows you to send mic and line level signals into your
wireless phone while maintaining excellent separation between
your voice and the caller. The stereo output jack provides your
voice on one channel and only the caller’s voice on the other chan-
nel. The balanced XLR output jack contains only the caller’s voice.
The 3.5 mm stereo line input jack allows recordings to be sent into
the Bluetooth device. The 3.5 mm stereo line output jack provides
your full bandwidth send mix on the left channel and Bluetooth
caller audio on the right channel. The headphone output gives you
a mix of the XLR input, 3.5 mm input, and Bluetooth audio.
Any Questions?
Before you pick up the phone… Please thumb through the rest of
this manual. You might find those deep technical questions are
covered on later pages.
* The Bluetooth word mark and logos are owned by the Bluetooth
SIG, Inc. and any use of such marks by JK Audio, Inc. is under
license. Other trademarks and trade names are those of their
respective owners.
3
Warnings and Safety Precautions
1. Read and keep these instructions.
2. Follow all instructions and heed all warnings.
3. Clean only with a soft dry cloth.
4. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
5. Do not defeat the safety purpose of the three-prong grounding-
type plug. If the provided plug does not fit into your outlet, con-
sult an electrician for replacement of the obsolete outlet.
6. Do not use this unit if the electrical power cord is frayed or bro-
ken. The power cord should be routed so that it is not likely to
be walked on or pinched by items placed on or against it.
7. To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
8. Refer all servicing to qualified service personnel.
4
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings and Safety Precautions . . . . . . . . . . . . . . . . . . . . . 3
Features
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connection
Basic Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation
Send Signal Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Caller Signal Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Setup diagrams
Studio Mix-Minus Setup . . . . . . . . . . . . . . . . . . . . . . . 10-11
Why Do I Need a Mix-Minus Setup? . . . . . . . . . . . . . 12
Which Mix-Minus Setup Should I Use? . . . . . . . . . . . .12
Simple Setup for Mixer . . . . . . . . . . . . . . . . . . . . . . . . 13
Mono Output to Recorder . . . . . . . . . . . . . . . . . . . . . . 14
Stereo Output Interface . . . . . . . . . . . . . . . . . . . . . . . 14
Bluetooth Wireless Technology
Bluetooth Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting to a Bluetooth Device . . . . . . . . . . . . . . . 16-17
FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
FCC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5
Table of Diagrams
Figure 1: BlueKeeper Front View . . . . . . . . . . . . . . . . . . . . . . 6
Figure 2: BlueKeeper Rear View . . . . . . . . . . . . . . . . . . . . . . 7
Figure 3: Basic Connections . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 4: Studio Mix-Minus Setup . . . . . . . . . . . . . . . . . . . . . .10
Figure 5: Simple Setup for Mixer. . . . . . . . . . . . . . . . . . . . . . . 13
Figure 6: Mono Output to Recorder. . . . . . . . . . . . . . . . . . . . 14
Figure 7: Stereo Output Interface . . . . . . . . . . . . . . . . . . . . . 14
Figure 8: Bluetooth LED Patterns. . . . . . . . . . . . . . . . . . . . . . 17
Figure 9: Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
This lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage” within the
product’s enclosure, that may be of sufficient magnitude
to constitute a risk of electric shock.
6

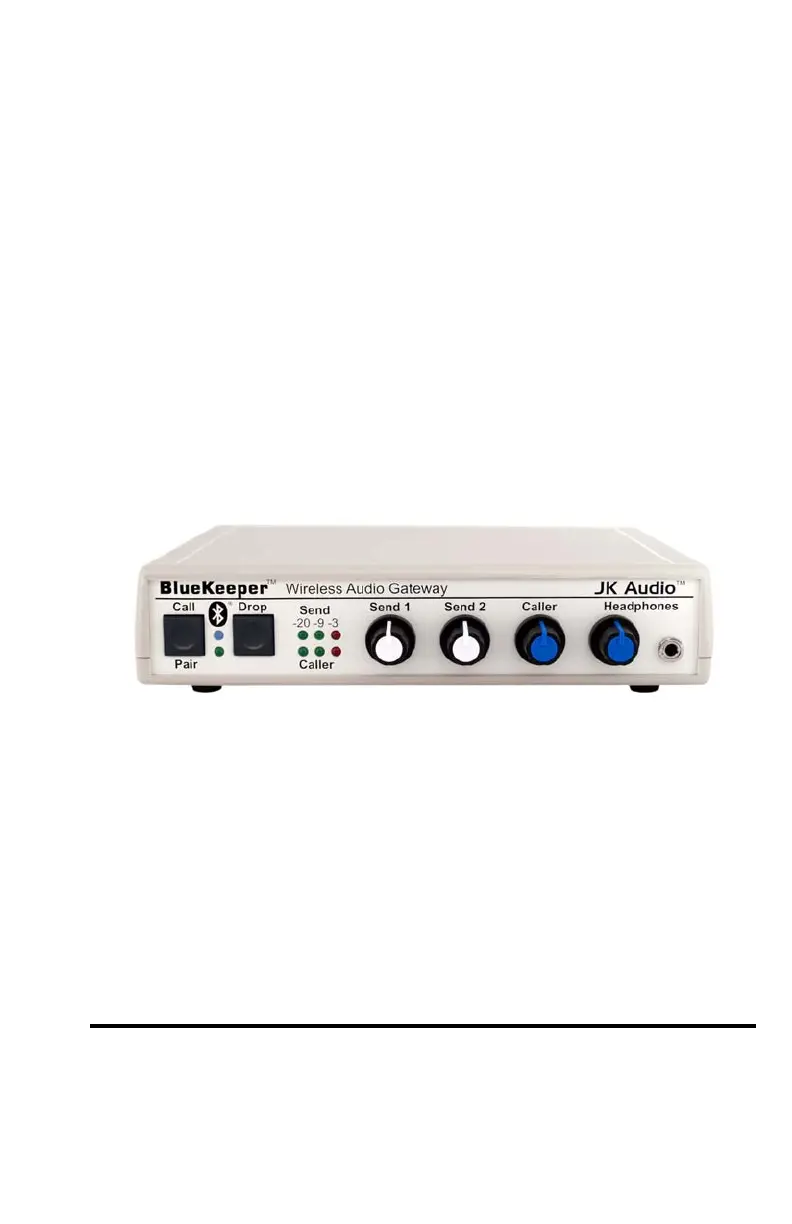

Features—Front View
Figure 1: Front View
1 2 3 4 5 6 7
8 9
10 11
1. Call Button - Press this button to initiate Bluetooth Idle or Pair-
ing mode, redial an outgoing call or accept an incoming call.
2. Drop Button - Press this button to drop (hang up) a call.
3. Send 1 Level - Adjusts the signal level that you are sending out
to the cell phone through the female XLR input.
4. Send 2 Level - Adjusts the signal level that you are sending out
to the cell phone through the 3.5mm mini jack input.
5. Caller Level - Adjusts the level of the incoming audio as it is
going out the output jacks.
6. Headphone Level - Adjusts the signal level coming from the
3.5mm front panel headphone jack.
7. Headphones - The 3.5mm stereo headphone jack contains a
mix of both the Send input audio and the Caller audio.
8. Blue LED - Indicates Bluetooth status, lit steady when you are
on line with a call or flashes to show pairing status.
9. Send LEDs - Displays the signal level going to the phone call.
10. Power LED - Lit when unit is plugged in and receiving power.
11. Caller LEDs - Displays the signal level coming in from the
phone call, after the DSP. This signal level will not change
when you adjust the Caller knob.
7
Features—Rear View
Figure 2: Rear View
12. Bluetooth antenna - do not obstruct.
13. Caller Output - Male balanced XLR output contains only the
caller’s voice at line level.
14. Send 1 Input - Female balanced XLR input for signals going
out to the cell phone. Mic or line level input.
15. Mic / Line switch - Sets the front end sensitivity of the Send 1
XLR jack. Set to Mic if you intend to connect a dynamic micro-
phone directly to the Send 1 jack. Set to Line if you are con-
necting to the output of a mic pre-amp or mixer.
16. Send 2 Stereo Input - 3.5mm mono mini jack input for signals
going into the cell phone. Line level.
17. Stereo Output - 3.5 mm stereo mini jack line level output con-
tains both Send and Caller audio channels with levels deter-
mined by the Send 1 and Send 2 level controls and the Caller
level control. Left channel contains your local Send audio and
right channel contains the Caller's audio from the cell phone.
18. Mono Output - 3.5 mm mono mini jack output contains a mix of
Send 1, Send 2 and Caller audio with levels controlled by
each of the input control knobs on the front of the unit. This
output is at Mic level and is suitable for connecting to the Mic
input on a computer or other recording device.
19. Power Jack - For connection only to the supplied 9VDC regu-
lated power supply.
12 13 14 15 16 17 18 19
8
Connection
Figure 3: Basic Connections
Although each application may require a slightly different setup, the
following diagram shows a primary configuration.
For a direct connection to BlueKeeper:
Send Audio - Connect a dynamic microphone cable to the Send
1 jack on the BlueKeeper. Be sure to set the Mic/Line button to
the “Mic” position.
Output - Connect a stereo cable from the mini-jack “Stereo Out”
on the BlueKeeper to the “Line In” on your computer sound card
or other recording equipment that has a stereo input, or connect
a mono cable from the mini-jack “Mono Out” on the BlueKeeper
to the “Mic In” on your laptop computer or other recording equip-
ment.
Power - Connect the supplied DC power supply to the back of
the BlueKeeper and then to an AC power outlet.
Your BlueKeeper is now ready to take calls. You can establish a
connection to your Bluetooth enabled cellular phone (see pages
16-17) and place or receive a call.
Set the “Send” level control so that while you are speaking into
the mic, the Send LEDs on the BlueKeeper light the -20 dB green
LED consistently and flash the -9 dB green LED with only occa-
sional flashes on the -3 dB red LED. Set the “Caller” control for
good recording level of the caller audio at the output jack.
Set to
“Mic”
Mic
in
Sound Card
Computer
Line
in
Line
out
Connect Stereo Out
to PC Line In or to
Stereo Line Input on
mini recorder
9
Operation
Send Signal Level
The Send LEDs display the signal level as it goes out to the phone
caller and can be used as a general guide during setup. The goal is
to drive the Send audio at high enough levels to avoid phone line
noise, but not so loud as to cause excessive clipping and distortion.
Adjust the Send level control so that you occasionally see flashes of
the red -3dB peak Send LED. Then place a test call to someone.
Readjust the Send level so that your audio is at a comfortable lis-
tening level without distortion.
The Send 1 volume control will set the level of any audio connected
to the Send 1 XLR jack on the back of the BlueKeeper. The Send 2
control will set the level of the Send 2 mini jack on the back of the
BlueKeeper. These two inputs will be combined on the LED meter
and on the Left channel of the stereo output mini jack.
Caller Signal Level
The Receive LEDs display the strength of the audio signal coming
from the Bluetooth enabled cell phone, just after the DSP. The
Caller level control knob on the BlueKeeper does not change what
you see on these LEDs. You can adjust the volume controls on your
cell phone to set the incoming Caller level on the LED meter. Then
adjust the Caller knob on the BlueKeeper to give you the best signal
level at the Caller XLR output or the Right channel of the stereo out-
put mini jack.
You can listen to the combined audio level in your headphones. Af-
ter setting the Send levels for the highest level you can send without
distortion as indicated by the LED meter, listen to the audio in your
headphones and set the Caller level to match the Send level. Or if
your recording device has a meter, you can use that to match the
Caller level to the Send level.
WARNING! It is strongly recommended that this product
be connected to an adequate surge protection device for
the power line at all times.


Produkt Specifikationer

Mærke: JK Audio
Kategori: Hi-Fi system
Model: BlueKeeper

Har du brug for hjælp?

Hvis du har brug for hjælp til JK Audio BlueKeeper stil et spørgsmål nedenfor, og andre brugere vil svare dig




Hi-Fi system JK Audio Manualer

JK Audio

JK Audio Innkeeper 4 Manual

3 September 2024
JK Audio

JK Audio RIU-IP Manual

3 September 2024
JK Audio

JK Audio BlueKeeper Manual

3 September 2024
JK Audio

JK Audio THAT-2 Manual

3 September 2024
JK Audio

JK Audio AutoHybrid Manual

3 September 2024
JK Audio

JK Audio BlueSet Manual

3 September 2024
JK Audio

JK Audio ComPack Manual

3 September 2024

Hi-Fi system Manualer

Nyeste Hi-Fi system Manualer

AVM

AVM Ovation MP 8.3 Manual

25 Januar 2025
AVM

AVM Ovation MP 6.3 Manual

25 Januar 2025
Sangean

Sangean BB-100 Manual

22 Januar 2025
Sangean

Sangean HDR-15X Manual

20 Januar 2025
Sangean

Sangean HDR-19 Manual

20 Januar 2025
Sangean

Sangean WR-16 Manual

20 Januar 2025
Sangean

Sangean DDR-53BT Manual

20 Januar 2025
Sangean

Sangean CP-100 Manual

20 Januar 2025
