kanexpro.com

1405 Pioneer St., Brea, CA 92821

888.975.1368 info@kanexpro.com

MPN: SP-HD20-1X44K

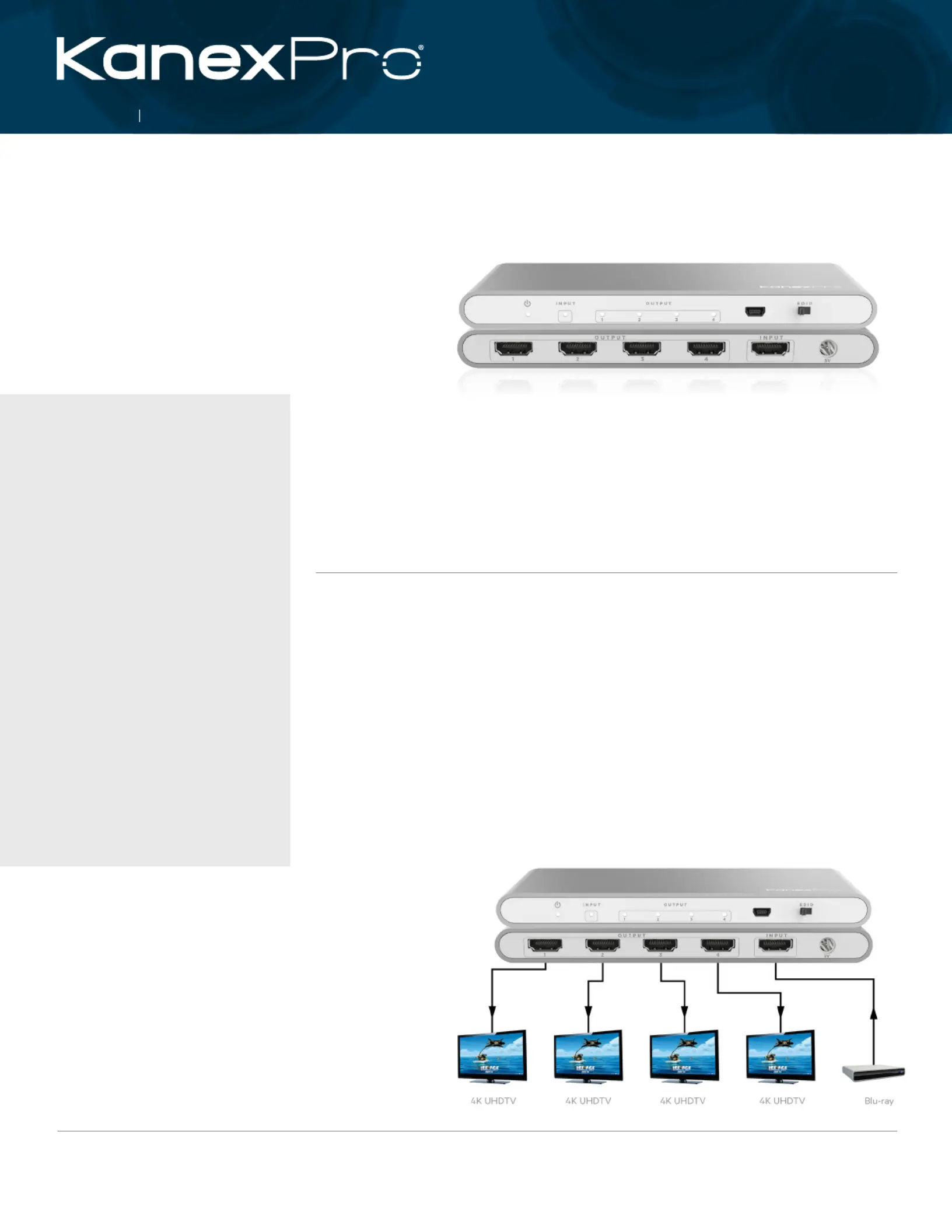

4K HDMI 1x4 Splitter with HDCP2.2

1x4 HDMI DA w/ HDCP2.2, 4K Cinema resolutions & Smart EDID Control

FEATURES

• Distribute True 4K HDMI video and audio

signals to four HD 4K displays

• True 4K@60Hz UHD, 1080p & 3D resolutions

• 4Kx2K @30Hz with 24bit RGB, YCBCR 4:4:4

& YCBCR 4:2:2

• 4Kx2K @60Hz with 12bit YCBCR 4:2:0

• Conforms to High Speed HDMI speciﬁcations:

SPECIFICATIONS

Signal Input/Outputs:

• Input DDC Signal: 5 Volts p-p (TTL)

• Input & Output Signal: High Speed HDMI

Spec 2.0a

Input Ports: 1 x HDMI (Female)

Output Port: 4 x HDMI (Female)

Operating Frequency: Vertical Frequency

Range: 50/60Hz

Supported Resolutions:

• 480i ~1080p50/60, 4Kx2K@24/30

• 4Kx2K@60Hz with 12bit YCBCR 4:2:0

• VGA~UXGA

Power Requirements:

• Power Consumption: 2W

• External Power Supply: 5V, 1A DC

Regulatory Approvals:

• Converter Unit: FCC, Ce, UL

• Power Supply: UL, Ce, FCC

Environment Operating Temperature:

• Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F

• Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

Dimensions: 2.52” (W) × 6.10” (D) × .67” (H)

Weight: 6.35 oz. (180g)

Package Contents:

• HDMI 1X4 Splitter

• 5V, 2A Power Supply

• Operation Manual

The KanexPro SP-HD20-1X44K is

an one input, four output HDMI

Distribution Ampliﬁer engineered

to split 4K quality videos or high

res images from one source

to four HD 4K displays with

resolutions up to 4K@60Hz and

HDCP2.2 speciﬁcations. Built-

in EDID management allows

optimal resolution to be selected

and properly outputted to avoid

response time and delays.

The conforming outputs also

have the ability of buffering and

amplifying all the HDMI signals.

It can achieve long distance

transmission of HDMI signals up

to 50 feet (15 meters) or can be

combined with our HDBaseT™

Extenders to route distances up to

330 feet (100 meters).

• (Deep color, HD lossless audio formats & Lip Sync)

• HDCP 2.2 compliant

• EDID Selector for optimal resolutions

• Built-in Smart EDID Control

• Front-panel LED’s for input/ output signal presence

• Includes 5V DC external power supply
